A router bit is excellent at removing material. But some materials do not need to be milled—they need to be cut.
That difference matters when a workshop moves from acrylic, PVC or wood panels into materials such as corrugated cardboard, soft foam, fabric or other flexible sheets.
Use a rotating router bit on the wrong material and the result may be:
Frayed edges
Compressed material
Too much dust or debris
Material wrapping around the tool
Poor control on soft sheets
This is where an oscillating knife can become much more useful.
And if the job also needs fold lines for packaging or display structures, a creasing tool may become part of the workflow as well.
So before adding another spindle tool, ask a simpler question:
Does this material need to be routed, cut with a blade or creased?
That decision should come before the machine configuration.
Job | Practical Tool Direction |
|---|---|
Acrylic profile cutting | Router spindle |
PVC foam board routing | Router spindle |
MDF / plywood | Router spindle |
ACP cutting and V-grooving | Router spindle |
Corrugated cardboard | Oscillating knife |
Soft foam inserts | Oscillating knife |
Flexible or soft sheet material | Knife tool, depending on material |
Packaging fold lines | Creasing tool |
Printed contour-cut parts | Knife + positioning system may be useful |
One product using rigid + soft materials | Multi-process CNC deserves consideration |
The important point is:
different materials on the same production floor may require different cutting principles.
A CNC router works by rotating a cutting tool at high speed and removing material as chips.
That makes sense for rigid materials such as:
Acrylic
PVC foam board
MDF
Plywood
Wood
ACP
Suitable non-ferrous materials
These materials normally have enough rigidity for the cutter to remove material in a controlled way.
Soft and flexible materials behave differently.
Imagine trying to machine a soft foam insert.
Instead of staying rigid while the cutter removes material, the foam may:
Deform
Compress
Move
Tear
Wrap around the tool
The problem is not necessarily the CNC motion system.
The problem may simply be that a rotating cutter is the wrong cutting principle for the material.

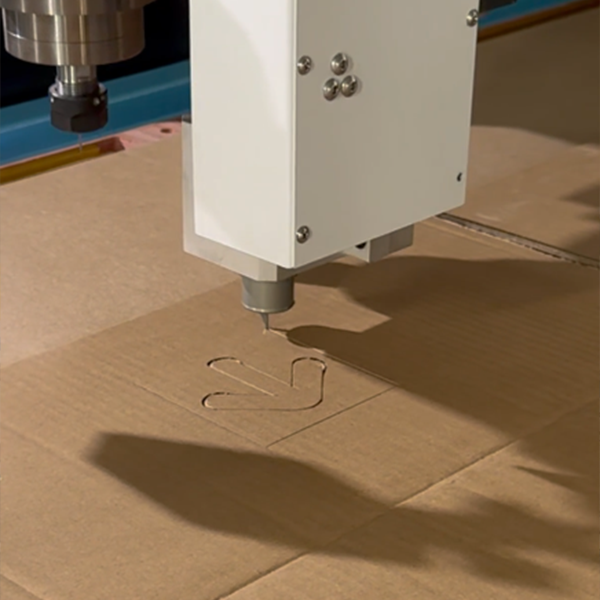

An oscillating knife uses a blade that moves rapidly up and down while the CNC moves along the programmed cutting path.
Instead of milling material away, the blade passes through it.
That makes it useful for materials where a clean blade cut makes more sense than chip removal.
Depending on the blade, material and machine configuration, typical applications may include:
Corrugated cardboard
Packaging board
Foam
Felt
Fabric
Leather or synthetic leather
Rubber-like sheet materials
Other soft or flexible substrates
The exact capability still depends on:
Material density
Thickness
Blade type
Cutting path
Workholding
So “oscillating knife” should not be treated as one universal tool for every soft material.
But the basic principle is easy to remember:
Rigid material that needs material removal → routing
Soft material that needs to be sliced → knife cutting
Cutting is only one part of many packaging jobs.
Imagine producing a folding carton or display structure.
The sheet may need:
Cut line → Fold line → Cut line → Fold line
If the machine cuts every line completely through the material, there is nothing left to fold.
That is where a creasing tool has a different role.
Instead of cutting through the material, it creates a controlled fold line.
This can be useful for applications such as:
Packaging samples
Folding structures
Cardboard displays
Prototype cartons
Certain advertising and display products
So a packaging workflow may require two different actions:
Cuts the outside shape.
Creates the fold line.
The machine needs to understand the difference between the two paths.
Consider a simple packaging prototype.
The digital file contains:
Outside contour
Internal slots
Fold lines
Openings
The production sequence may look like:
Load material
↓
Cut outside contour
↓
Cut slots and openings
↓
Create crease lines
↓
Remove part
↓
Fold and assemble
This is fundamentally different from routing an MDF cabinet panel.
The CNC motion may still follow a digital file, but the tool performing the work is different.
That is why machine selection should begin with the process inside the product, not simply the overall industry name.
Protective packaging often uses foam inserts shaped around:
Tools
Equipment
Electronics
Components
Display products
The objective is normally not to engrave the foam like wood.
It is to create a controlled shape that holds the finished product.
Depending on the foam type and thickness, a knife-based cutting process may be more appropriate than routing.
For thicker or more complex foam components, the required process may change again.
That is why a customer saying:
“I cut foam.”
is not enough information.
A supplier should also ask:
What kind of foam?
How thick is it?
Is it soft or rigid?
Do you need through-cutting or pocketing?
What does the finished insert look like?
The product determines whether knife cutting, routing or another process is more suitable.
Now consider a display or packaging workshop that processes several materials.
On Monday:
Acrylic display panels
On Tuesday:
PVC structural parts
On Wednesday:
Foam inserts
On Thursday:
Corrugated packaging samples
Buying one type of cutting tool for all four jobs creates compromises.
A multi-process CNC becomes interesting when the same production environment regularly needs both:
for rigid materials such as:
Acrylic
PVC
ACP
Wood-based panels
and:
for suitable soft or flexible materials.
The value is not simply having “more tools.”
The value is reducing the number of times a job needs to move between separate production systems.
More capability is not automatically better.
If your workshop only processes:
MDF
Plywood
Acrylic
PVC rigid sheets
ACP
and there is no regular soft-material work, an oscillating knife may add very little value.
Likewise, if packaging or fabric cutting happens only a few times per year, buying the machine around that rare application may not make sense.
Ask:
How much of my normal weekly production actually needs blade cutting?
If the answer is almost none, prioritize the routing configuration.
If soft materials are already a regular part of production, then the knife deserves much more attention.
Some display and advertising jobs begin with a printed sheet.
The cutting path needs to match the printed graphic.
In this situation, the problem is no longer only:
Which tool should cut it?
There is another question:
How does the machine locate the printed contour?
A camera-positioning system such as CCD can be relevant when registration marks or printed graphics need to be recognized before contour cutting.
This is particularly useful when printed-material processing is part of a broader sign or display workflow.
But again, do not add CCD because it appears on an option list.
Add it because printed contour alignment is a real production task.
UTECH ZPRO is designed for advertising and mixed-material production rather than only conventional rigid-sheet routing.
Its routing platform can be combined, depending on configuration, with functions such as:
Automatic tool changing
CCD positioning
Oscillating knife
Creasing tool
That makes the machine relevant when a workshop needs to move between rigid materials and selected soft or flexible materials within a broader production workflow.
For example:
Acrylic / PVC / ACP
→ spindle routing
Printed soft material
→ knife + positioning workflow
Packaging or folding lines
→ creasing tool
The important point is not that every ZPRO buyer needs all of these functions.
The configuration should still come from the materials and products the workshop actually makes.
Regular work:
Acrylic letters
PVC signs
ACP panels
Flexible-material work:
Almost none.
Prioritize routing.
An oscillating knife is not automatically necessary.
Regular work:
Acrylic
Printed boards
Foam
Soft display materials
Several material types may appear in the same project.
A routing + knife configuration deserves serious consideration.
Regular work:
Corrugated board
Foam inserts
Fold lines
Short-run samples
Knife and creasing capability may matter more than conventional spindle routing.
If rigid-material machining is also required, then a hybrid platform becomes more interesting.
Do not simply ask:
“Do you have an oscillating knife CNC?”
Describe the job.
Information | What to Share |
|---|---|
Material | Cardboard, foam, fabric, acrylic, PVC, etc. |
Material type | Rigid / soft / flexible |
Thickness | Regular and maximum |
Sheet size | Length × width |
Main process | Routing / knife cutting / creasing |
Finished product | Packaging, foam insert, display, sign |
Printed material? | Yes / No |
Fold lines required? | Yes / No |
Production mix | One material / mixed |
Daily volume | Sample / batch / continuous |
Photos of the raw material and finished product can be especially useful.
For flexible-material applications, the material name alone often does not describe enough.
A CNC platform equipped with a suitable knife tool can cut cardboard and other packaging materials. A conventional rotating router bit is usually not the first choice for this type of work.
It is used to blade-cut suitable soft, flexible or compressible materials that may not respond well to conventional router-bit machining.
The oscillating knife cuts through suitable material. A creasing tool creates a fold line without performing the same full through-cut.
Not necessarily. If most work is rigid acrylic, PVC or ACP routing, the spindle may cover the main workflow. A knife becomes more relevant when soft, flexible or printed materials are regularly processed.
A mixed-material CNC does not become useful simply because it has more tool heads.
It becomes useful when those tools correspond to real jobs.
Before adding an oscillating knife or creasing tool, ask:
Which materials cannot be handled well by the router spindle?
How often are those materials processed?
Do they need cutting, creasing or both?
Are printed contours part of the workflow?
Will rigid and flexible materials regularly appear in the same production process?
If the answers point toward both routing and blade cutting, a multi-process CNC platform may reduce unnecessary transfers between machines.
If almost everything is rigid sheet material, keep the configuration simple.
Choose the process first. Add the tool second.
