Before You Buy a Woodworking CNC Router: 7 Things That Actually Matter

A CNC router can look perfect on a quotation and still be the wrong machine for your workshop.

Too small, and you may outgrow it as soon as full-sheet production increases. Too large, and you may pay for table size, vacuum capacity and floor space you rarely use. Add ATC when most jobs use one cutter, and you pay for automation that brings little return. Skip it when tool changes happen all day, and manual stops can become a production bottleneck.

Before comparing brands, spindle power or servo systems, check these seven things first.

They will help you decide what your workshop actually needs—and what you can safely leave off the quotation.

1. What Do You Actually Make?

“Woodworking” is too broad to choose a CNC router.

A cabinet shop, custom furniture studio and decorative woodworking business may all process wood-based materials, but their production looks very different.

For example:

Cabinet Shop

Typical jobs may include:

• Full-sheet nesting

• Cabinet sides and shelves

• Grooving

• Drilling

• Repeated panel production

The machine needs to support efficient sheet handling and repeated daily work.

Custom Furniture Workshop

Production may switch between:

• MDF

• Plywood

• Solid wood

• Individual blanks

• Custom furniture components

Flexibility can matter more than maximum automation.

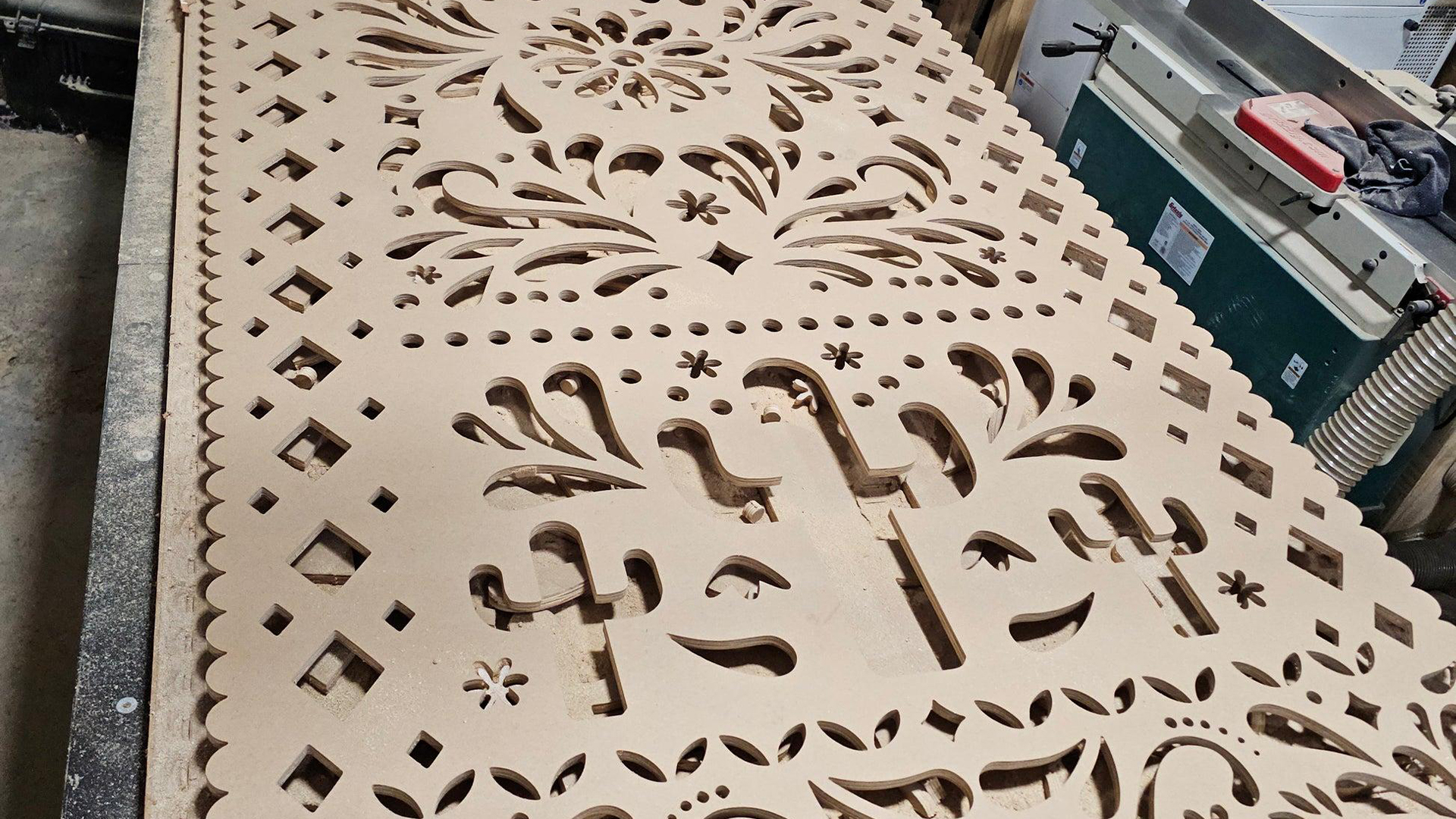

Decorative or Small-Part Workshop

Typical products may include:

• Wood signs

• Furniture details

• Samples

• Decorative panels

• Small custom parts

A large full-sheet CNC may not be necessary at all.

Before looking at machine specifications, write down the three products you make most often.

That is a much better starting point than saying:

“I need a woodworking CNC router.”

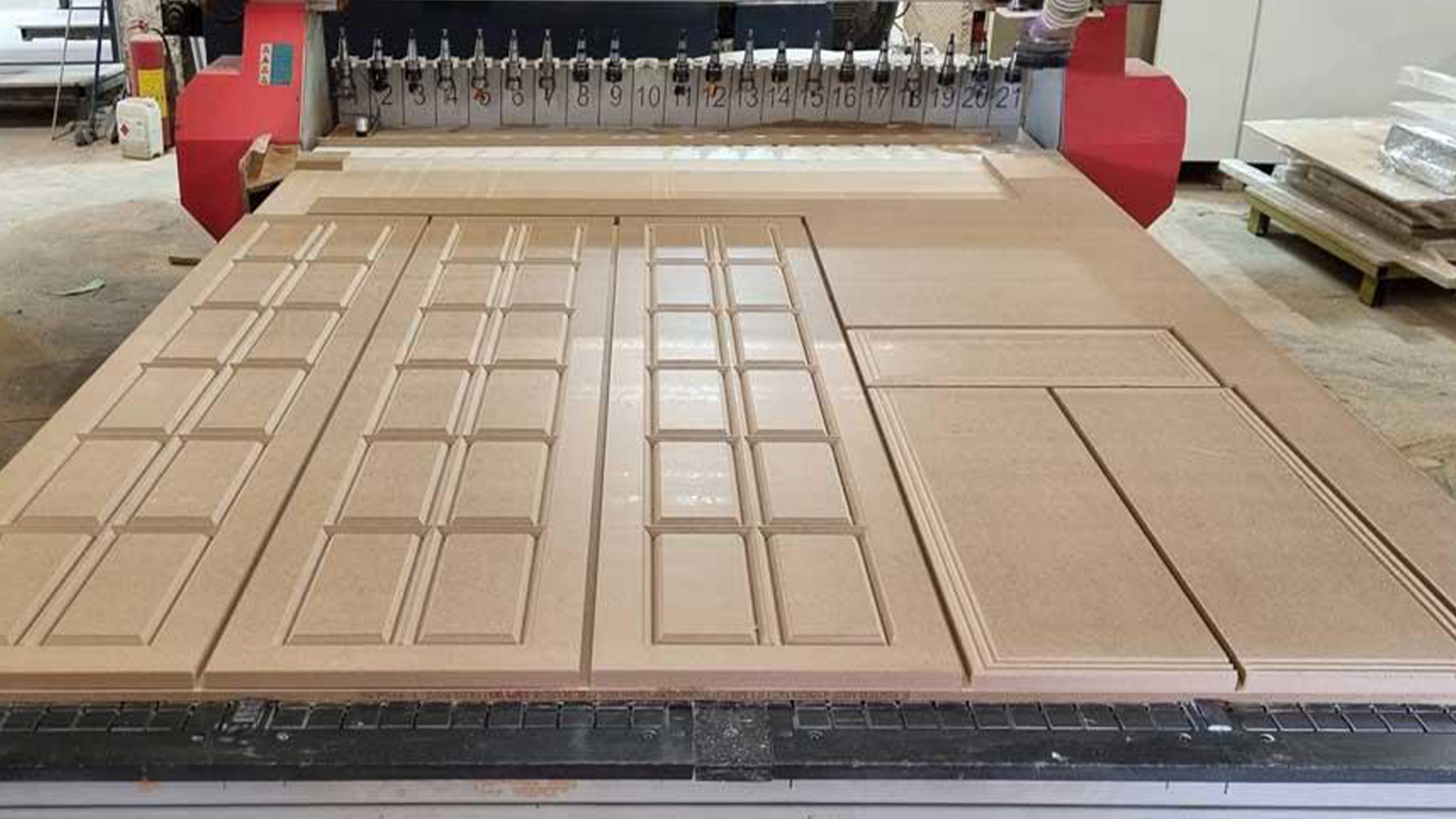

2. Choose the Working Size From the Raw Sheet

One of the easiest mistakes is choosing a CNC router from the size of the finished part.

Imagine that your cabinet doors are only 600 × 800 mm.

That does not mean a 600 × 1200 mm machine is suitable if those doors are normally nested from a 1220 × 2440 mm MDF sheet.

For sheet-based woodworking, the raw material usually determines the working area.

Common examples include:

There is one detail overseas buyers should check carefully.

A true 5 × 10 ft sheet is approximately 1524 × 3048 mm. If a machine is described as 1500 × 3050 mm, confirm the actual usable working width before assuming that the complete 1524 mm sheet can be machined.

The right question is:

What is the largest sheet I process regularly?

Not:

What is the largest table I can afford?

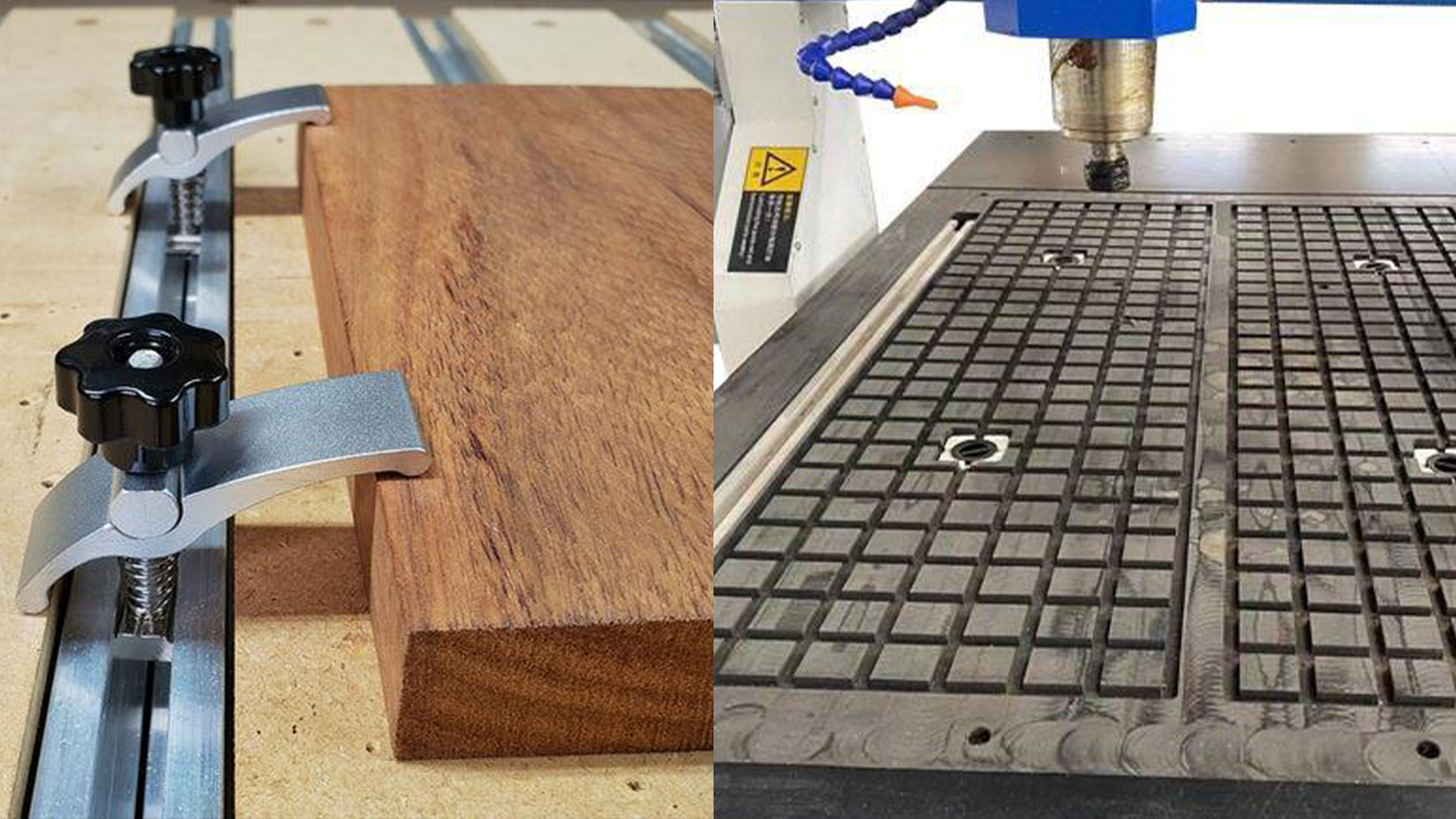

3. How Will You Hold the Material?

A powerful spindle is not useful if the workpiece moves.

For woodworking CNC routers, the table setup should match the way material enters production.

Vacuum Table

Vacuum holding is particularly useful for:

• Full MDF sheets

• Plywood

• Cabinet nesting

• Furniture panels

• Repeated sheet processing

The main advantage is workflow.

Instead of placing mechanical clamps around every full sheet, the operator can load the panel, activate the vacuum system and begin machining.

For a shop processing many sheets per day, that convenience can become meaningful.

T-Slot and Mechanical Clamping

Mechanical clamps are often more practical for:

• Small wood components

• Thick blanks

• Solid wood

• Irregular parts

• Custom fixtures

They give the operator direct control over where the workpiece is secured.

What If You Do Both?

A workshop that regularly switches between full sheets and smaller components may benefit from a vacuum + T-slot combination.

There is no universally “better” table.

The workpiece decides.

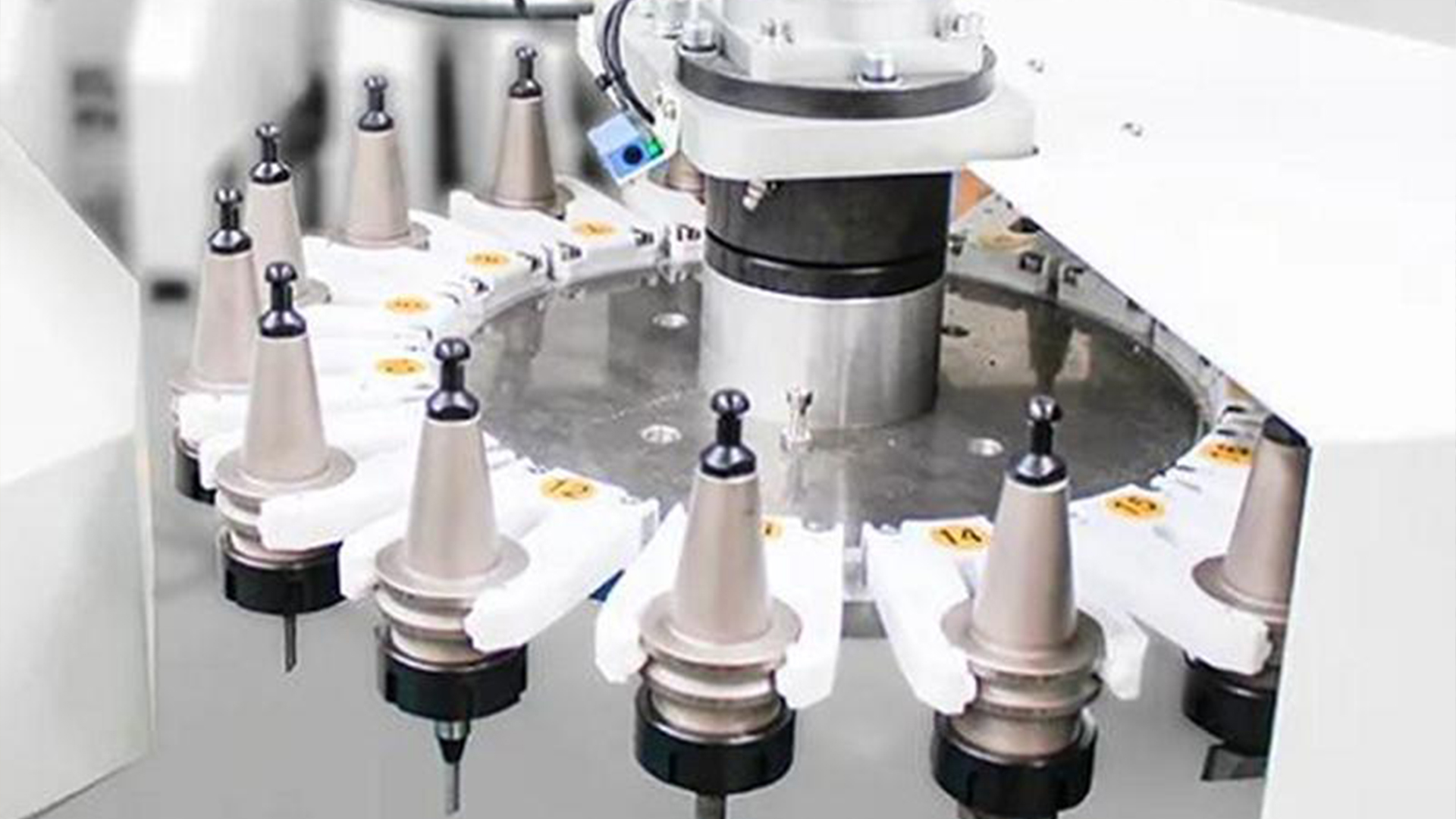

4. How Many Tools Does One Normal Job Need?

This question usually tells you whether ATC deserves serious consideration.

Suppose most jobs need only one cutter for profile cutting.

Manual tool changing may be completely practical.

Now consider a cabinet panel requiring:

1. Profile cutting

2. Grooving

3. Drilling

4. Detail machining

If this happens repeatedly throughout the day, manual tool changes begin to interrupt production.

That is where an ATC CNC router becomes much more valuable.

ATC is worth considering when:

• Several tools are used in one job

• Tool changes happen repeatedly

• Production runs in batches

• Operators regularly stop the machine to change tools

But ATC does not automatically give a cleaner edge or make the cutter move faster through the material.

Its main value is reducing workflow interruptions.

So before paying for ATC, ask:

How many manual tool changes happen during one normal day?

If the answer is “almost none,” the money may be better spent elsewhere.

5. Do Not Ignore Dust

Woodworking is a dusty process, especially when machining MDF.

Fine dust can accumulate around:

• Moving components

• Guide systems

• Ball screws

• Bearings

• Electrical areas

• The general workshop environment

That means dust management should be considered before the CNC router arrives.

A woodworking setup should include a plan for:

• Dust extraction

• Machine cleaning

• Chip removal

• Maintenance access

• Regular inspection

Machine design matters here too.

For example, the SESAME series uses a protected guide-rail design intended to reduce direct dust exposure around important motion components.

That does not make the machine maintenance-free.

It simply means the CNC itself should be designed with the reality of a woodworking environment in mind.

When comparing two machines, do not only ask:

“What spindle does it use?”

Also ask:

“How is this machine designed to work every day in a dusty shop?”

6. How Much Automation Will You Actually Use?

More options do not automatically make a better machine.

A long specification sheet can look impressive, but every additional function should solve a real production problem.

For example:

A Simple Woodworking Shop May Need:

• Correct working area

• Stable machine structure

• Suitable spindle

• Reliable workholding

• Dust extraction

That may already cover most daily production.

A Higher-Volume Cabinet Shop May Also Benefit From:

• ATC

• More automated tool management

• Faster repeated workflow

• Reduced operator intervention

The key is frequency.

If you use a feature once every few months, it should not drive the entire machine purchase.

A practical CNC router is not the one with the most options.

It is the one where the options you paid for are actually used.

7. Match the CNC to Your Production Stage

Instead of thinking only in machine models, think about where your business is now.

Small Custom Workshop

Typical production:

• Samples

• Custom furniture

• Decorative pieces

• Small parts

• Short runs

Priority:

Flexibility + manageable investment

A compact machine such as SK-PRO 6012 can make sense when full-sheet production is not part of the daily workflow.

General Furniture or Cabinet Workshop

Typical production:

• MDF

• Plywood

• Full sheets

• Furniture panels

• Regular cutting and engraving

Priority:

Full-sheet capability + stable daily production

A machine such as SESAME S2 is a practical direction for straightforward woodworking and panel processing.

Repeated Multi-Tool Production

Typical production:

• Cabinet panels

• Furniture components

• Cutting + grooving + drilling

• Several tools in one job

• Repeated daily batches

Priority:

Reduce tool-change interruptions

An ATC machine such as SESAME E-T8 becomes more relevant when multi-tool production is part of the normal workflow.

The important word is normal.

Do not configure the machine around the most complicated job you might receive once a year.

Configure it around the work that pays the bills every week.

Three Common Buying Mistakes

Before sending an RFQ, it is worth checking these three assumptions.

“Bigger Is Safer”

Only if you use the extra size.

A larger table also means more workshop space, material handling and potentially higher investment.

“ATC Is Always Better”

Only when tool changing is already interrupting production.

One-tool jobs do not suddenly become more productive just because the machine has an automatic tool changer.

“More Spindle Power Means a Better Woodworking CNC”

Spindle power matters, but it is only one part of the system.

Machine rigidity, tooling, workholding, dust control and the actual process matter too.

Do not choose a complete machine from one specification.

A 60-Second Woodworking CNC Checklist

Before comparing quotations, prepare these answers:

If a supplier has this information, the conversation can move directly toward a suitable configuration instead of guessing from a generic “woodworking CNC” request.

Frequently Asked Questions

What size CNC router is best for woodworking?

Start with the raw material you use regularly.

For common 1220 × 2440 mm sheets, a working area around 1300 × 2500 mm is a common direction. Smaller parts may suit a compact machine, while larger sheets require more working area.

Do I need a vacuum table for woodworking?

Vacuum holding is very useful for repeated full-sheet MDF and plywood processing.

Small, thick or irregular wood parts may be easier to secure with mechanical clamps or fixtures.

Do I need an ATC CNC router for cabinet making?

ATC becomes valuable when several tools are used repeatedly in normal production.

If most jobs use only one cutter, a standard CNC router may already be sufficient.

Can one CNC router process MDF, plywood and solid wood?

Yes, a suitable CNC router can process all three, but tooling, workholding and machining strategy should be adjusted to the material and job.

Choose the Workflow Before the Machine

A woodworking CNC router should answer six practical questions:

• Does my material fit?

• Can I hold it securely?

• Can it perform the operations I use every day?

• Do I really need automatic tool changing?

• Can the workshop manage the dust?

• Am I paying for features I will actually use?

If those answers are clear, the machine specification becomes much easier to judge.

Do not start by asking for the “best woodworking CNC router.”

Start by showing the supplier what your workshop actually produces.

Send UTECH your material, sheet size, finished-product photos and normal machining process. We can then help you compare a compact, full-sheet or ATC configuration around the work you really do.
