A fourth axis sounds like an obvious upgrade—but many woodworking, sign-making and panel shops will rarely use it.
If most of your work is flat sheets, cabinet panels, acrylic signs or furniture parts, a standard 3-axis CNC router may already handle almost everything you need.
A rotary axis starts to make sense when the workpiece itself is cylindrical or needs machining around several sides, such as:
Table legs
Columns
Wooden balusters
Round signs
Cylindrical carvings
Decorative posts
Before paying for a “4-axis CNC router,” however, there is one important question:
Do you actually need simultaneous 4-axis machining—or simply a rotary attachment?
They are not always the same thing.
Your Main Work | More Practical Starting Point |
|---|---|
MDF and plywood sheets | 3 axis |
Cabinet and furniture panels | 3 axis |
Acrylic / PVC / ACP sheets | 3 axis |
Sign making | Usually 3 axis |
Flat aluminum plates | Usually 3 axis |
2.5D relief carving | 3 axis |
Table legs and balusters | Rotary axis |
Cylindrical engraving | Rotary axis |
Machining around several sides of a round part | Rotary axis |
Complex simultaneous multi-axis surfaces | Requires more advanced 4-axis capability |
For most buyers, the decision is therefore not:
3 axis or 4 axis—which is better?
It is:
Are most of my workpieces flat, or do I regularly need to machine around a cylindrical part?
A standard 3-axis CNC router moves along:
X axis — left and right
Y axis — forward and backward
Z axis — up and down
That sounds simple, but it already covers a very large range of CNC work.
A 3-axis router can perform:
Profile cutting
Engraving
Grooving
Pocketing
Drilling from the top
V-carving
2.5D relief work
Nested sheet cutting
This is why 3-axis CNC routers remain the standard choice for many:
Cabinet shops
Furniture manufacturers
Sign makers
Acrylic fabricators
Woodworking businesses
Panel processors
If the material lies flat on the table and the tool approaches it mainly from above, 3 axes are often enough.
A rotary axis adds rotational movement.
Instead of only moving the cutter across a stationary flat workpiece, the machine can rotate the workpiece while it is being machined.
You can think of it as:
XYZ movement + rotation
This is useful when the tool needs access around the circumference of a part.
For example, imagine carving a decorative wooden table leg.
On a normal flat table, machining one side is easy.
But the machine cannot automatically turn the leg over and continue around the entire surface.
A rotary axis solves that problem by rotating the workpiece.
This is one of the most important points to understand before comparing quotations.
The term 4-axis CNC router is used quite loosely in the market.
In some cases, it means:
a standard 3-axis CNC router equipped with a rotary attachment.
The rotary unit may replace or supplement one linear direction for certain jobs.
In other cases, “4-axis” refers to a machine capable of controlling X, Y, Z and a rotary axis together as part of a more advanced machining process.
These are not automatically the same level of capability.
So if a supplier says:
“This is a 4-axis CNC router.”
do not stop there.
Ask:
Can X, Y, Z and the rotary axis operate simultaneously?
and:
Is the rotary axis an attachment for cylindrical work, or part of a true simultaneous 4-axis system?
The answer matters more than the label.
For many workshops, 3-axis should remain the default choice.
Typical parts include:
Cabinet sides
Shelves
Doors
Drawer parts
MDF panels
These are normally processed flat.
The main concerns are:
Working area
Vacuum holding
ATC
Tooling
Nesting
A rotary axis usually adds little value.
If your business mainly machines:
MDF
Plywood
Particleboard
Flat solid-wood panels
the production is still primarily sheet-based.
Even when decorative grooves, pockets or relief patterns are required, standard XYZ movement may already cover the job.
Typical sign-shop materials include:
Acrylic
PVC foam board
ACP
Wood panels
Printed boards
Again, most products start as flat sheets.
For this type of production, features such as:
Correct table size
CCD
ATC
Knife cutting
Vacuum holding
may matter far more than a rotary axis.
Now imagine the workpiece itself is round.
This changes the problem.

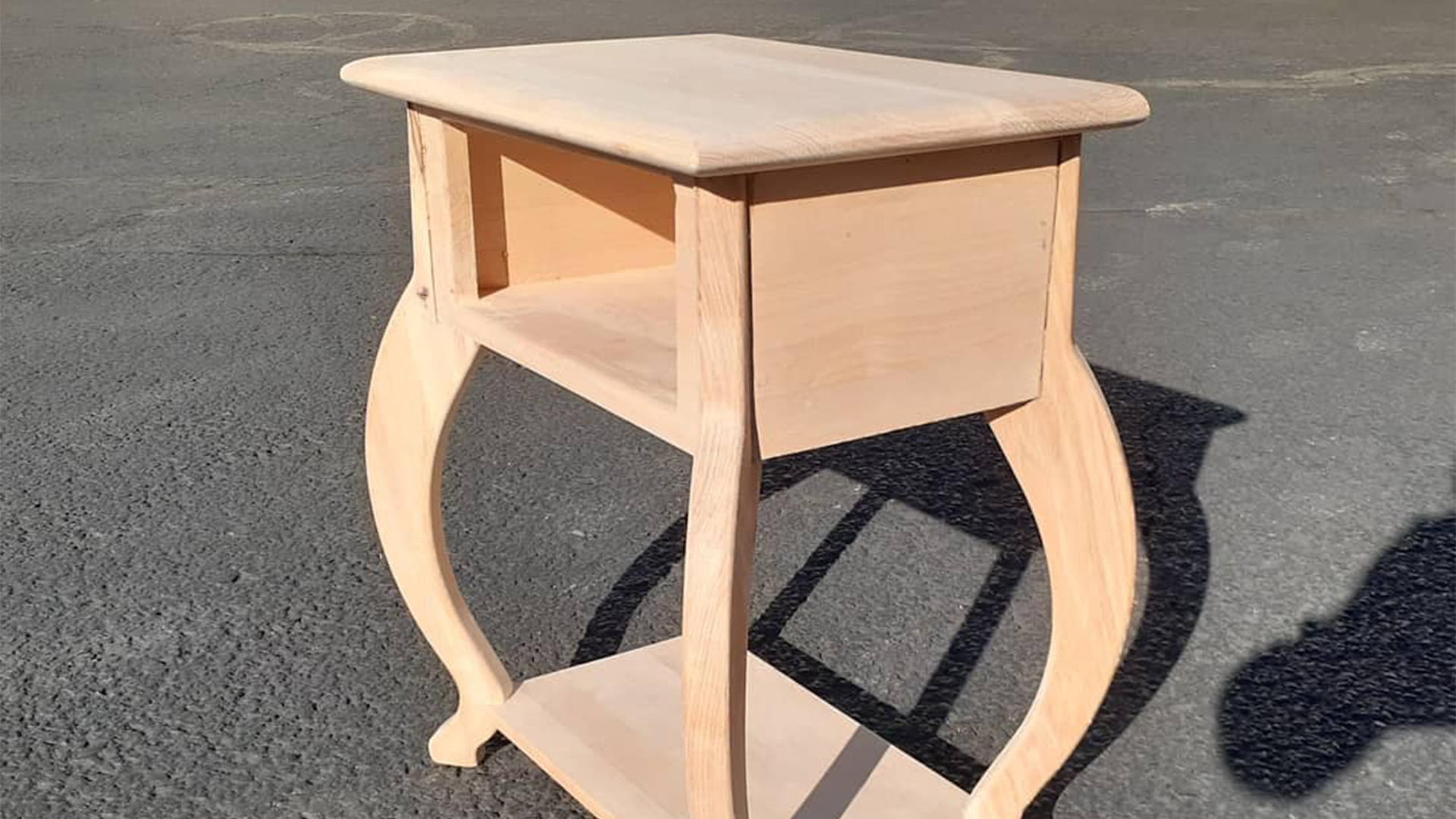

Furniture workshops producing decorative legs may need machining around the full circumference.
A rotary attachment allows the part to turn while the cutter works on different sides.
These parts are naturally suited to rotational machining.
The machine may engrave:
Spirals
Decorative patterns
Flutes
Reliefs
Repeated designs
around the workpiece.
Some workshops machine:
Round wooden signs
Cylindrical acrylic parts
Decorative posts
Custom columns
Here, the rotary axis is not an “extra feature.”
It solves a shape problem that a flat-table setup cannot solve efficiently.
A rotary-axis CNC router can sometimes look similar to a woodworking lathe because both rotate the workpiece.
But they should not automatically be treated as substitutes.
A traditional lathe typically shapes a rotating part with a cutting tool in a continuous turning process.
A CNC router with a rotary axis can use programmed toolpaths to create:
Engraved patterns
Relief details
Indexed features
Complex decorative geometry
around the workpiece.
The correct choice depends on the finished shape.
If the goal is mainly traditional round turning, a lathe may be the more natural machine.
If the product requires CNC-programmed patterns and carved details around the surface, a rotary-axis router becomes more relevant.
Not every rotary job requires all four axes to move at the same time.
Many practical applications can be completed by:
Rotating the workpiece to a position
Machining that side
Rotating again
Machining the next area
This is sometimes called indexed machining.
For products such as:
Four-sided posts
Multi-face components
Repeated features around a cylinder
this may be completely sufficient.
Simultaneous 4-axis machining becomes more important when the cutter and rotary movement must work continuously together to create more complex surfaces.
That usually requires more advanced:
CNC control
CAM programming
Post-processing
Operator knowledge
So do not pay for simultaneous multi-axis capability unless the product actually requires it.
Adding a rotary axis is not only a control-system decision.
The physical workpiece needs space.
Important dimensions include:
Maximum workpiece diameter
Maximum workpiece length
Distance between supports
Clearance below or above the gantry
Chuck or fixture size
For example, if you want to machine a 300 mm-diameter column, the machine needs enough physical clearance for that cylinder to rotate without hitting the table, gantry or other components.
This is especially important when a rotary attachment is installed on or beside a standard flat table.
Before ordering, send the supplier the actual:
Diameter × Length
of your largest rotary workpiece.
Some buyers want one CNC to process:
MDF sheets during the week
and:
table legs occasionally
This can be practical—but the rotary-axis arrangement matters.
Depending on the machine design, the rotary unit may be:
Mounted on the table
Installed beside the table
Positioned in a dedicated recessed area
Added as a separate accessory
Each solution affects:
Available sheet area
Workpiece diameter
Loading
Machine footprint
Setup time
If rotary work is only occasional, you may prefer a configuration that preserves normal flat-table production.
If cylindrical production is the main business, a machine designed more specifically around rotary work may be more efficient.
Main products:
Cabinets
MDF doors
Plywood panels
Rotary jobs:
Almost none.
3-axis CNC router
Spend the budget on the features that affect daily panel production.
Main products:
Tables
Cabinets
Solid-wood furniture
Decorative table legs
Rotary jobs:
Regular but not continuous.
3-axis CNC router + suitable rotary option
This keeps normal flat-table capability while adding cylindrical machining when required.
Main products:
Balusters
Posts
Columns
Cylindrical carvings
Rotary jobs:
A major part of daily production.
Evaluate a CNC configuration specifically around rotary work rather than treating the rotary axis as a small optional accessory.
Before adding a rotary system, answer these questions:
Every day?
Once a week?
Twice a year?
An option used only occasionally may not deserve the same investment priority as ATC, vacuum holding or working area.
Provide:
Diameter × Length
not only “table leg” or “wood column.”
Do you need:
Simple engraving?
Several indexed sides?
Full cylindrical carving?
Continuous complex surface machining?
This determines how advanced the axis control needs to be.
Make sure the rotary setup does not create an unnecessary compromise in the work you perform every day.
The hardware is only part of the system.
More advanced rotary machining also requires suitable CAM programming and post-processing.
Instead of asking:
“How much is your 4-axis CNC router?”
send:
Information | What to Share |
|---|---|
Main material | Wood, acrylic, foam, etc. |
Product | Table leg, column, panel, sign |
Flat-sheet work | Yes / No |
Rotary work frequency | Occasional / regular / daily |
Maximum diameter | Actual workpiece diameter |
Maximum length | Actual workpiece length |
Main operation | Engraving, relief, indexing, full-surface machining |
Required axes | Not sure / indexed rotary / simultaneous movement |
Current software | CAM software if already used |
A drawing or photo of the finished product can make the requirement much clearer.
A 3-axis CNC router moves along X, Y and Z. A 4-axis setup adds rotational movement, allowing the machine to work around cylindrical or multi-sided parts.
Not necessarily.
If most furniture work involves flat panels, a 3-axis CNC router may be enough. A rotary axis becomes more useful for products such as table legs, balusters and decorative columns.
Yes.
A 3-axis router can produce many 2.5D and 3D relief surfaces from the top of a workpiece. A rotary axis is mainly needed when machining needs to continue around the sides of the part.
Not always.
Some machines use a rotary attachment for indexed or cylindrical work, while true simultaneous 4-axis systems can coordinate four axes together. Confirm the actual control capability with the supplier.
If 95% of your work is flat sheet, the fourth axis may spend most of its life unused.
If cylindrical products are an important part of your business, however, a rotary system can open machining possibilities that a standard flat-table CNC cannot handle efficiently.
Before adding it, define:
Product shape
Diameter
Length
Rotary-work frequency
Required machining method
Flat-table requirements
The right question is not:
“Can I afford 4 axis?”
It is:
“Will the fourth axis solve a production problem I actually have?”
