Multifunctional CCD Camera CNC oscillating knife cutting machine.pdf
1300mm*2500mm(4′ x 8′)
CE
Digital Knife Cutting Machine
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month

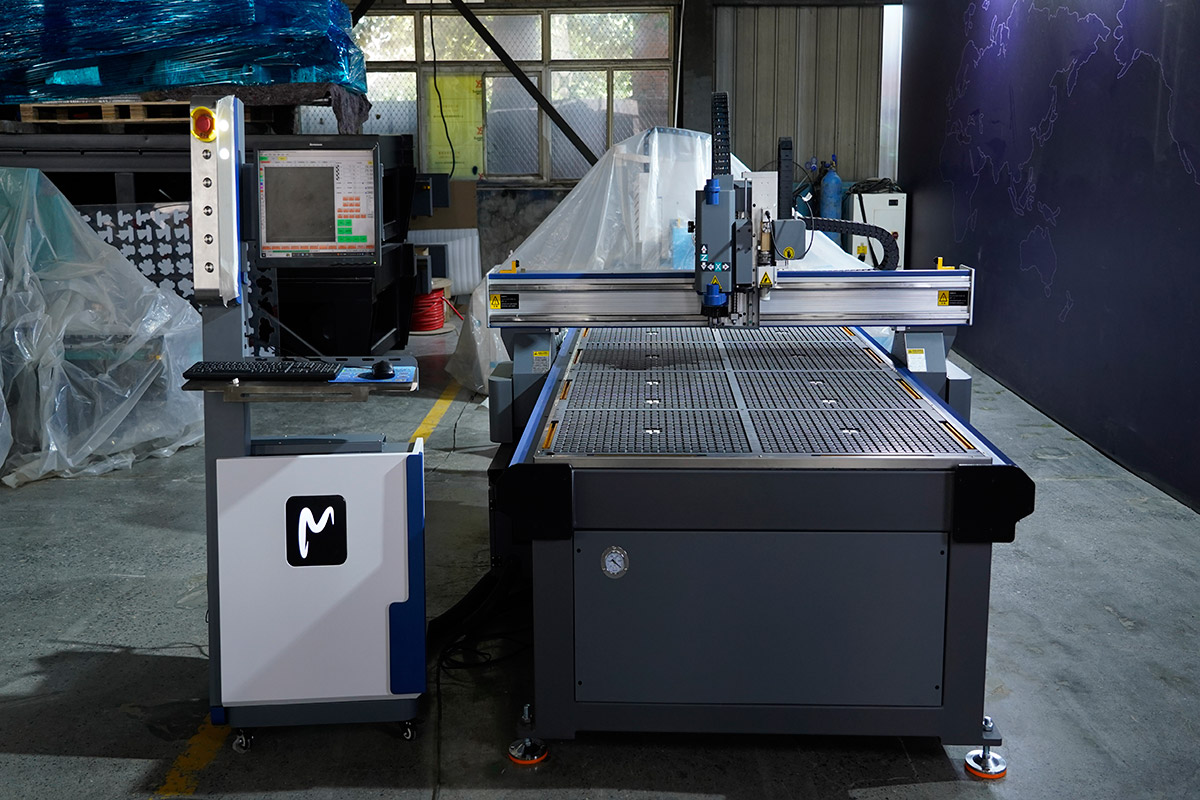

UTECH SPRO Multifunctional CCD Camera CNC oscillating knife cutting machine integrates a high-precision water-cooled spindle, industrial CCD camera, and high-power oscillating knife into one machine. It supports engraving, cutting, automatic edge tracking, and oscillating knife applications, allowing one machine to handle multiple tasks and reducing the need for additional equipment.
The 4KW water-cooled spindle delivers powerful and stable cutting performance for wood, acrylic, metal, and other materials. Its high precision ensures clean, accurate cuts, improving overall processing quality and reliability.
Equipped with a CCD camera, SPRO CCD CNC oscillating knife cutting machine can automatically detect edges and align materials precisely. This reduces positioning errors, minimizes material waste, and ensures consistent, high-quality output.
The oscillating knife enables efficient cutting of soft and flexible materials such as foam, sponge, cloth, felt, and leather. Combined with the CCD system, it ensures accurate contouring and clean edges every time.
SPRO’s high-speed spindle and optimized mechanical structure allow rapid engraving and cutting. This increases production efficiency while maintaining precision, ideal for both industrial and small business use.
The machine is engineered with a robust XY-axis gear rack and linear guide system, and a precise Z-axis ball screw, ensuring ±0.01mm repeat positioning accuracy. This provides exceptional stability and consistent results even during long production runs.
UTECH SPRO CCD Oscillating Knife Cutting Machine is suitable for a wide range of materials, including wood, acrylic, metal, foam, sponge, fabric, felt, and leather. Its multifunctional capabilities make it a versatile solution for woodworking, signage, textile, and craft applications.
Controlled via a PC-based interface, SPRO is easy to operate and program. Its intuitive system allows users to execute complex designs without extensive training, making it accessible for both professionals and small business operators.
With the combination of CCD positioning, precise spindle control, and high-power oscillating knife, SPRO minimizes errors and ensures efficient use of materials, reducing cost and waste in production.
Model | SPRO | |||
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Machine Function | Spindle+CCD camera+150W Oscillating knife cutting head (Optional creasing tool) | |||
Repositioning Resolution | ±0.01mm | |||
XY-axis Transmission | 40 tooth-1.5M / H50 gear rack,25mm guide rail | |||
Z-axis Transmission | TBl-SFU2510 ball screw&disc coupling,20mm guide rail | |||
Spindle Power&Speed | 4KW water-cooled spindle&40000RPM | |||
Driver&Motor | LeadShine 750W servo motor and driver | |||
Reducer | Japan SHIMPO reducer structure 1:10 | |||
Operating System | VC-204A PC version control system | |||
Lubrication System | Auto lubration system for sliders and guide rails | |||
Gross Power | 16KW | |||
Power Consumption | 16kwh/h | |||
Working Table | Vacuum&T-slot table,5.5kw vacuum pump | |||
Tool Setting | High precision auto tool calibrator | |||
Equipped with a high-quality HQD water-cooled 4KW-40000rpm spindle, it can provide powerful and precise processing capabilities, and can maintain a constant speed during long-term high-speed operation, reducing the risk of performance degradation or damage caused by overheating.

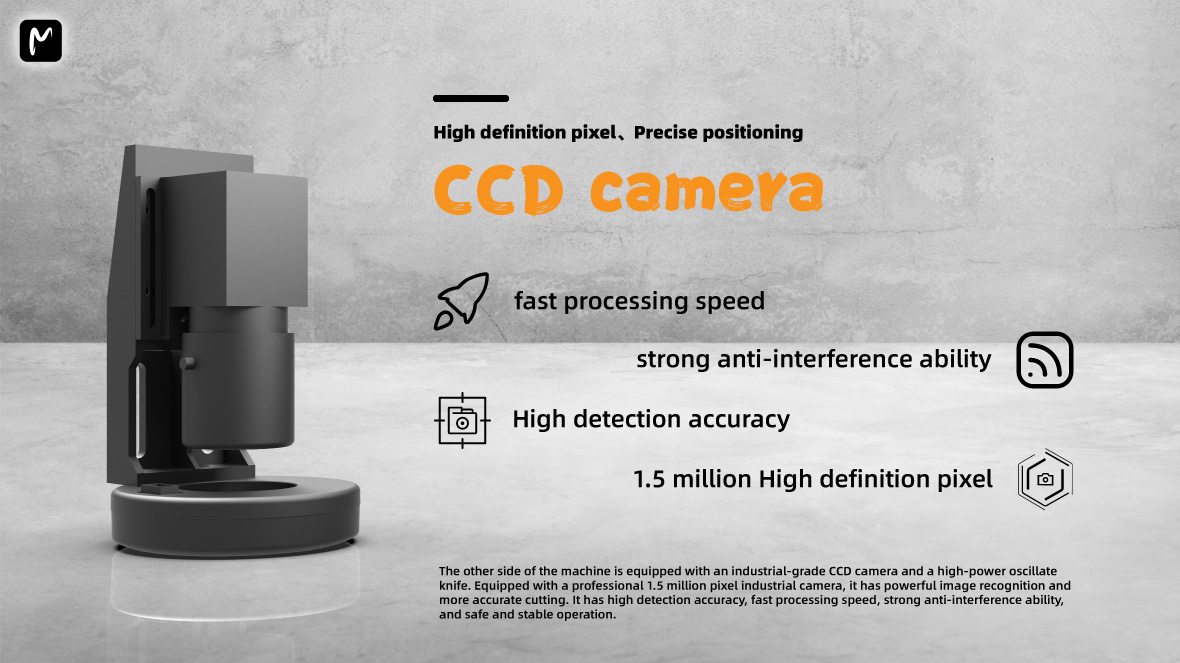

The other side of the machine is equipped with an industrial-grade HIKVISION CCD camera and a high-power vibration knife. Equipped with a professional 1.5 million pixel industrial camera, it has powerful image recognition capabilities and more accurate cutting.High detection accuracy, fast processing speed, strong anti-interference ability, safe and stable operation.

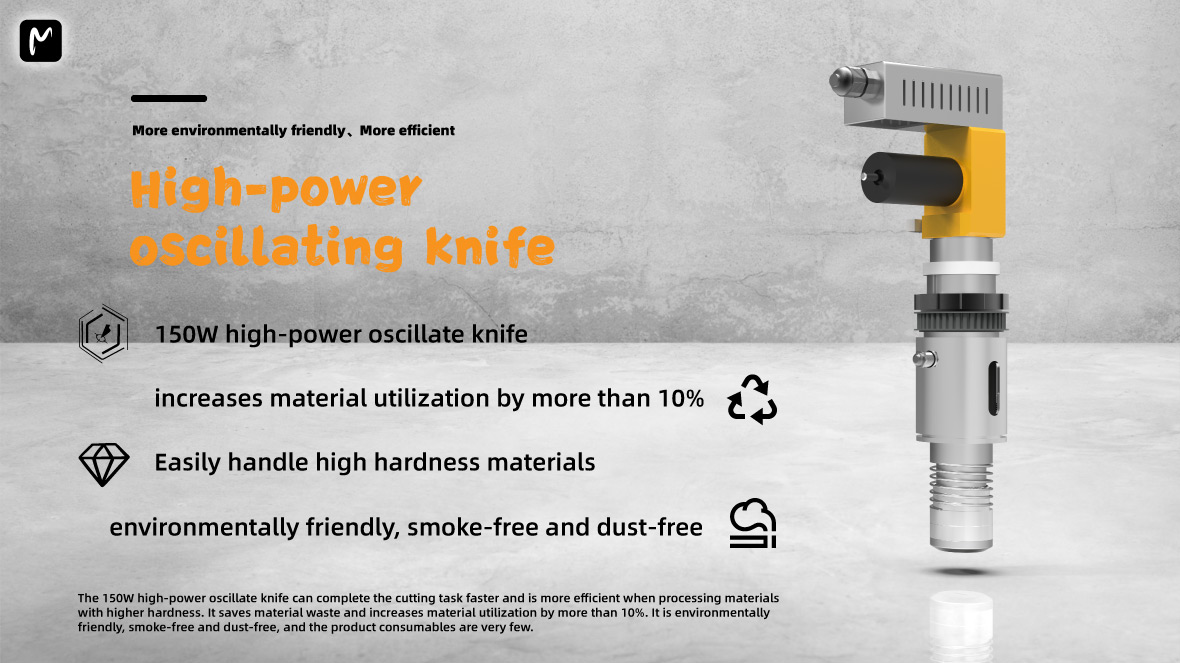

The 150W high-power oscillate knife can complete the cutting task faster and is more efficient when processing materials with higher hardness. It saves material waste and increases material utilization by more than 10%. It is environmentally friendly, smoke-free and dust-free, and the product consumables are very few.

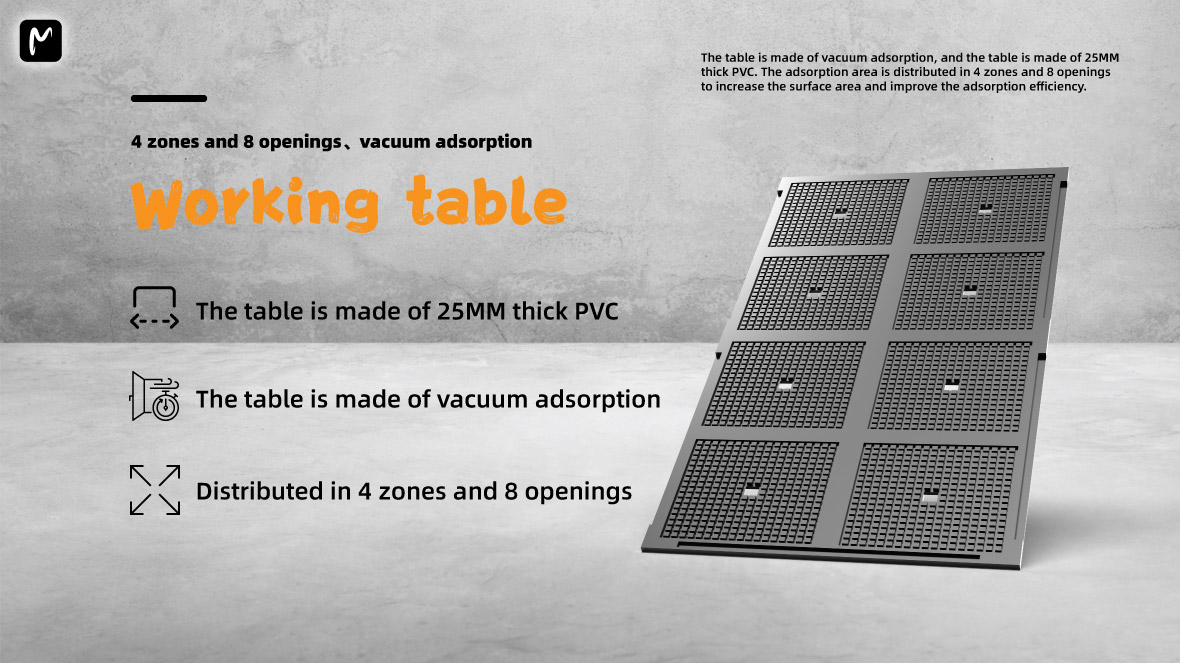

The table is made of vacuum adsorption, and the table is made of 25MM thick PVC. The adsorption area is distributed in 4 zones and 8 openings to increase the surface area and improve the adsorption efficiency.

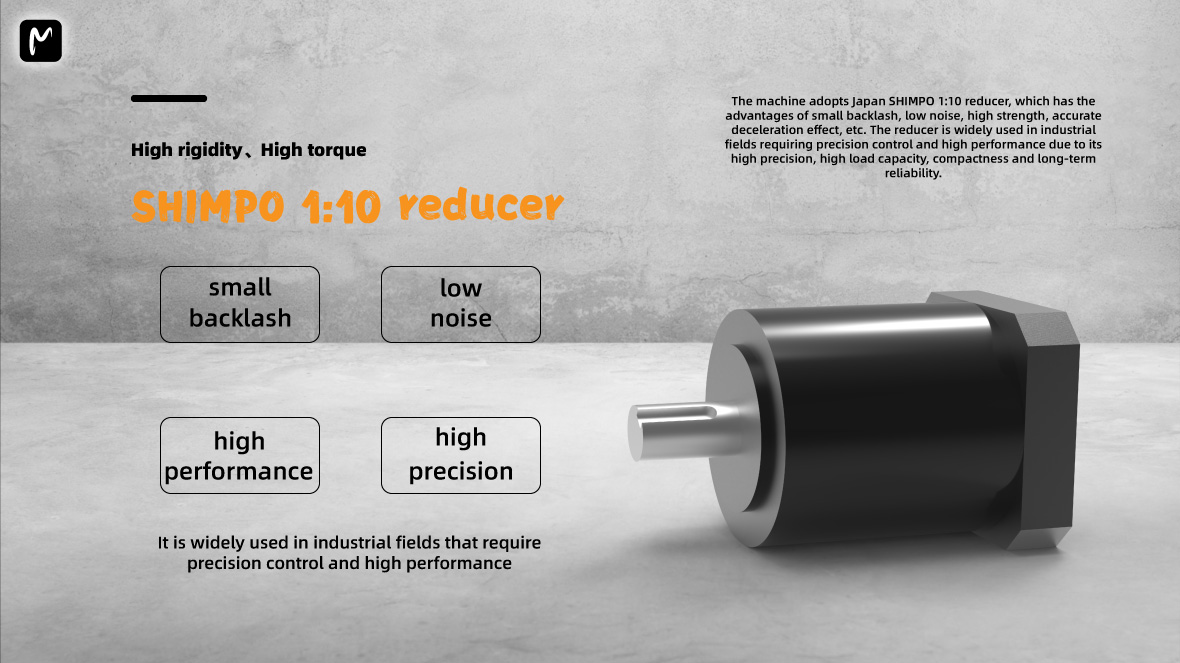

The machine adopts Japan SHIMPO 1:10 reducer, which has the advantages of small backlash, low noise, high strength, accurate deceleration effect, etc. The reducer is widely used in industrial fields requiring precision control and high performance due to its high precision, high load capacity, compactness and long-term reliability.

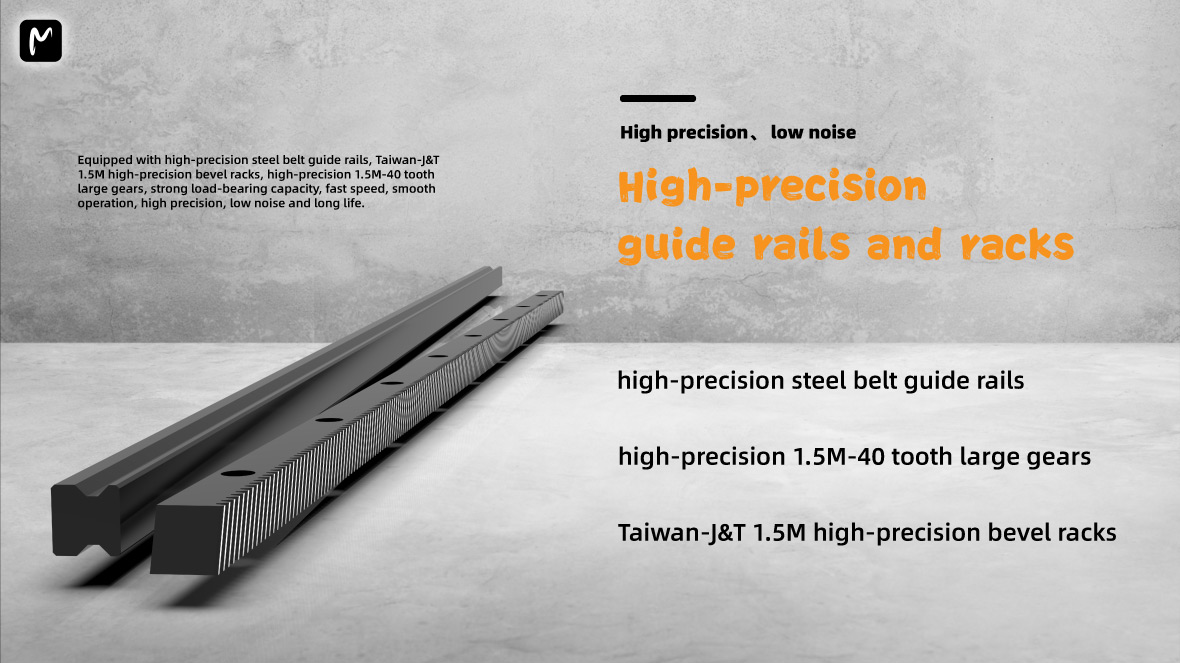

Equipped with high-precision steel belt guide rails, Taiwan-J&T 1.5M high-precision bevel racks, high-precision 1.5M-40 tooth large gears, strong load-bearing capacity, fast speed, smooth operation, high precision, low noise and long life.

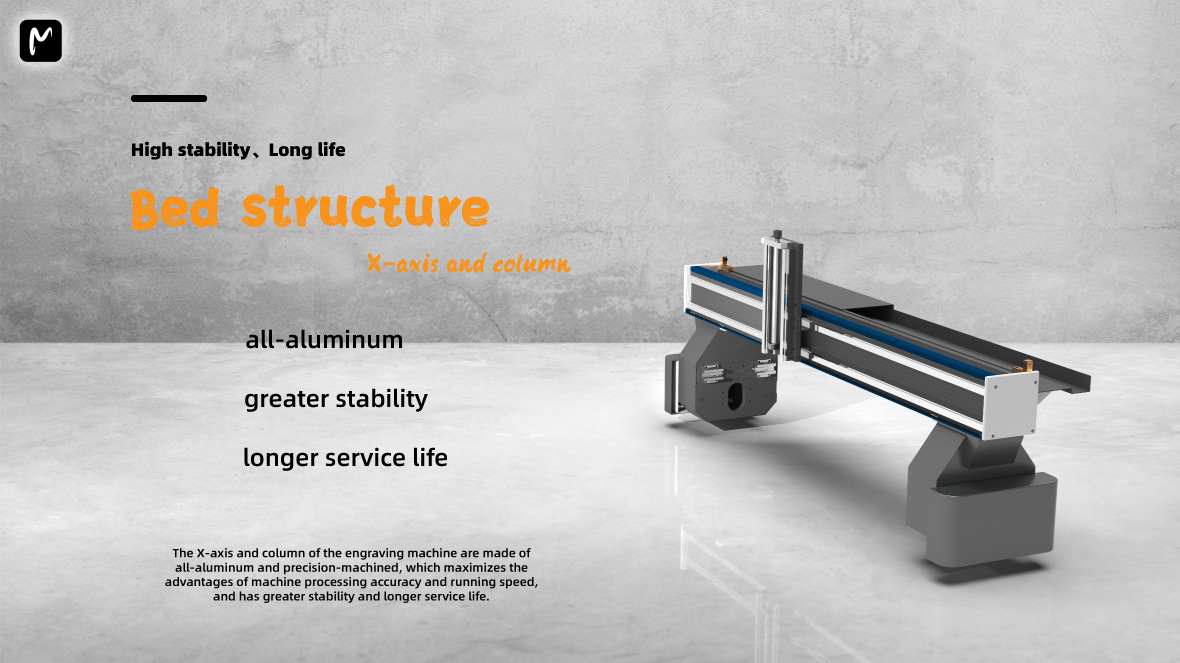

The X-axis and column of the engraving machine are made of all-aluminum and precision-machined, which maximizes the advantages of machine processing accuracy and running speed, and has greater stability and longer service life.
The whole machine drive system is equipped with Leadshine L6-750W AC servo motor drive, which can make the machine processing faster and more stable. It adopts a well-known brand drive system with high reliability.
The machine is equipped with XDW-VC-204A control system, which supports multiple programming languages ​​and multiple data interfaces, and has high compatibility, and can be seamlessly connected with CNC equipment and software systems. It is equipped with a user-friendly graphical interface (HMI) to reduce the complexity of operation.
UTECH S-PRO 1325 CCD Oscillating Knife Cutting Machine combines multiple operations in a single machine, allowing users to perform precise CNC engraving, fabric cutting, leather processing, and foam shaping without changing equipment. This versatility makes it ideal for a wide range of applications, including industrial production, custom craft projects, and small business manufacturing. By integrating multiple functions, the machine reduces workspace requirements, minimizes setup time, and streamlines production workflows.
The integrated industrial-grade CCD camera ensures accurate edge detection and pattern recognition. This system automatically aligns materials for engraving and cutting tasks, reducing positioning errors and improving overall accuracy. It is especially beneficial when working with printed graphics or irregularly shaped materials, as it ensures consistent results and reduces material waste. The CCD camera enhances precision in every cut, giving users confidence in repeatable, high-quality output.
The 4KW water-cooled spindle of UTECH S-PRO Digital cutting machine provides powerful and stable performance for metals, wood, acrylic, and other rigid materials. Its high rotational speed ensures smooth and efficient cutting or engraving, while the water-cooling system prevents overheating during extended production runs. This results in cleaner cuts, precise engravings, and improved processing efficiency, making it reliable for both detailed work and larger production projects.
UTECH S-PRO CNC Oscillating cutting machine’s high-power oscillating knife delivers precise cutting of soft and flexible materials such as fabric, foam, sponge, and felt. The oscillating motion ensures smooth edges and accurate contouring, while the combination with the CCD positioning system reduces errors and minimizes material waste. This function is particularly useful for textile, packaging, and craft applications, enabling efficient processing of flexible materials without compromising precision or speed.
UTECH SPRO is suitable for precision cutting and engraving of a wide variety of materials, including advertising boards, acrylic, insulating boards, HPL (high-pressure laminate), wood, soft metals, aluminum composite panels, plastics, and carbon fiber composites. Its versatility makes it ideal for applications in advertising and signage, soft metal processing, and engineering plastic sheet fabrication, delivering clean cuts and accurate engravings across diverse industries.
Acrylic cutting, MDF cutting, two-color board engraving, various advertising boards, signage production.
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, and various composite board cutting and engraving.
Insulating components, plastic chemical components, PCBs, HPL (High-Pressure Laminate), epoxy resin, ABS, PP, PE, and other carbon composites.
Artificial stone, PVC, wood, bamboo, marble, acrylic glass, copper, aluminum, etc.
Screens, wave boards, bamboo, marble, acrylic boards, two-color boards, and other materials for engraving various exquisite patterns and text.
1.4kw water-cooled HQD Spindle
2. CCD-XDW
3. 150W oscillating knife cutting head
4. Dust cover for the guide rail and the helical rack gear
5. TBI High-Precision Ball-screw Transmission (Taiwan)
6. Japan Shimpo1:10 reducer + LeadShine 750W servo motor
7. Hiwin square rail&High quality helical rack pinion
8. CNC Tool Sensor
9.VC-204A PC version control system
10.Anodized Aluminum Spindle Fixing plate(Z axis)
1.Auto tool change
2.Rotary(length&diameter could be customized)
UTECH is a reliable CNC cutting solution supplier with global export experience.
Each machine undergoes full testing before shipment to ensure stable performance.
Complete operation manuals, video guidance, and remote technical support are available.
Working size, tools, and configurations can be tailored to different industries.
Customers report excellent contour cutting precision and clean edges on flexible materials.
The integration of CCD vision and oscillating knife significantly increases workflow efficiency in packaging and advertising industries.
UTECH SPRO CNC Router is built in ISO-certified facilities, ensuring consistent production quality, adherence to international safety standards, and reliable machine performance.
The machine meets CE and FCC standards for electrical and operational safety, giving users confidence in both workplace safety and regulatory compliance.
From the water-cooled spindle and gear reducers to the linear guides and servo motors, SPRO uses industrial-grade components designed for durability and precision. This ensures long-term reliability, low maintenance requirements, and consistent cutting and engraving quality over years of operation.
Every UTECH SPRO Multifunctional CCD Camera CNC oscillating knife cutting machine unit undergoes comprehensive testing before shipping, including accuracy verification, material cutting trials, and stability checks. This commitment to quality ensures that each customer receives a machine capable of meeting high production demands right from day one.
UTECH SPRO CNC cutting machine is compatible with a wide range of materials including wood, acrylic, HPL, advertising boards, soft metals, aluminum composite panels, plastics, foam, felt, fabric, leather, and carbon fiber composites. Its multifunctional design is ideal for signage, packaging, textile, and craft industries.
Yes, the SPRO Oscillating knife cutter is equipped with an industrial-grade CCD camera system that ensures high-accuracy alignment and automatic edge tracking. This reduces positioning errors, improves yield, and minimizes material waste.
The SPRO CCD camera cutting machine features a 4KW water-cooled spindle capable of up to 40,000 RPM. This provides stable, efficient, and precise cutting for a wide variety of materials, from rigid metals to soft fabrics.
Absolutely. The high-power oscillating knife allows SPRO to cut foam, sponge, felt, fabric, and leather with high precision. The CCD camera ensures accurate contouring for clean edges and minimal waste.
No specialized training is required. SPRO features a user-friendly PC-based control interface, intuitive operation, and support from UTECH’s online resources, manuals, and customer service team.
The combination of a high-speed spindle, oscillating knife, and CCD camera allows for continuous, accurate cutting and engraving without manual adjustments. This reduces setup time, minimizes errors, and increases overall production efficiency.
UTECH SPRO CNC equipment is built in ISO-certified facilities, uses industrial-grade components, and meets CE and FCC compliance standards. Each unit undergoes rigorous testing to ensure reliability and precision for long-term use.
Yes, UTECH provides international shipping and after-sales support for SPRO High-precision CNC machines. Local partners and service teams in major regions ensure fast delivery, installation guidance, and technical support worldwide.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
