SESAME S2
UTECH
1300mm*2500mm(4′ x 8′)
CE
3 Axis CNC Router
50+Sets / Month
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)

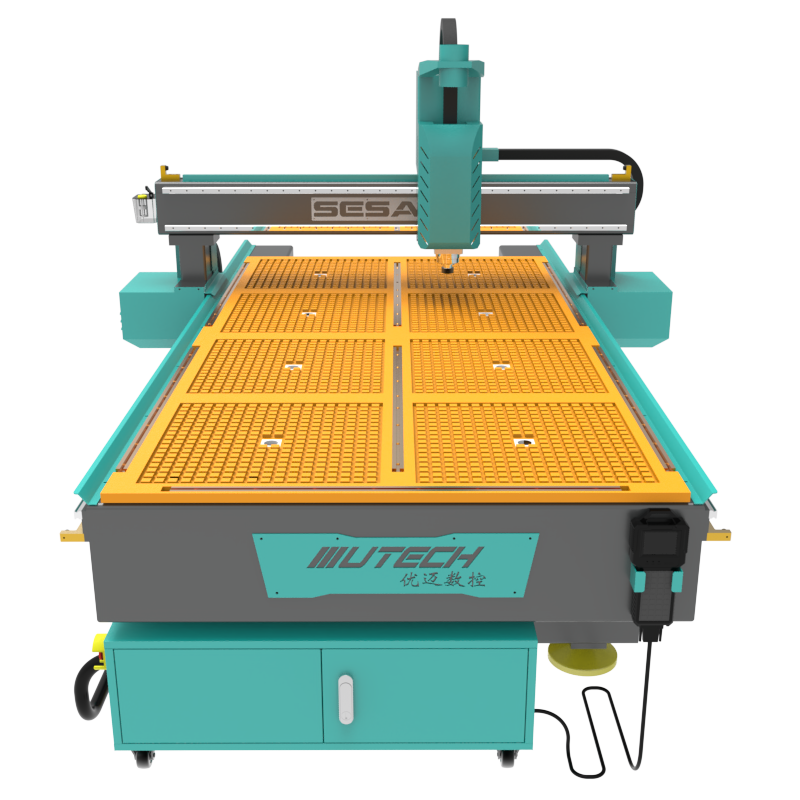

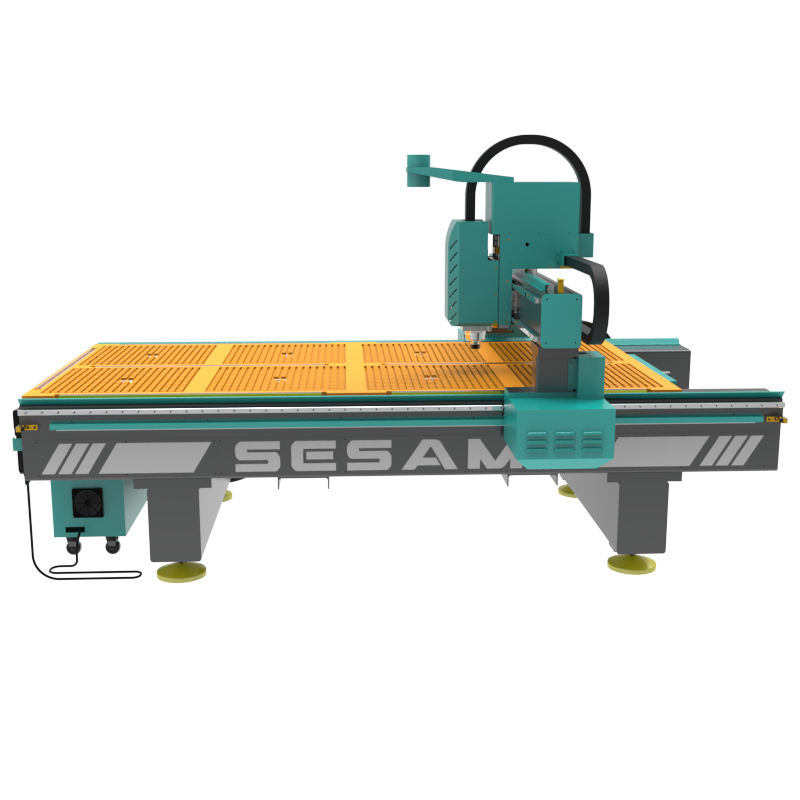

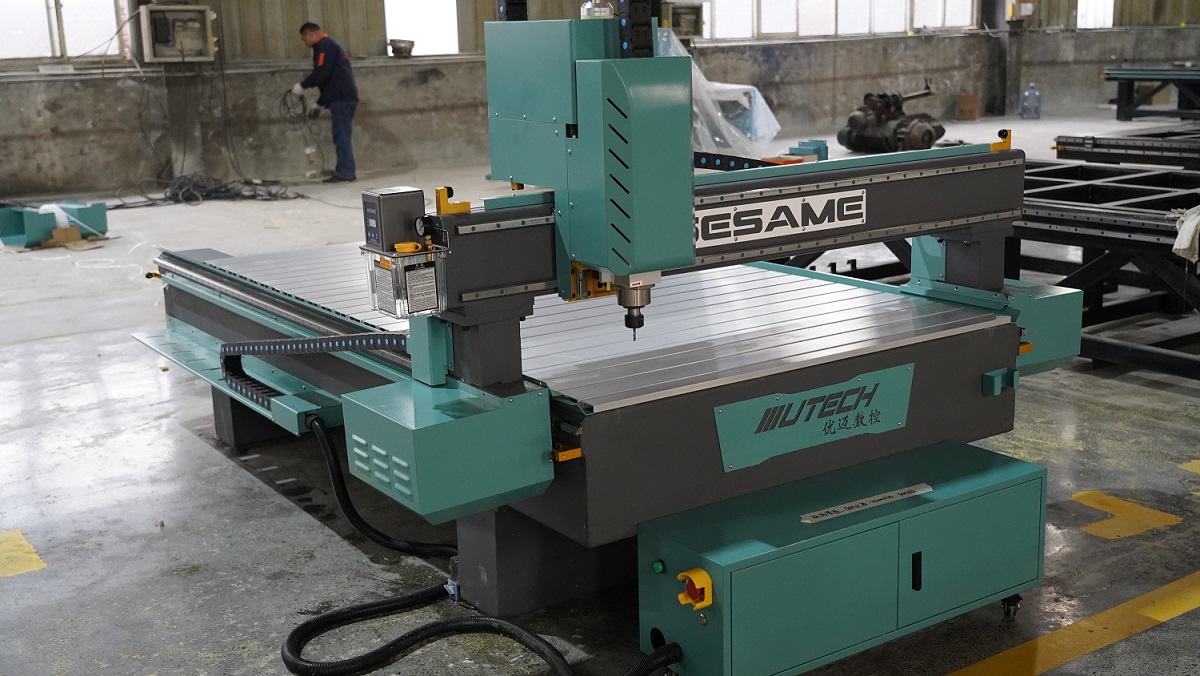

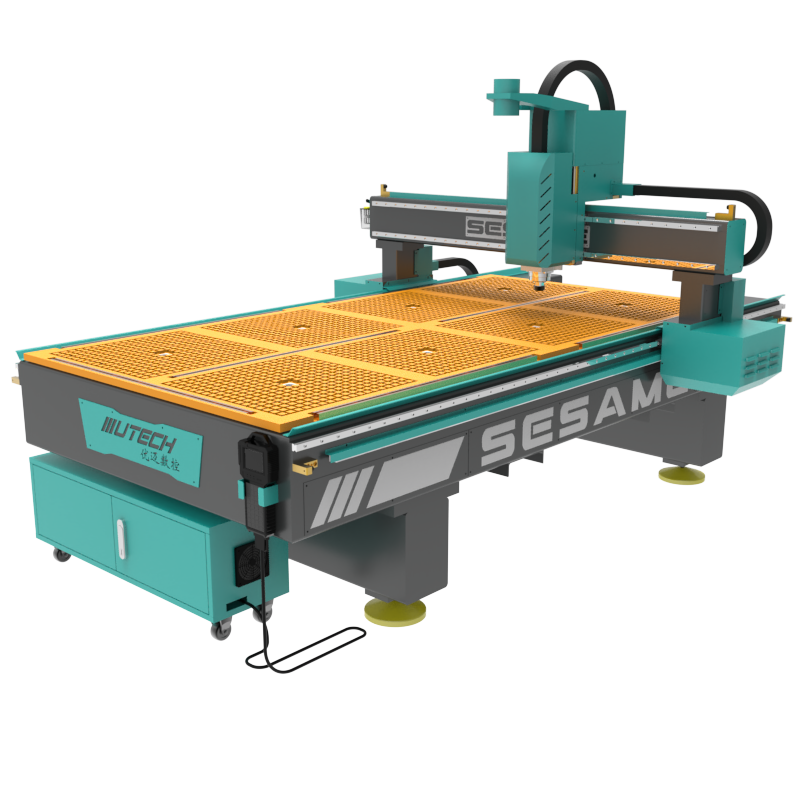

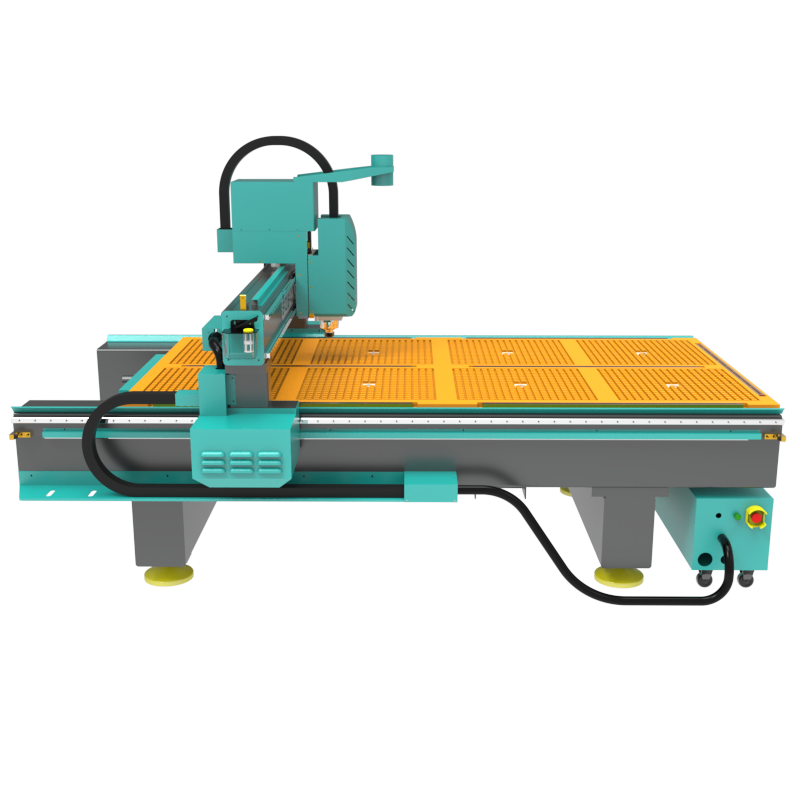

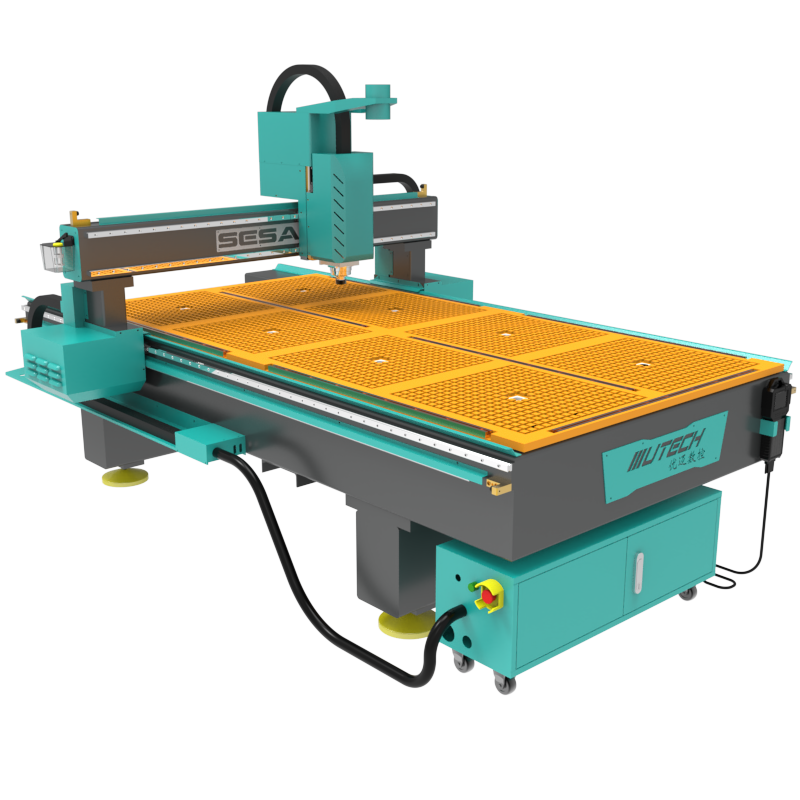

The UTECH SESAME 1325 CNC router is a professional-grade 4×8 ft (1300×2500mm) machining solution designed for precision cutting, carving, and engraving. With a large 1300×2500mm working area and industrial components, it delivers consistent accuracy, smooth motion, and reliable performance for workshops, furniture factories, and production lines.
The machine bed is welded with 200×300mm thick square steel tubes, providing significantly higher rigidity and vibration resistance compared to ordinary CNC frames. This structure greatly enhances cutting stability, machining accuracy, and long-term durability.
The optimized bed welding process includes reserved forklift slots, offering two major benefits:
Increased overall bed strength and structural integrity
Easier loading, unloading, and equipment handling for customers
The transmission stand column is manufactured using a high-precision machining process, ensuring accurate accessory positioning, including insert cavity locations and assembly surfaces. This guarantees high assembly accuracy and stable long-term motion performance.
UTECH SESAME machine head is made from T6061/T6063 aviation-grade aluminum alloy, precision-machined by CNC machining centers. Combined with strict assembly standards, this design ensures excellent rigidity, lightweight structure, and high machining accuracy.
The machine legs and main body can be freely separated before packaging. Customers can choose whether to ship the machine assembled or disassembled. This patented detachable transmission structure reduces packaging volume, saves space, and significantly lowers international shipping costs.
With this design, up to six sets of SESAME 1325 can be loaded into one 20GP container, maximizing logistics efficiency without sacrificing machine stability after reassembly.
SESAME wood cnc router machine adopts a compact, portable, and optimized independent control cabinet, making installation easier, improving cable management, and saving workspace while maintaining high system reliability.
Descriptions | SESAME CNC Router | |||
|---|---|---|---|---|
Model | UT-1325 | UT-1530 | UT-2141 | Support customized |
Working area | 1300*2500mm | 1500*3000mm | 2100*4100mm | any size |
Accuracy | ±0.02mm | |||
Table Surface | Vacuum/T-slot table OR Double table | |||
Frame | Square pipe welding bed structure 200300mm+150200mm gantry | |||
X, Y Structure | 1.25M Helical gear rack transmission, Taiwan Linear Rail Guide | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail Guide | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 18000-24000RPM | |||
Drive Motors | JMC stepper motor and driver+UTECH patent typre reducer | |||
Working Voltage | 220/380V | |||
Command Language | G Code | |||
Operating System | HD100 handle controller (DSP or Mach3 optional) | |||
Computer Interface | Ethernet (or USB) | |||
Dust Collector | 2.2kw/3kw | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint | |||

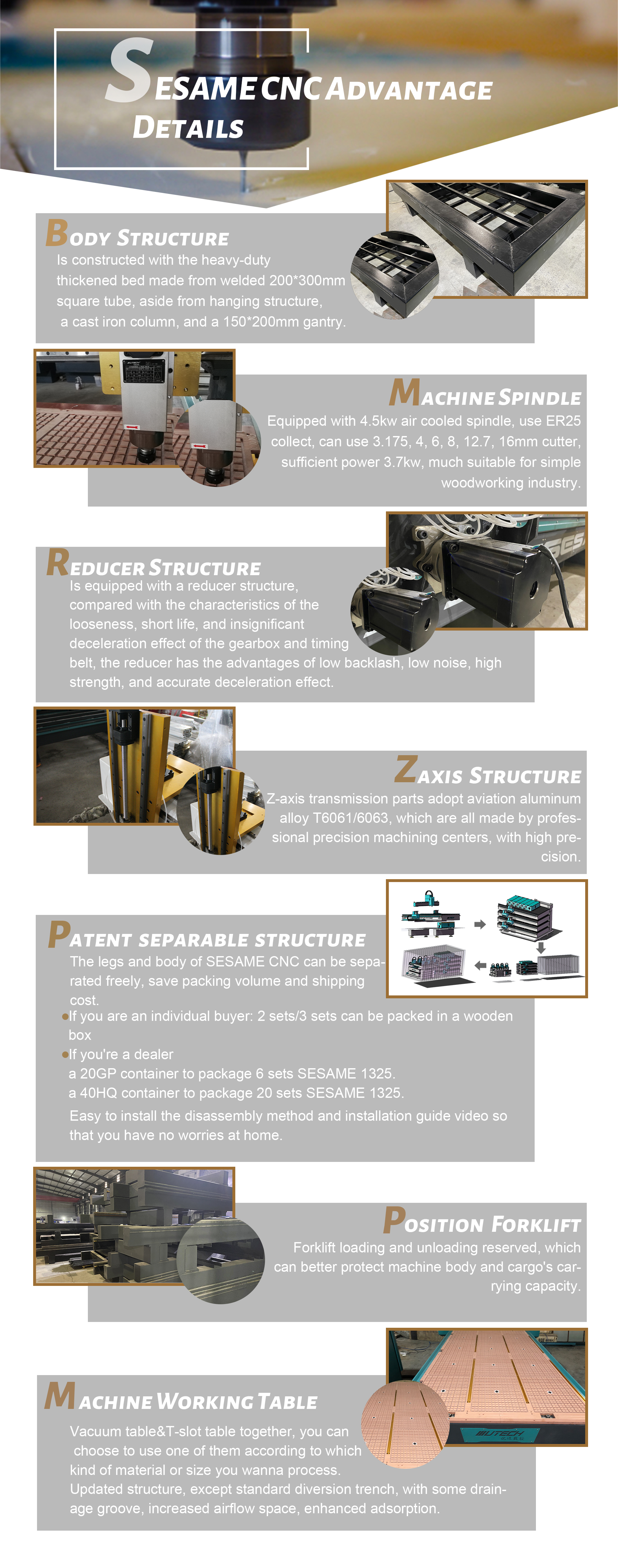

Body structure is constructed with the heavy-duty thickened bed made from welded 200*300mm square tube, aside from hanging structure,a cast iron column, and a 150*200mm gantry.
Machine spindle equipped with 4.5kw air cooled spindle, use ER25 collect, can use 3.175, 4, 6, 8, 12.7, 16mm cutter,sufficient power 3.7kw, much suitable for simple woodworking industry.
Reducer structure is equipped with a reducer structure,compared with the characteristics of the looseness,short life, and insignificant deceleration effect of the gearbox and timing belt, the reducer has the advantages of low backlash, low noise, high strength, and accurate deceleration effect.
Z-axis transmission parts adopt aviation aluminum alloy T6061/6063, which are all made by professional precision machining centers, with high precision.
The legs and body of SESAME CNC can be separated freely, save packing volume and shipping cost.
If you are an individual buyer: 2 sets/3 sets can be packed in a wooden box.
If you're a dealer
a 20GP container to package 6 sets SESAME 1325.
a 40HQ container to package 20 sets SESAME 1325.
Easy to install the disassembly method and installation guide video so that you have no worries at home.
Forklift loading and unloading reserved,which can better protect machine body and cargo's carrying capacity.
Vacuum table&T-slot table together, you can choose to use one of them according to which kind of material or size you wanna process.
Updated structure, except standard diversion trench, with some drainage groove, increased airflow space,enhanced adsorption.
With high-quality motion components and stable mechanical design, the SESAME 1325 delivers fine cutting edges, sharp engraving details, and repeatable accuracy for complex designs and mass production.
The thick gantry beam and reinforced structure effectively reduce deformation and vibration, ensuring smooth movement and stable cutting even during high-speed operations.
User-friendly control systems and intuitive interfaces make operation simple for both beginners and experienced CNC operators. Quick setup and short learning curves improve production efficiency.
The machine can be equipped with an automatic lubrication system to reduce wear on mechanical parts, extend service life, and minimize routine maintenance costs.
Solid wood, plywood, MDF, particle board, laminated panels, and veneer sheets
Acrylic (PMMA), PVC, ABS, HDPE, and foam materials for signage, molds, and packaging
Thin aluminum sheets, brass, copper, and other non-ferrous soft metals for light metal machining and decorative parts
Ideal for cabinet doors, wardrobe panels, furniture components, and decorative wood carving, improving production speed and consistency.
Perfect for advertising signs, logo engraving, relief carving, and customized decorative panels in wood, acrylic, and PVC.
Suitable for rapid prototyping, jigs and fixtures, templates, molds, and light industrial part production.
1. Mach3/4/DSP controller
2. Rotary(length&diameter could be customized)
3. Automatic lubricator
4. Dust collector
5. Oil mist lubrication pump
6. T-slot table
1. Leg Removable Frame
2. 4.5kw air cooled spindle+ER25 cutter, cutting thick materials, also is easy.(optional)
3. Machine Base Frame
4. Anodized Aluminum Spindle Fixing plate(Z axis)
5. Dust cover for the guide rail and the helical rack gear
6. TBI High-Precision Ball-screw Transmission (Taiwan)
7. Patent design 1:5 gear reducer + Stepper 450B driving motor
8. Hiwin/PMI square rail&High quality helical rack pinion
9. CNC Tool Sensor
As a direct CNC manufacturer, SESAME provides factory pricing without middlemen while maintaining strict quality control standards on every machine.
We offer worldwide delivery, secure packaging, and comprehensive warranty coverage to protect your investment and ensure peace of mind.
Our professional technical team provides remote assistance, training, troubleshooting, and spare parts support to keep your production running smoothly.
Customers worldwide trust SESAME CNC routers for their reliability, accuracy, and value. Many users report improved production efficiency, reduced labor costs, and stable long-term operation.
From furniture factories to advertising workshops, SESAME 1325 has been successfully deployed in a wide range of real-world applications, delivering consistent and high-quality results.
The SESAME 1325 4×8 3 Axis CNC Router is fully CE certified, ensuring compliance with European safety, health, and environmental protection standards. This certification confirms that the machine meets strict EU directives, including Machinery Directive, Low Voltage Directive (LVD), and EMC Directive, making it safe and reliable for use across European and international markets.
All key components, such as the electrical system, control cabinet, spindle, and emergency stop system, are designed and tested according to CE requirements. This guarantees stable operation, enhanced user safety, and long-term performance in industrial and commercial woodworking applications.
Choosing a CE-certified CNC router like the SESAME 1325 CNC Machine helps importers, distributors, and manufacturers meet local regulatory requirements, reduce customs clearance risks, and build trust with end users. UTECH CE documentation and technical files are available upon request to support your compliance needs.
Yes, UTECH SESAME 1325 3 axis CNC routers are designed to be user-friendly. We provide a detailed English manual and operation videos with every machine.
If you still have questions, our technical team is available for support via phone, WhatsApp, or Skype. You are also welcome to visit the UTECH factory for hands-on training before shipment—our technicians will provide professional guidance to ensure you operate the machine confidently.
The standard working size of the UTECH SESAME 1325 CNC router is 1300 × 2500 mm (4×8 ft), which is perfect for processing full-size sheets used in furniture manufacturing, cabinetry, and panel cutting.
Yes. The SESAME 1325 CNC router can process soft aluminum and non-ferrous metals using appropriate cutting tools and parameters, making it suitable for light metal fabrication and sign making.
UTECH offers multiple control system options for the SESAME 1325 CNC router, including DSP controllers, Mach3, and other industrial CNC controllers, allowing users to choose based on their workflow and experience level.
Yes. The UTECH SESAME 1325 CNC router supports a wide range of customizations, including spindle power, vacuum table, dust collection system, ATC upgrade, rotary axis, and voltage options to match your production needs.
Yes. The UTECH SESAME 1325 4×8 CNC router is fully CE certified, complying with European safety, electrical, and EMC standards, ensuring safe operation and smooth import clearance in the EU and other markets.
UTECH provides comprehensive after-sales support, including installation guidance, online technical support, spare parts supply, and warranty service to ensure long-term stable operation and customer satisfaction.
All UTECH machines come with a one-year warranty. UTECH engineers provide 24-hour online support. We diagnose issues remotely and usually offer solutions within two hours.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
