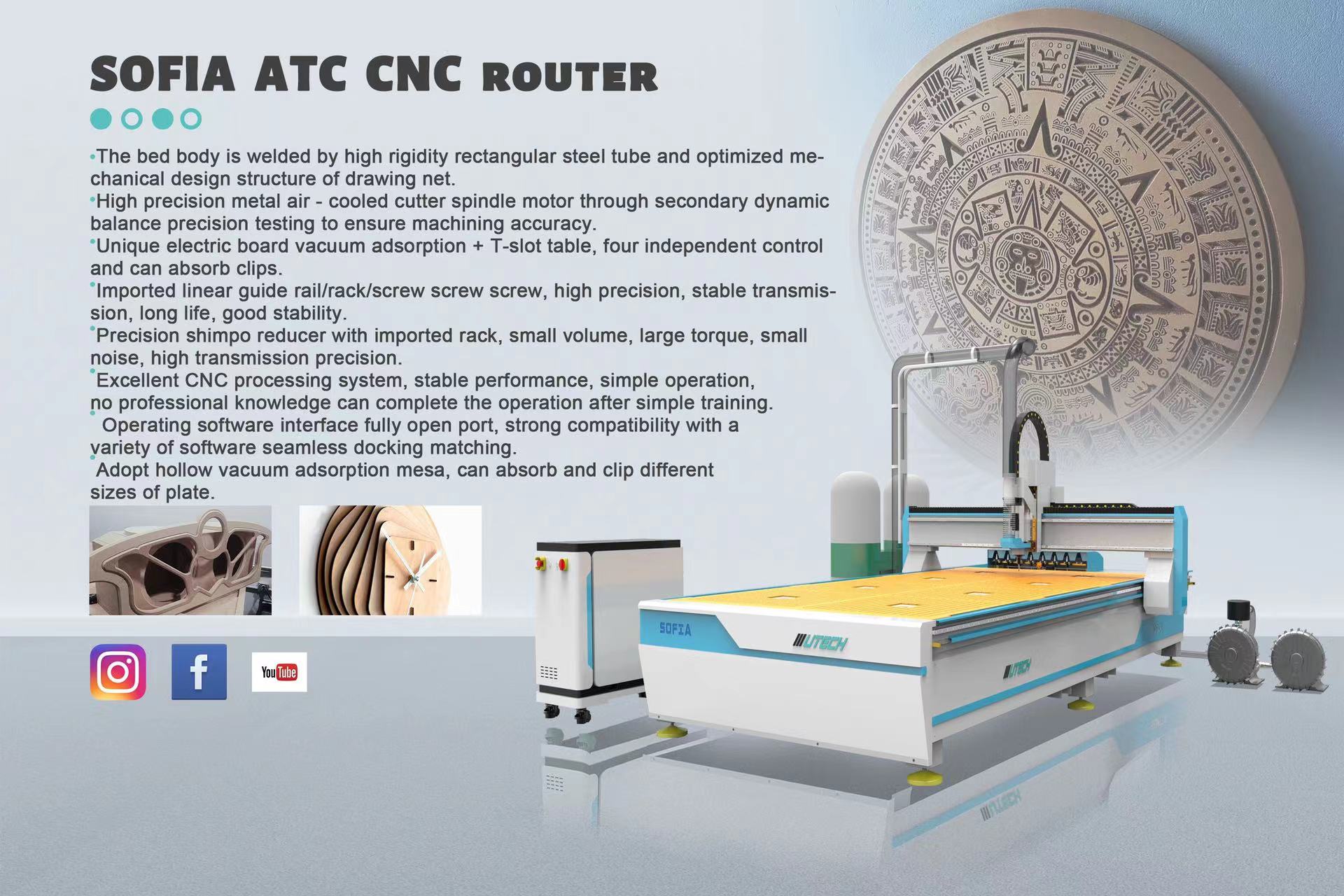

SOFIA M3000s
UTECH
3 Axis 1325 (4x8ft) ATC CNC Wood Router Machine for Furniture.pdf
1300mm*2500mm(4′ x 8′)
CE
ATC CNC Router
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month
The integrated ATC system with a linear tool magazine allows fast and automatic tool changes in about 8 seconds, enabling uninterrupted multi-process machining for furniture, cabinets, signs, and 3D carving.
Equipped with an automatic tool height sensor, the UTECH ATC machine compensates for tool length after each change, ensuring consistent cutting accuracy across roughing and finishing operations.
Featuring an Italian OliSpeed air-cooled tool-changing spindle with ceramic bearings, this machine delivers performance comparable to HSD while offering global warranty support and outstanding cost efficiency.
Designed for woodworking, signage, and complex 3D carving, the UTECH SOFIA ATC handles a wide range of materials and replaces multiple standalone machines, saving space and investment.
With computer-controlled operation, adjustable speed and feed rates, integrated dust collection, safety features, and customizable options, the SOFIA ATC CNC Router adapts easily to different production needs.
Model | 1325-ATC | 1530-ATC | 2030-ATC | 2040-ATC |
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Tool Magazine | Automatic Linear tool change (Carousel Tool Magazine) | |||
Tool Holder Quantity | 4/6/8/10 | |||
Spindle Power | Italy OLlspeed 9kw air-cooled Spindle | |||
Spindle Speed | 0-24000RPM | |||
Tool Setting | Automatic Tool Height calibration sensor | |||
Tool Cooling | Oil-mist Spray Assembly (optional) | |||
Working Table | Multi-zone vacuum with T-slot table with gate valves for zone control | |||
Control System | XDW203C Controller(Handle Control)/NK280/Taiwan Syntec Industrial Control System | |||
Drive&Motor | Delta 750W servo motor (Japan YASKAWA 850W) | |||
Reducer | Japanese high precision gear reduction | |||
XY Structure | 1.5M precision helical rack,Taiwan brand linear guide rail | |||
Z Structure | Z-axis adopts aviation aluminum alloy T6061/6063, Taiwan TBl ball screws | |||
Lubrication System | Auto lubration system for rack gear and ball screws | |||
Alignment Tools | Pneumatic Piston Reference Pins(optional) | |||
Other Function | CCD/Oscillating Knife/Creasing Tool/Rotary Axis | |||
Gross Power | 22KW | |||
Power Consumption | 22kWh/h | |||
Repeat Positioning Accuracy | ±0.01mm | |||
Working Voltage | 220V/380V | |||
Operating Software | VCarve, Artcam, Ucancam, Aspire,CorelDraw, Type3,SolidWorks, Artcut, AutoCAD,etc. | |||
Language Command | G Code | |||

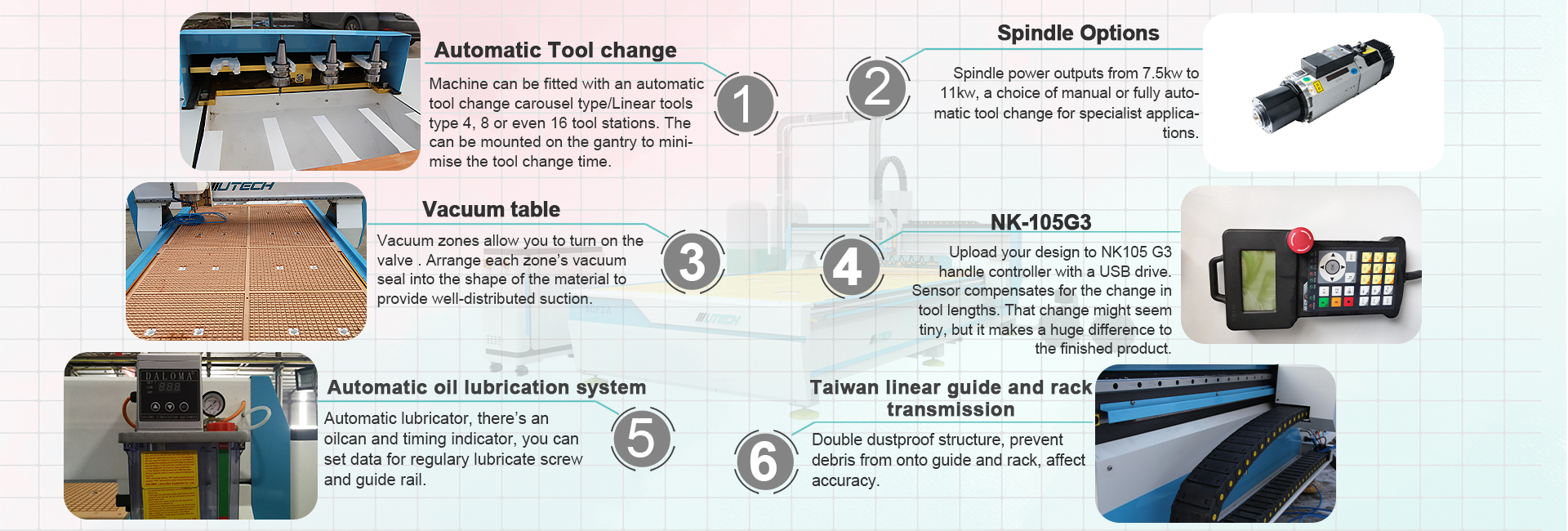

Machine can be fitted with an automatic tool change carousel type/Linear tools type 4,8 or even 16 tool stations. The can be mounted on the gantry to minimise the tool change time
High precision 9kw air cooling ATC spindle motor, after twice dynamic balance precision testing, can ensure the machining accuracy. Is equipped with an ISO30 tool holder and ER32 collect, programmable speeds of up to 24,000 RPM.
Multi-zone vacuum table combined with T-slot design, equipped with independent gate valves for each zone. This structure ensures strong material holding for different workpiece sizes, improves machining stability and accuracy, and allows flexible fixture installation for both sheet materials and irregular parts.
Upload your design to XDW203C handle controller with a USB drive.Sensor compensates for the change in tool lengths.That change might seem tiny,but it makes a huge difference to the finished product.
Automatic lubricator,there's an oilcan and timing indicator, you can set data for regulary lubricate screw and guide rail.
Double dustproof structure, prevent debris from onto guide and rack, affect accuracy.
Available in 1325, 1530, 2030, and 2040 models, SOFIA ATC CNC routers offer working areas from 1300×2500mm to 2000×4000mm, supporting both standard panel processing and large-format production.
Equipped with an automatic linear tool changer or carousel tool magazine, supporting 4, 6, 8, or 10 tool holders, enabling seamless multi-process machining without manual tool changes.
Powered by a 9kW Italian OliSpeed air-cooled spindle with speeds up to 24,000 RPM, delivering strong cutting force, long service life, and stable performance for continuous industrial use.
Featuring Japanese high-precision gear reducers, Taiwan linear guide rails, precision helical racks on X/Y axes, and Taiwan TBI ball screws on the Z-axis, achieving repeat positioning accuracy of ±0.01mm.
Driven by Delta 750W servo motors or optional Japan YASKAWA 850W servos, ensuring fast response, smooth motion, and reliable long-term performance.
Built-in automatic tool setting sensor accurately measures tool length after each change, ensuring consistent cutting depth and improved machining accuracy.
Heavy-duty working table features multi-zone vacuum zones with independent gate valves, combined with T-slot slots for flexible fixturing of sheets and irregular workpieces.
Supports XDW203C handheld controller, NK280, or Taiwan Syntec industrial control systems, compatible with major CAD/CAM software including VCarve, Artcam, Aspire, SolidWorks, AutoCAD, and more.
Integrated automatic lubrication system supplies oil to racks, gears, and ball screws, reducing wear and ensuring long-term operational stability.
Supports optional CCD camera, oscillating knife, creasing tool, rotary axis, pneumatic alignment pins, and oil-mist cooling, allowing full customization for different industries and applications.
Ideal for cutting, drilling, engraving, and slotting wood panels, cabinets, wardrobes, doors, and furniture components with high efficiency and consistency.
Perfect for kitchen cabinets, closet systems, wooden doors, and modular furniture manufacturing, supporting mass production with stable accuracy.
Widely used for signage, logos, lettering, relief carving, and decorative panels on wood, MDF, acrylic, and composite materials.
Capable of complex 3D carving, mold making, and artistic engraving for crafts, sculptures, and custom woodworking projects.
An ideal solution for workshops, custom furniture makers, and growing factories seeking an affordable yet industrial-grade CNC router.
CCD/Oscillating Knife/Creasing Tool/Rotary Axis
(1) Working area: 1300*2500*200mm
(2) Spindle: Italy OLlspeed 9kw air-cooled Spindle
(3) Control system: XDW203C handle controller(NK280, Syntec is optional)
(4) Drive system: Delta 750W servo motor (Japan YASKAWA 850W) + reducer structure
(5) Transmission: Gear rack transmission+TBI ball screw
(6) Whole machine with PMI linear guide rail+Flange slider
(7) Oil mist cooling system for helping you processing metal materials
(8) Multi-zone vacuum with T-slot table with gate valves for zone control
According to your material and thickness, we'll share proper sugestions with you, machine design and configurations all could be customized.
If you don't know how to choose a proper machine for yourself or your customer, just tell me your main industry, material and thickness. UTECH team will provide all things with you.
As a direct CNC manufacturer, SESAME provides factory pricing without middlemen while maintaining strict quality control standards on every machine.
We offer worldwide delivery, secure packaging, and comprehensive warranty coverage to protect your investment and ensure peace of mind.
Our professional technical team provides remote assistance, training, troubleshooting, and spare parts support to keep your production running smoothly.
Customers worldwide trust UTECH CNC routers for their reliability, accuracy, and value. Many users report improved production efficiency, reduced labor costs, and stable long-term operation.
From furniture factories to advertising workshops, UTECH SOFIA 1325 has been successfully deployed in a wide range of real-world applications, delivering consistent and high-quality results.
The SOFIA ATC CNC router is CE certified, ensuring compliance with European safety, health, and environmental protection standards.
Produced under an ISO-certified quality management system, guaranteeing consistent product quality and reliable manufacturing processes.
Meets international electrical safety and electromagnetic compatibility (EMC) standards, ensuring stable and safe operation in industrial environments.
Each machine undergoes strict factory inspection and precision testing before shipment to ensure high accuracy, stability, and performance.
Certification documents and compliance support are available for international markets, helping customers complete customs clearance and regulatory approvals smoothly.
The UTECH SOFIA 1325 CNC router is designed for wood, MDF, plywood, particle board, acrylic, PVC, and soft aluminum, making it ideal for furniture, cabinetry, signage, and decorative carving.
This model features a standard 4×8ft (1300×2500mm) working area, perfectly suited for processing full-size wood panels used in furniture and cabinet production.
The ATC system automatically switches between tools in about 8 seconds, allowing continuous multi-process machining without manual intervention, significantly improving production efficiency and accuracy.
Yes. The SOFIA 1325 ATC CNC router is widely used by furniture manufacturers, cabinet makers, and woodworking workshops due to its stability, precision, and high production efficiency.
The machine is equipped with a 9kW Italian OliSpeed air-cooled ATC spindle with a maximum speed of 24,000 RPM, offering performance comparable to premium brands like HSD at a competitive cost.
UTECH offers multiple control system options, including XDW203C handheld controller, NK280, and Taiwan Syntec industrial control systems, compatible with popular CAD/CAM software worldwide.
Yes. As a CNC router manufacturer, UTECH provides full customization options, including tool magazine capacity, spindle power, voltage, rotary axis, oscillating knife, CCD camera, and more.
Yes. The SOFIA 1325 includes an automatic tool height sensor that measures and compensates tool length, ensuring consistent cutting depth and improved machining accuracy.
Yes. UTECH offers remote installation guidance, operation training, technical support, and global after-sales service to ensure smooth operation and long-term reliability.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
