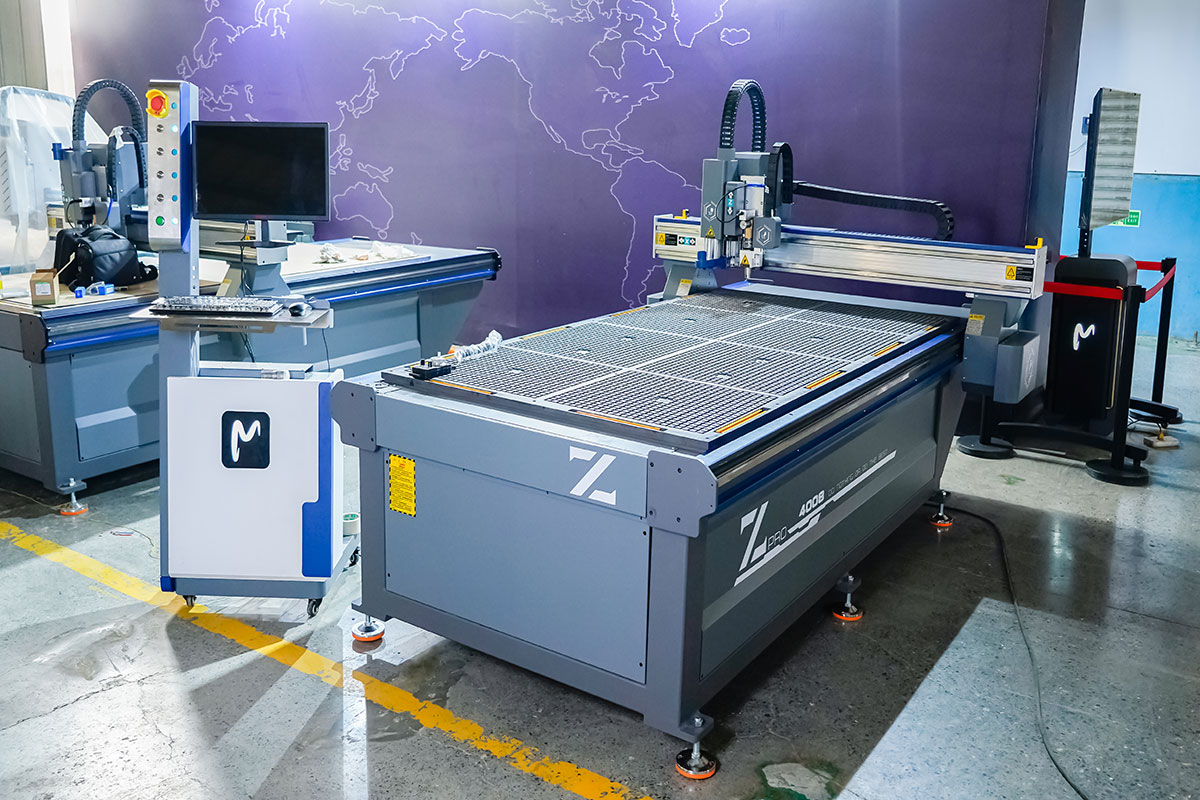

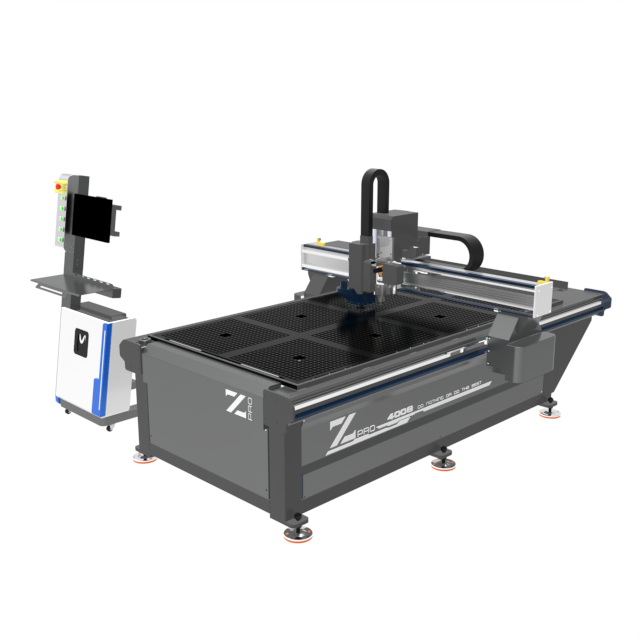

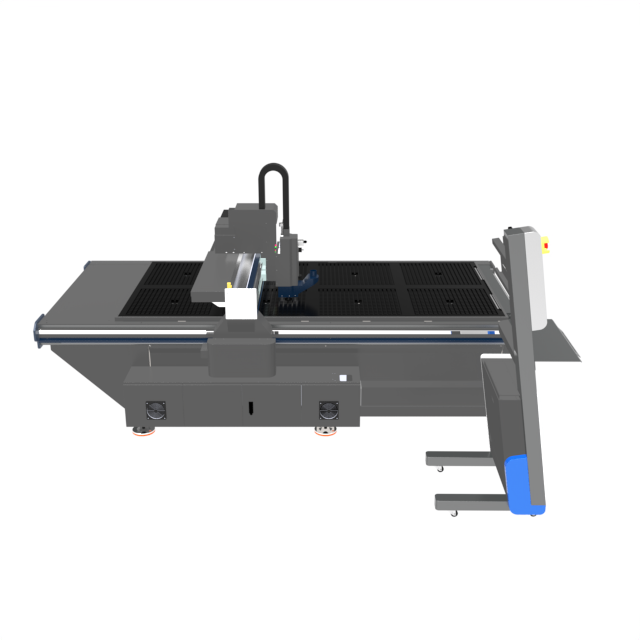

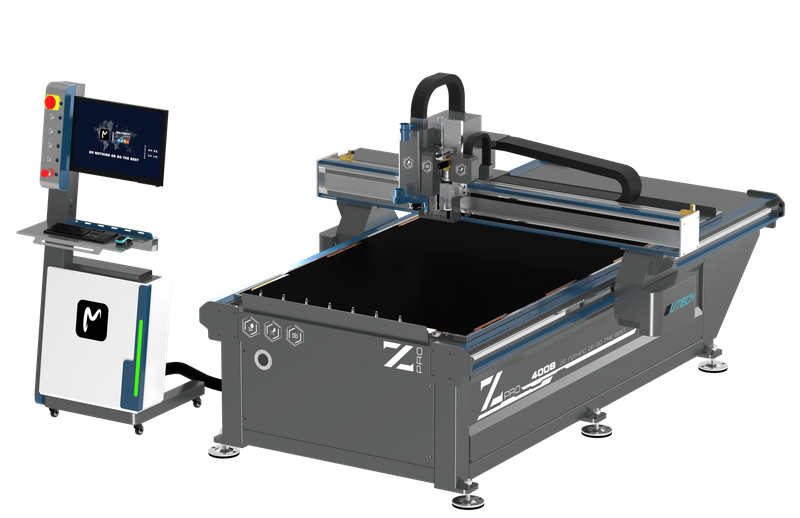

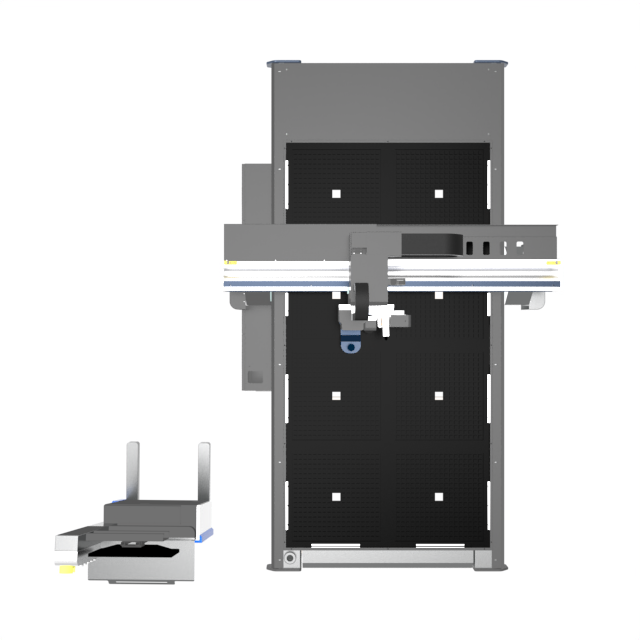

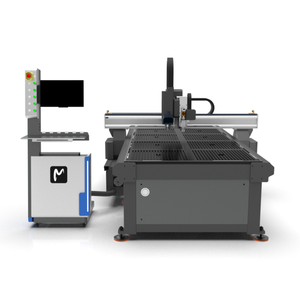

ATC CNC Oscillating Knife Cutting Router Machine with CCD Camera.pdf
1300mm*2500mm(4′ x 8′)
CE
Digital Knife Cutting Machine
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month

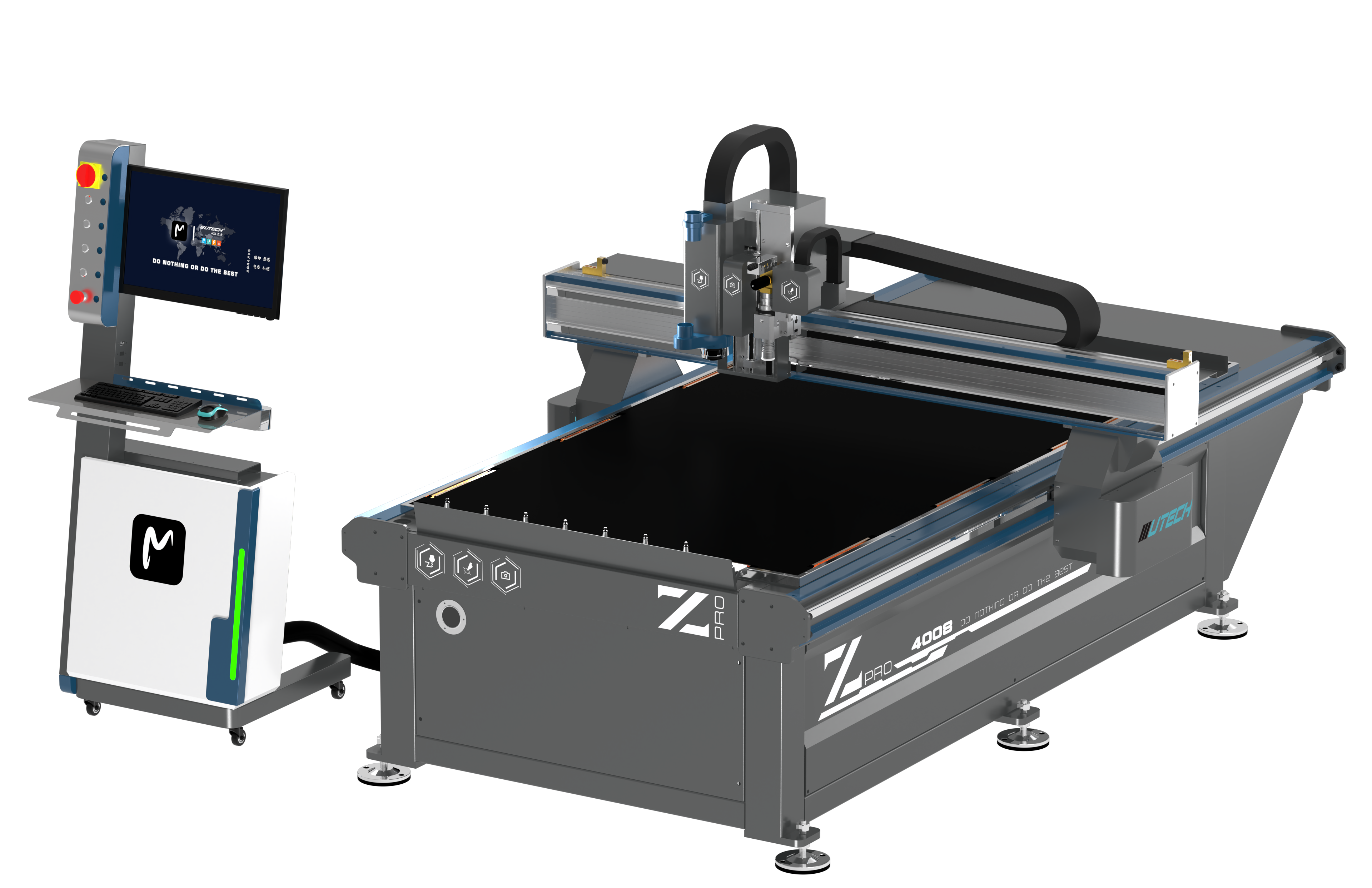

The X-axis of Z-PRO CNC Router Oscillating Knife Cutting Machine features a full aluminum gantry with high-precision steel belt guides, Taiwan-Jingte 1.5M helical gears, 1.5M-40 teeth large gears, and SHIMPO 1:10 reducer. This advanced mechanical setup ensures enhanced stability, accuracy, and improved production efficiency for consistent high-quality output.
Equipped with Leadshine L7-750W motors and drives, the servo system provides fast, stable, and precise movements. This ensures smoother operation and reduces vibration, making the machine ideal for intricate engraving, cutting, and oscillating knife tasks.
The RH80DXS-2.5/ISO20 spindle, with up to 40,000 RPM and 3KW power, delivers exceptional cutting and engraving performance. Combined with the S&A CW-3000 water-cooling system, it maintains spindle stability during long high-speed operations, preventing overheating and ensuring consistent precision.
Z-PRO’s automatic tool changer allows for fast and precise tool switching, supporting multiple processing needs without manual intervention. This significantly improves production efficiency and reduces downtime.
The integrated CCD camera provides accurate edge detection and material tracking for precise cuts, while the 150W high-frequency oscillating knife efficiently handles materials with higher hardness. This combination ensures faster processing, minimized material waste, and high-quality results.
Z-PRO ATC CNC Router Machine includes an industrial-grade dust collector and a 5.5KW 380V air-cooled vacuum pump. The worktable uses 25mm thick PVC with a 4-zone 8-opening suction configuration, improving suction efficiency and keeping the workspace clean and safe during operation.
The machine supports multiple modes including engraving, cutting, edge trimming, and oscillating knife operations. Fully automated parameter adjustment and tool changes reduce manual labor, improve production efficiency, and lower operational costs.
Whether for creating intricate works of art or industrial-scale production, Z-PRO ATC CCD Oscillating Knife Cutting Machine is ideal for leather, fabric, foam, acrylics, signage, handicrafts, and woodworking industries. It combines precision, speed, and automation to meet diverse industrial needs.
Model | ZPRO | |||
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Machine Function | ATC Spindle+CCD camera+150W Oscillating knife cutting head (Optional creasing tool) | |||
Tool Magazine | Concealed Linear Tool Magazine | |||
Tool Holder Quantity | IS020 Tool Holder*8 | |||
Repositioning Resolution | ±0.01mm | |||
XY-axis Transmission | 40 tooth-1.5M / H50 gear rack,25mm guide rail | |||
Z-axis Transmission | TBl-SFU2505 ball screw&disc coupling,20mm guide rail | |||
Spindle Power&Speed | 4KW water-cooled spindle&40000RPM | |||
Drive Motors | LeadShine 750W servo motor and driver | |||
Reducer | Japan SHIMPO reducer structure 1:10 | |||
Operating System | VC-204C PC version control system | |||
Lubrication System | Auto lubration system for sliders and guide rails | |||
Gross Power | 16KW | |||
Power Consumption | 16kwh/h | |||
Working Table | Vacuum&T-slot table,5.5kw vacuum pump | |||
Tool Setting | High precision auto tool calibrator | |||

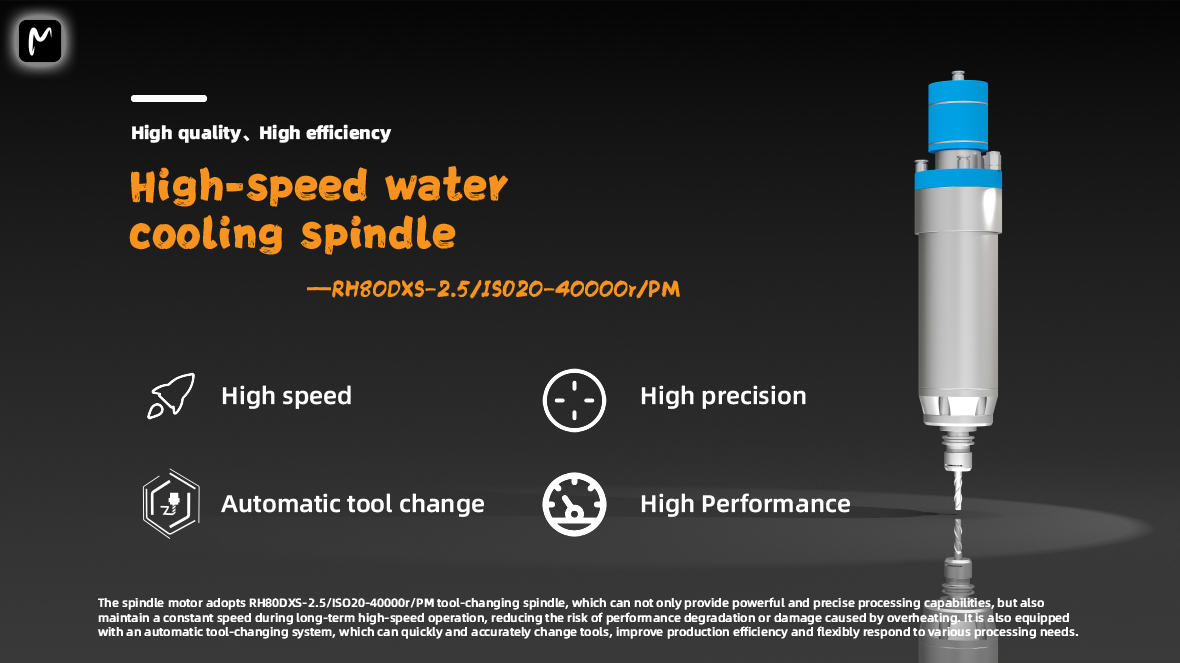

The spindle motor adopts RH80DXS-2.5/ISO20-40000r/PM tool-changing spindle, which can not only provide powerful and precise processing capabilities, but also maintain a constant speed during long-term high-speed operation, reducing the risk of performance degradation or damage caused by overheating. It is also equipped with an automatic tool-changing system, which can quickly and accurately change tools, improve production efficiency and flexibly respond to various processing needs.

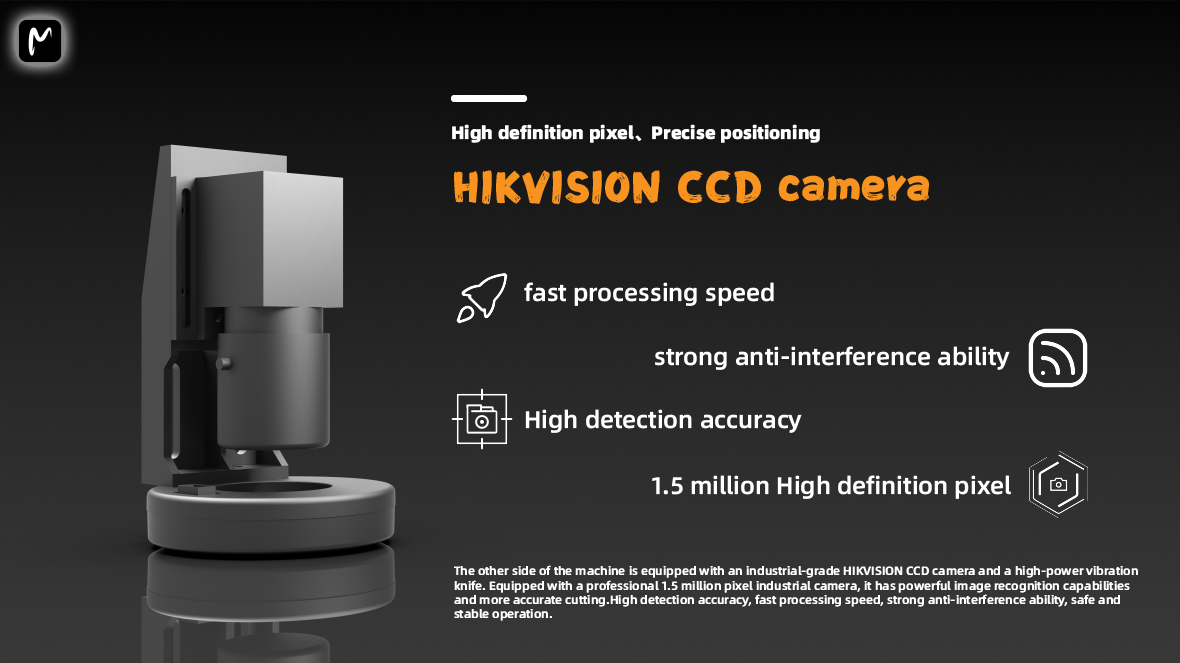

The other side of the machine is equipped with an industrial-grade HIKVISION CCD camera and a high-power vibration knife. Equipped with a professional 1.5 million pixel industrial camera, it has powerful image recognition capabilities and more accurate cutting.High detection accuracy, fast processing speed, strong anti-interference ability, safe and stable operation.

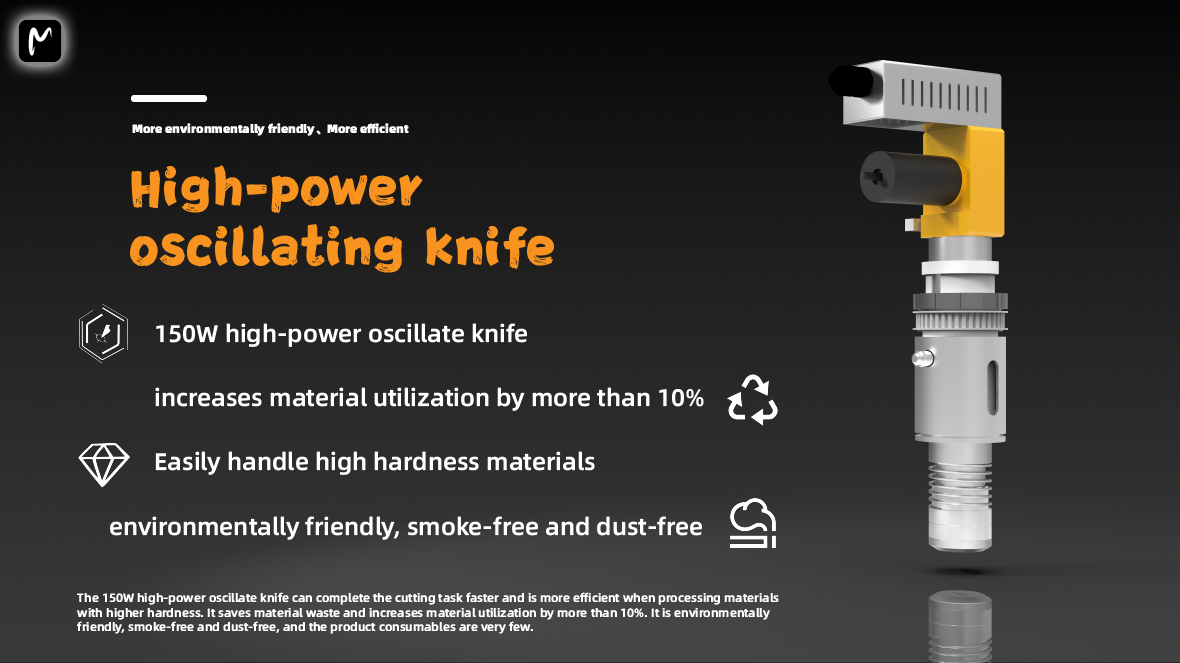

The 150W high-power oscillate knife can complete the cutting task faster and is more efficient when processing materials with higher hardness. It saves material waste and increases material utilization by more than 10%. It is environmentally friendly, smoke-free and dust-free, and the product consumables are very few.

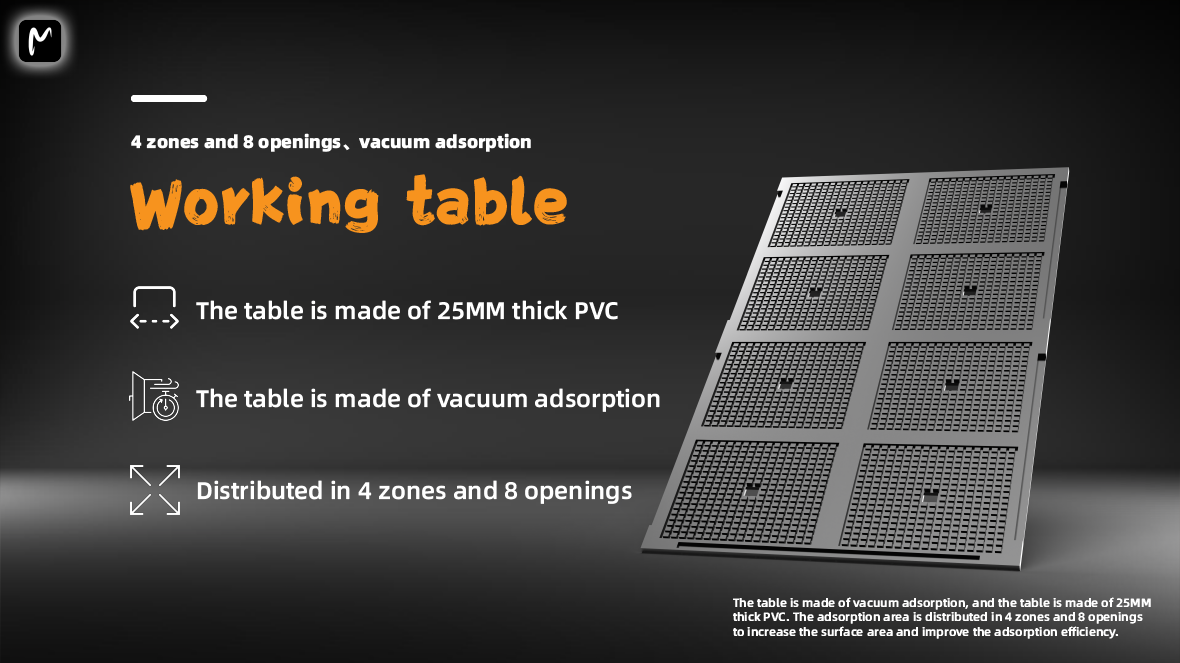

The table is made of vacuum adsorption, and the table is made of 25MM thick PVC. The adsorption area is distributed in 4 zones and 8 openings to increase the surface area and improve the adsorption efficiency.

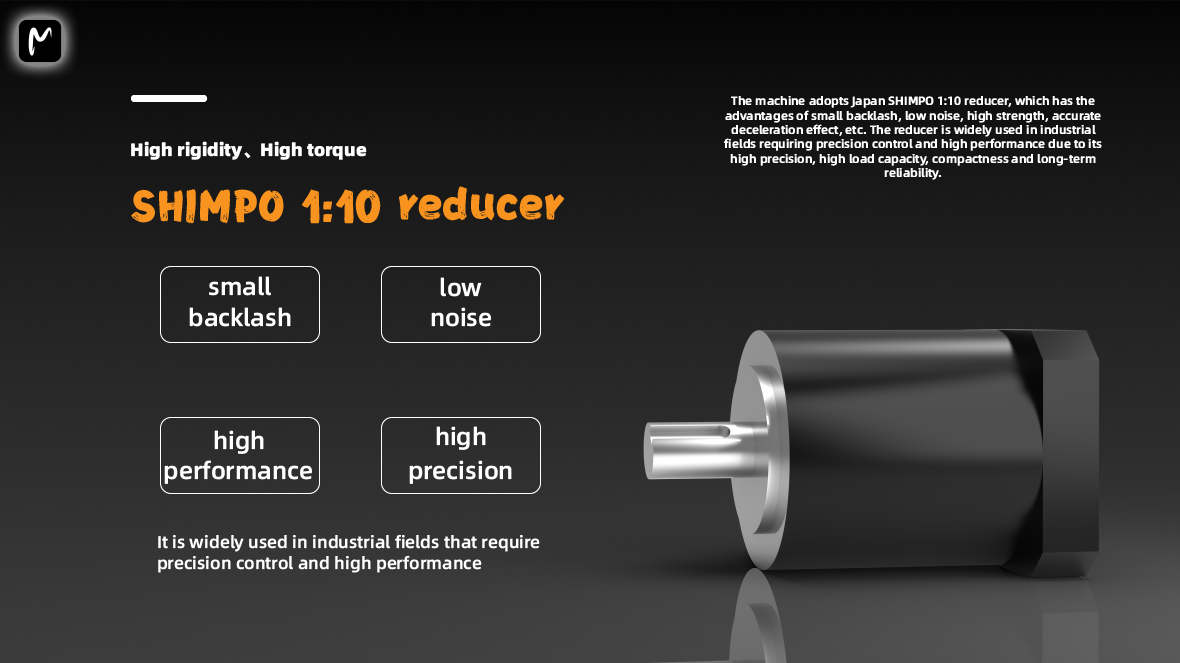

The machine adopts Japan SHIMPO 1:10 reducer, which has the advantages of small backlash, low noise, high strength, accurate deceleration effect, etc. The reducer is widely used in industrial fields requiring precision control and high performance due to its high precision, high load capacity, compactness and long-term reliability.

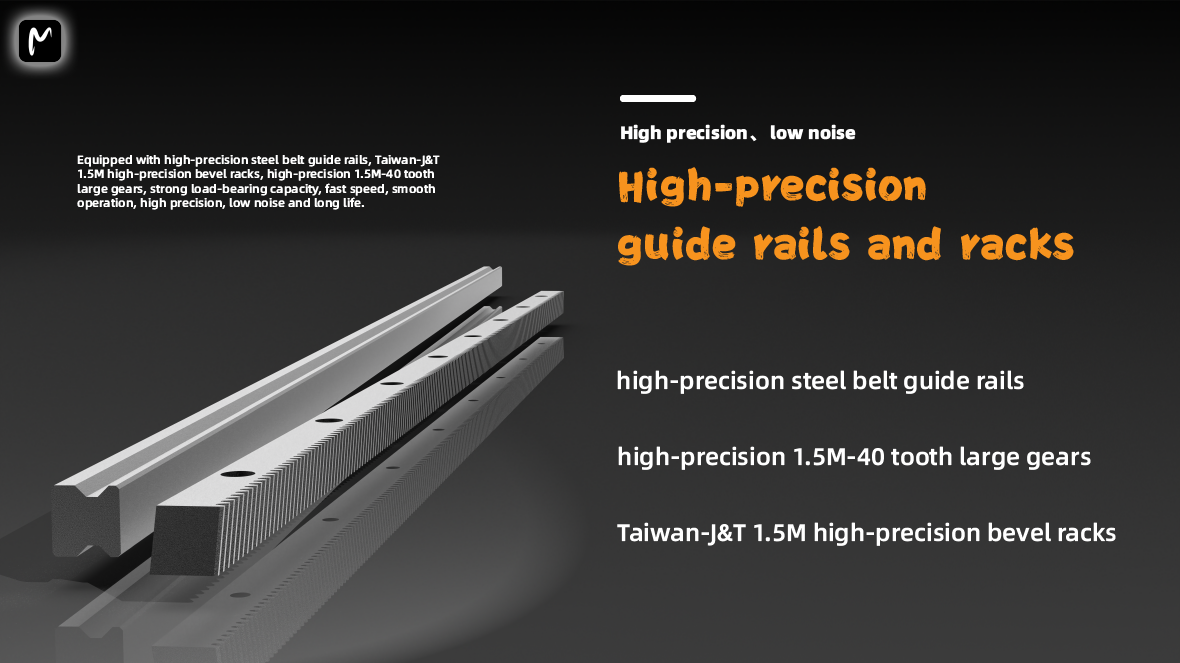

Equipped with high-precision steel belt guide rails, Taiwan-J&T 1.5M high-precision bevel racks, high-precision 1.5M-40 tooth large gears, strong load-bearing capacity, fast speed, smooth operation, high precision, low noise and long life.

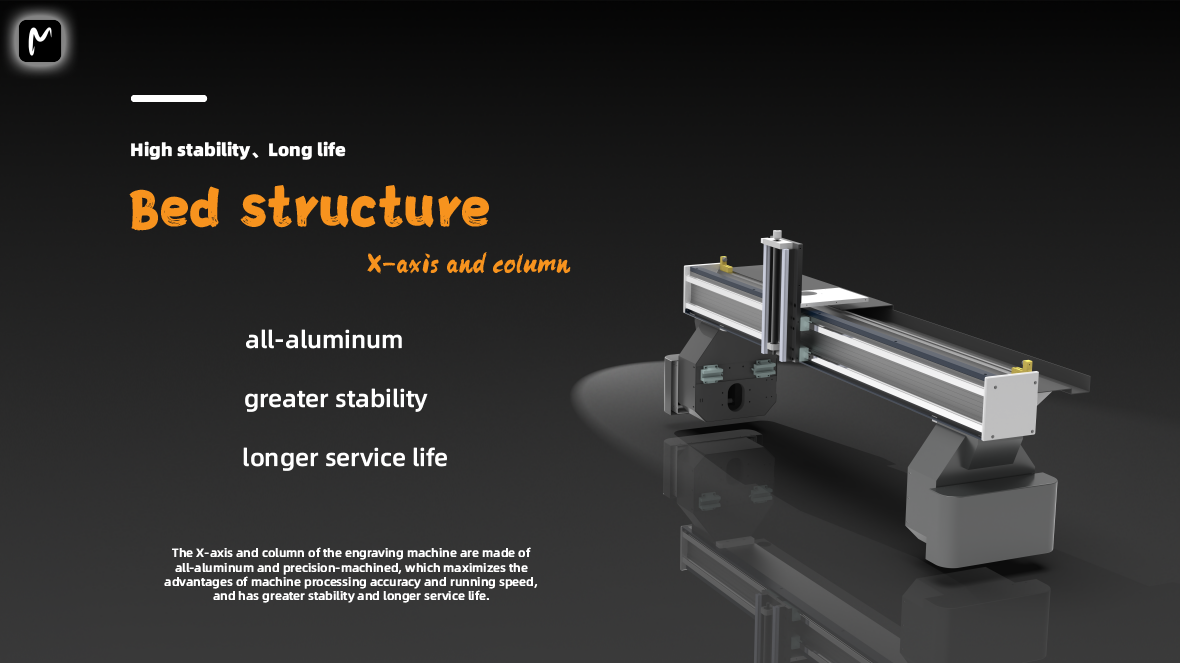

The X-axis and column of the engraving machine are made of all-aluminum and precision-machined, which maximizes the advantages of machine processing accuracy and running speed, and has greater stability and longer service life.
The whole machine drive system is equipped with Leadshine L6-750W AC servo motor drive, which can make the machine processing faster and more stable. It adopts a well-known brand drive system with high reliability.
The machine is equipped with XDW-VC-204A control system, which supports multiple programming languages and multiple data interfaces, and has high compatibility, and can be seamlessly connected with CNC equipment and software systems. It is equipped with a user-friendly graphical interface (HMI) to reduce the complexity of operation.
Supports engraving, cutting, edge trimming, and oscillating knife functions, making it versatile for multiple industries.
Equipped with high-precision spindle and industrial CCD camera, ensures accurate, smooth cuts with minimal errors.
Reduces downtime and improves efficiency, enabling seamless switching between different cutting tools.
Efficiently cuts a variety of soft and hard materials, minimizes waste, and reduces consumables cost.
Automatically adjusts cutting parameters based on material type, improving production efficiency and reducing manual labor.
UTECH SPRO is suitable for precision cutting and engraving of a wide variety of materials, including advertising boards, acrylic, insulating boards, HPL (high-pressure laminate), wood, soft metals, aluminum composite panels, plastics, and carbon fiber composites. Its versatility makes it ideal for applications in advertising and signage, soft metal processing, and engineering plastic sheet fabrication, delivering clean cuts and accurate engravings across diverse industries.
Acrylic cutting, MDF cutting, two-color board engraving, various advertising boards, signage production.
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, and various composite board cutting and engraving.
Insulating components, plastic chemical components, PCBs, HPL (High-Pressure Laminate), epoxy resin, ABS, PP, PE, and other carbon composites.
Artificial stone, PVC, wood, bamboo, marble, acrylic glass, copper, aluminum, etc.
Screens, wave boards, bamboo, marble, acrylic boards, two-color boards, and other materials for engraving various exquisite patterns and text.
1.4kw water-cooled HQD Spindle
2. CCD-XDW
3. 150W oscillating knife cutting head
4. Dust cover for the guide rail and the helical rack gear
5. TBI High-Precision Ball-screw Transmission (Taiwan)
6. Japan Shimpo1:10 reducer + LeadShine 750W servo motor
7. Hiwin square rail&High quality helical rack pinion
8. CNC Tool Sensor
9.VC-204A PC version control system
10.Anodized Aluminum Spindle Fixing plate(Z axis)
11.IS020 Tool Holder*8
UTECH is a reliable CNC cutting solution supplier with global export experience.
Each machine undergoes full testing before shipment to ensure stable performance.
Complete operation manuals, video guidance, and remote technical support are available.
Working size, tools, and configurations can be tailored to different industries.
Our customers consistently praise the UTECH ATC CNC Oscillating Knife Router for its reliability, precision, and versatility:
Leather Workshop – “This ATC CNC router has significantly improved our leather cutting efficiency. The automated tool change saves time, and the cuts are consistently precise.”
Fabric Manufacturer – “Precision is unmatched. The CCD camera system ensures there is no wasted material, even on intricate patterns. It has transformed our workflow.”
Signage Company – “Extremely easy to use. The oscillating knife works perfectly on thick materials, and the automatic tool changing saves so much time during production.”
Craft Studio – “We can now handle multiple materials with one machine. Its multifunctionality and automation allow us to focus more on design while production runs smoothly.”
These testimonials highlight how UTECH’s ATC CNC Router meets the needs of industries ranging from leather and fabric to signage, handicrafts, and industrial production.
UTECH SPRO CNC Router is built in ISO-certified facilities, ensuring consistent production quality, adherence to international safety standards, and reliable machine performance.
The machine meets CE and FCC standards for electrical and operational safety, giving users confidence in both workplace safety and regulatory compliance.
From the water-cooled spindle and gear reducers to the linear guides and servo motors, SPRO uses industrial-grade components designed for durability and precision. This ensures long-term reliability, low maintenance requirements, and consistent cutting and engraving quality over years of operation.
Every UTECH SPRO Multifunctional CCD Camera CNC oscillating knife cutting machine unit undergoes comprehensive testing before shipping, including accuracy verification, material cutting trials, and stability checks. This commitment to quality ensures that each customer receives a machine capable of meeting high production demands right from day one.
The UTECH ATC CNC Oscillating Knife Router is designed for versatility, capable of cutting leather, fabric, foam, acrylic, soft wood, and plastic sheets. Its high-power oscillating knife and CCD edge tracking ensure precise and clean cuts on multiple materials.
The UTECH ATC system automatically swaps tools based on programmed operations, reducing downtime and manual labor. This allows you to switch between engraving, cutting, and oscillating knife functions efficiently during a single production run.
The industrial-grade CCD camera detects material edges and tracks patterns in real time. It ensures precise alignment, reduces material waste, and allows for automated contour cutting of complex designs, enhancing overall production efficiency.
A5: UTECH’s ATC CNC Oscillating Knife Router is scalable for both small workshops and industrial-scale production. Its multifunctionality, automation, and robust construction make it suitable for businesses in leather, fabric, signage, handicraft, and furniture industries worldwide.
The router features a high-speed, water-cooled spindle up to 40,000 RPM with 4KW power. The water-cooling system ensures stable operation during long runs, delivering high precision and minimizing the risk of overheating, making it reliable for continuous industrial use.
Yes. With its CCD camera and oscillating knife technology, the UTECH ATC CNC router can cut intricate patterns, letters, logos, and custom designs with high accuracy. It supports standard CNC formats like DXF, PLT, and AI files, ideal for personalized and commercial applications.
This router is widely used in leather goods manufacturing, textile and fabric production, foam packaging, signage and advertising, woodworking, handicraft, and industrial fabrication. Its multifunctionality makes it a versatile solution for businesses globally, including North America, Europe, and Asia.
The machine is highly automated, featuring auto-adjustable cutting parameters and tool changes. User-friendly software, detailed manuals, and UTECH technical support make it easy to operate and maintain. Routine maintenance includes cleaning, lubrication, and inspection of the spindle and oscillating knife.
Yes. All UTECH ATC CNC Oscillating Knife Routers come CE certified for safety and built under ISO 9001 quality management standards. UTECH offers full after-sales support, training, spare parts availability, and warranty services to ensure reliable operation for years.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
