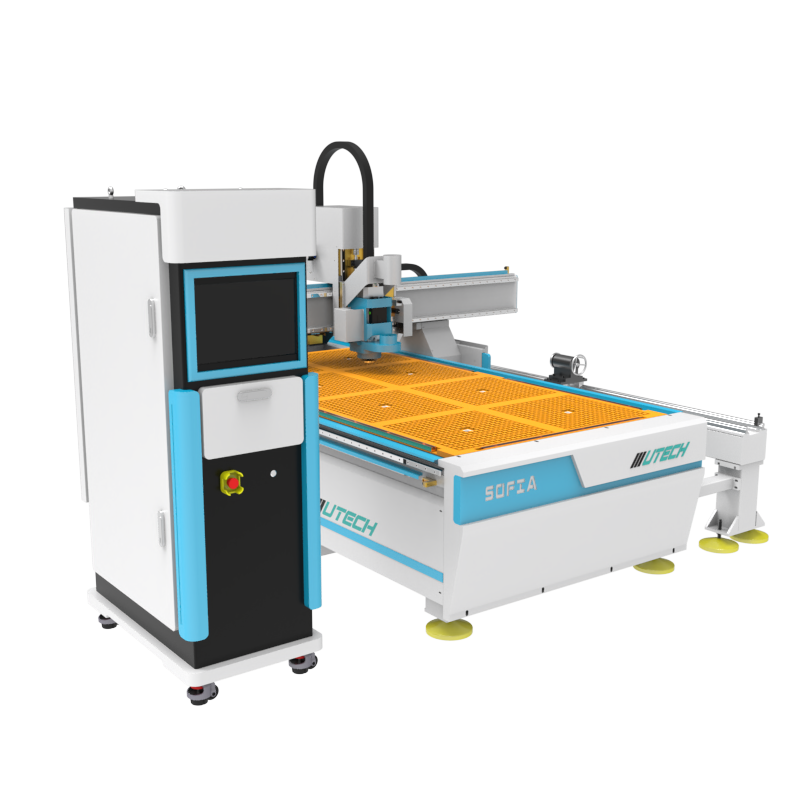

SOFIA-OKC-4TH
UTECH

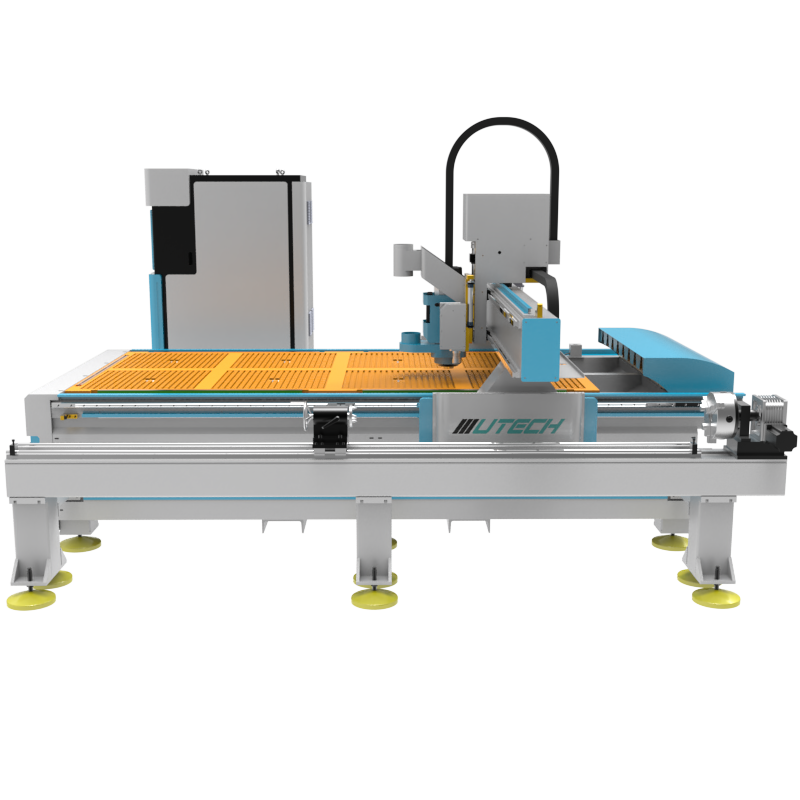

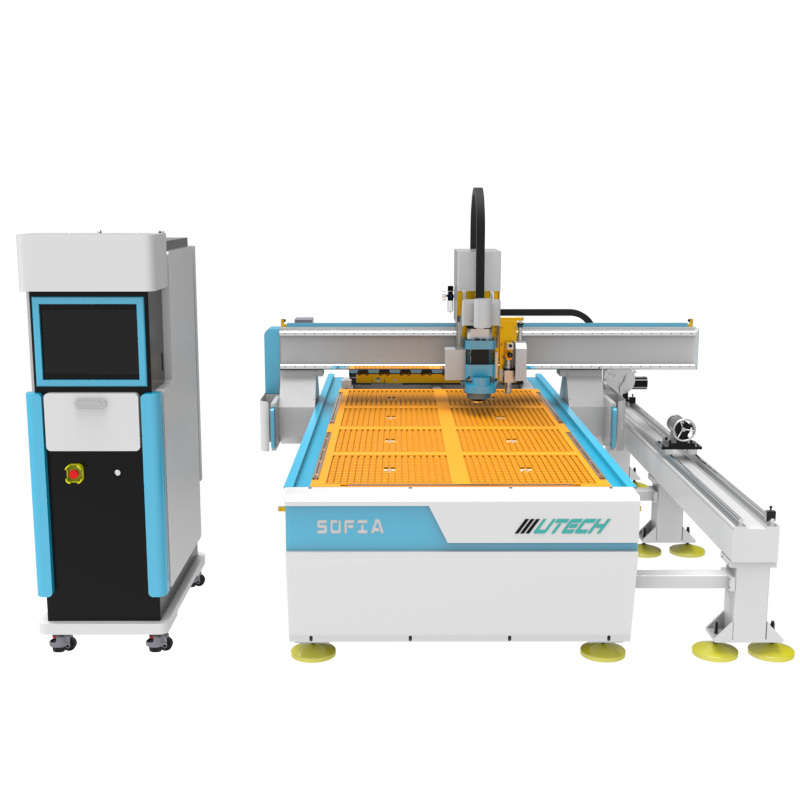

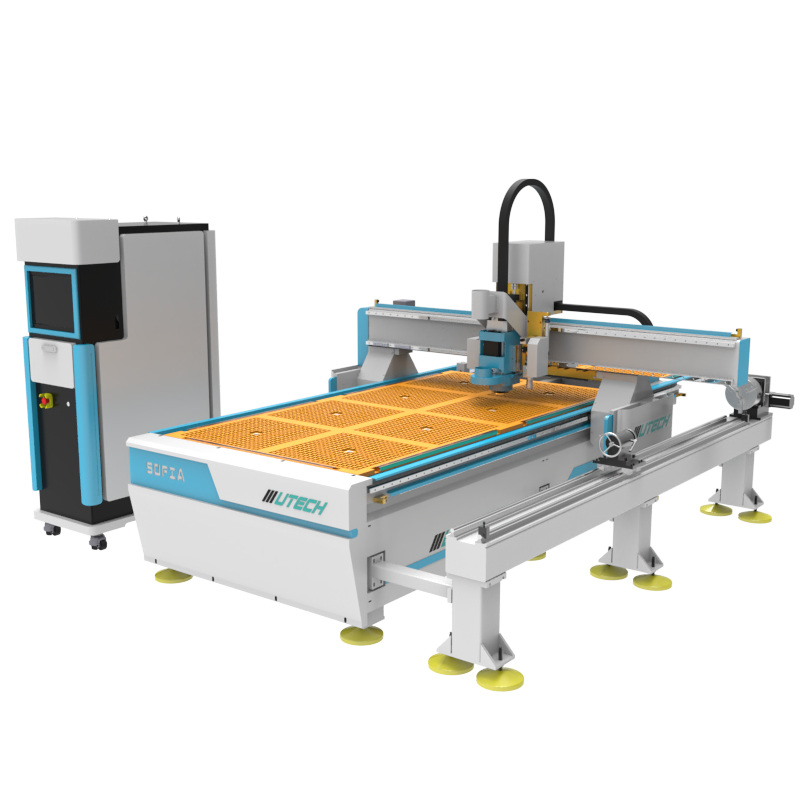

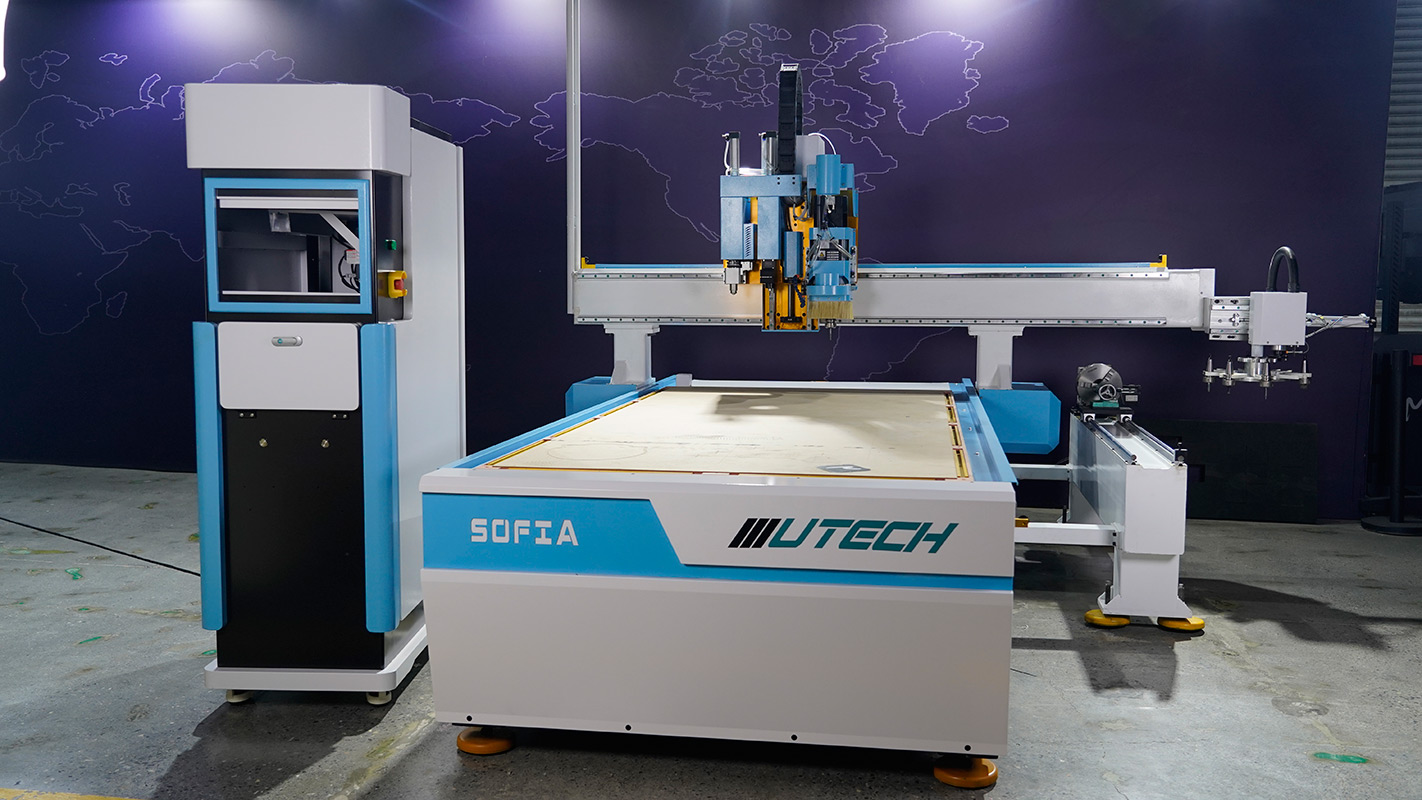

1325 ATC CCD Camera Digital Cutting Machine with Rotary Device.pdf
1300mm*2500mm(4′ x 8′)
CE
Digital Knife Cutting Machine
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month
The machine head supports ATC automatic tool change, Germany EOT-3 tangential oscillating knife, creasing tool, CCD vision positioning system and 4th rotary axis, creating a true all-in-one CNC cutting solution.
It handles routing, contour cutting, creasing and cylindrical processing in a single workflow—reducing equipment investment and saving factory space.
Italy OLSspeed 9kW air-cooled spindle (0-24000RPM)
Germany Tangential Knife EOT-3
Japanese high-precision gear reducer
Delta 750W servo motors (optional YASKAWA 850W)
These international-grade components ensure stable operation, long service life and consistent cutting accuracy for industrial production.
1.5M precision helical rack for X/Y axis
Taiwan TBI ball screws for Z axis
Aviation aluminum alloy T6061/T6063 Z-axis structure
Brand linear guide rails
The optimized mechanical structure guarantees ±0.01mm repeat positioning accuracy, ideal for precision contour cutting and multi-process production.
Automatic carousel or linear tool changer
ISO30 tool holders (4/6/8/10/12/16/20 optional)
Automatic tool height calibration sensor
Oil-mist & air cooling system
This configuration enables seamless switching between routing, drilling and knife cutting without manual intervention, significantly improving efficiency.
The CCD camera system enables automatic edge detection and precision alignment, especially suitable for:
Printed board contour cutting
Advertising graphics
Packaging templates
Digital printing alignment
This greatly reduces manual positioning errors and improves production yield.
Side rotary axis: 200×1000mm (customizable diameter & length)
Supports cylindrical, irregular and 3D workpieces
Optional fixed or movable structure
This feature expands production from flat sheet cutting to round columns and complex 3D components.
Multi-zone vacuum table with T-slot
Ball valve zone control
UTECH patented platen tool (optional roller feeding)
Ensures strong material adsorption for both rigid boards and flexible materials, improving processing stability.
Model | 1325-ATC | 1530-ATC | 2030-ATC | 2040-ATC |
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Machine Head Structure | Muliti-function compatibility(ATC,Oscillating knife,Creasing tool, CCD, 4th axis) | |||
Oscillating Knife | Germany Tangential Knife EOT-3 | |||
Tool Changer&Magazine | Automatic Carousel tool change/Automatic Linear tool change | |||
Tool Holder Quantity | 4/6/8/10/12/16/20 ISO30 | |||
Spindle Power&Speed | Italy OLlspeed 9kw air-cooled Spindle, 0-24000RPM | |||
Tool Setting | Automatic Tool Height calibration sensor | |||
Tool Cooling | Oil-Mist&Air-Cooling system | |||
Working Table | Multi-zone vacuum with T-slot table with ball valves for zone control | |||
Material Fixing Method | UTECH patented platen tool (can be added with roller) | |||
Control System | XINGDUOWEI 207C Controller (PC version) | |||
Rotary Axis | Side rotary axis: 200x1000mm(diameter,length and design support customized) | |||
Driver&Motor | Delta 750W servo motor(Japan YASKAWA 850w) | |||
Reducer | Japanese high precision gear reduction | |||
XY Structure | 1.5M precision helical rack,Brand linear guide rail | |||
Z Structure | Z-axis use aviation aluminum alloy T6061/6063, Taiwan TBl Ball Screws | |||
Lubrication System | Auto lubration system | |||
Gross Power | 24KW | |||
Power Consumption | 24kWh/h | |||
Repeat Positioning Accuracy | ±0.01mm | |||
Working Voltage | 220V/380V | |||
Multi-faceted machining, the rotary axis enables the workpiece to rotate and achieve multi-angle machining without re-clamping,which is particularly suitable for engraving cylindrical or complex curved workpieces.

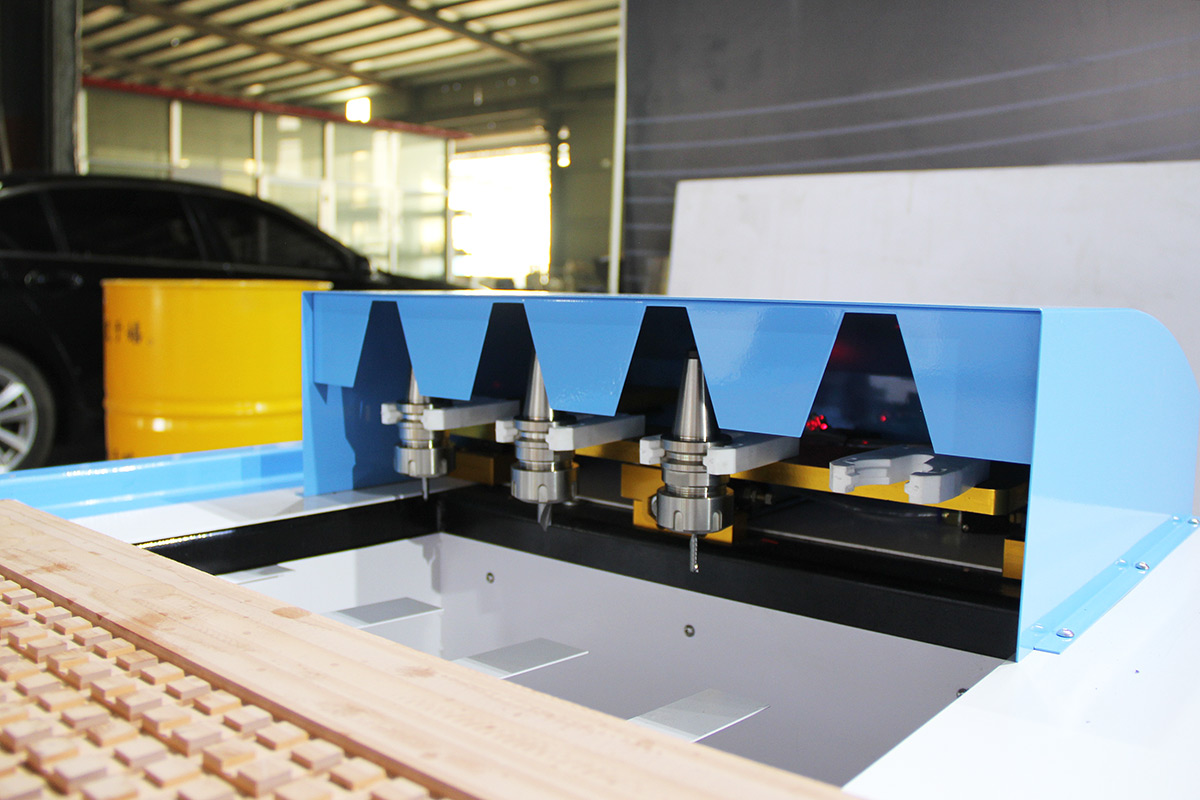

The automatic tool change function reduces downtime, supports rapid switching of multiple tools, adapts to complex processing needs, and improves production efficiency.（Optional Automatic Carousel tool change/Automatic Linear tool change）

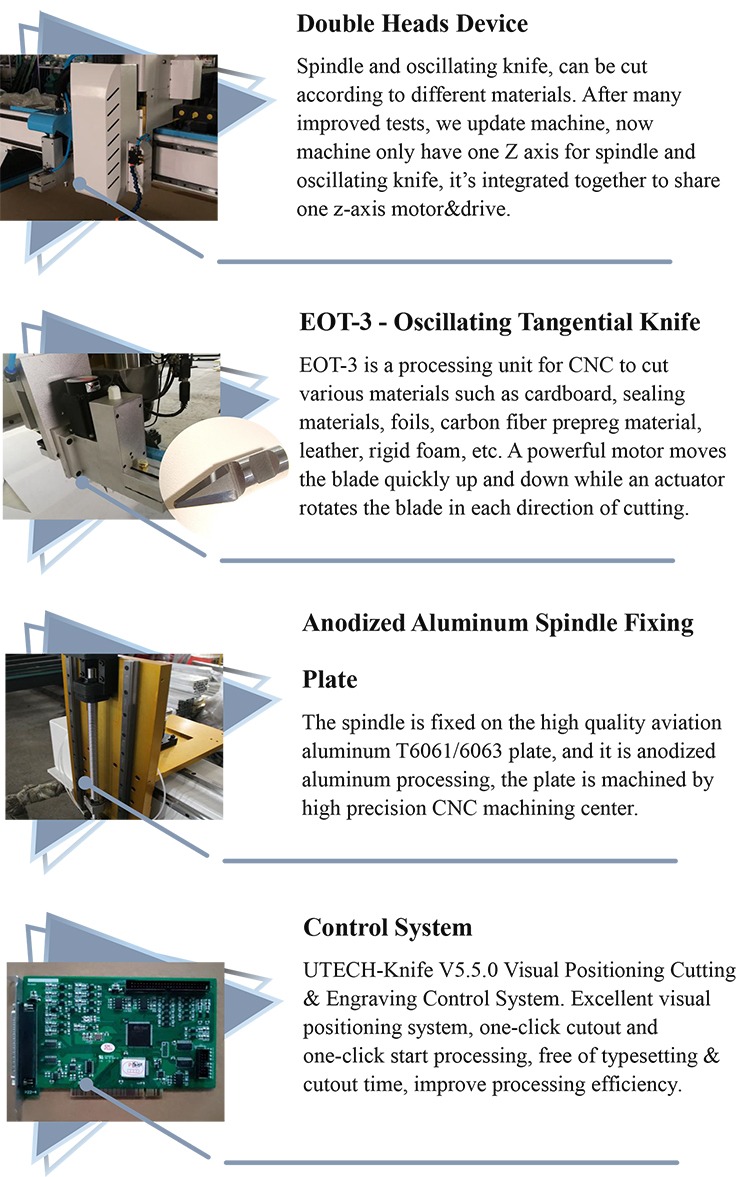

Spindle and oscillating knife, can be cut according to different materials. After many improved tests, we update machine, now machine only have one Z axis for spindle and oscillating knife, it's integrated together to share one z-axis motor&drive.
Germany Tangential Knife EOT-3 is a processing unit for CNC to cut various materials such as cardboard, sealing materials, foils, carbon fiber prepreg material,leather, rigid foam, etc. A powerful motor moves the blade quickly up and down while an actuator rotates the blade in each direction of cutting.
The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is anodized aluminum processing, the plate is machined by high precision CNC machining center.
The XINGDUOWEI 207C Controller (PC version) combines industrial-grade performance with flexible operation. Designed for high-precision engraving, cutting, and milling applications, it significantly improves machining efficiency.
The machine is designed with the dust cover for the guide rall and the helical rack and gear,to reduce friction, make the rail and the rack have longer service life.
Equipped with professional 1.5 megapixel industrial camera,powerful image recognition,more accurate cutting.
Bed welding process increases the reserved forklift, highlights two major advantages: First,increase the strength of the bed itself,Second,it s more convenient for customers to load or unload the equipment.
SOFIA choose heavy duty linear guide rail with high assembly Flange sliding block and PMl linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span.
The CCD camera alignment CNC machine ensures high accuracy positioning cutting for printed materials, reducing manual alignment errors and improving yield rate.
The digital knife cutting system is ideal for foam board cutting, corrugated paper cutting, cardboard cutting and packaging material cutting without burning edges.
The automatic tool change CNC router efficiently handles wood cutting, acrylic cutting, PVC cutting and composite material processing.
This multi-tool CNC cutting platform combines routing, knife cutting and creasing in one machine, suitable for both metal and non-metal materials.
Perfect for signage production equipment, display stand manufacturing, acrylic letters, printed panel contour cutting and advertising board processing.
Widely used in packaging prototype making, carton box cutting, creasing and digital printing cutting machine workflows.
Suitable for woodworking CNC solutions including cabinet panels, decorative boards, MDF carving and customized furniture components.

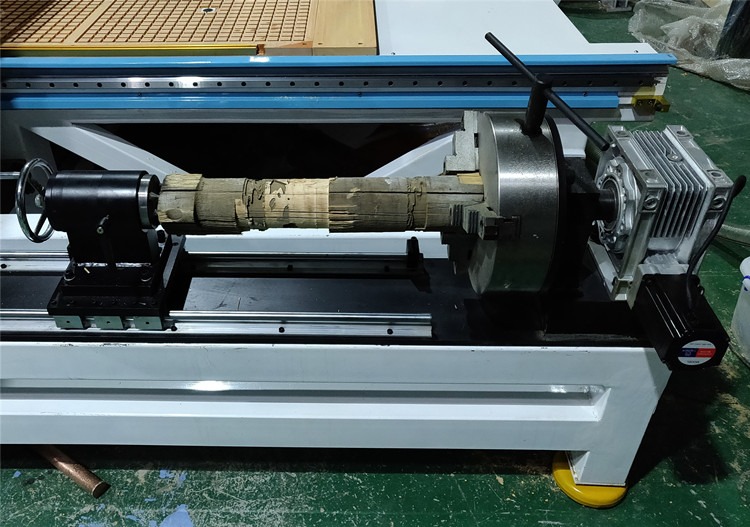

With rotary device, the machine supports cylindrical material processing such as columns, round wood parts and irregular 3D workpieces.
1. Italy OLlspeed 9kw air-cooled Spindle
2. Auto tool change
3. Anodized Aluminum Spindle Fixing plate(Z axis)
4. Dust cover for the guide rail and the helical rack gear
5. TBI High-Precision Ball-screw Transmission (Taiwan)
6. Japan Shimpo1:5 reducer + Delta 750W servo motor
7. Hiwin square rail&High quality helical rack pinion
8. CNC Tool Sensor
9.Germany Tangential Knife EOT-3
10.CCD-XDW
11.Rotary(length&diameter could be customized)
UTECH is a reliable CNC cutting solution supplier with global export experience.
Each machine undergoes full testing before shipment to ensure stable performance.
Complete operation manuals, video guidance, and remote technical support are available.
Working size, tools, and configurations can be tailored to different industries.
Customers report excellent contour cutting precision and clean edges on flexible materials.
The integration of CCD vision and oscillating knife significantly increases workflow efficiency in packaging and advertising industries.
The SOFIA 1325 ATC CCD Camera Digital Cutting Machine with Rotary Device is fully CE certified, complying with European Union safety, health, and environmental protection standards. This certification ensures that the machine meets essential EU directives, including machinery safety, electrical safety, and electromagnetic compatibility requirements.
With CE certification, SOFIA-OKC-4TH can be legally imported, sold, and operated in European countries and other regions that recognize CE standards. It provides customers with confidence in product quality, operational safety, and long-term reliability.

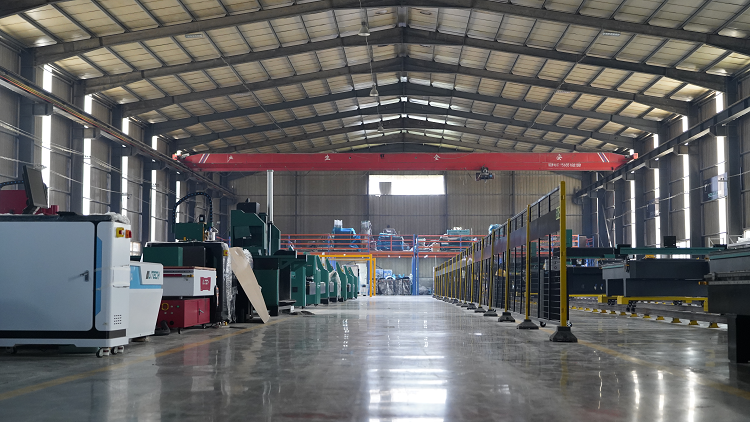

UTECH factory strictly follows international manufacturing standards and quality control procedures, ensuring every CNC router is tested before shipment. CE certification also helps buyers simplify customs clearance, reduce regulatory risks, and ensure smooth market entry.
This machine can process PVC, acrylic, wood, MDF, plywood, plastics, aluminum composite panels, foam, leather, fabrics, corrugated cardboard, and packaging materials. It supports both rigid material milling and flexible material digital cutting.
The Automatic Tool Change (ATC) system allows the CNC router to change tools automatically without manual intervention. This significantly improves efficiency in multi-process jobs such as engraving, milling, drilling, and contour cutting.
The integrated CCD vision positioning system uses a high-resolution industrial camera to detect printed contours and automatically align the cutting path. It ensures precise contour cutting and reduces material waste in advertising and packaging production.
The rotary device enables 3D engraving and cylindrical processing. It is ideal for carving wooden columns, table legs, chair legs, stair handrails, and other round or cylindrical workpieces.
Yes. The 1325 (4×8 ft) working area combined with a heavy-duty welded steel frame makes it suitable for continuous industrial production in woodworking, advertising, packaging, and decorative industries.
Yes. This multi-function CNC machine integrates ATC spindle milling, CCD contour cutting, oscillating knife cutting, and rotary engraving, allowing one machine to complete complex processing tasks.
The system supports DXF, NC, JPG, PNG, and other commonly used CNC file formats. It is compatible with most CAD/CAM software for digital cutting and CNC routing applications.
UTECH 1325 4axis ATC CCD Camera Digital Cutting Machine is widely used in furniture manufacturing, advertising sign making, packaging box cutting, leather goods production, decorative panel processing, and custom woodworking workshops.
Yes. UTECH provides customized solutions including different working areas, spindle power options, rotary diameter and length, vacuum table configurations, and tool magazine capacity.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
