SOFIA-CUT
UTECH
1300mm*2500mm(4′ x 8′)
CE

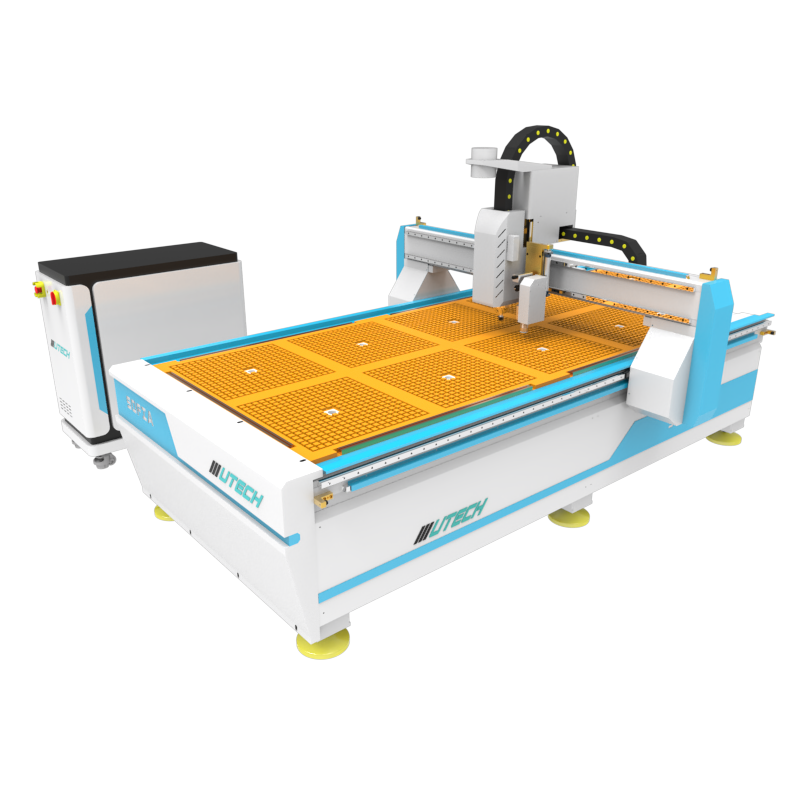

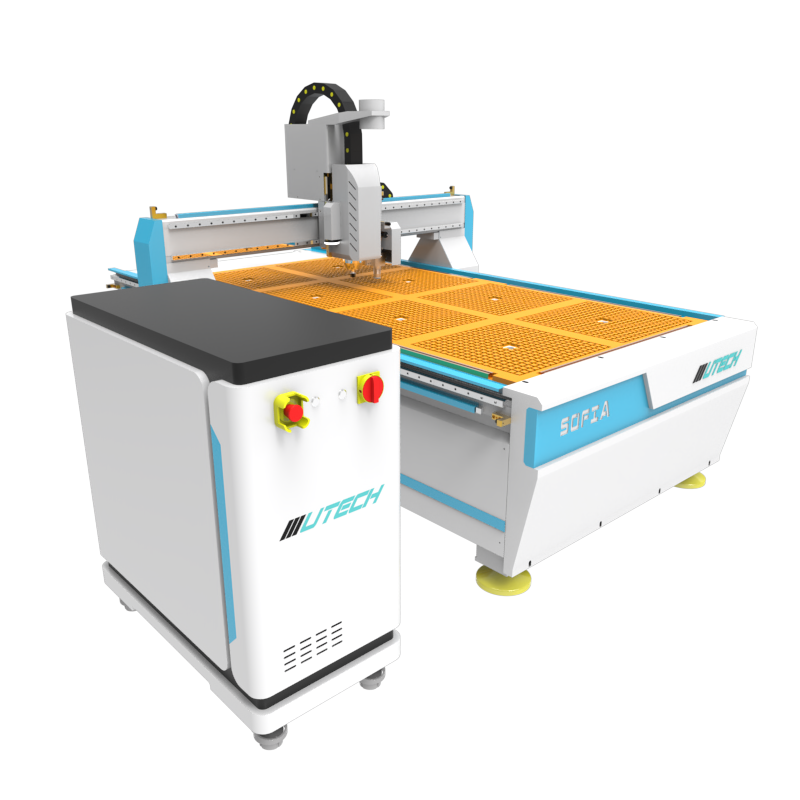

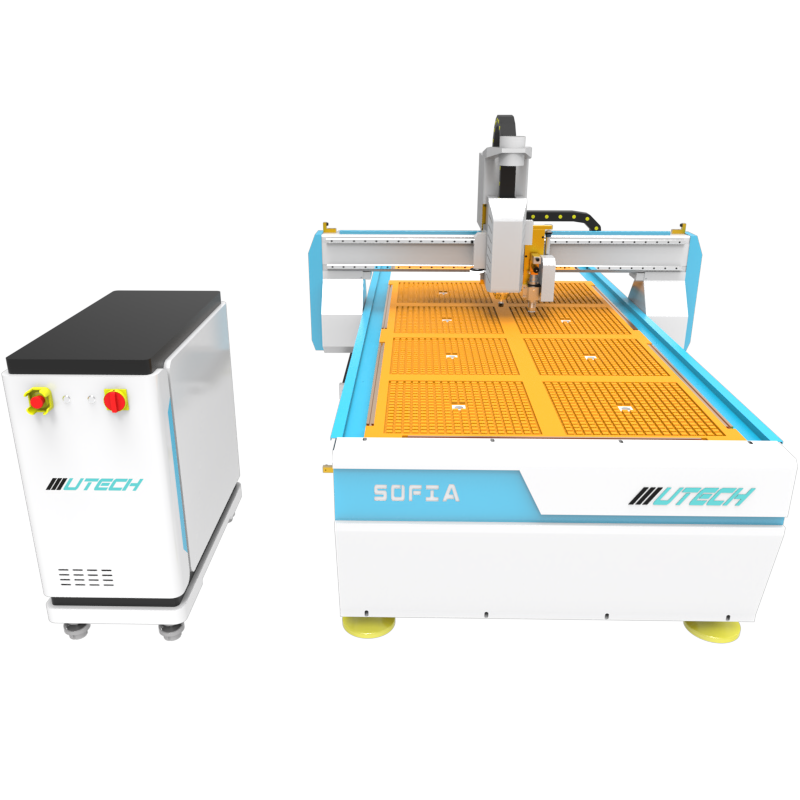

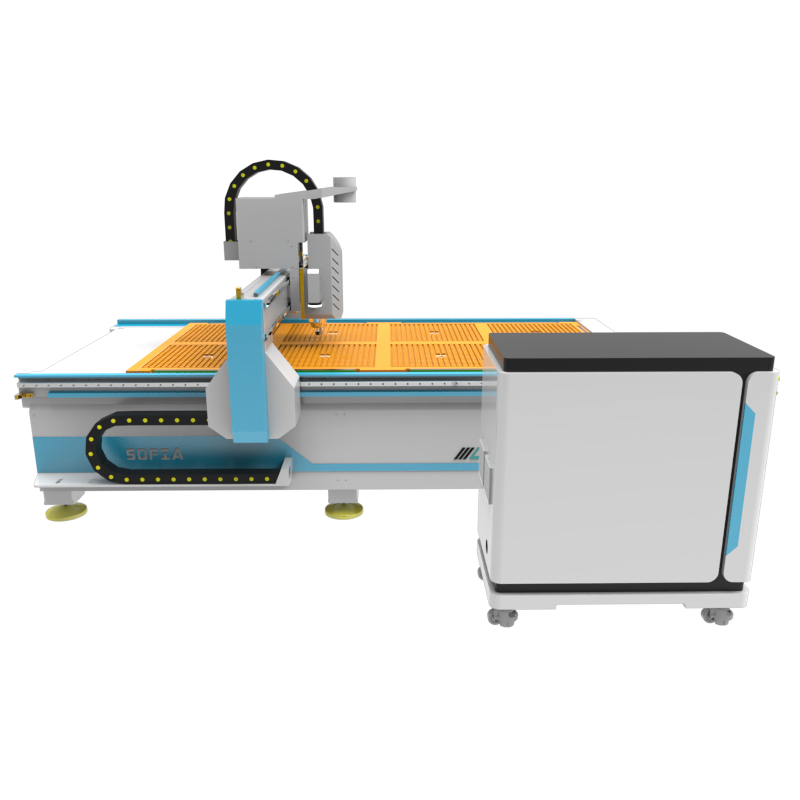

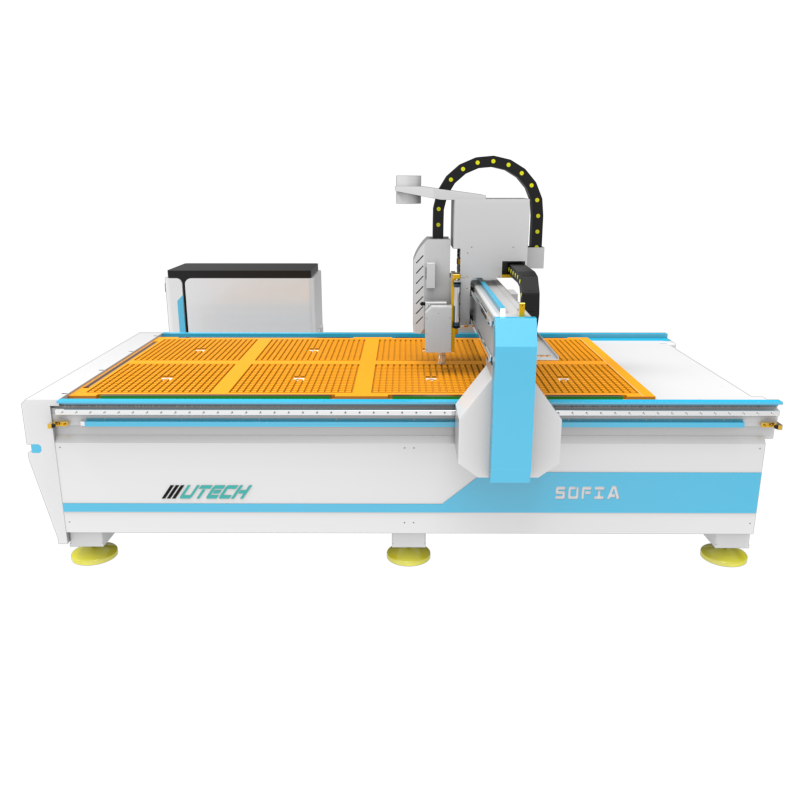

Digital Knife Cutting Machine
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month
The machine bed is constructed from high-rigidity rectangular steel tubes with an optimized dragnet structure. After professional aging treatment, it ensures long-term structural stability, high precision, and reliable performance for industrial digital cutting applications.
Equipped with both a precision spindle and a high-speed oscillating knife cutter, the machine can process different materials flexibly.
The upgraded integrated Z-axis design allows both tools to share one motor and drive system, eliminating the need for an additional Z-axis control unit. This improves mechanical stability, reduces failure rate, and enhances overall processing accuracy.
Featuring a professional 1.5-megapixel industrial CCD camera, the system delivers powerful image recognition and high-precision contour cutting.
With one-click automatic tracing and one-click start processing, it eliminates manual typesetting and cutout preparation time, significantly improving production efficiency in packaging and advertising industries.
The oscillating knife head supports automatic tracing-edge cutting for flexible materials such as KT board, PVC, photo paper, foam, leather, and carton.
The cutting process is dust-free and produces clean, smooth edges without burrs or burning, making it ideal for high-quality digital cutting applications.
The machine supports DXF, JPG, PNG, NC and other file formats.
In addition to automatic contour recognition cutting, it also supports CNC router milling functions, enabling one machine to perform engraving, milling, and digital knife cutting in a single integrated solution.
Model | SOFIA-1325 | SOFIA-1530 | SOFIA-2030 | SOFIA-2040 |
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Accuracy | ±0.01mm | |||
Table Surface | T-slot Table; Vacuum&T-slot Table | |||
X, Y Structure | 1.5M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBl Ball Screw, Taiwan Linear Rail | |||
Vibrating Knife | EOT-01 | |||
CCD | CCD-XDW | |||
Spindle Power | 3.2kw air-cooled spindle | |||
Spindle Speed | 0-24000RPM | |||
Drive Motors | Leadshine hybrid servo motor and driver+Japan SHIMPO reducer 1:5 | |||
Working Voltage | 220/380V | |||
Command Language | G Code | |||
Operating System | XDW-VC204A | |||
Communication Mode | U disk(Network communication) | |||
Inverter | BEST(Fuling,hpmont optional) | |||
Software | VCarve, Artcam, Ucancam, Aspire,CorelDraw, Type3,SolidWorks, Artcut, AutoCAD,etc. | |||
Spindle and oscillating knife, can be cut according to different materials. After many improved tests, we update machine, now machine only have one Z axis for spindle and oscillating knife, it's integrated together to share one z-axis motor&drive.
EOT-01 is a processing unit for CNC to cut various materials such as cardboard, sealing materials, foils, carbon fiber prepreg material,leather, rigid foam, etc. A powerful motor moves the blade quickly up and down while an actuator rotates the blade in each direction of cutting.
The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is anodized aluminum processing, the plate is machined by high precision CNC machining center.
UTECH-Knife V5.5.0 Visual Positioning Cutting& Engraving Control System. Excellent visual positioning system, one-click cutout and one-click start processing, free of typesetting &cutout time, improve processing efficiency.
The machine is designed with the dust cover for the guide rall and the helical rack and gear,to reduce friction, make the rail and the rack have longer service life.
Equipped with professional 1.5 megapixel industrial camera,powerful image recognition,more accurate cutting.
Bed welding process increases the reserved forklift, highlights two major advantages: First,increase the strength of the bed itself,Second,it s more convenient for customers to load or unload the equipment.
SOFIA choose heavy duty linear guide rail with high assembly Flange sliding block and PMl linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span.
The vision-guided CNC cutter ensures consistent cutting accuracy, even for complex patterns and printed materials.
Ideal for foam cutting, leather cutting, fabric cutting, and packaging cutting applications. Clean edges without burning or dust pollution.
Integrates engraving, milling, and digital knife cutting functions, reducing equipment investment while increasing production flexibility.
Easy operation interface with intelligent automation for fast setup and smooth workflow.
Contour cutting for printed boards, PVC sheets, acrylic panels, and display materials.
Corrugated cardboard cutter for sample making, custom box cutting, and packaging prototype production.
Professional leather cutting machine and fabric cutting solution for shoes, bags, garments, and automotive interiors.
Processing wood panels, foam boards, and composite sheets for decorative and industrial applications.
1. Rotary(length&diameter could be customized)
2. Dust collector
3. Auto tool change
1. 3.2kw air-cooled spindle
2. Machine Base Frame
3. Anodized Aluminum Spindle Fixing plate(Z axis)
4. Dust cover for the guide rail and the helical rack gear
5. TBI High-Precision Ball-screw Transmission (Taiwan)
6. Japan Shimpo1:5 reducer + Leadshine Hybrid servo motor
7. Hiwin square rail&High quality helical rack pinion
8. CNC Tool Sensor
9.EOT-01 Vibrating Knife
10.CCD-XDW
UTECH is a reliable CNC cutting solution supplier with global export experience.
Each machine undergoes full testing before shipment to ensure stable performance.
Complete operation manuals, video guidance, and remote technical support are available.
Working size, tools, and configurations can be tailored to different industries.

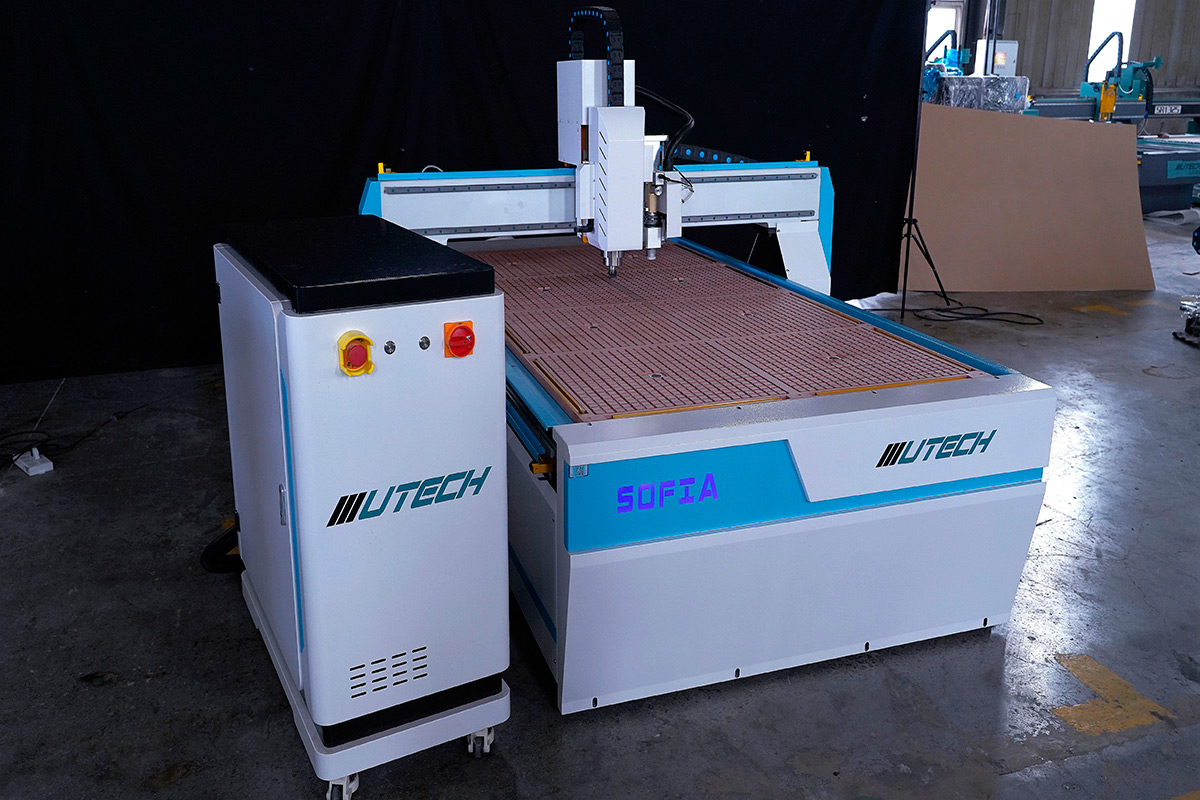

Customers worldwide praise the SOFIA-CUT CCD CNC Oscillating Knife Cutting Machine for its stable performance, high accuracy, and excellent price-performance ratio.
The CNC Digital Knife Cutting machine has been successfully applied in furniture manufacturing plants, cabinet factories, and woodworking job shops across multiple countries.
The SOFIA 3 Axis CNC Oscillating Knife Cutting Machine is fully CE certified, complying with European Union safety, health, and environmental protection standards. This certification ensures that the machine meets essential EU directives, including machinery safety, electrical safety, and electromagnetic compatibility requirements.
With CE certification, SOFIA-CUT can be legally imported, sold, and operated in European countries and other regions that recognize CE standards. It provides customers with confidence in product quality, operational safety, and long-term reliability.
UTECH factory strictly follows international manufacturing standards and quality control procedures, ensuring every CNC router is tested before shipment. CE certification also helps buyers simplify customs clearance, reduce regulatory risks, and ensure smooth market entry.
The machine is suitable for foam, leather, fabrics, corrugated cardboard, carton boxes, KT board, PVC, photo paper, acrylic, plastics, and wood. It supports both flexible material cutting and rigid material milling in one integrated system.
The integrated CCD vision positioning system uses a 1.5-megapixel industrial camera to automatically detect printed contours and edges. It enables high-precision contour cutting and eliminates manual alignment errors, ensuring consistent and accurate results.
Yes. This CNC digital cutting machine is designed for automatic tracing-edge cutting of printed materials such as packaging boxes, advertising boards, and display graphics, making it ideal for the packaging and sign-making industries.
UTECH adopts an upgraded integrated Z-axis structure where both the spindle and oscillating knife share one motor and drive system. This design improves stability, reduces mechanical complexity, and lowers maintenance costs.
No. The oscillating knife cutter ensures dust-free and burr-free cutting, especially when processing foam, leather, carton, and flexible materials. The finished edges are clean and smooth.
The machine supports DXF, JPG, PNG, NC and other common formats. It works with both vector graphics and image-based contour cutting files.
Yes. The heavy-duty welded steel frame and industrial-grade components ensure stable operation for long-term and high-volume production environments.
Yes. UTECH provides customizable working areas according to customer requirements, including standard 4×8 ft (1325) and other industrial flatbed sizes.
This machine is widely used in advertising, packaging, leather goods manufacturing, textile processing, automotive interiors, gasket cutting, and custom sample production.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
