SOFIA A1
UTECH
1300mm*2500mm(4′ x 8′)
CE
3 Axis CNC Wood Router
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month

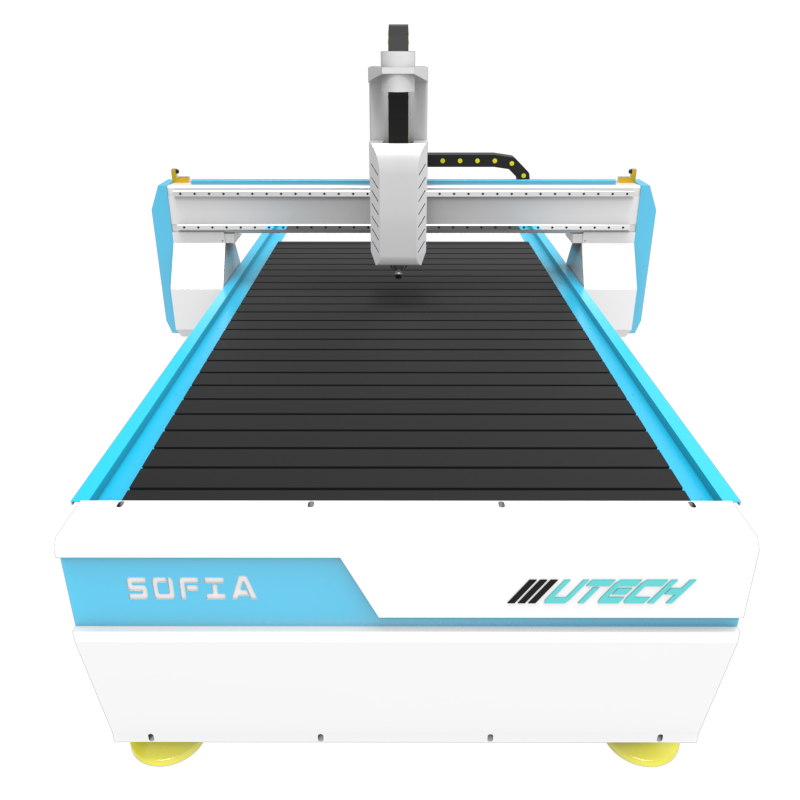

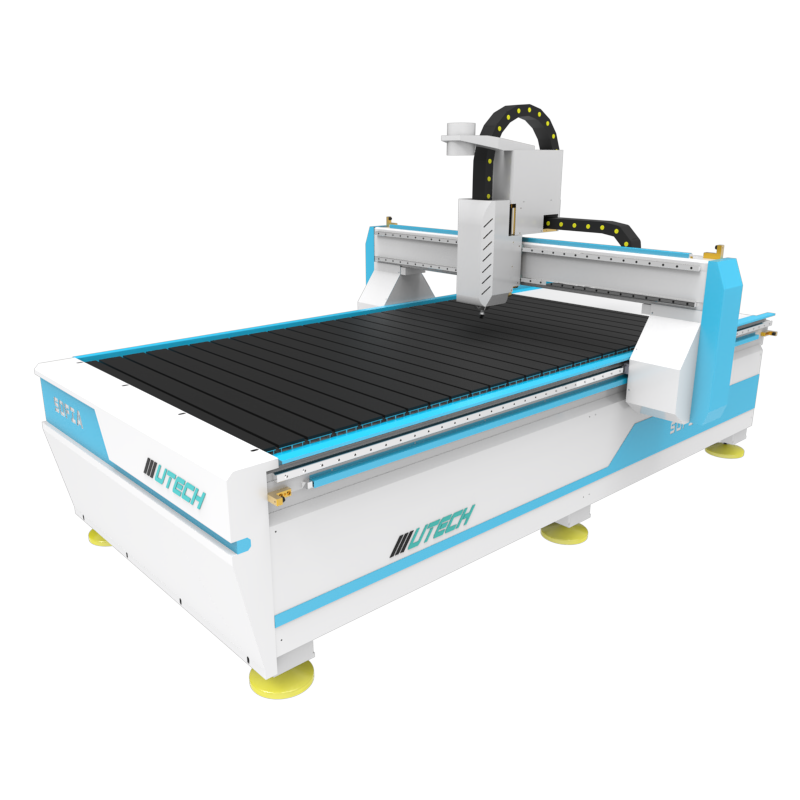

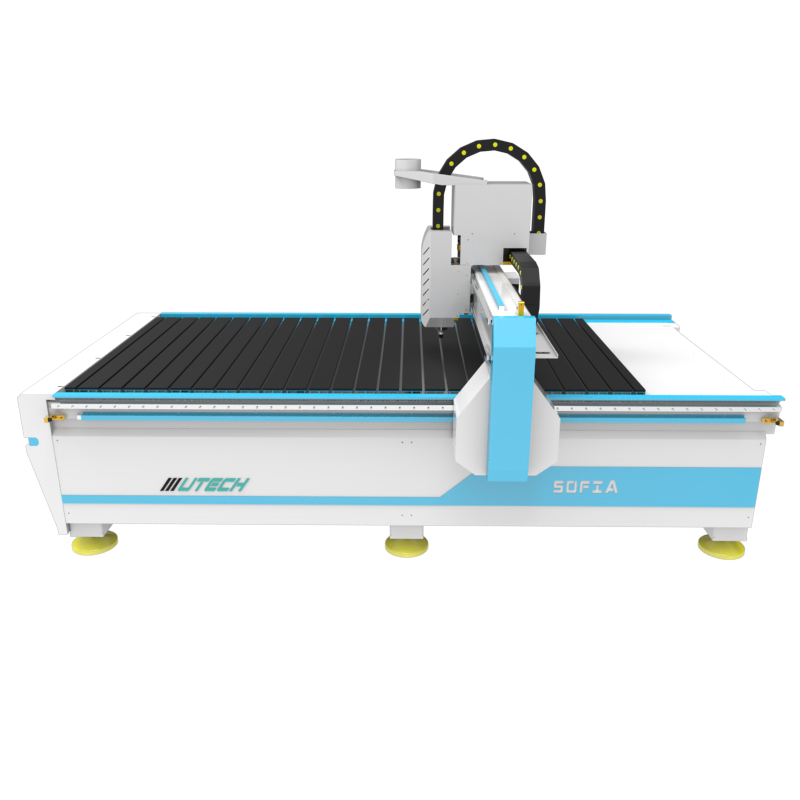

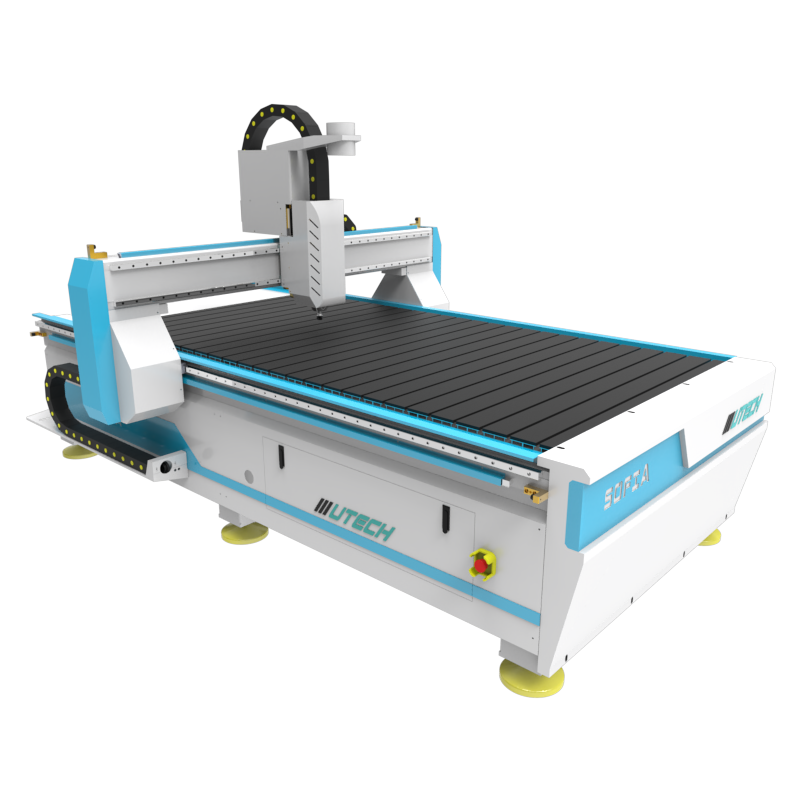

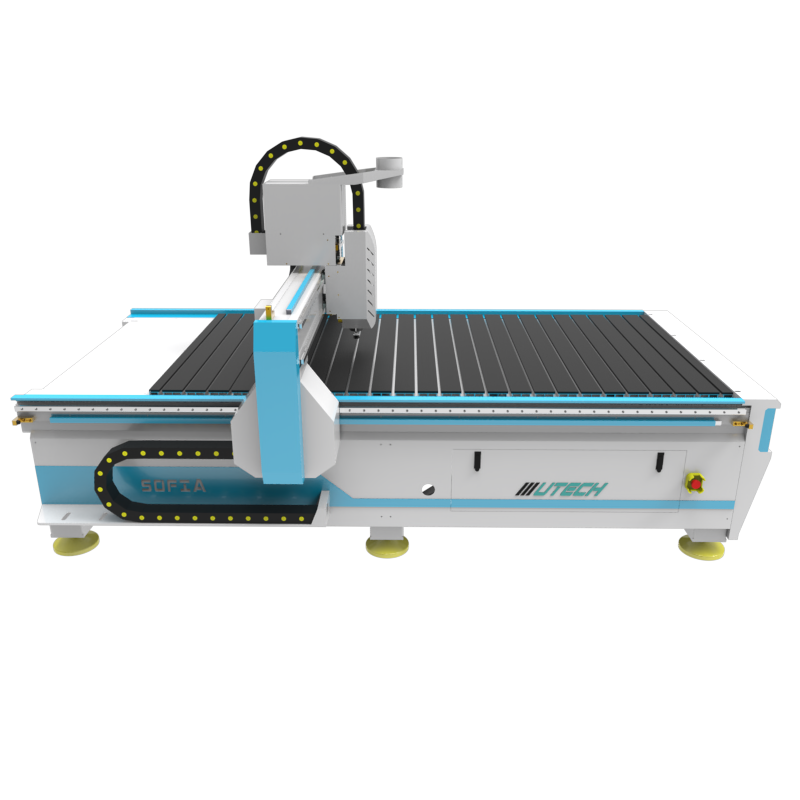

The UTECH SOFIA A1 manual tool change CNC router is a best-selling model for both beginners and experienced users. It is widely used for carving, engraving, and cutting wood, MDF, acrylic, and aluminum, making it a versatile solution for woodworking and light metal processing.
The machine structure is built with thick, heavy-duty steel square tubes, offering outstanding rigidity, vibration resistance, and durability for long-term stable operation and consistent machining accuracy.
Equipped with a DSP A11 handheld controller, the machine is easy to operate without a computer. This user-friendly control system improves efficiency and simplifies training for new operators.
Key spare parts adopt internationally recognized brands, ensuring high-precision carving, smooth motion, reliable performance, and convenient maintenance for buyers from different countries.
The transmission stand column is manufactured using high-precision machining processes, ensuring accurate insert cavity positions and assembly surfaces for enhanced overall machine accuracy and long-term reliability.
The UTECH SOFIA A1 CNC router is an ideal choice for buyers seeking a cost-effective, multifunctional CNC woodworking machine with professional performance for furniture making, cabinetry, signage, and decorative carving.
Model | Sofia-A1 |
Size | 1300*2500mm*200mm |
Table Structure | T-slot table |
Spindle Motor | 3.2KW Water cooled Spindle Motor |
Cooling System | Water pump |
Inverter | Best Inverter |
Control System | RichAuto DSP A11 Handle controller |
Reducer | UTECH Patent 1:5 Reducer |
Transmission | XZ Axis by Taiwan Hiwin #20 linear rail guide,Y axis Axis by Taiwan Hiwin #25 linear rail guide. |
Motor & Driver | Stepper motor and Driver |
Lubrication System | Manual lubrication |
Limit Switch | Limit Photoelectric Switch |
Tool Sensor | Round Tool Sensor |

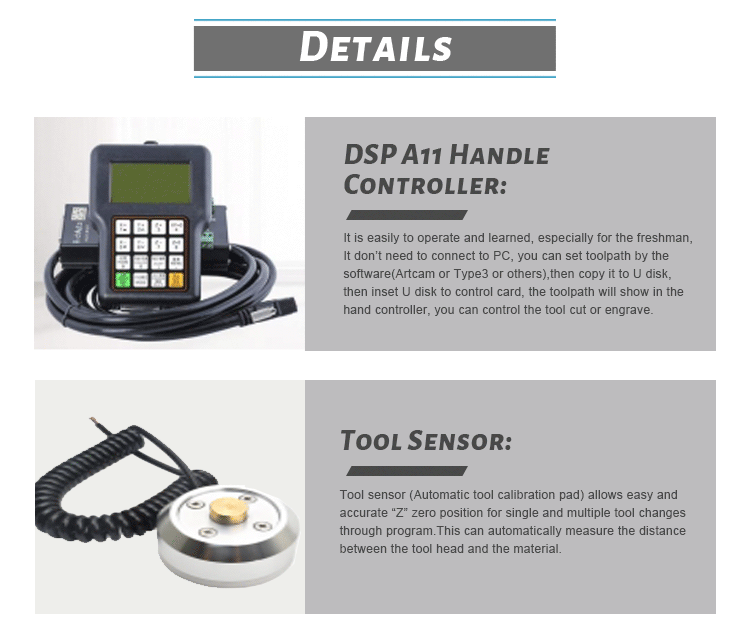

It is easily to operate and learned, especially for the freshman, It don’t need to connect to PC, you can set toolpath by the software(Artcam or Type3 or others),then copy it to U disk, then inset U disk to control card, the toolpath will show in the hand controller, you can control the tool cut or engrave.
Tool sensor (Automatic tool calibration pad) allows easy and accurate “Z” zero position for single and multiple tool changes through program.This can automatically measure the distance between the tool head and the material.

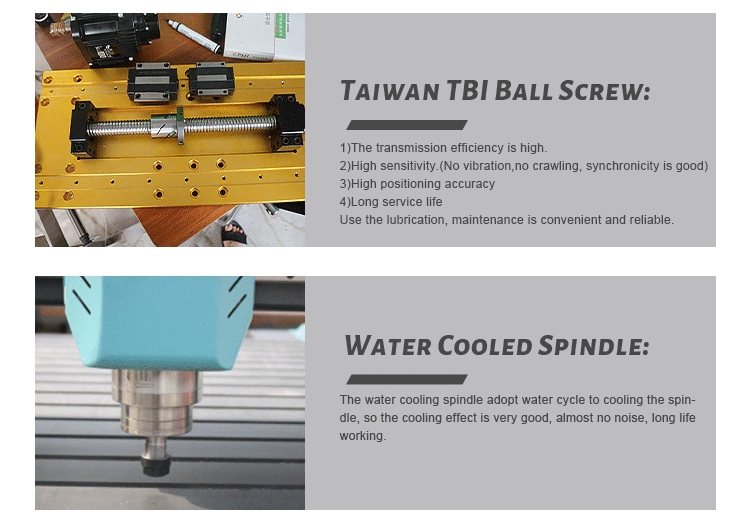

1)The transmission efficiency is high
2)High sensitivity.(No vibration,no crawling, synchronicity is good)
3)High positioning accuracy
4)Long service life
Use the lubrication, maintenance is convenient and reliable.
The water cooling spindle adopt water cycle to cooling the spindle, so the cooling effect is very good,almost no noise, long life working.

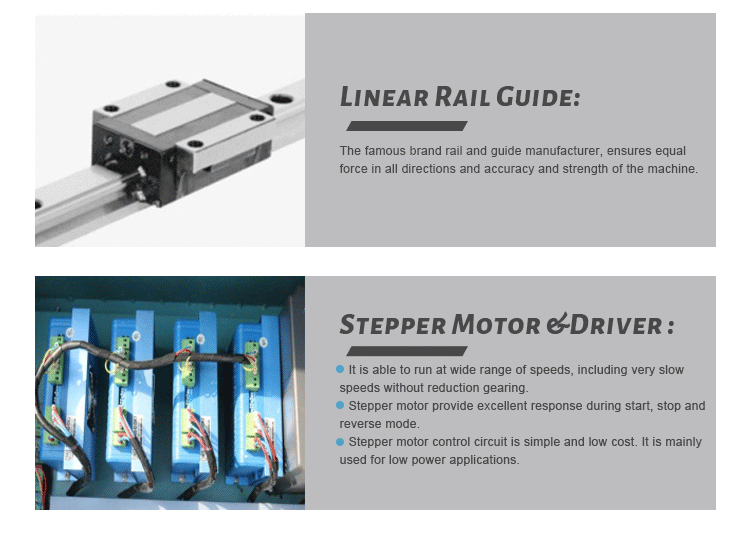

The famous brand rail and guide manufacturer, ensures equal force in all directions and accuracy and strength of the machine.
It is able to run at wide range of speeds, including very slow speeds without reduction gearing.
Stepper motor provide excellent response during start, stop and reverse mode. Stepper motor control circuit is simple and low cost. It is mainly used for low power applications.

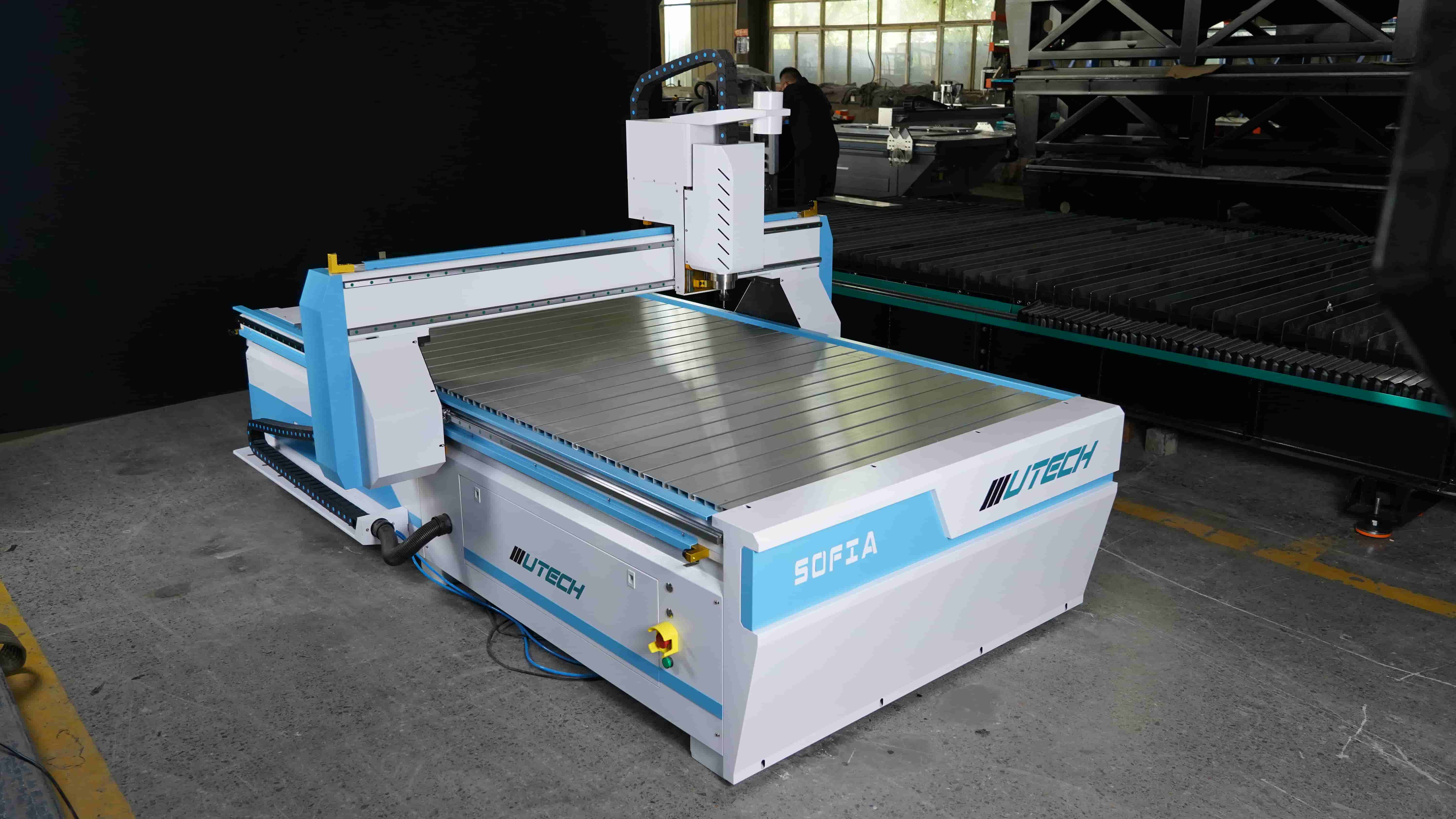

The SOFIA A1 3 Axis CNC Wood Carving Machine is designed to deliver precision, stability, and efficiency for professional woodworking and light metal processing. It combines robust construction with user-friendly controls, making it suitable for both beginners and experienced operators.
The 3 axis CNC structure ensures accurate carving, engraving, and cutting, allowing users to achieve smooth edges, fine details, and consistent results across wood, MDF, plywood, acrylic, and aluminum materials.
The manual tool change system supports a wide range of cutting and engraving tools, giving users flexibility to handle different applications such as furniture production, cabinetry, signage, and decorative carving.
Built with thick steel square tube construction, the machine offers excellent rigidity and vibration resistance, ensuring stable operation, higher machining accuracy, and longer service life.
High-precision machining of the transmission stand column and key mechanical parts guarantees accurate assembly, stable motion, and enhanced overall machining performance.
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other materials on various exquisite patterns and text carving.
1. Rotary(length&diameter could be customized)
2. Dust collector
3. Oil mist lubrication pump
4. Vacuum table
1. 3.2kw water cooled spindle+ER25 cutter, cutting thick materials, also is easy.
2. Machine Base Frame
3. Anodized Aluminum Spindle Fixing plate(Z axis)
4. Dust cover for the guide rail and the helical rack gear
5. TBI High-Precision Ball-screw Transmission (Taiwan)
6. Patent design 1:5 gear reducer + Stepper 450B driving motor
7. Hiwin/PMI square rail&High quality helical rack pinion
8. CNC Tool Sensor
As a direct CNC manufacturer, SOFIA CNC Router provides factory pricing without middlemen while maintaining strict quality control standards on every machine.
We offer worldwide delivery, secure packaging, and comprehensive warranty coverage to protect your investment and ensure peace of mind.
Our professional technical team provides remote assistance, training, troubleshooting, and spare parts support to keep your production running smoothly.
Customers worldwide trust SOFIA CNC routers for their reliability, accuracy, and value. Many users report improved production efficiency, reduced labor costs, and stable long-term operation.
From furniture factories to advertising workshops, SOFIA 1325 has been successfully deployed in a wide range of real-world applications, delivering consistent and high-quality results.
The SOFIA A1 3 Axis CNC Wood Carving Machine is fully CE certified, complying with European Union safety, health, and environmental protection standards. This certification ensures that the machine meets essential EU directives, including machinery safety, electrical safety, and electromagnetic compatibility requirements.
With CE certification, SOFIA A1 can be legally imported, sold, and operated in European countries and other regions that recognize CE standards. It provides customers with confidence in product quality, operational safety, and long-term reliability.
UTECH factory strictly follows international manufacturing standards and quality control procedures, ensuring every CNC router is tested before shipment. CE certification also helps buyers simplify customs clearance, reduce regulatory risks, and ensure smooth market entry.
The UTECH SOFIA A1 3 Axis CNC wood carving machine is designed for carving and cutting wood, MDF, plywood, acrylic, PVC, foam, and soft aluminum, making it ideal for woodworking, furniture production, crafts, and signage.
Yes. The UTECH SOFIA A1 CNC wood carving machine features an easy-to-use control system, clear operation manuals, and training videos, allowing beginners and small workshops to get started quickly.
The UTECH SOFIA A1 3 axis CNC machine is equipped with a reliable water-cooled spindle, which provides excellent cooling, extremely low noise, and long service life, offering stable performance during long-term engraving operations.
Yes. The UTECH SOFIA A1 CNC wood carving machine supports 3D carving, relief engraving, and complex pattern processing, making it suitable for decorative panels, molds, and artistic woodworking.
UTECH offers multiple controller options for the SOFIA A1 CNC router, including DSP handheld controllers and computer-based systems, allowing users to choose the best solution for their workflow.
Yes. The UTECH SOFIA A1 3 Axis CNC wood carving machine is fully CE certified, meeting European safety, electrical, and EMC standards for safe and compliant operation.
Yes. The UTECH SOFIA A1 Wood CNC router supports optional upgrades such as a rotary axis, vacuum table, dust collection system, ATC spindle, and customized working sizes.
UTECH provides professional after-sales support, including installation guidance, online technical assistance, spare parts supply, and warranty service to ensure stable and long-term machine performance.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
