What Materials Can a CNC Router Cut?

A Practical Guide for Daily Production

A CNC router can process many sheet and panel materials, but the right result depends on the material type, thickness, tool, spindle, workholding method and machine configuration.

At UTECH CNC, we usually start with one simple question:

What material do you need to process every day?

This helps us recommend a practical machine, instead of only listing technical specifications.

Quick Answer: Common CNC Router Materials

A CNC router is flexible, but it is not suitable for every material in the same way. Different materials need different configurations.

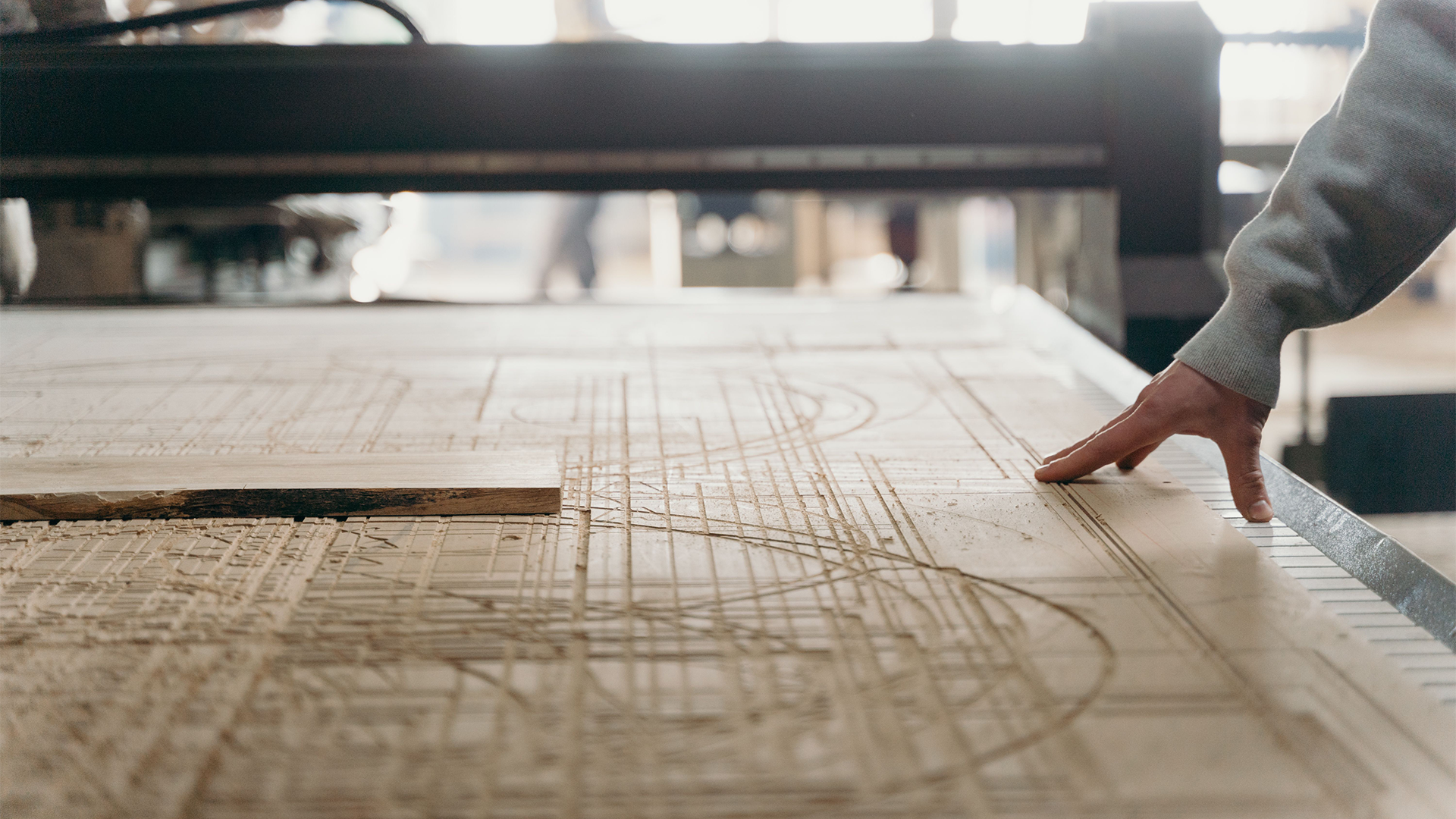

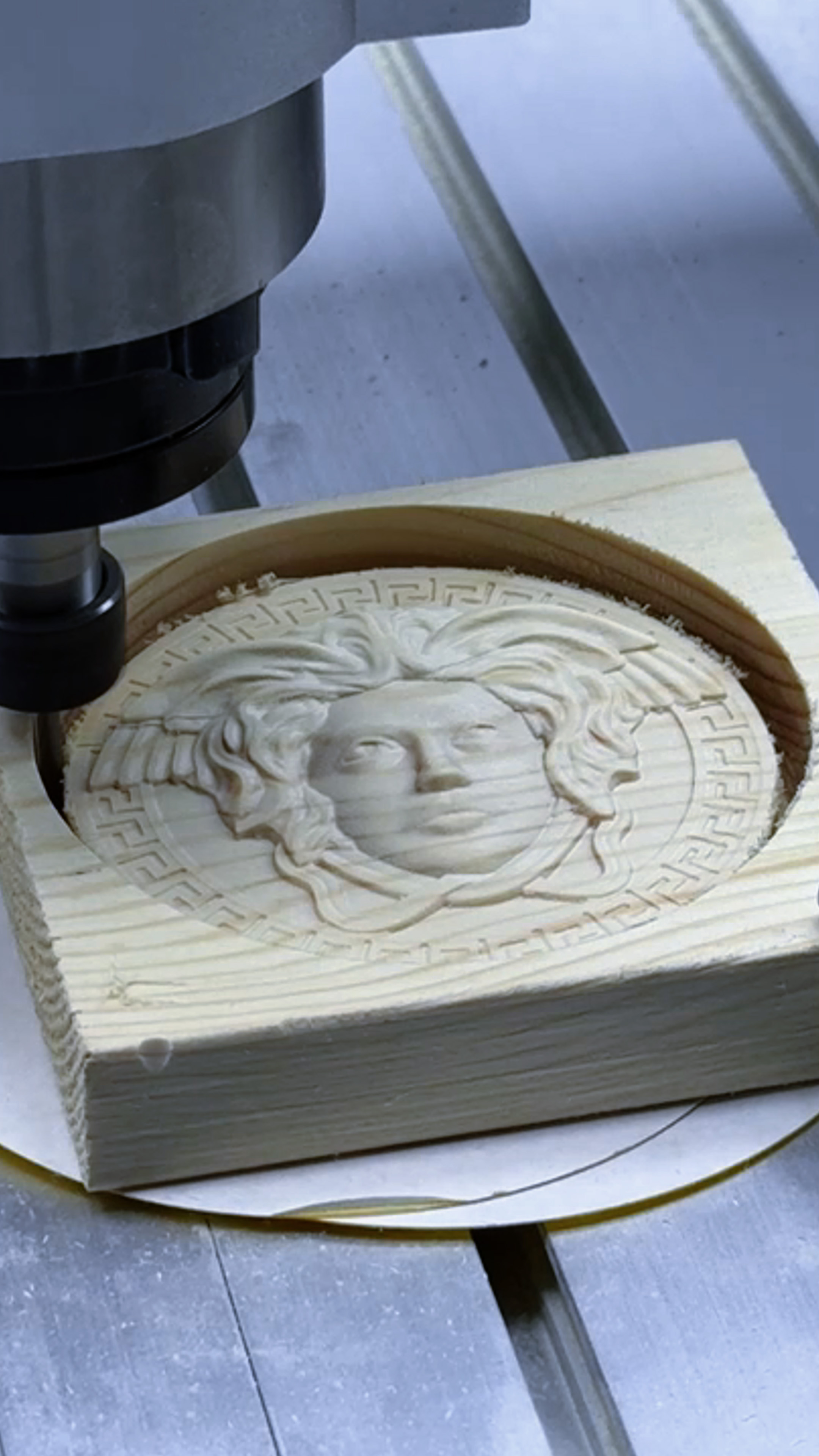

Wood, MDF and Plywood

Woodworking is one of the most common CNC router applications.

For MDF, plywood, solid wood, particle board and cabinet panels, a CNC router can be used for:

• Cutting board shapes

• Drilling holes

• Making grooves

• Engraving patterns

• Processing cabinet parts, doors and decorative panels

For woodworking workshops, stability and dust protection are very important. Wood and MDF create a lot of dust, so a strong machine body, dust collection and protected guide rail design can help the machine work more steadily in daily production.

For many wood and MDF jobs, SESAME S2 and SOFIA ATC are practical options.

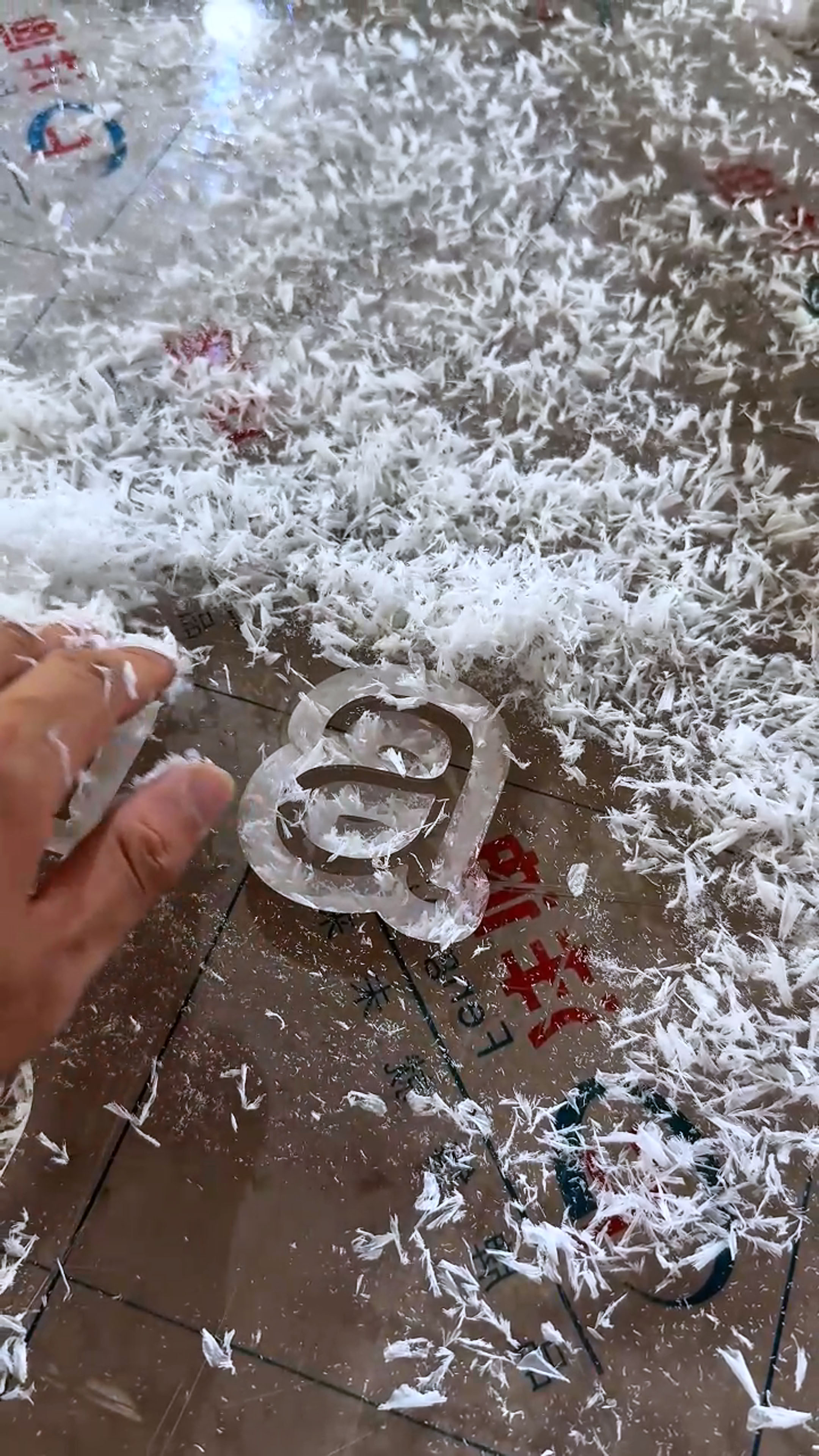

Acrylic and Plastic Sheets

Acrylic, PVC and other plastic sheets are widely used in advertising, signage and display production.

A CNC router can process:

• Acrylic letters

• Light box panels

• Display stands

• Logo signs

• PVC foam boards

• Custom plastic parts

For acrylic, customers often care about edge quality. The final result is related to machine stability, spindle speed, tool type, feed rate and material fixing.

For standard acrylic, PVC and plastic sheet work, SESAME S2 can be a practical choice.

For advertising workshops that need higher efficiency, automatic tool changing, CCD camera or mixed material production, ZPRO and SPRO may be more suitable.

Besides acrylic, CNC routers can also process many plastic sheet materials, such as PVC, ABS, PP, PE and engineering plastics. However, different plastics behave differently during cutting, so the tool type and cutting parameters should be adjusted according to the actual material.

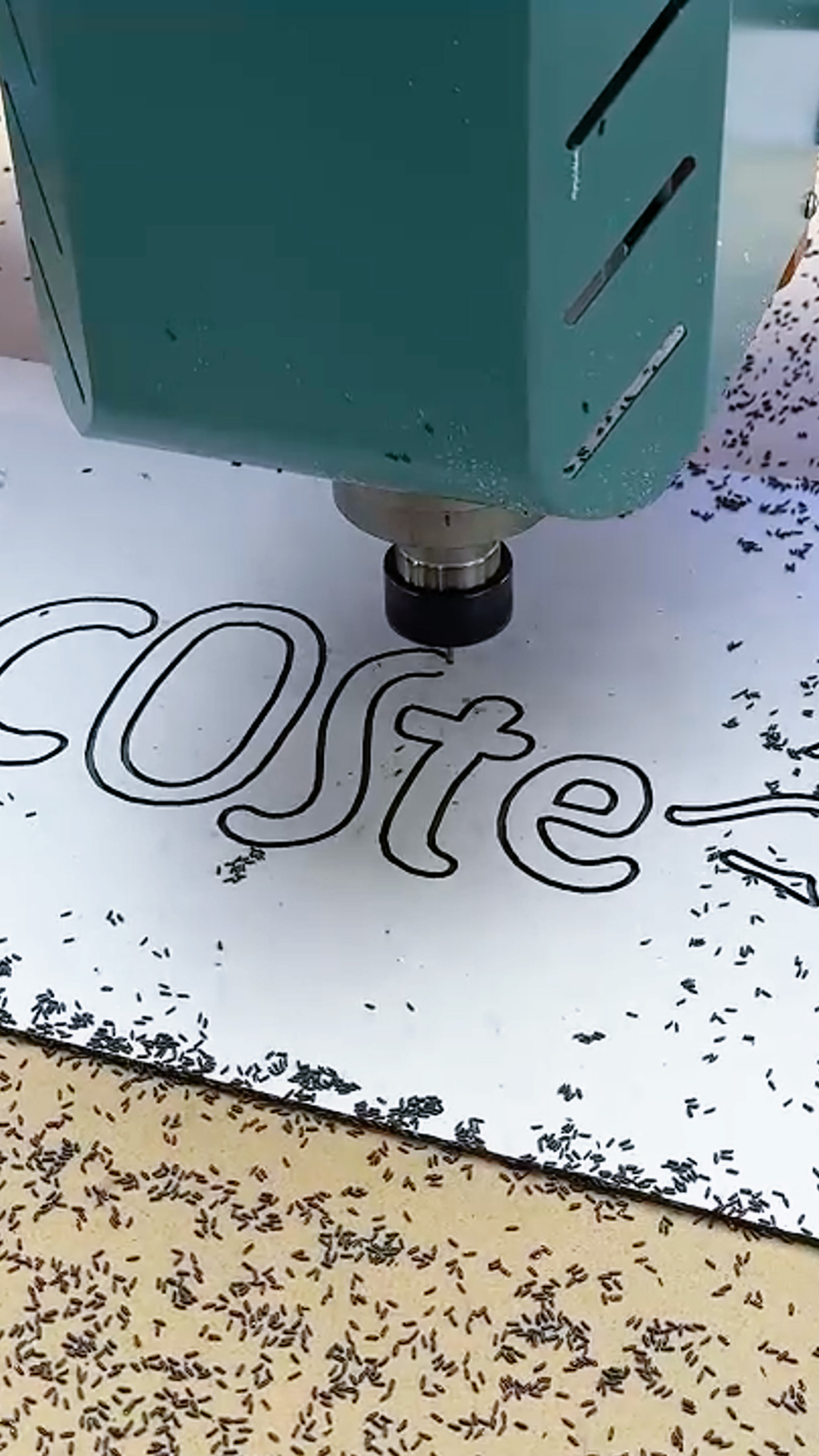

ACP/Dibond

ACP and Dibond-type panels are common in sign making, shopfronts and outdoor advertising.

A CNC router can be used for:

• Straight cutting

• V-grooving

• Folding sign trays

• Drilling holes

• Making shaped sign panels

For this kind of work, the machine needs stable material holding and accurate cutting. If the customer also works with acrylic, PVC, printed boards or soft materials, ZPRO is a useful option because it can combine spindle cutting, ATC, CCD and knife cutting functions in one platform.

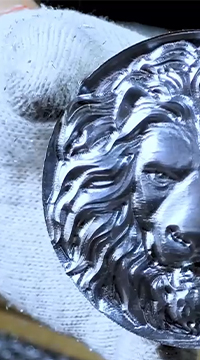

Light Aluminum and Soft Metals

A CNC router can process some light aluminum and soft non-ferrous metals, but it is important to confirm the actual material first.

It can be used for:

• Aluminum routing

• Engraving

• Drilling

• Slotting

• Chamfering

• Light cutting

For aluminum work, proper clamping, suitable tools, correct cutting parameters and cooling are important. If the customer mainly cuts thick metal sheets, stainless steel or carbon steel, a fiber laser or plasma cutting machine may be more suitable than a CNC router.

So the practical answer is:

Yes, a CNC router can process suitable aluminum materials, but the thickness, alloy and cutting requirement should be checked before recommendation.

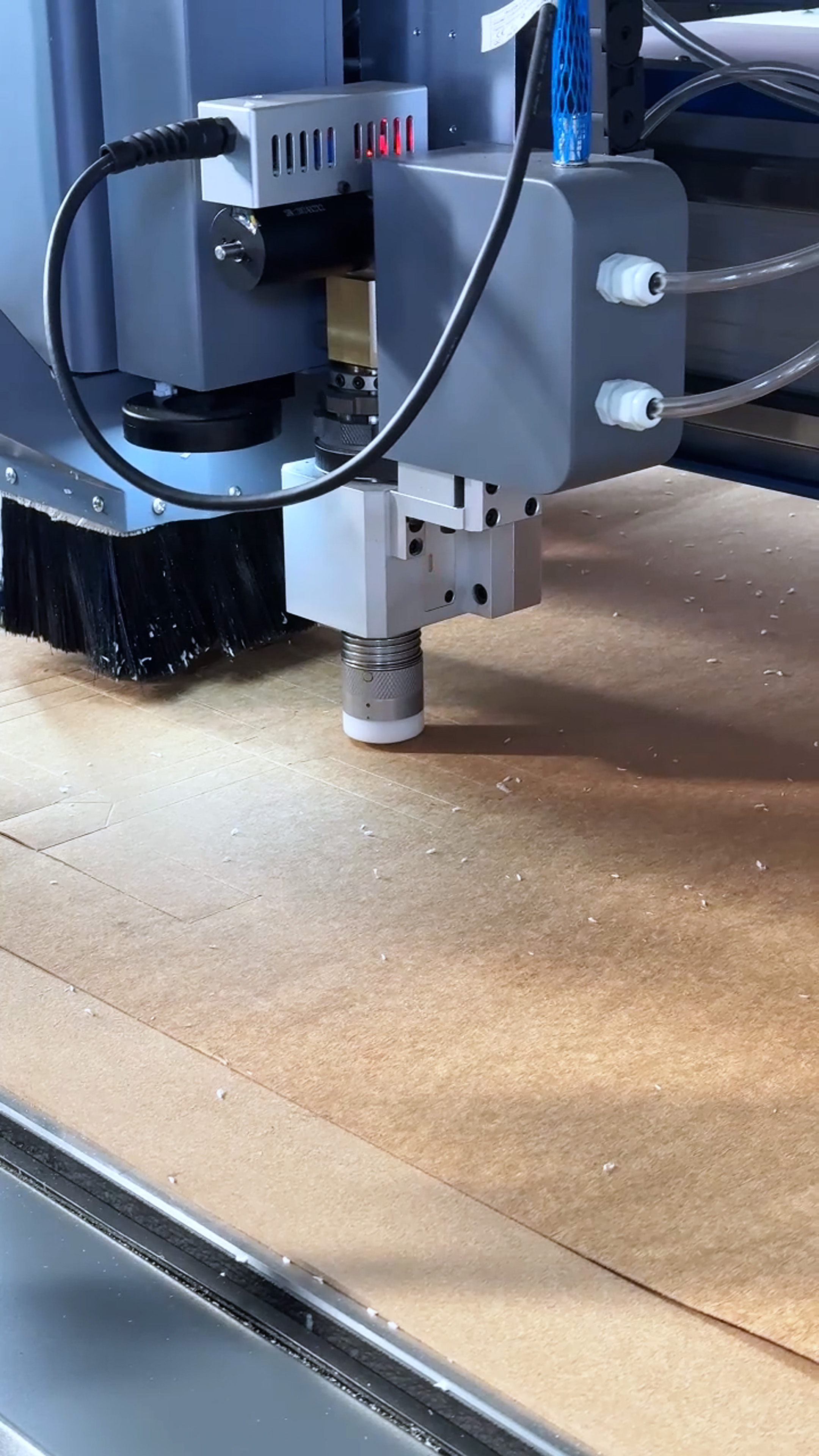

Foam, Leather, Cardboard and Other Flexible Materials

Some soft materials are not best processed by a spindle. For these materials, an oscillating knife can give better cutting results.

With the right knife system, a CNC router platform can process:

• Foam

• Leather

• Fabric

• Cardboard

• Corrugated board

• EVA

• Soft packaging materials

For packaging and flexible material cutting, customers may also need a creasing tool. This is useful for paper box samples, display packaging and folding lines.

For this application, ZPRO with oscillating knife and optional creasing tool can be considered.

How to Choose the Right CNC Router

To choose the right CNC router, the material name alone is not enough. We usually need to confirm four basic points:

1. Material type

For example: MDF, acrylic, PVC, ACP, aluminum, foam or leather.

2. Typical thickness

Cutting 3 mm acrylic is very different from cutting 20 mm acrylic. Cutting 18 mm MDF is different from engraving a thin wood board.

3. Sheet or workpiece size

Common working areas include 1300×2500mm, 1600×3100mm, 2100×3100mm and 2100×4200 mm.

4. Processing task

Do you need cutting, engraving, drilling, grooving, V-grooving, contour cutting or knife cutting?

Once these points are clear, it becomes much easier to recommend the correct machine and configuration.

UTECH CNC Recommendation

UTECH CNC does not recommend a machine only by the material name. We prefer to understand the customer’s real daily work first.

In general:

• For wood, MDF and panel production, SESAME S2 or SOFIA ATC can be considered.

• For acrylic, PVC, ACP and advertising materials, SESAME S2 or ZPRO/SPRO may be suitable.

• For printed materials, soft materials and packaging work, ZPRO with CCD / oscillating knife / creasing tool can be checked.

• For small workshops and compact production, SK-PRO 6012 or MINI CNC may be considered.

• For thick metal sheet cutting, fiber laser or plasma cutting machines may be more suitable.

The best machine is not always the most expensive one. The best choice is the one that matches your material, thickness, working size and daily production needs.

Need a Recommendation?

Send us your material, typical thickness, maximum sheet size and main processing task.

Our team will help you check a practical CNC router configuration for your workshop.
