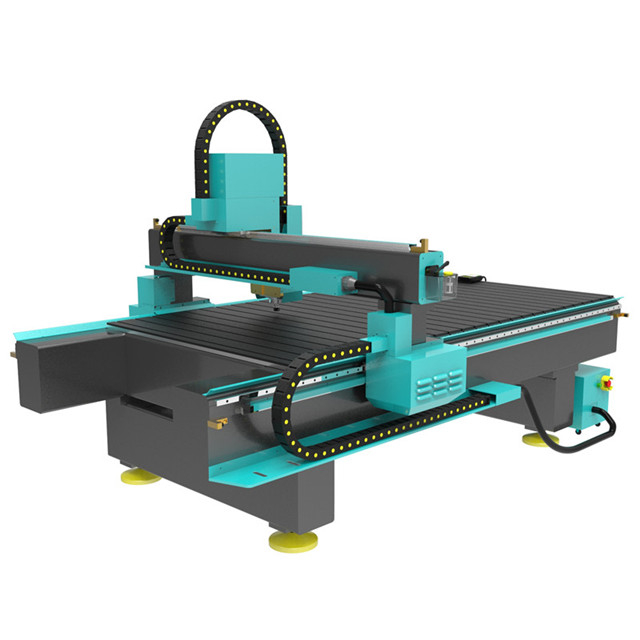

Industrial Portable Cnc Router For Advertising

UTECH 4.5kw air cooled spindle 4*8ft sesame cnc router for woodworking aluminum metal engraving cutting machinery
Spindle:
Control system:
Travel speed:
Table Surface:
Software:
Availability:
  • Sesame

  • UTECH

  • UT-1325

4.5kw air cooled spindle 4*8ft SESAME CNC Router Woodworking CNC Cutting Machine aluminum metal engraving cutting machinery


详情页

UTECH have two hot sale type cnc router, one is SOFIA Series, the other is SESAME Series. The following type is SESAME-S2 type, standard type with 4.5kw spindle, stepper motor&driver+UTECH patent type reducer, could improve the process speed. CCD, Oscillating knife, Auto tool changer, 4th rotary is optional.

Suitable for advertising and woodworking industry, acrylic, wood, plastic, foam, MDF, plywood, aluminum etc. If you dont know how to choose, weclome to ask us, we'll provide proper solution with you.

Configurations:

Standard Specifications:


1/ 1300*2500*180mm working size
2/ 4.5kw water cooled spindle
3/ Four sets stepper motor&driver, three sets reducer 1:4
4/ XY axis by gear rack transmission, Z axis by Taiwan TBI ball screw
5/ Whole machine by 20 Taiwan HIWIN rail guide
6/ T-slot table
7/ Nc-studuio controller  etc.


Optional:


1/ DSP/Mach3 controller
2/ 3.2kw, 5.5kw, 6kw spindle (according to your work)
3/ Vacuum table+Vacuum pump
4/ Dust collector
5/ Servo motor&driver, SHIMPO reducer
6/ Automatic oil lubrication system

7/ Working size 1212, 1530, 2030, 2040 etc.


Advantages:

Patented detachable design

Machine legs and machine body could be separated freely, could save some space and shipping freight, before package, customer could choose dismantle or not, also easy to install, if dismantle, we'll take video for showing how to dismantle and assemble.
For individual buyers: the packaging volume of this machine will be reduced by 3-4 cubic meters compared with other ordinary machines after disassembly.
For dealers: 20‘GP container can accommodate 6 sets

lALPDhmOwC7umo_NAorNB4A_1920_650

Applications:

Applicable industries and materials:
* Advertising industry:
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
* Furniture industry:
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
* Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
* Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
* Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.

应用

Packing:

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.

You can choose any way you'd prefer, we also will give you some proper suggestions.


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

lADPDiCpvXiBp6jNAorNB4A_1920_650


1.High Frequency Powerful spindle

The High quality SESAME series CNC Router machine comes with 4.5kw water or 4.5kw air cooled high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

2.Machine Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

3.Anodized Aluminum Spindle Fixing plate

The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is Anodized Aluminum processing, the plate is machined by high precision CNC machining center.

4.Dust cover for the guide rail and the helical rack gear

The machine is designed with the dust cover for the guide rail and the helical rack and gear, to reduce friction, make the rail and the rack have longer service life.

5.Double Insurance Emergency Stop Button

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.

6.TBI High-Precision Ball-screw Transmission (Taiwan)

1) Higher efficiency than traditional ball screws.

2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred.

3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.

4) Use rigorous materials, high heat treatment and processing technology to supply durable products.

7.Patent design 1:4 gear reducer + Stepper 450B driving motor

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.  The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability. The machine is installed 4 pieces of motors.

8.Hiwin/PMI square rail&High quality helical rack pinion

Sesame choose heavy duty linear guide rail with high assembly Flange sliding block and PMI linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span. Rack of Sesame adopts high-precision 1.25 helical rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

9.CNC Tool Sensor

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D
carving projects.

CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

10.Machine bed
Machine bed with 100 * 300mm square tube welded together, compared to ordinary machines, we use the square tube model can better reflect the stability of the equipment.

Machine gantry use 150*200mm square tube, wall thickness 8mm.

11.Control box

Control box has universal wheel, could moveable freely, we will reserve at least 2.5 meters of wire for customers to move the control cabinet. It is usually placed under the bed in front of the machine for easy use.

配件
