SESAME S2
UTECH

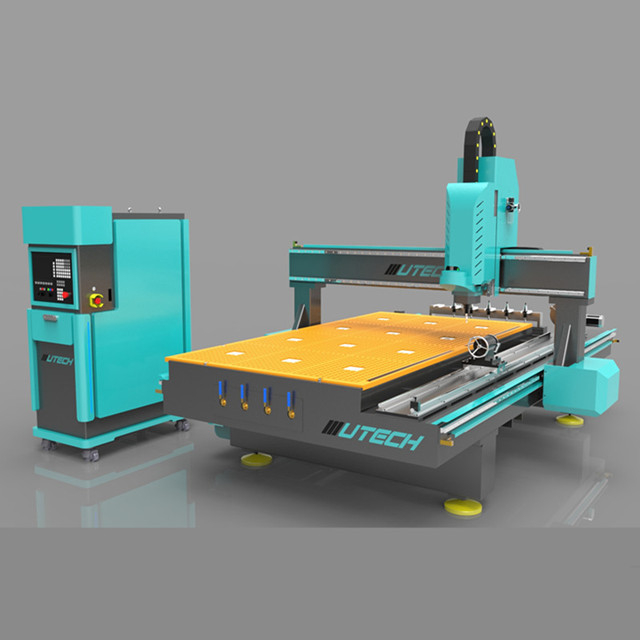

High Speed 3D Wood Cutting Machine Cnc Router 1325
UTECH four-axis CNC engraving machine is a powerful multi-axis processing equipment equipped with a rotating axis, which can realize the linkage engraving of workpieces at multiple angles, especially suitable for three-dimensional engraving and complex processing of cylindrical workpieces. The equipment not only has the traditional three-axis engraving function, but also supports 360° rotation processing of workpieces, and can easily complete high-precision three-dimensional engraving tasks such as cylindrical relief, cylindrical hollowing, statues, furniture legs, and craft cylinders. The whole machine adopts a high-rigidity structure design, equipped with a high-power spindle and a high-precision transmission system, with stable operation and fine processing. It supports the import of multiple CAM software formats and is flexible in operation. It is suitable for a variety of materials such as wood, density board, acrylic, foam, PVC, etc. It is widely used in furniture manufacturing, Buddha statue carving, handicraft customization, decorative building materials and other industries. It is an ideal CNC equipment for complex three-dimensional processing and batch efficient production.
High Speed 3D Wood Cutting Machine Cnc Router 1325
UTECH four-axis CNC engraving machine is a powerful multi-axis processing equipment equipped with a rotating axis, which can realize the linkage engraving of workpieces at multiple angles, especially suitable for three-dimensional engraving and complex processing of cylindrical workpieces. The equipment not only has the traditional three-axis engraving function, but also supports 360° rotation processing of workpieces, and can easily complete high-precision three-dimensional engraving tasks such as cylindrical relief, cylindrical hollowing, statues, furniture legs, and craft cylinders. The whole machine adopts a high-rigidity structure design, equipped with a high-power spindle and a high-precision transmission system, with stable operation and fine processing. It supports the import of multiple CAM software formats and is flexible in operation. It is suitable for a variety of materials such as wood, density board, acrylic, foam, PVC, etc. It is widely used in furniture manufacturing, Buddha statue carving, handicraft customization, decorative building materials and other industries. It is an ideal CNC equipment for complex three-dimensional processing and batch efficient production.
Patent separable structure
The legs and body of SESAME CNC can be separated freely, save packing volume and shipping cost.
l If you are an individual buyer: 2 sets/3 sets can be packed in a wooden box
l If you're a dealer
a 20'GP container to package 6 sets SESAME 1325.
a 40'HQ container to package 14 sets SESAME 1325.
Easy to install the disassembly method and installation guide video so that you have no worries at home.
Patent separable structure
The legs and body of SESAME CNC can be separated freely, save packing volume and shipping cost.
l If you are an individual buyer: 2 sets/3 sets can be packed in a wooden box
l If you're a dealer
a 20'GP container to package 6 sets SESAME 1325.
a 40'HQ container to package 14 sets SESAME 1325.
Easy to install the disassembly method and installation guide video so that you have no worries at home.
Descriptions | Parameters | |||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Accuracy | 0.05mm | |||
Table Surface | Vacuum&T-slot table | |||
Frame | Square pipe welding bed structure 200*300mm+150*200mmgantry | |||
X, Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 0-24000RPM | |||
Drive Motors | JMC stepper motor and driver | |||
Working Voltage | AC 220/380V | |||
Command Language | G Code | |||
Operating System | HD100 handle controller (DSP or Mach3 optional) | |||
Computer Interface | Ethernet (or USB) | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint |
Descriptions | Parameters | |||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Accuracy | 0.05mm | |||
Table Surface | Vacuum&T-slot table | |||
Frame | Square pipe welding bed structure 200*300mm+150*200mmgantry | |||
X, Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 0-24000RPM | |||
Drive Motors | JMC stepper motor and driver | |||
Working Voltage | AC 220/380V | |||
Command Language | G Code | |||
Operating System | HD100 handle controller (DSP or Mach3 optional) | |||
Computer Interface | Ethernet (or USB) | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint |
1.Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum board, two-color portrait, three-dimensional advertising, all kinds of standard, badge, coordinate card, copper, font, font, all kinds of logos, trademarks, etc.
2.Decoration industry: art models, murals, screens, reliefs, ornament processing, gift packaging, wave boards, electrical countertops, sporting goods and other wood products.
3.Woodworking industry: furniture decoration, musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, composite doors, cabinets, wardrobes, window doors, bedside tables, etc.
1.Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum board, two-color portrait, three-dimensional advertising, all kinds of standard, badge, coordinate card, copper, font, font, all kinds of logos, trademarks, etc.
2.Decoration industry: art models, murals, screens, reliefs, ornament processing, gift packaging, wave boards, electrical countertops, sporting goods and other wood products.
3.Woodworking industry: furniture decoration, musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, composite doors, cabinets, wardrobes, window doors, bedside tables, etc.
Before confirming the production order, we will provide the rendering picture and 360-degree panoramic video, so that customers can fully understand the style and structure of the machine, so as to ensure that the actual machine meets the requirements of customers, so as to avoid the discrepancy between the real object and customers' imagination caused by various communication deviations.
UTECH technical support is designed to help you make the most of the machine. A variety of technical files and installation videos will be placed in the U disk and shipped with the machine. Our technical experts can provide online remote support and training, and contact UTECH technical support experts in real time for remote diagnosis. Door to door service is also available.
Before confirming the production order, we will provide the rendering picture and 360-degree panoramic video, so that customers can fully understand the style and structure of the machine, so as to ensure that the actual machine meets the requirements of customers, so as to avoid the discrepancy between the real object and customers' imagination caused by various communication deviations.
UTECH technical support is designed to help you make the most of the machine. A variety of technical files and installation videos will be placed in the U disk and shipped with the machine. Our technical experts can provide online remote support and training, and contact UTECH technical support experts in real time for remote diagnosis. Door to door service is also available.
