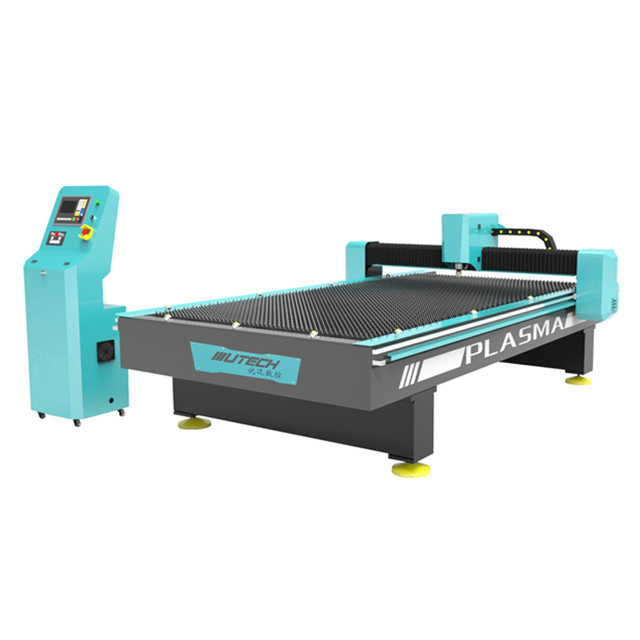

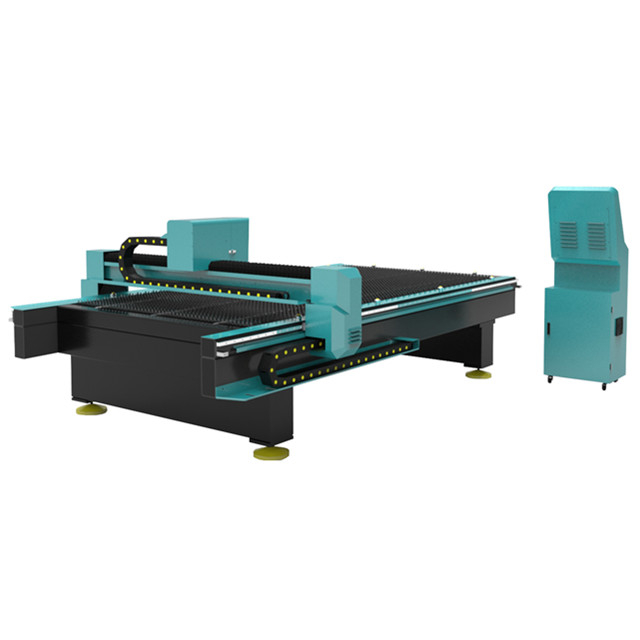

Stainless Steel CNC Plasma Cutting Machine For Iron Aluminum

In simplest terms, plasma cutting is a process that uses a high velocity jet of ionized gas that is delivered from a constricting orifice. The high velocity ionized gas, that is, the plasma, conducts electricity from the torch of the plasma cutter to the work piece. The plasma heats the workpiece, melting the material. The high velocity stream of ionized gas mechanically blows the molten metal away, severing the material.

Working Table Size:
Motor and driver:
Table:
Power Source:
Certification:
Availability:
  • SESAME P1

  • UTECH

Stainless Steel CNC Plasma Cutting Machine For Iron Aluminum

WHAT TO LOOK FOR WHEN PURCHASING A PLASMA CUTTING MACHINE

1. Determine the thickness of the metal that you will most frequently cut
2. Test the machine and examine the cut quality
3. Find out if the machine is easy to operate and feels comfortable

 等离子

Model

SESAME P1

Working size

1300mm*2500mm, 100mm stroke z-axis sliding table

Cutting speed

10-15m/min

Transmission system

1.25m rack, square 20 linear guide and slider

Operating System

Starfire SF2100/DSP A12 control system

Driver

JMC stepper motor and driver

Plasma power supply

Huayuan/Hypertherm

Cutting thickness

0-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Water tank

Underlay stainless steel sink(absorb smoke and prevent burning)

Table-board

sawtooth + square pipe, spacing is 70 mm

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

<90% No concreting

 Features

1. Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long service life time.
2. Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.

3. Suitable software: Artcam/ Fastcam/ Starfire etc.

4. Taiwan linear rail, ensure vertical section, more precision.

5. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.

6. FASTCAM programming software based on AutoCAD automatic programming and material system.

7. If you cut thick material, according to actual use, we’ll add water tank for you for free, to absorbs a large amount of smoke generated during cutting.
8. Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.

cnc plasma cutting machine plasma cutter machine for stainless steel

WHAT TO LOOK FOR WHEN PURCHASING A PLASMA CUTTING MACHINE

1. Determine the thickness of the metal that you will most frequently cut
2. Test the machine and examine the cut quality
3. Find out if the machine is easy to operate and feels comfortable

 等离子

Model

SESAME P1

Working size

1300mm*2500mm, 100mm stroke z-axis sliding table

Cutting speed

10-15m/min

Transmission system

1.25m rack, square 20 linear guide and slider

Operating System

Starfire SF2100/DSP A12 control system

Driver

JMC stepper motor and driver

Plasma power supply

Huayuan/Hypertherm

Cutting thickness

0-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Water tank

Underlay stainless steel sink(absorb smoke and prevent burning)

Table-board

sawtooth + square pipe, spacing is 70 mm

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

<90% No concreting

 Features

1. Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long service life time.
2. Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
3. Taiwan linear rail, ensure vertical section, more precision.
4. Suitable software: Artcam/ Fastcam/ Starfire etc.
5. FASTCAM programming software based on AutoCAD automatic programming and material system.
6. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
7. If you cut thick material, according to actual use, we’ll add water tank for you for free, to absorbs a large amount of smoke generated during cutting.
8. Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.



Plasma cutting head_.jpg

Plasma cutting head

Including control box for adjusting height, photoelectric switch and limit switch.

Starfire control system+Shanghai HYD Arc voltage regulator

Adjust the distance automatically as the different materials


Plamsa power supply

Chinese Huayuan power supply/America Hypertherm power supply is optional

Gear+Taiwan HIWIN rail guide

XY axis by gear rack transmission, HIWIN rail guide to make machine higher precision, faster cutting speed, more bettre cutting performance.

JMC Stepper driver_.jpg

JMC Stepper driver

sawtooth + square pipe

The table can bear 2000-2500kg without deformation

sawtooth + square pipe_.png
Split structure_.png

Water tank

absorb smoke and prevent burning



证书

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc

Application Industry: Sheet metal, kitchenware, components, decorations industry

应用
