UT-1325
UTECH
UT-1325

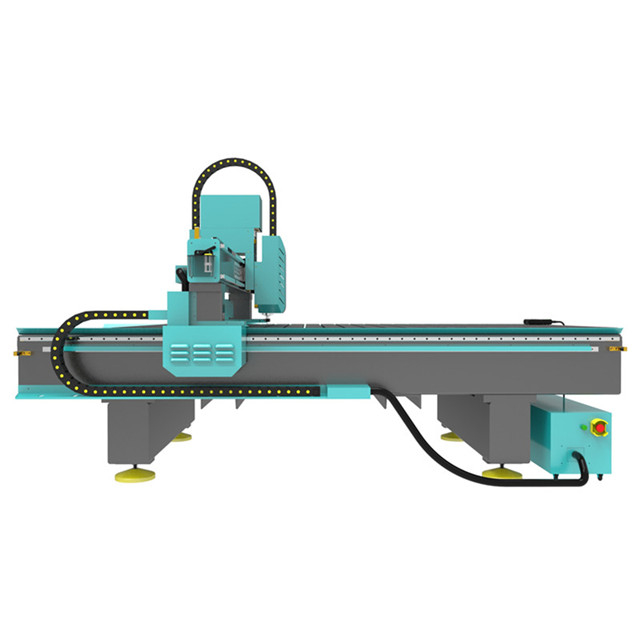

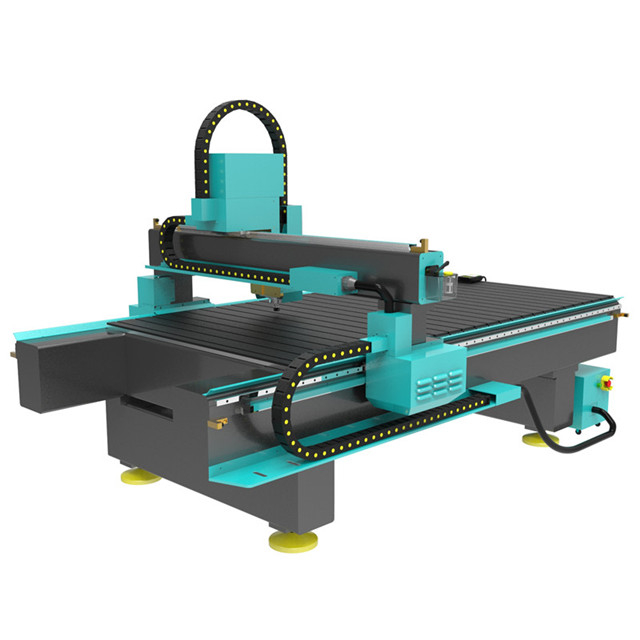

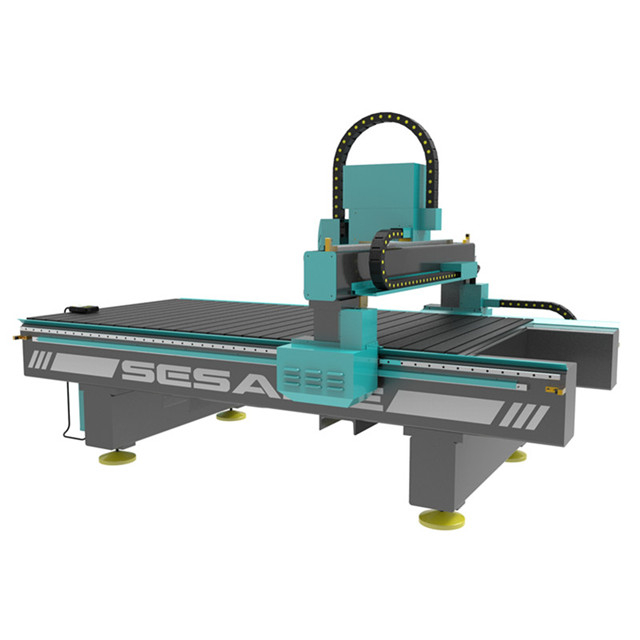

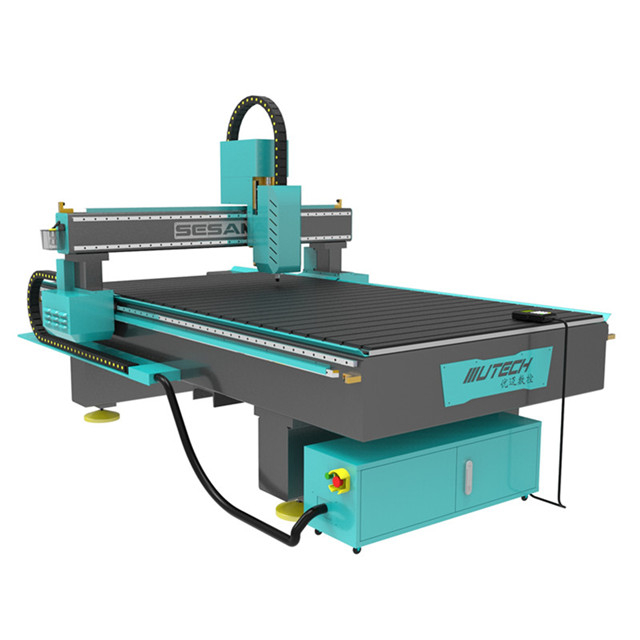

UTECH have two hot sale type cnc router, one is SOFIA Series, the other is SESAME Series. The following type is SESAME-S2 type, standard type with 4.5kw spindle, stepper motor&driver+UTECH patent type reducer, could improve the process speed. CCD, Oscillating knife, Auto tool changer, 4th rotary is optional.
Suitable for advertising and woodworking industry, acrylic, wood, plastic, foam, MDF, plywood, aluminum etc. If you dont know how to choose, weclome to ask us, we'll provide proper solution with you.
SESAME Cnc Router's characteristics
SESAME series have distinctive designs for international market, highly visual impact. We have already owned the patent of appearance design and other multiple from China.
Save the shipping costs.
Very convenient for loading and unloading goods.
The whole machine assembly process is upgraded.
Machine legs and machine body could be separated freely, could save some space and shipping freight, before package, customer could choose dismantle or not, also easy to install, if dismantle, we'll take video for showing how to dismantle and assemble.
A 20GP container could pack six sets SESAME 1325.
Details:
| Machine structure: | ||
| Serial number | Structure | Brand |
| 1 | Control System | Nc-studio controller/Mach3 controller |
| 2 | Transmission system | 1.25 modulus precision gear rack and Taiwan TBI ball screw |
| 3 | Driving system | JMC stepper driver+Patent type stepper reducer*3+stepper motor |
| 4 | Spindle motor | 4.5KW air cooling spindle |
| 5 | Inverter | Best inverter |
| 6 | Limit switch | Japan Omron limit switch |
| 7 | Rail guide | Taiwan PMI linear guide+Flange Slider |
| 8 | Driver motor | Leadshine 450B |
| 9 | Machine table | Aluminum alloy T-slot table |
| 10 | Voltage | 220v/380v 50Hz |
| 11 | Case/Cabinet | Portable optimization design small sub-body independent control cabinet |
| 12 | Working area | 1300*2500*180mm |
SESAME Cnc Router's standard parts:
Standard Specifications:
7/ Working size 1212, 1530, 2030, 2040 etc.
Applications:
| Furniture industry | Ambry door, wood door, solid wood, annatto furniture, archaize furniture all kinds of compound plank cutting and engraving | |
| Panel processing industry | Insulation parts, plastic chemical parts, PCB, anti-double panel, epoxy resin, ABS, PP, PE and other carbon mixtures | |
| Arts & Crafts | Artificial stone, PVC, wood, bamboo, marble, organic glass, copper aluminum etc | |
| Decoration Industry | The screen, wave plate, bamboo, marble, organic board, double color board and other materials on various fine patterns and the engraving of words | |
SESAME Cnc Router's advantages:
1. Machine bed
Machine bed with 200 * 300mm square tube welded together, compared to ordinary machines, we use the square tube model can better reflect the stability of the equipment.
2. Reserved Position for Forklift
Bed welding process increases the reserved forklift, highlights two major advantages: First, increase the strength of the bed itself; Second, it`s more convenient for customers to load or unload the equipment.
3. Transmission stand column
Transmission stand column, we adopt high precision machining process, ensure the accuracy of accessories. Like insert cavity position, assembly surface.
4. SESAME machine head
First, For the choice of hand piece, we choose T6061/6063 aviation aluminum alloy as the base material. Through the precision processing of CNC Processing Center, we finished our finished parts. Second, the high requirement assembly process ensures the precision of the product.
5. Unpacking saves transportation costs+Patent design transmission structure.
6. Optimize the design structure to facilitate the customer fork handling equipment, reserved for forklift special seats.
7. SESEMA adopt portable optimized design small separate control cabinet.
