Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price

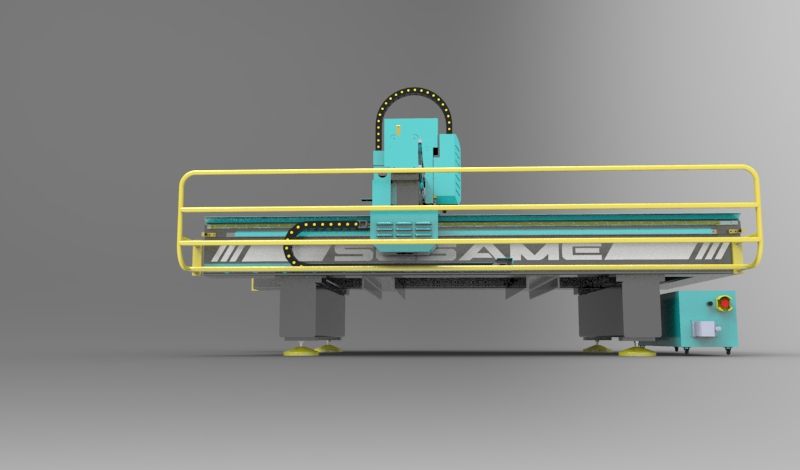

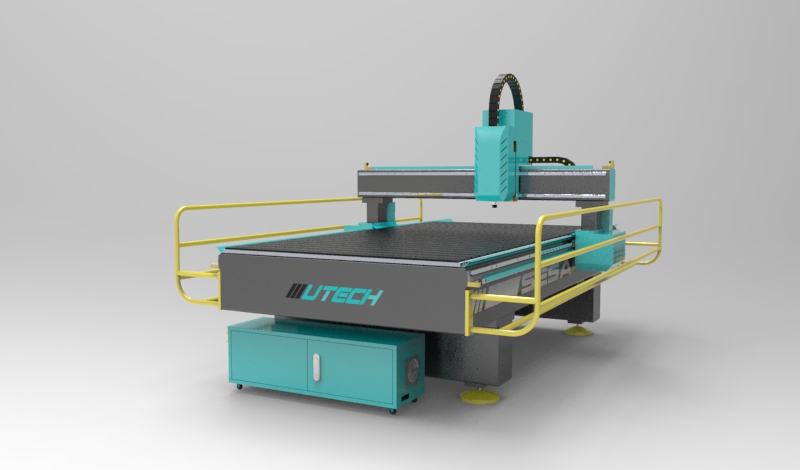

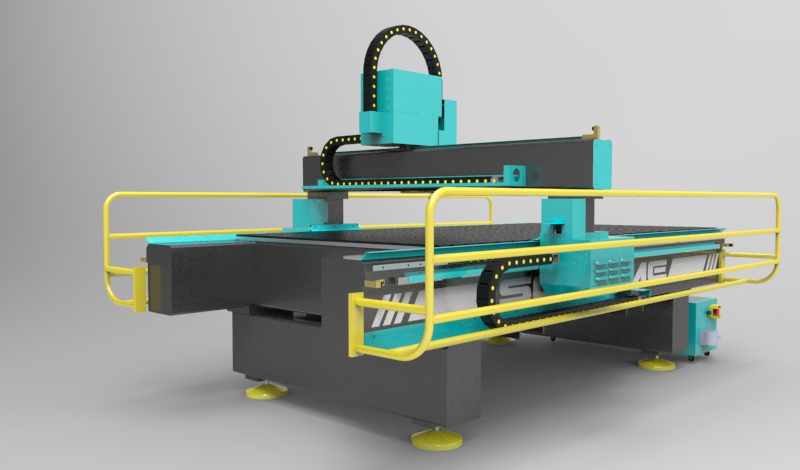

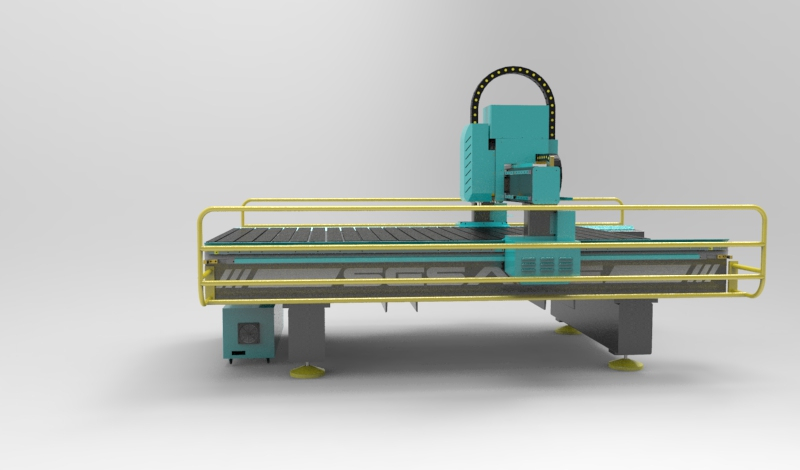

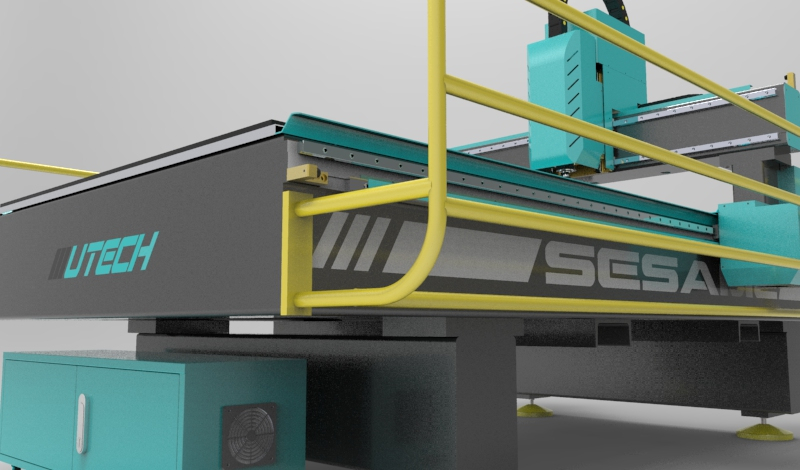

SESAME 1325 wood cnc router MDF cutting woodworking furniture making cnc router machine, which has detachable structure, can greatly save freight.
cnc router woodworking engraver machine
Working Table Size:
Spindle Motor Power:
Table Surface:
Control system:
Transmission:
Availability:
Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price
Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price
Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price
Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price
Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price
Factory Supply Cnc Router Engraving Machine Cnc 1325 1530 2030/cnc Router Machine Price
  • Sesame

  • UTECH

  • UT-1325

Professional Metal Quiet CNC Router For Woodworking

lADPDh0cPtQV98bNAorNB4A_1920_650UTECH have two hot sale type cnc router, one is SOFIA Series, the other is SESAME Series. The following type is SESAME-S2 type, standard type with 4.5kw spindle, stepper motor&driver+UTECH patent type reducer, could improve the process speed. CCD, Oscillating knife, Auto tool changer, 4th rotary is optional.


Suitable for advertising and woodworking industry, acrylic, wood, plastic, foam, MDF, plywood, aluminum etc. If you dont know how to choose, weclome to ask us, we'll provide proper solution with you.

Description:

1.Whole machine is welded with seamless steel lathe bed,the stability is excellent,not easy to deformed,to ensure the high precision.

2.Imported Taiwan 20/25mm linear guide rail,ball screw,self lubricating slide block,making each direction force equal,to ensure that the mechanical precision and strength.
3.good compatibility, software, can compatible type3 / Artcam/ Jd paint/ Aspire Vectric, etc
4.with a high drive stepper motor or servo motor, with strong cutting spindle can make the sculpture speed more improved.
5.Use of the break point memory guaranteed in the accident (blackout) or the next day, to continue processing.
6.With DSP controller or Mach 3 controller which read USB flash.convenient and easy operation

优势 (1)S2-1lADPDiCpvXiBp6jNAorNB4A_1920_650

Configurations:

Standard Specifications:


1/ 1300*2500*180mm working size
2/ 4.5kw water cooled spindle
3/ Four sets stepper motor&driver, three sets reducer 1:4
4/ XY axis by gear rack transmission, Z axis by Taiwan TBI ball screw
5/ Whole machine by 20 Taiwan HIWIN rail guide
6/ T-slot table
7/ Nc-studuio controller  etc.

Optional:

1/ DSP/Mach3 controller
2/ 3.2kw, 5.5kw, 6kw spindle (according to your work)
3/ Vacuum table+Vacuum pump
4/ Dust collector
5/ Servo motor&driver, SHIMPO reducer
6/ Automatic oil lubrication system
7/ Working size 1212, 1530, 2030, 2040 etc.
Machine structure:
Serial number Structure Brand
1 Control System Nc-studio controller/DSP Control
2 Transmission system 1.25 modulus  precision gear rack and Taiwan TBI ball screw
3 Driving system JMC stepper driver+Patent type stepper reducer*3+stepper motor
4 Spindle motor 4.5KW air cooling spindle
5 Inverter Best inverter
6 Limit switch Japan Omron  limit switch
7 Rail guide Taiwan PMI linear guide+Flange Slider
8 Driver motor Leadshine 450B
9 Machine table Aluminum alloy T-slot table
10 Voltage 220v/380v 50Hz
11 Case/Cabinet Portable optimization design small sub-body independent control cabinet
12 Working area 1300*2500*180mm
Application:
Furniture industry Ambry door, wood door, solid wood, annatto furniture, archaize furniture all kinds of compound plank cutting and engraving
Panel processing industry Insulation parts, plastic chemical parts, PCB, anti-double panel, epoxy resin, ABS, PP, PE and other carbon mixtures
Arts & Crafts  Artificial stone, PVC, wood, bamboo, marble, organic glass, copper aluminum etc
Decoration Industry The screen, wave plate, bamboo, marble, organic board, double color board and other materials on various fine patterns and the engraving of words

lADPDhJzwzQI7NTNAorNB4A_1920_650

PVC Foam KT Sheet Cutting machine CCD plus oscillating knife Wood CNC Router

小芝麻全部机型优势 (2)


1.High Frequency Powerful spindle

The High quality SESAME series CNC Router machine comes with 4.5kw water or 3.2kw air cooled high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

2.Machine Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

3.Anodized Aluminum Spindle Fixing plate

The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is Anodized Aluminum processing, the plate is machined by high precision CNC machining center.

4.Dust cover for the guide rail and the helical rack gear

The machine is designed with the dust cover for the guide rail and the helical rack and gear, to reduce friction, make the rail and the rack have longer service life.

5.Double Insurance Emergency Stop Button

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.

6.TBI High-Precision Ball-screw Transmission (Taiwan)

1) Higher efficiency than traditional ball screws.

2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred.

3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.

4) Use rigorous materials, high heat treatment and processing technology to supply durable products.


7.Patent design 1:4 gear reducer + Stepper 450B driving motor
Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.  The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability. The machine is installed 4 pieces of motors.

8.Hiwin/PMI square rail&High quality helical rack pinion

Sesame choose heavy duty linear guide rail with high assembly Flange sliding block and PMI linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span. Rack of Sesame adopts high-precision 1.25 helical rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

9.CNC Tool Sensor

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D
carving projects.

CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.


10.Machine bed
Machine bed with 100 * 300mm square tube welded together, compared to ordinary machines, we use the square tube model can better reflect the stability of the equipment.
Machine gantry use 150*200mm square tube, wall thickness 8mm.

11.Control box

Control box has universal wheel, could moveable freely, we will reserve at least 2.5 meters of wire for customers to move the control cabinet. It is usually placed under the bed in front of the machine for easy use.

lADPDiCpvXiBp6jNAorNB4A_1920_650lALPDhmOwC7umo_NAorNB4A_1920_650

Packing:


1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


S2英语


Company:

Shandong U-MAY CNC Technology CO.,LTD.Specializes in the research, development, production of CNC MACHINE. Our brand "WIN" has a considerable reputation in the domestic similar products, which has been widely used in wooden furniture, advertising,  craft gifts,  packaging and printing,  logo and etc. Our products have been exported to many  countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy "Integrity - based, constantly innovation,effective communication,quality services"and the goal of "Technical service customer",but also great attention to product design , manufacture , installation , adjustment. We will still try our best to maintain one stop professional service.
