Views: 475 Author: Site Editor Publish Time: 2025-06-20 Origin: Site
In the field of modern manufacturing and metal processing, plasma cutting and laser cutting are the two most common CNC thermal cutting processes. Both technologies have revolutionized the way metal is cut in various industries, providing high precision, high efficiency and versatility. Each cutting method has its own unique advantages and scope of application. Understanding the advantages and disadvantages of each technology is crucial for industries committed to optimizing manufacturing processes. So which one is better? How to choose based on actual application? In this article, UTECH will comprehensively compare laser and plasma cutting in terms of cutting accuracy, processing speed, material compatibility, and cost of use to help you make an informed choice.
1. Understand the basics of CNC plasma cutting and laser cutting
2. Comparative Analysis: CNC Plasma Cutting vs. Laser Cutting
3. Application scenarios of plasma cutting and laser cutting

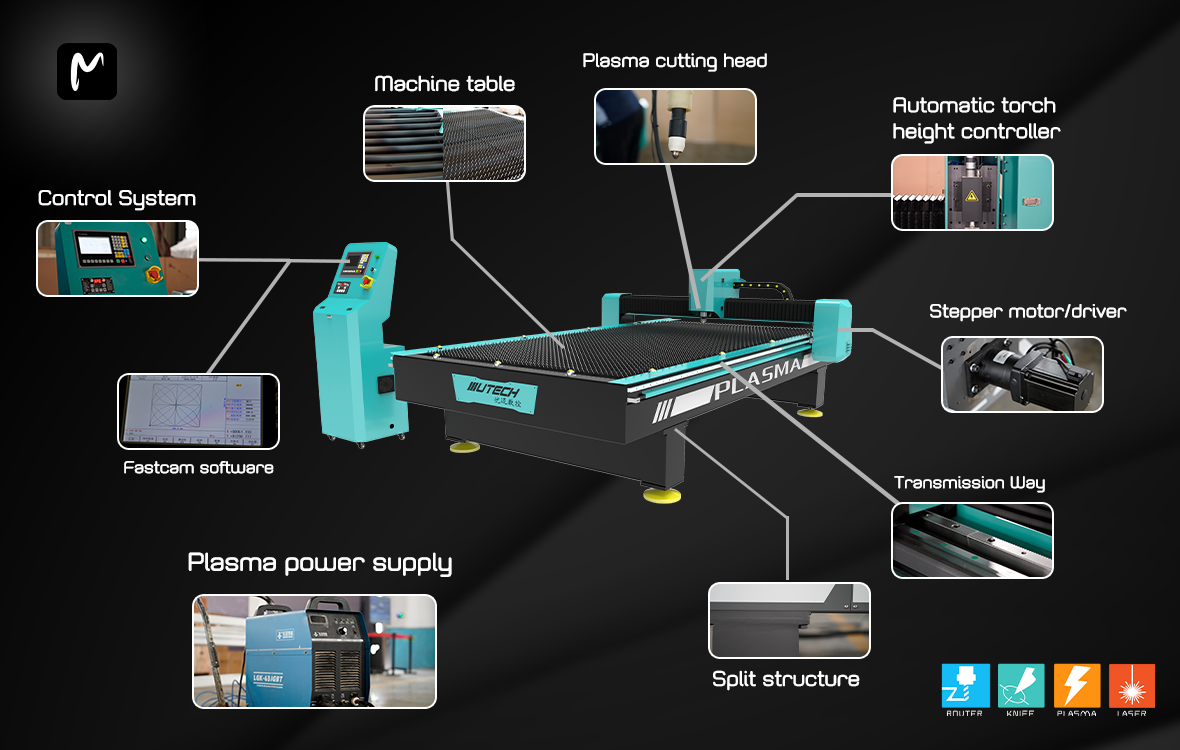

CNC plasma cutting machines use a high-speed ionized gas jet heated to a plasma state to cut conductive materials. CNC (computer numerical control) technology can achieve automation and precisely control cutting parameters. The plasma arc is formed by forcing a gas (such as nitrogen, argon or oxygen) into a nozzle at high speed, while generating an arc between the electrode and the material being cut. This converts the gas into a plasma, which melts the material at high temperatures, and the molten metal is blown away by the kinetic energy of the gas.
One of the significant advantages of CNC plasma cutting machines is their ability to cut thick materials efficiently. For example, they can cut steel plates up to several inches thick with high accuracy. In addition, plasma cutting machines are generally less expensive to operate than laser cutting machines, especially when dealing with thicker materials. The technology has evolved significantly, and improvements in nozzle design, gas mixing, and power sources have improved cutting quality and speed.
Advantages of CNC Plasma Cutting
CNC plasma cutting has many advantages that make it ideal for industrial applications:
Material Thickness Adaptability: Ability to cut a wide range of thicknesses from thin sheets to thick plates.
Cost-effective Operation: Lower initial investment and operating costs compared to laser cutting systems.
Fast Cutting Speed: Especially suitable for cutting thick materials, faster than laser cutting machines in some applications.
Easy to Use and Maintain: Generally low maintenance costs and relatively inexpensive consumables.
Additionally, plasma cutters are not susceptible to reflective materials, which can be a challenge for laser cutters.

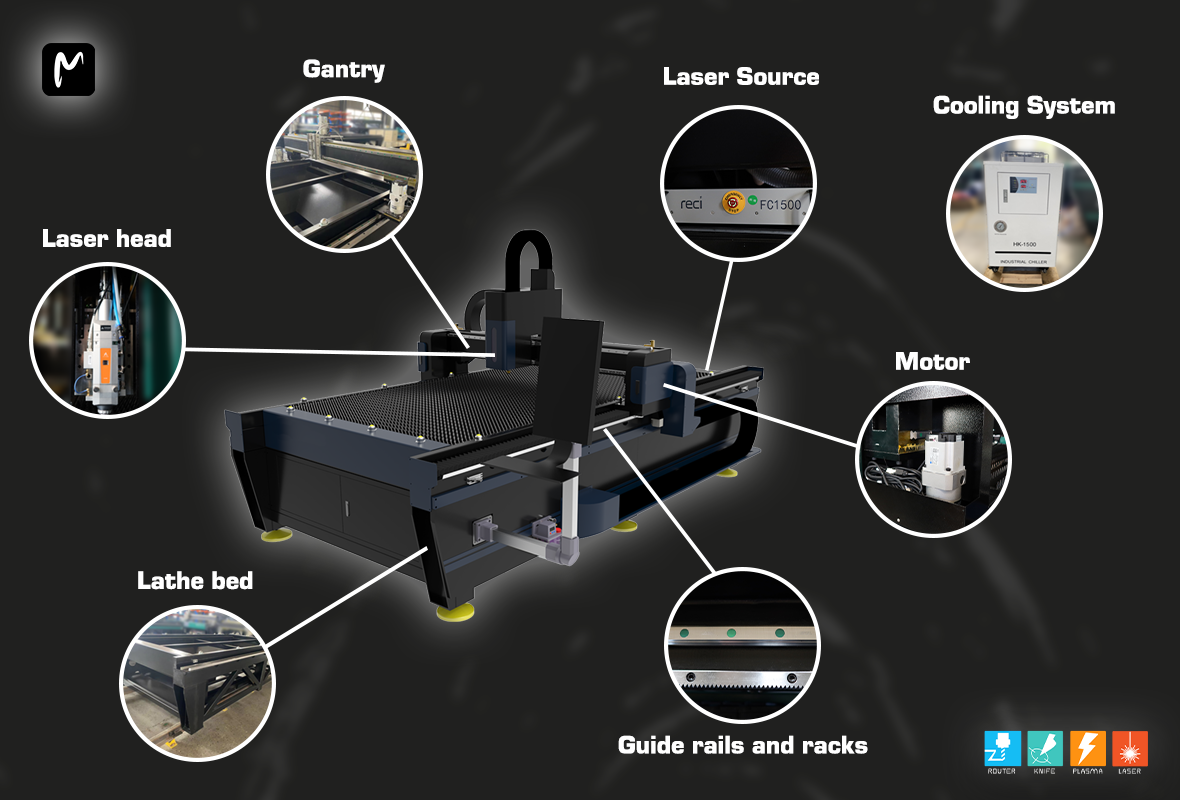

Laser cutters use a focused beam of light to melt, burn, or vaporize materials, achieving high-precision cutting. The laser beam is generated by exciting the laser material with an electric discharge or bulb inside a sealed container. The beam then reflects inside the container until it gains enough energy to escape as coherent light. The beam is directed onto the material via a mirror or optical fiber and is focused by a lens into a small spot with high power density.
Laser cutting is known for its precision and ability to cut complex shapes with minimal edge deformation. It is particularly suitable for high-precision cutting of thin materials. The process is controlled by a CNC system, which allows for complex designs and repeatability in mass production.
Advantages of Laser Cutting
Laser cutting has several significant advantages:
High precision and accuracy: capable of cutting with very tight tolerances and minimal kerf widths.
Fine details and complex shapes: ideal for complex designs and patterns.
Minimal material waste: Precision cutting reduces excess scrap.
Smooth Cut Edges: Produces clean edges, often with little to no finishing required. Laser cutting is also highly automated and integrates well with computer-aided design (CAD) systems, increasing productivity in manufacturing environments.
When comparing CNC plasma cutting and laser cutting, there are several factors to consider, including material type and thickness, required accuracy, operating costs, and specific application needs.
CNC plasma cutters excel at cutting thick materials and are suitable for a wide range of metals, including steel, stainless steel, aluminum, brass, and copper. They are efficient and typically work with materials ranging in thickness from 0.5 mm to 180 mm. On the other hand, laser cutters are better suited for thinner materials, typically up to 25 mm thick, and have superior accuracy at these thicknesses. Lasers can cut non-metallic materials such as plastics and wood, while plasma cutting is limited to conductive metals.
Laser cutting has superior accuracy due to its focused beam, allowing for fine detail processing and minimal cut widths. Smaller heat-affected zones reduce thermal deformation. In contrast, CNC plasma cutting, while highly accurate, typically has larger kerfs and heat-affected zones, and may not be suitable for applications that require fine detail or less edge deformation. However, advances in CNC plasma technology have significantly improved cut quality.
CNC plasma cutters typically cut faster than laser cutters for thicker materials. Plasma can quickly penetrate thick metals, which can improve productivity in heavy manufacturing. Laser cutters are faster when cutting thin materials due to the rapid movement of the focused laser beam. The specific choice depends on the main material thickness and the production speed requirements of the specific operation.
From an investment perspective, the initial cost of a CNC plasma cutter is generally lower than that of a laser cutting system. Plasma cutters also have lower operating costs, lower consumables costs, and lower maintenance requirements. Laser cutting systems, especially high-power and high-precision laser cutting systems, cost more in equipment, maintenance, and energy consumption. However, these costs can be offset in applications where precision and processing quality are critical.
Both technologies require appropriate safety measures. Plasma cutting generates a lot of noise and UV radiation, and produces fumes that must be properly ventilated. Laser cutting also requires safety precautions to protect the operator from the laser beam and fumes, especially when cutting materials such as plastics that release hazardous gases. Implementing proper safety procedures is critical for both methods to ensure a safe working environment.
The choice between plasma cutting and laser cutting usually depends on the specific application and industry needs.
For heavy industries such as shipbuilding, construction, and large-scale manufacturing, CNC plasma cutting is often the first choice because it can cut thick materials efficiently. The ruggedness and cost-effectiveness of CNC plasma cutting machines make them suitable for environments that value accuracy but not necessarily micron-level precision.
Industries that require high precision and fine details, such as aerospace, automotive, and electronics, tend to favor laser cutting. Laser cutting can achieve clean cuts with minimal finishing work, which improves the production efficiency of parts with tight tolerances.
Both plasma cutting machines and laser cutting machines can be used for artistic and decorative metal products. However, laser cutting machines can produce complex designs on thinner materials, which is particularly beneficial for fine artwork and decorative items. CNC plasma cutting machines are suitable for more robust designs that require thicker materials.
In fact, laser cutting and plasma cutting each have their own advantages. There is no absolute good or bad. The key depends on the specific operation requirements, material type, thickness range, precision requirements and cost considerations. CNC plasma cutting is a cost-effective solution for cutting thicker conductive metals with reasonable accuracy and low operating costs. Its versatility and efficiency make it a valuable asset in the heavy manufacturing industry. On the other hand, laser cutting has unparalleled accuracy and is ideal for complex designs and high-precision applications on thinner materials. If you are still unsure which equipment is more suitable for your application scenario, please feel free to contact us for professional advice.
If you are hesitating whether to choose laser cutting or plasma cutting equipment and want to find a solution that is trustworthy in performance, quality and long-term investment,Shandong U-May Cnc Technology Co., Ltd. can provide you with reliable support. As a CNC equipment manufacturer with more than ten years of experience, we integrate independent research and development and production, focusing on the customized production of various metal processing equipment such as laser cutting machines and plasma cutting machines. Our products have been exported to more than 100 countries around the world, widely serving the metal processing, manufacturing, advertising and other fields. We always adhere to the concept of "DO NOTHING OR DO THE BEST", and are committed to providing customers with not only equipment, but also practical, efficient and sustainable CNC solutions.
