ATC 1325 3d Stone Carving Marble Granite Cutting Engraving Machine

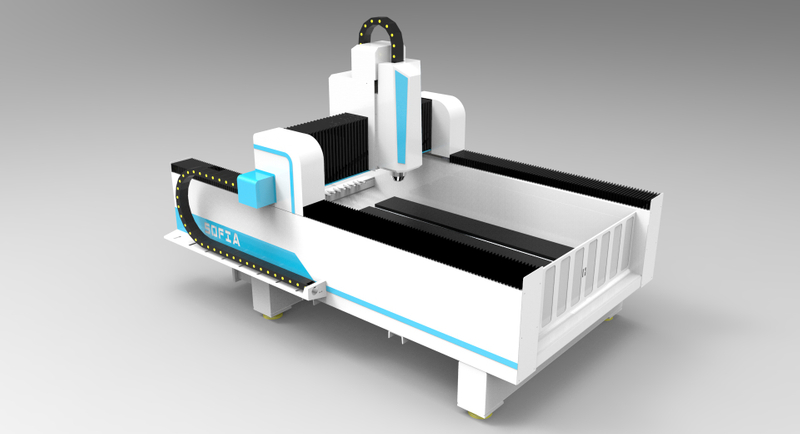

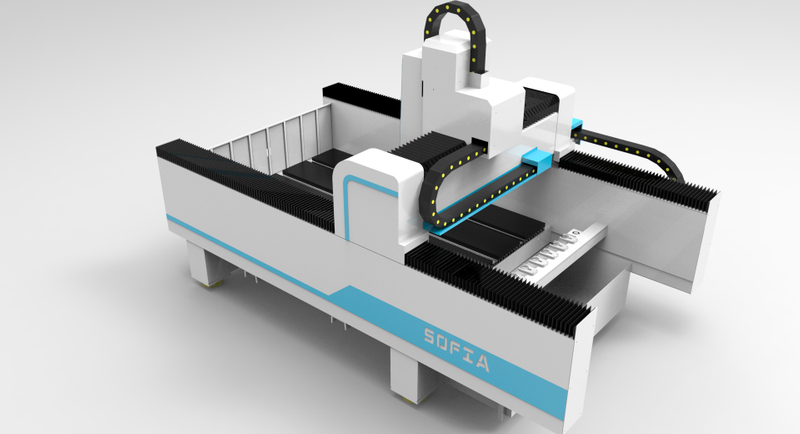

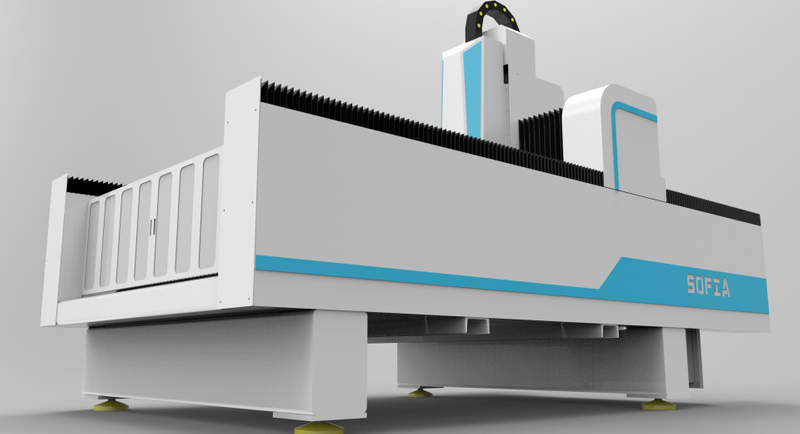

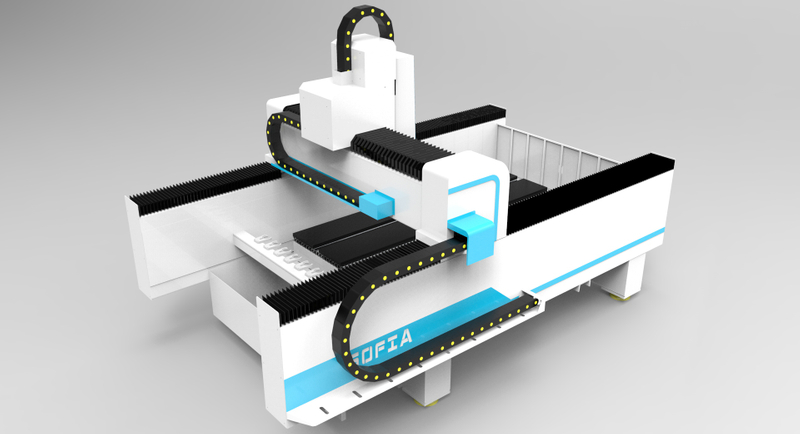

UTECH Stone CNC Carving Machine with ATC Structure

UTECH Stone CNC Router is specially designed for hard materials such as marble, granite, bluestone, microcrystalline stone, artificial stone, etc. It has a high-rigidity structure and strong cutting ability, and can easily cope with heavy-duty continuous processing of stone. The whole machine adopts a heavy-duty steel structure welded bed, which has been treated with high temperature aging, has strong stability and is not easy to deform, ensuring that it can maintain high precision even after long-term operation. The machine is equipped with a high-power water-cooled spindle, which can realize complex processes such as deep engraving, cutting, chamfering, and relief. It is suitable for a variety of application scenarios such as stone tablet engraving, background wall relief, and cabinet countertop opening. The transmission system adopts high-precision ball screws and imported guide rails to ensure that the engraving lines are delicate and smooth, and the surface finish is high. It supports a variety of design file formats, is compatible with mainstream CAD/CAM software, is simple to operate, and is quick to get started. It is an ideal equipment choice for the stone processing industry to achieve high efficiency, high precision and high stability production.

Reference Specification List:

1200x2000x450mm

7.5kw water-cooled spindle

8pcs linear tool changer, BT40 tool holder

Water table&T-slot aluminum table&PVC

Weihong NK280 Industrial controller

XY axis by 1.5M helical rack transmission, Z axis by Taiwan TBI ball screw

Delta 750W servo motor&driver, Japan SHIMPO reducer

Machine Features:

1. High degree of automation.  The entire process of grinding, polishing, drilling, milling, and other actions in accordance with preset instructions; to achieve seamless intelligent processing.

2. Widely used. It can be widely used in the processing of kitchen countertops, bathroom countertops, bar island countertops, coffee table tops, stone tabletops, TV countertops, and other stone countertops.

3. Simple and easy operation. Ordinary workers can get started in one working day, which is more worry-free.

4. Professional design, which fully considers the features of stone professing.

5. Rotary attachment(fourth axis) is optional. With rotary attachment, it can process round surfaces, such as vases, stone columns, etc.

6. High precision rack and pinion drive with high accuracy and speed.

7. X Y Z axis use a dust-proof structure to ensure the machine has a longer life.

Applicable Areas:

The machine is multifunctional, can be used in various industries, for example the production of monuments, fireplaces, souvenirs, sculptures, the manufacture of models for foundry, the manufacture of advertising, models of architectural structures, and other products made of stone and other materials of high hardness

Applicable Materials:

Granite, marble, basalt, and other types of stones, tiles, glass, ceramic, metals, as well as wood, plastic, and many other materials.
