Working Table Size: | |
---|---|
Spindle Motor Power: | |
Control system: | |
Drive motor: | |
Availability: | |
UT-1325P
UTECH
UT-1325P

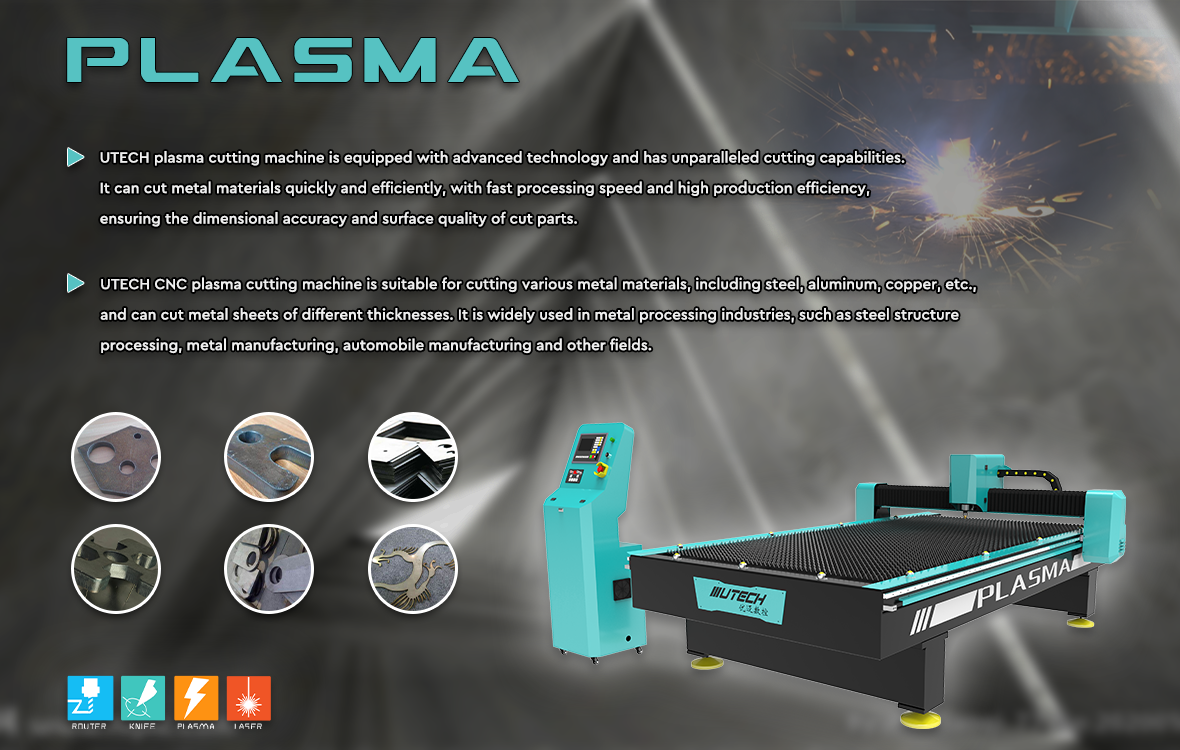

CNC Plasma Cutting Machine / Plasma Cutter / Plasma Cut CNC
UTECH industrial CNC plasma cutting machine is a high-performance equipment specially designed for fast and high-precision processing of medium and thick metal plates. It integrates advanced thermal cutting technology, stable mechanical structure and intelligent CNC system. The whole machine adopts thickened steel welded bed, which is processed by high temperature annealing and precision machining to ensure long-term high-speed operation and maintain structural stability and repeatable positioning accuracy. The X/Y axis is equipped with a high-precision rack guide, and the Z axis is equipped with an arc voltage automatic adjustment system, which can adjust the cutting gun gap in real time according to the surface height of the plate to achieve stable and uniform cutting quality. The equipment is compatible with multi-brand industrial plasma power supplies, has strong penetration ability and arc stability, and can easily cope with the efficient cutting tasks of various conductive metal materials such as carbon steel, stainless steel, aluminum, galvanized sheet, etc. with thicknesses ranging from 1mm to 30mm. Fast cutting speed, high precision and low cost greatly improve material utilization and ease of operation. With its excellent speed, accuracy and stability, this equipment is widely used in heavy industrial fields such as sheet metal processing, steel structure manufacturing, mechanical parts production, shipbuilding engineering, bridge construction, vehicle manufacturing, etc. It is an ideal cutting solution for modern manufacturing companies that pursue both efficiency and quality.
Features of plasma cutting machine:
1. 1300*2500mm standard working area(can tailor made for you)
2. START control system
3. Huayuan 120A plasma generator(Optional: Hypertherm power supply)
4. Cutting Material Collection Box with wheels, for easy take out products
5. High-Quality cut performance, Fast cutting speed, high precision, and low cost.
6. With firm and reasonable structure, the machine is easy to operate and durable for use.
7. The cutting incision is thin and tidily and can avoid the second processing.
8. High configurated CNC system, auto arc-striking, and stable performance.
9. Working with computer and support G code and files of Uncanniest software (specialized in cutting metal material) (optional Fastcam software)
10. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision. (USA power is optional)
CNC Plasma Cutting Machine / Plasma Cutter / Plasma Cut CNC
UTECH industrial CNC plasma cutting machine is a high-performance equipment specially designed for fast and high-precision processing of medium and thick metal plates. It integrates advanced thermal cutting technology, stable mechanical structure and intelligent CNC system. The whole machine adopts thickened steel welded bed, which is processed by high temperature annealing and precision machining to ensure long-term high-speed operation and maintain structural stability and repeatable positioning accuracy. The X/Y axis is equipped with a high-precision rack guide, and the Z axis is equipped with an arc voltage automatic adjustment system, which can adjust the cutting gun gap in real time according to the surface height of the plate to achieve stable and uniform cutting quality. The equipment is compatible with multi-brand industrial plasma power supplies, has strong penetration ability and arc stability, and can easily cope with the efficient cutting tasks of various conductive metal materials such as carbon steel, stainless steel, aluminum, galvanized sheet, etc. with thicknesses ranging from 1mm to 30mm. Fast cutting speed, high precision and low cost greatly improve material utilization and ease of operation. With its excellent speed, accuracy and stability, this equipment is widely used in heavy industrial fields such as sheet metal processing, steel structure manufacturing, mechanical parts production, shipbuilding engineering, bridge construction, vehicle manufacturing, etc. It is an ideal cutting solution for modern manufacturing companies that pursue both efficiency and quality.
Features of plasma cutting machine:
1. 1300*2500mm standard working area(can tailor made for you)
2. START control system
3. Huayuan 120A plasma generator(Optional: Hypertherm power supply)
4. Cutting Material Collection Box with wheels, for easy take out products
5. High-Quality cut performance, Fast cutting speed, high precision, and low cost.
6. With firm and reasonable structure, the machine is easy to operate and durable for use.
7. The cutting incision is thin and tidily and can avoid the second processing.
8. High configurated CNC system, auto arc-striking, and stable performance.
9. Working with computer and support G code and files of Uncanniest software (specialized in cutting metal material) (optional Fastcam software)
10. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision. (USA power is optional)
Some differences between Huayuan and Hypertherm power supply:
PS, if you're not sure which kind of plasma power is suitable for you, you can share the following information for me, I'll suggest you choose proper type.
1/ Which kind of metal materials you wanna cut?
2/ How about the cutting thickness?
Details:
Model | UT-1325P CNC Plasma cutting machine (Other models are optional) |
Working size | 1300x2500mm (4x8ft) (Other working sizes are optional) |
Three axes repeat positioning accuracy | ±0.05mm |
Process precision | ±0.35mm |
Transmission system | X, Y: Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack Z: the arc voltage control |
Max. cutting speed | 15000mm/min |
Working voltage | AC220/50HZ |
Working voltage | Starfire plasma cutting system Standard high sensitivity arc voltage device |
Software support | FASTCAM,AutoCAD,etc |
Instruction format | G code |
Drive system | Stepper motor |
Plasma power supply | Huayuan 63A/120A/160A/200A. Optional, USA Hypertherm, 45A/65A/85A/105A/125A |
Application:
It is widely used in the process of cutting metal plates in the machinery manufacturing industry, engineering industry, and metal fabrication and can cut mild steel, stainless steel, aluminum, copper and many kinds of non-ferrous metal.
Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
Some differences between Huayuan and Hypertherm power supply:
PS, if you're not sure which kind of plasma power is suitable for you, you can share the following information for me, I'll suggest you choose proper type.
1/ Which kind of metal materials you wanna cut?
2/ How about the cutting thickness?
Details:
Model | UT-1325P CNC Plasma cutting machine (Other models are optional) |
Working size | 1300x2500mm (4x8ft) (Other working sizes are optional) |
Three axes repeat positioning accuracy | ±0.05mm |
Process precision | ±0.35mm |
Transmission system | X, Y: Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack Z: the arc voltage control |
Max. cutting speed | 15000mm/min |
Working voltage | AC220/50HZ |
Working voltage | Starfire plasma cutting system Standard high sensitivity arc voltage device |
Software support | FASTCAM,AutoCAD,etc |
Instruction format | G code |
Drive system | Stepper motor |
Plasma power supply | Huayuan 63A/120A/160A/200A. Optional, USA Hypertherm, 45A/65A/85A/105A/125A |
Application:
It is widely used in the process of cutting metal plates in the machinery manufacturing industry, engineering industry, and metal fabrication and can cut mild steel, stainless steel, aluminum, copper and many kinds of non-ferrous metal.
Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
The machine will be packed with wrapping film, EPE foam, and wooden case(composite material box/plywood case).
SESAME CNC Router's machine legs and machine bed can be separated freely, when machine shipping, we'll dismantle the machine legs, they can help you save more shipping fee.
1. Our Wooden Case is after fumigation treatment. Needn`t timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process. Then we`ll cover plastic wrap out it tightly, make sure intact of the covered soft materials, also avoiding Waterproof and rustproof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for handling and transport.
Company:
Shandong U-May CNC Technology Co., Ltd. provides one-stop service, including design, installation, training, commissioning, maintenance and consulting. We pursue people oriented management tenet providing staff with a broad development platform, and constantly improving the company evaluation system, incentive mechanism and training system. We always emphasize on research and development. Adhering to the spirit of innovation, we will never stop to develop our own brand and new products. Your satisfaction is always what we pursue. With the expanded market, we sincerely hope to cooperate with customers from all over the world. All parts of the machine can be upgraded or changed. Please tell us your material and size. We will customize the most suitable machine for you.
The machine will be packed with wrapping film, EPE foam, and wooden case(composite material box/plywood case).
SESAME CNC Router's machine legs and machine bed can be separated freely, when machine shipping, we'll dismantle the machine legs, they can help you save more shipping fee.
1. Our Wooden Case is after fumigation treatment. Needn`t timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process. Then we`ll cover plastic wrap out it tightly, make sure intact of the covered soft materials, also avoiding Waterproof and rustproof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for handling and transport.
Company:
Shandong U-May CNC Technology Co., Ltd. provides one-stop service, including design, installation, training, commissioning, maintenance and consulting. We pursue people oriented management tenet providing staff with a broad development platform, and constantly improving the company evaluation system, incentive mechanism and training system. We always emphasize on research and development. Adhering to the spirit of innovation, we will never stop to develop our own brand and new products. Your satisfaction is always what we pursue. With the expanded market, we sincerely hope to cooperate with customers from all over the world. All parts of the machine can be upgraded or changed. Please tell us your material and size. We will customize the most suitable machine for you.
