Customized Desktop Welding Co2 Laser Machine for Acrylic

UTECH CO2 Laser Engraving Machine, which can always do perfect engraving work
Size:
Laser Source Brand:
Cooling Mode:
Availability:
Customized Desktop Welding Co2 Laser Machine for Acrylic
Customized Desktop Welding Co2 Laser Machine for Acrylic
Customized Desktop Welding Co2 Laser Machine for Acrylic
Customized Desktop Welding Co2 Laser Machine for Acrylic
Customized Desktop Welding Co2 Laser Machine for Acrylic
Customized Desktop Welding Co2 Laser Machine for Acrylic
  • CO2

  • UTECH

  • CO2

 UTECH Direct Factory High Performance CO2 Laser Engraving Cutting Machine With nonmetal /metal cnc router


 80w 100w 130w 150w auto feeding 3d Co2 laser cutting machine co2 laser engraving machine for fabric rubber plywood glass acrylic cnc laser cutting machine 180w 200w 260w 280w 300w mixed laser cutting machine for cutting metal ss cs more cost-effective price than fiber laser cutting machine!


Main Features:
1. The advantage of laser processing is that various patterns can be carved and hollowed out on the surface of various materials quickly. Because laser processing is a non-contact processing method, it will not produce any external deformation on the materials;
2. The laser engraving machine has many advantages, such as high precision, no burr, and can process any shape;
3. Acrylic transparent cover can not only isolate the internal and external environment, but also facilitate people to observe the processing process and the working state of the machine in time;
4. Adopt imported high-precision guide rail system to ensure processing accuracy and service life;
5. The movable universal wheel makes the movement of the machine more convenient;

6. Laser tube adopts industry model products to ensure processing accuracy and durability;

Applicable materials:

all kinds of cloth, leather, plexiglass, cardboard plastic PET / PVC / PC / ABS, mica board, felt cloth, sponge, foam, pearl cotton, EVA, fiber material, silica gel material, composite material, epoxy resin, paper, wood bamboo, rubber, resin, ceramics, granite, acrylic, wood, cloth, wool, and other non-metallic materials.

Applicable industries:

advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and  clipping,jeans, packaging and paper industry.


co2应用


Details:

Model

CO2 1390 ( 4060/6090/1610/ option)

X,Y Working Area

1300x900mm

Laser power

80/100/130/150/180/200/220/280/300W

Laser type

CO2

Laser head NO.

One ( two heads option)

Reflector and focus mirrors

Imported

Linear rail

Taiwan PMI

Table type

Knife and Honeycomb table

keyword

laser cutting machine,co2 laser cutting machine

Cooling system

Water cooling

Other accessories

Air pump,  Exhausted system,

Engraving Speed

0-60000mm/min

Cutting speed

0-36000mm/min

Resetting position accuracy

±0. 01mm

Control system

RD system

Software

Laser work

Graphic format supported

BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF

Software supported

CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut

Laser Output

1-100% Software Setting

Operating temperature

0 - 45℃

Operating humidity

5 - 95%

Working Mode

3-phase Stepper motor

Dichroic Cutting

Up to 256 colors

Gross power

<2200W

Minimum shaping character

English 1 x 1mm

Working Voltage

220V/50HZ -60HZ; single phase ( 110v option)

Machine Size

1670X1310X1050mm

Packing Size

1780X1420X1260mm

N.W

380KGS

G.W

480KGS

MOQ

1 SET

Parts:

1. Honeycomb Table

The honeycomb shaped table is mainly for leather, clothing and other soft and thin materials, because the cloth maybe uneven when placed on it, the honeycomb table can play the role of drawing the cloth flat on the table when drawing air,ensuring the effect of machining.

2. Blade Table

The blade table is mainlt for materials such as plate,and the blade table is usually thick.which can cear heavy plate.For example,20mm thich acrylic is very heary.

3.Transparent machine cover(5mm)

When the laser machine is working , it needs to close the cover of the machine to protect the human body from the harm caused by the radiated laser beam.But if you want to know the progress of the work and check the operation of the machine, the design of the transparent cover will meet your needs.

4.Laser head

Long lfe span, high quality with fast speed, move X.Y,Zaxis to cut and engrave the material.

5.Control panel

The control panel can control the working state of the machine in a timely and convenient manner.According to the different processing materials and expected effects,diferent power and speed are set. Moreover, the operation of the humanized panel is simple and easy to learn.

6.Control card

RDC6442S Core Technology Development System has better hardware stability, better resistance to high pressure, static interference characteristics. The controller includes better and more superior motion control functions, large dile storage, conpatibility stronger dual independently adjustable laser power control interface, compatility stronger U disk driver.

co2配件Company information:

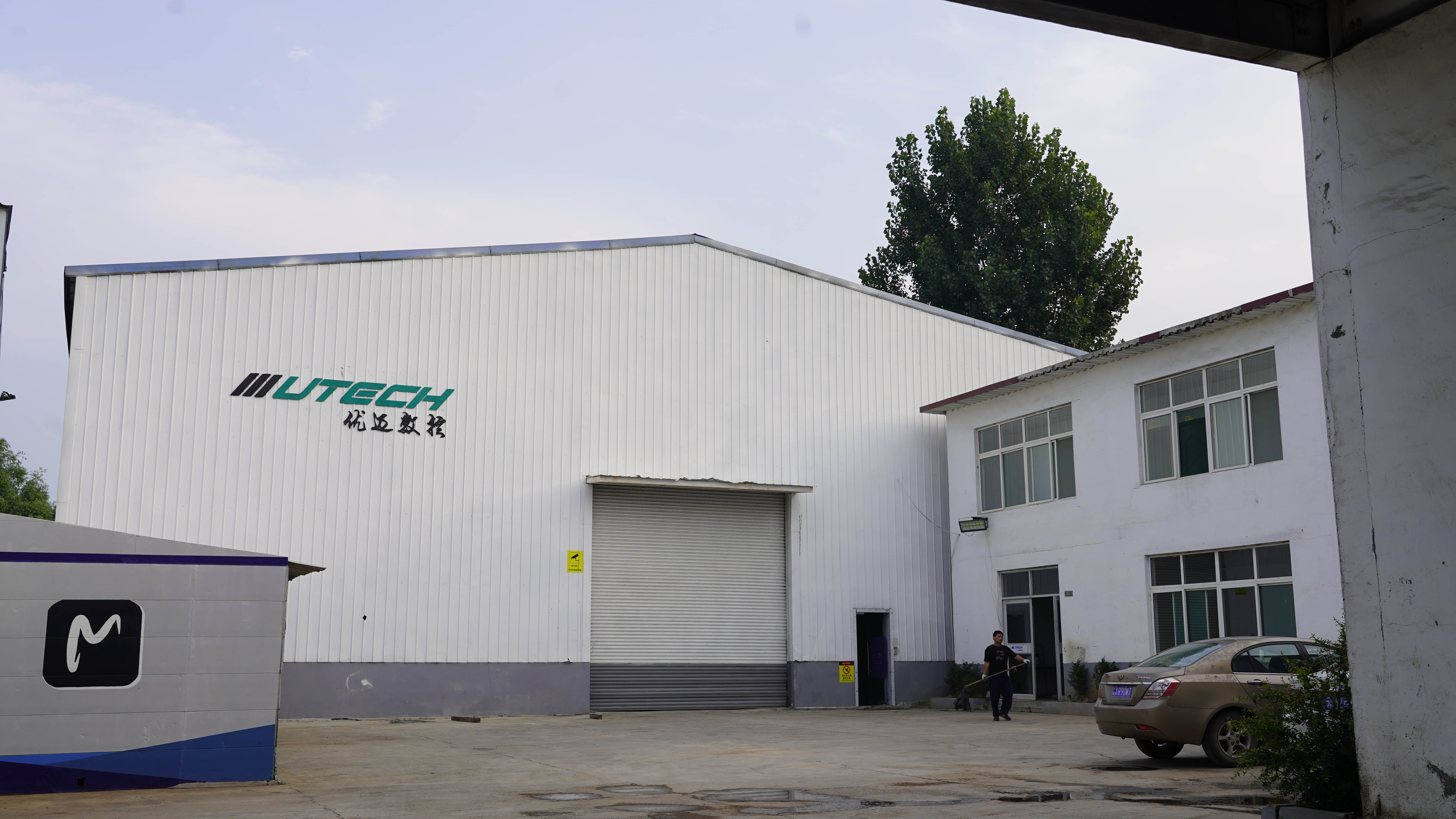

Shandong U-MAY CNC Technology CO., LTD. is located in Jinan, the spring city of China. The brand name on the market is UTECH, which is a new brand launched by the company since its construction in 2014. The main products of the company are CNC machine tools, laser engraving machines, plasma engraving machines, fiber laser marking machines, etc. Regarding products, we have been adhering to the business philosophy of "Smart Solution, Better Tomorrow", aiming to provide the CNC engraving machines with high quality and excellent guarantee for the whole world. In recent years, our company has followed the development of The Times and entered the transition period. By 2019, our carving machines are more actively sold to North America, the Middle East, Western Europe, southeast Asia, Africa, South America and other regions, and have a stable dealer agency in some regions.


Pre-sales Service

Ⅰ Inquiry and consulting support. 10 working days to produce the machine, meanwhile, we will report the production process in time.

Ⅱ Sample testing support.

Ⅲ View our Factory



After-sales Service

Ⅰ Training how to install the machine, training how to use the machine by internet. 24 hours technical support by email, calling , if u have any problems, we will within 12 hours to solve it.

Ⅱ Some machine parts ( quality problems ) can be free charge to replace it within warranty.
