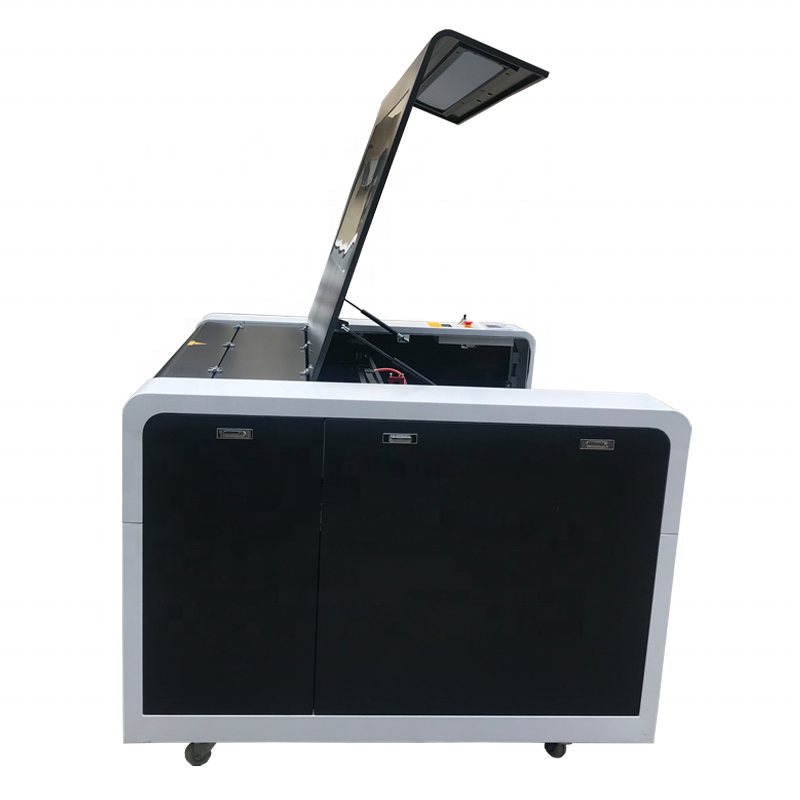

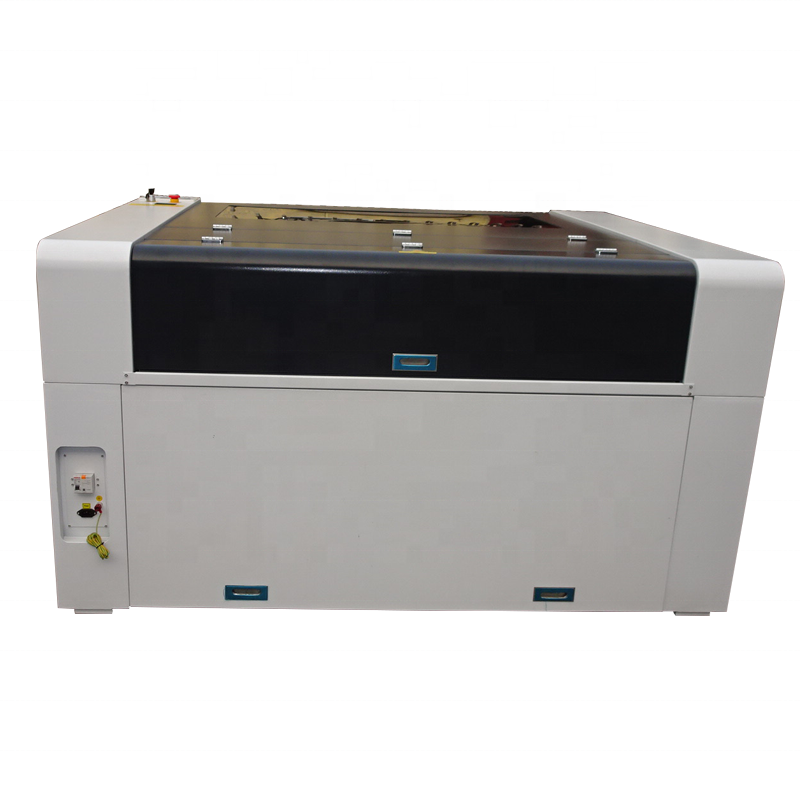

UTECH Direct Factory High Performance CO2 Laser Engraving Cutting Machine With nonmetal /metal cnc router
80w 100w 130w 150w auto feeding 3d Co2 laser cutting machine co2 laser engraving machine for fabric rubber plywood glass acrylic cnc laser cutting machine 180w 200w 260w 280w 300w mixed laser cutting machine for cutting metal ss cs more cost-effective price than fiber laser cutting machine!
6. Laser tube adopts industry model products to ensure processing accuracy and durability;
Applicable materials:
all kinds of cloth, leather, plexiglass, cardboard plastic PET / PVC / PC / ABS, mica board, felt cloth, sponge, foam, pearl cotton, EVA, fiber material, silica gel material, composite material, epoxy resin, paper, wood bamboo, rubber, resin, ceramics, granite, acrylic, wood, cloth, wool, and other non-metallic materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping,jeans, packaging and paper industry.
Details:
Model | CO2 1390 ( 4060/6090/1610/ option) |
X,Y Working Area | 1300x900mm |
Laser power | 80/100/130/150/180/200/220/280/300W |
Laser type | CO2 |
Laser head NO. | One ( two heads option) |
Reflector and focus mirrors | Imported |
Linear rail | Taiwan PMI |
Table type | Knife and Honeycomb table |
keyword | laser cutting machine,co2 laser cutting machine |
Cooling system | Water cooling |
Other accessories | Air pump, Exhausted system, |
Engraving Speed | 0-60000mm/min |
Cutting speed | 0-36000mm/min |
Resetting position accuracy | ±0. 01mm |
Control system | RD system |
Software | Laser work |
Graphic format supported | BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF |
Software supported | CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut |
Laser Output | 1-100% Software Setting |
Operating temperature | 0 - 45℃ |
Operating humidity | 5 - 95% |
Working Mode | 3-phase Stepper motor |
Dichroic Cutting | Up to 256 colors |
Gross power | <2200W |
Minimum shaping character | English 1 x 1mm |
Working Voltage | 220V/50HZ -60HZ; single phase ( 110v option) |
Machine Size | 1670X1310X1050mm |
Packing Size | 1780X1420X1260mm |
N.W | 380KGS |
G.W | 480KGS |
MOQ | 1 SET |
Parts:
1. Honeycomb Table
The honeycomb shaped table is mainly for leather, clothing and other soft and thin materials, because the cloth maybe uneven when placed on it, the honeycomb table can play the role of drawing the cloth flat on the table when drawing air,ensuring the effect of machining.
2. Blade Table
The blade table is mainlt for materials such as plate,and the blade table is usually thick.which can cear heavy plate.For example,20mm thich acrylic is very heary.
3.Transparent machine cover(5mm)
When the laser machine is working , it needs to close the cover of the machine to protect the human body from the harm caused by the radiated laser beam.But if you want to know the progress of the work and check the operation of the machine, the design of the transparent cover will meet your needs.
4.Laser head
Long lfe span, high quality with fast speed, move X.Y,Zaxis to cut and engrave the material.
5.Control panel
The control panel can control the working state of the machine in a timely and convenient manner.According to the different processing materials and expected effects,diferent power and speed are set. Moreover, the operation of the humanized panel is simple and easy to learn.
6.Control card
RDC6442S Core Technology Development System has better hardware stability, better resistance to high pressure, static interference characteristics. The controller includes better and more superior motion control functions, large dile storage, conpatibility stronger dual independently adjustable laser power control interface, compatility stronger U disk driver.
