Differences Between Linear Tool Changer and Carousel Tool Changer CNC Router
In modern and digital manufacturing, CNC engraving machines have become indispensable tools in industries such as woodworking, metal cutting, and plastic engraving. Among various types of CNC machine tools, ATC CNC router stand out for their ability to automatically change tools during machining. The two most common types are Linear Tool Change CNC Router and the Carousel Tool Changer CNC Router. While both aim to automate the tool changing process, they differ in design, performance, speed, and applicable industries. Understanding these differences is crucial for selecting the best CNC engraving machine for your business.
1. What is a Linear Tool Changer CNC Engraving Machine?
2. What is a Carousel Tool Changer CNC engraving machine?
3. Key Differences Between Linear and Carousel Tool Changer CNC Routers
4. How to Choose the Right ATC CNC Router for Your Business
5. Why Choose UTECH CNC Engraving Machines
Linear tool changer CNC engraving machines are typically equipped with a row (or linear array) of tool holders, which are usually mounted behind or to the side of the machine's worktable. When a CNC engraving machine needs a tool change, the spindle moves to the tool holder, lowers the current tool, and picks up the next one.
This configuration is simple, cost-effective, and easy to maintain, making it popular in small and medium-sized workshops. Linear automatic tool changers are ideal for users who need to perform multi-step cutting, engraving, and drilling operations but do not require high tool change speeds.
Typical applications include CNC woodworking engraving machines for furniture production, advertising sign cutting machines, and CNC engraving machines for processing acrylic, medium-density fiberboard (MDF), or polyvinyl chloride (PVC) sheets. While its tool change speed is slightly lower than that of a rotary tool changer, the linear automatic tool changer CNC engraving machine offers excellent accuracy, economy, and reliability, making it an ideal choice for businesses transitioning from manual to automatic tool changer systems.

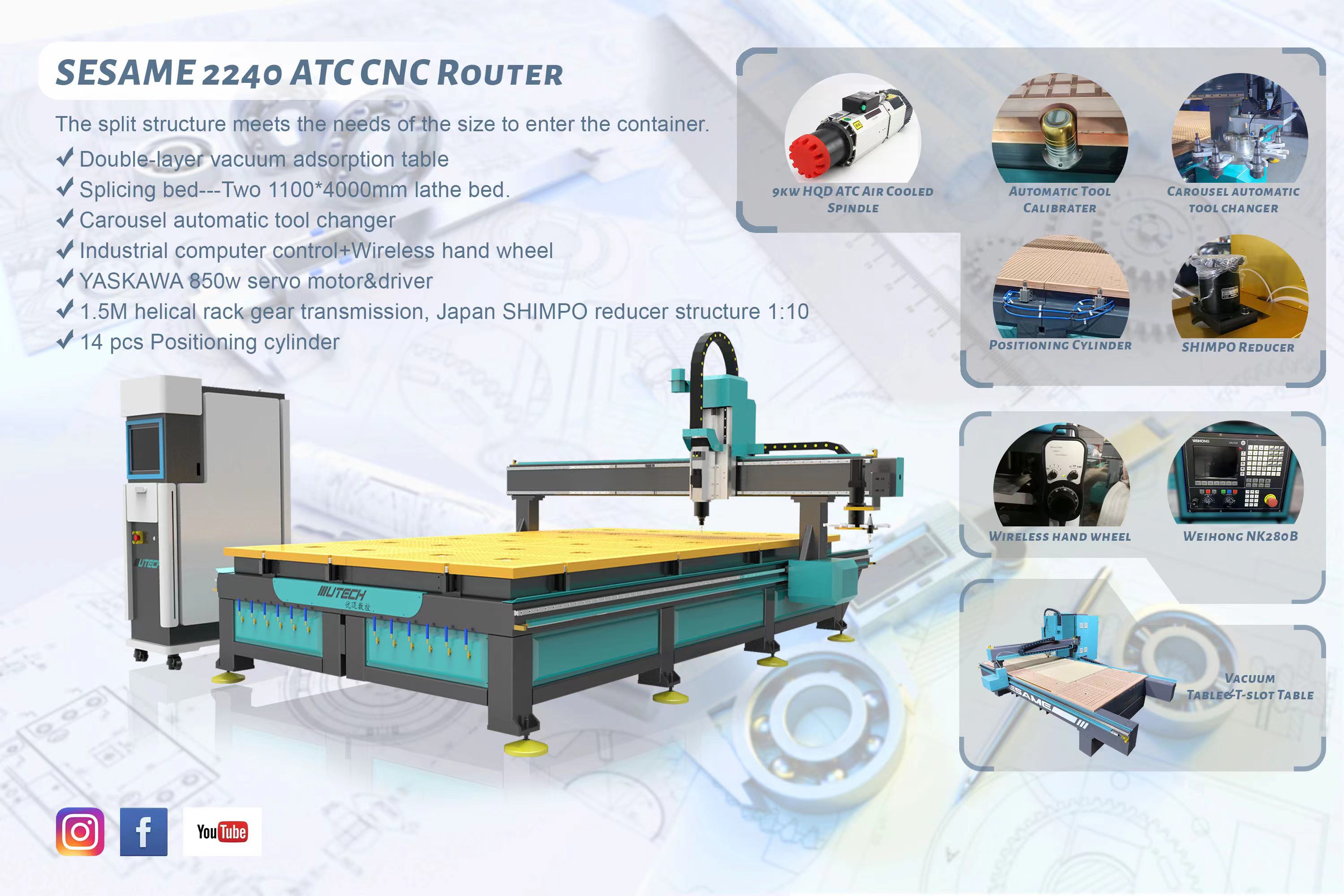

A Carousel Tool Changer CNC engraving machine uses a rotating tool magazine to store tools in a circular arrangement. Depending on the model, the tool magazine is typically mounted on the side, back, or even directly on the gantry of the machine tool.
When a tool change is needed, the spindle automatically moves to the rotary table, rotates to select the correct tool, and completes the switch within seconds. Carousel Tool Changers are designed for high-speed, high-efficiency machining environments where minimizing downtime and maximizing productivity are crucial.
This type of engraving machine is commonly found in industrial CNC cutting machines, CNC milling machines, and high-end CNC woodworking centers for handling complex cutting tasks such as 3D engraving, deep contour machining, or mass production. It is ideal for manufacturers seeking precision and efficiency in high-volume production.
Although both types of ATC systems enable automatic tool changes, several major differences set them apart:
| Feature | Linear Tool Changer CNC Router | Carousel Tool Changer CNC Router |
|---|---|---|
| Tool Storage Design | Linear rack (usually at rear or side of table) | Circular magazine (disc or wheel type) |
| Tool Change Speed | Moderate – requires spindle movement | Fast – rotating magazine allows instant change |
| Cost & Maintenance | Lower cost, simpler structure | Higher investment, more complex system |
| Best For | Small to medium workshops | Large-scale, high-speed production |
| Applications | Furniture, signs, MDF, plastic | Woodworking, metal, stone, composite materials |
In summary, linear ATC routers are known for their simplicity and affordability, while carousel ATC routers are valued for their speed, efficiency, and ability to handle intensive workloads.
Choosing between a Linear Tool Change CNC Router and a Carousel Tool Changer CNC Router depends on your production needs, material types, and budget.
If your workflow involves medium-volume projects with fewer tool changes, a linear ATC CNC router is an excellent option. It provides consistent accuracy at a lower cost while maintaining automation and reliability.
If your business handles mass production, high-precision machining, or complex multi-tool operations, the carousel ATC CNC router is the better choice. It delivers faster tool changes and minimizes downtime, significantly improving efficiency in large-scale manufacturing.
When selecting a CNC machine, you should also consider the machine’s spindle power, table size, dust collection system, and motion control configuration to ensure it fits your long-term production goals.
As a leading CNC machine tool manufacturer, Shandong U-May Cnc Technology Co., Ltd. specializes in producing high-performance automatic tool changer CNC engraving machines, multi-axis CNC machine tools, CNC plasma cutting machines, and laser engraving machines, among other CNC equipment. UTECH machine tools are widely recognized for their sophisticated engineering, durability, and innovative control systems.
All UTECH engraving machines—whether linear or rotary automatic tool changers—use industrial-grade components to ensure stability and cutting accuracy. With years of experience in the CNC woodworking, metalworking, and signage industries, UTECH continuously provides intelligent manufacturing solutions to customers worldwide.
Whether you are a small workshop or a large manufacturing enterprise, UTECH can provide customized CNC cutting solutions designed to improve your productivity, reduce labor costs, and enhance your manufacturing efficiency.
Linear Tool Change and Carousel Tool Changer CNC Routers are significant innovations in modern CNC automation. Choosing the right ATC CNC engraving machine depends on your workload, speed requirements, and long-term goals. Linear systems offer a cost-effective and simple solution for small-scale production, while carousel systems dominate in large-scale production due to their fast and seamless tool change capabilities. With UTECH CNC's expert guidance and reliable support, you can find the perfect CNC engraving machine to meet your needs, helping you achieve greater efficiency and precision in your manufacturing journey.
