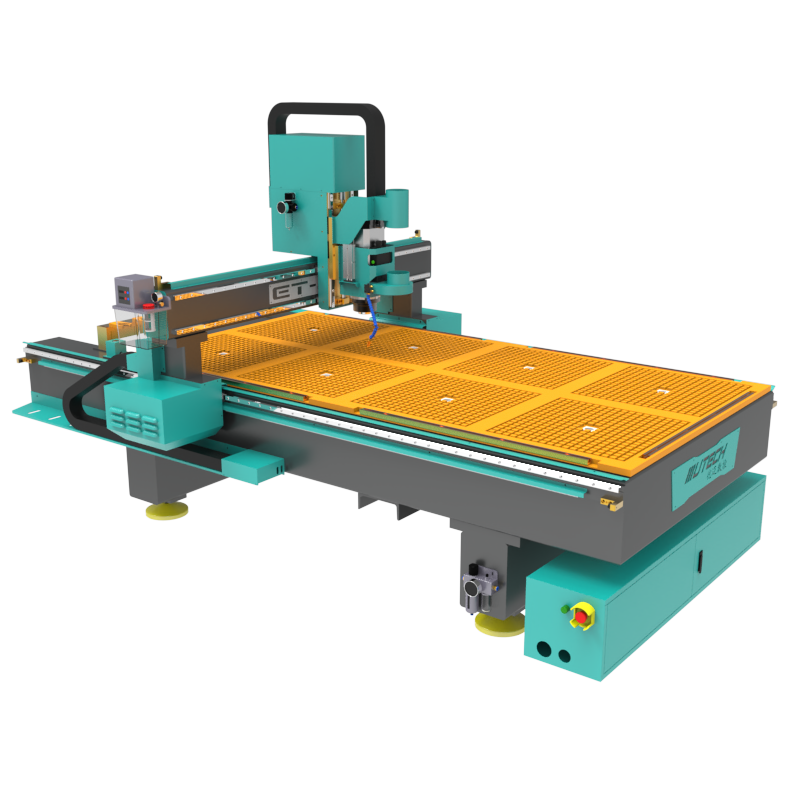

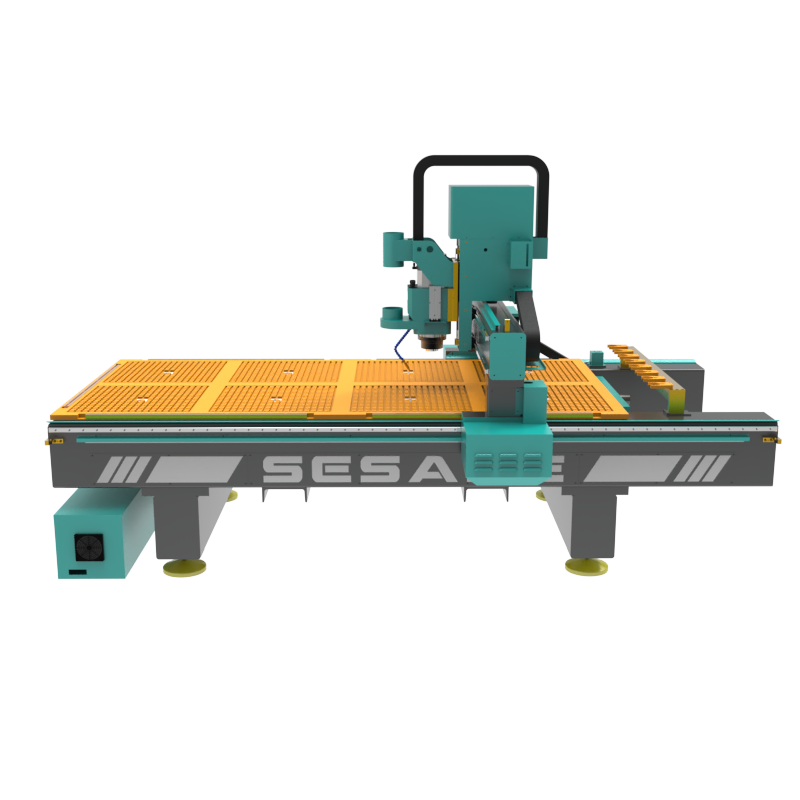

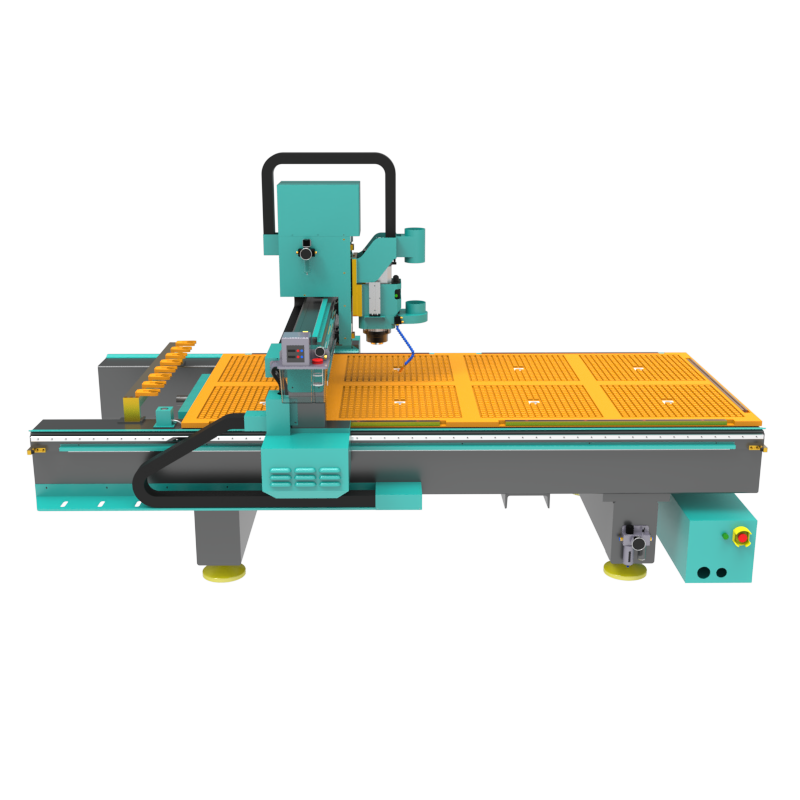

SESAME S2 ATC
UTECH
1300mm*2500mm(4′ x 8′)
CE
ATC CNC Router
Free Lifetime Technical Support online.
Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
12 month Limited Warranty for Entire Machine(Extended Warranties Available for Major Parts)
50+Sets / Month

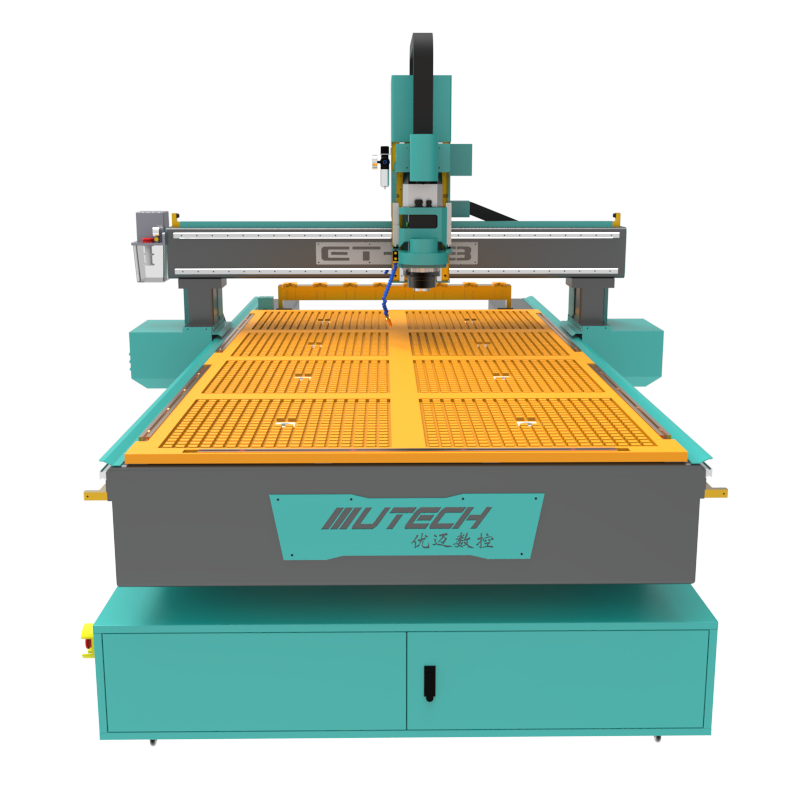

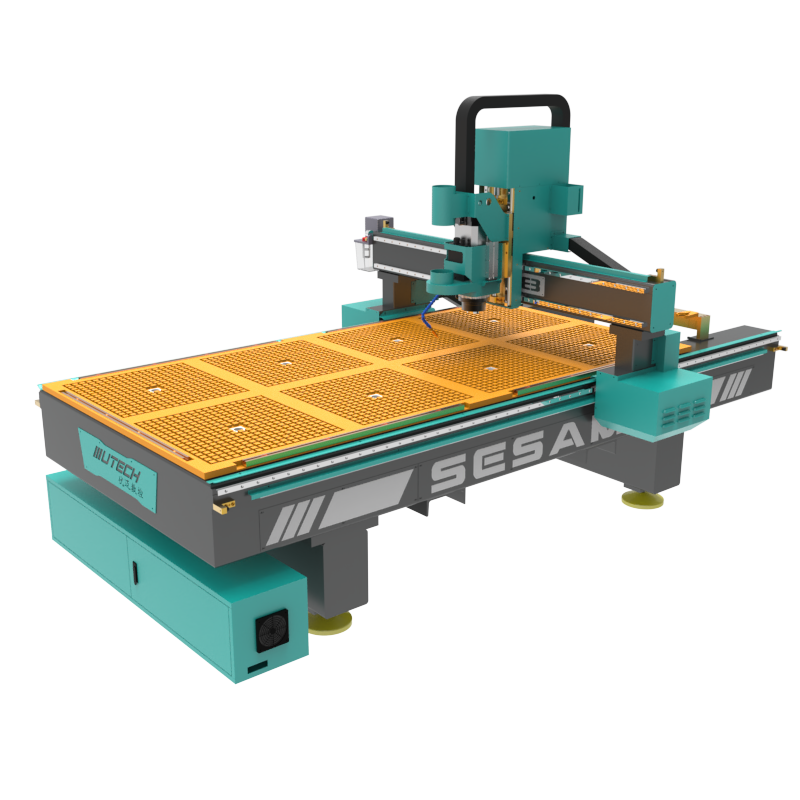

Adopting advanced control technology and high-precision linear guide rails,UTECH ATC CNC router maintains excellent accuracy and stability during engraving and cutting. It is especially suitable for fine engraving, detailed carving, and complex machining tasks.
Equipped with a linear ATC system with 8 or 10 tools, the machine can automatically change tools in about 8 seconds. This allows continuous, unattended processing, greatly reducing manual intervention, saving time, and improving production efficiency—ideal for mass production and urgent orders.
The built-in tool length sensor automatically measures and compensates tool height, ensuring consistent cutting depth and high machining accuracy after every tool change.
UTECH ATC CNC router supports a wide range of materials including wood, MDF, plywood, acrylic, plastics, and soft metals. It is widely used in woodworking, advertising, crafts production, furniture manufacturing, and more, offering excellent flexibility for different projects.
Equipped with a handle-type control system, the machine is simple and user-friendly, allowing operators to get started quickly and operate efficiently with minimal training.
With high-precision positioning and cutting capabilities, this machine can handle complex engraving and cutting tasks, ensuring high-quality, refined, and professional finished products.

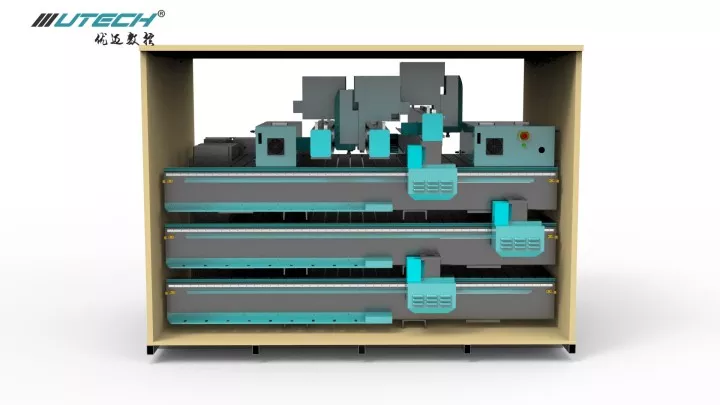

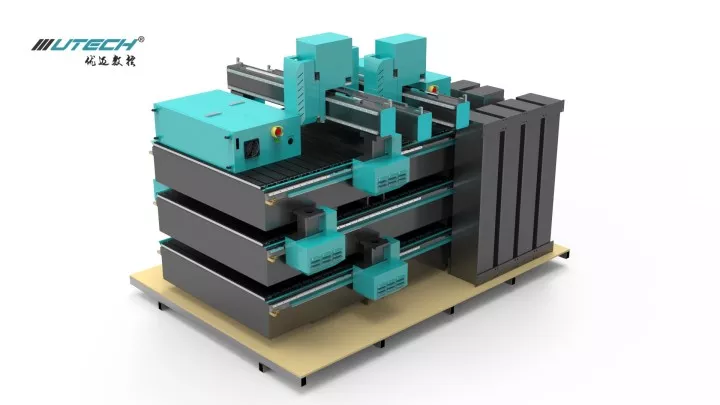

The biggest advantage of the UTECH SESAME series is its patented detachable structure. This innovative design allows the machine to be easily disassembled and reassembled, making transportation, installation, and maintenance much more convenient—especially for customers with limited workshop access or complex logistics conditions. Compared with traditional one-piece CNC machines, the detachable structure significantly reduces shipping costs, simplifies on-site setup, and improves service efficiency, while maintaining the same level of rigidity, accuracy, and industrial performance.
Model | S2-1325 ATC | S2-1530 ATC | S2-2030 ATC | S2-2040 ATC |
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Repeatability | ±0.01mm | |||
Tool Holder Quantity | 4/6/8/10 | |||
Working Table | Multi-zone vacuum with T-slot table with gate valves for zone control | |||
X, Y Structure | 1.5M precision helical rack, Taiwan brand linear guide rail | |||
Z Structure | Taiwan TBl Ball Screw, Taiwan brand Linear guide rail | |||
Spindle Power | OLISpeed 9kw air-cooled spindle | |||
Spindle Speed | 0-24000RPM | |||
Tool Setting | Automatic Tool Height calibration sensor | |||
Drive Motors | JMC 7502 servo motor(Delta 750W / Japan YASKAWA 850W) | |||
Working Voltage | AC 220/380V | |||
Command Language | G Code | |||
Control System | XDW203C Controller (Handle Control) | |||
Lubrication System | Auto lubration system for rack gear and ball screws | |||
Gross Power | 24KW | |||
Power Consumption | 24kWh/h | |||
Tool Cooling | Oil-Mist&Air-Cooling system | |||
Software | VCarve, Artcam, Ucancam, Aspire,CorelDraw, Type3, SolidWorks, Artcut, AutoCAD,etc. | |||

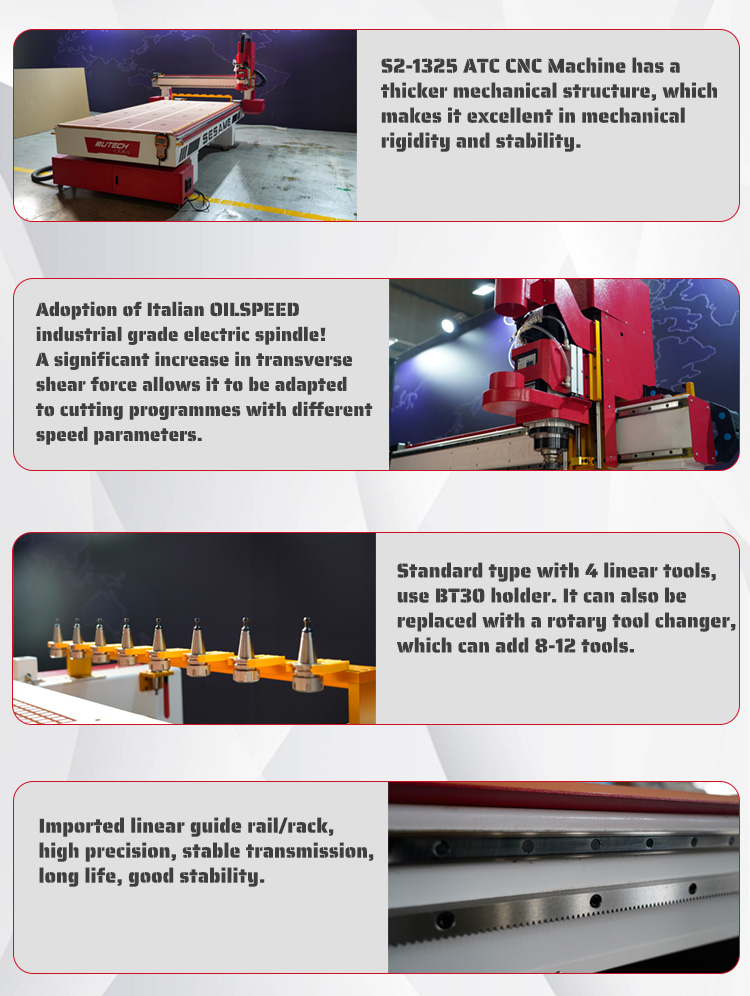

S2-1325 ATC CNC Machine has a thicker mechanical structure, which makes it excellent in mechanical rigidity and stability.
Adoption of Italian OILSPEED industrial grade electric spindle! A significant increase in transverse shear force allows it to be adapted to cutting programmes with different speed parameters.
Standard type with 4 linear tools, use BT30 holder. It can also be replaced with a rotary tool changer, which can add 8-12 tools.
Imported linear guide rail/rack, high precision, stable transmission, long life, good stability.

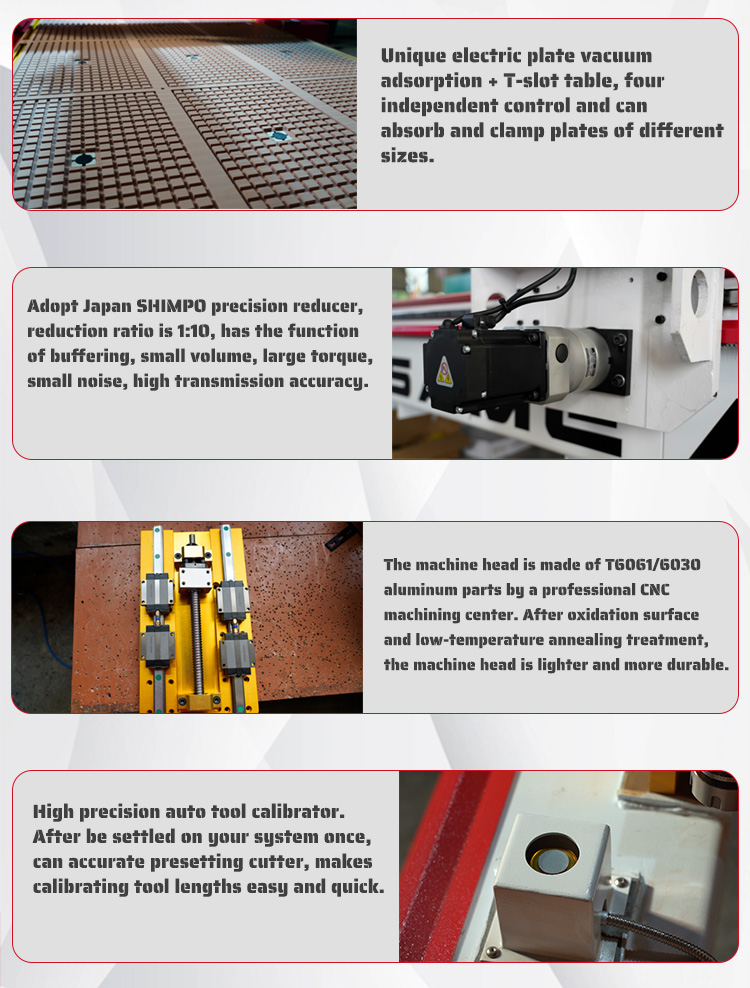

Unique electric plate vacuum adsorption + T-slot table, four independent control and can absorb and clamp plates of different sizes.
Adopt Japan SHIMPO precision reducer, reduction ratio is 1:10, has the function of buffering, small volume, large torque, small noise, high transmission accuracy.
The machine head is made of T6061/6030 aluminum parts by a professional CNC machining center. After oxidation surface and low-temperature annealing treatment, the machine head is lighter and more durable.
High precision auto tool calibrator. After be settled on your system once, can accurate presetting cutter, makes calibrating tool lengths easy and quick.

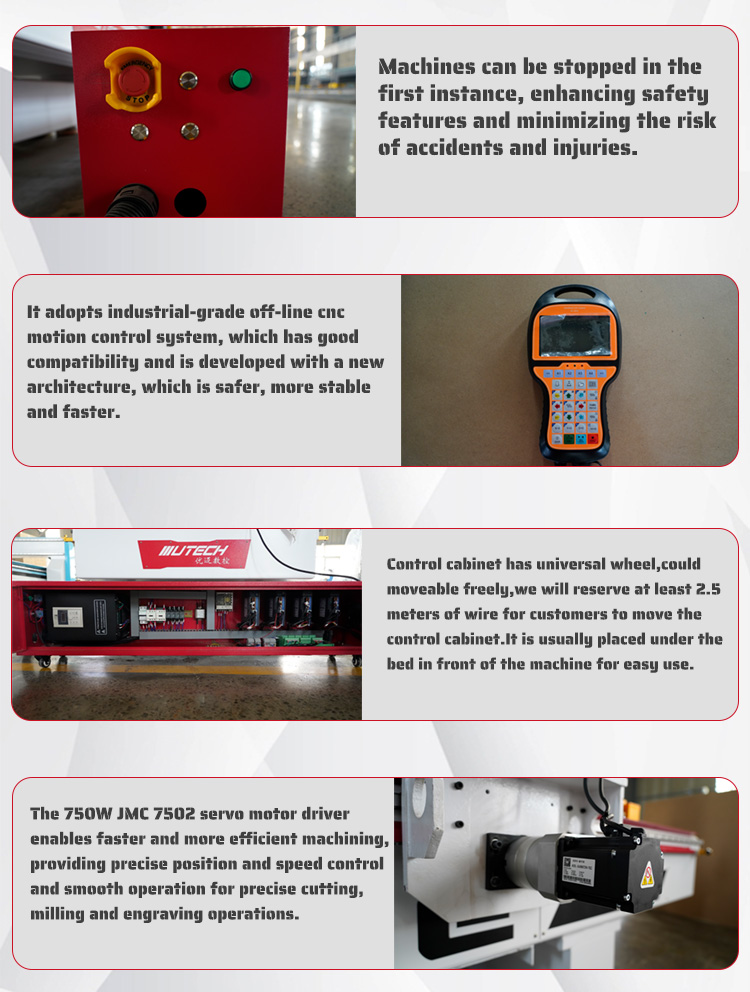

Machines can be stopped in the first instance, enhancing safety features and minimizing the risk of accidents and injuries.
It adopts industrial-grade off-line cnc motion control system, which has good compatibility and is developed with a new architecture, which is safer, more stable and faster.
Control cabinet has universal wheel,could moveable freely,we will reserve at least 2.5 meters of wire for customers to move the control cabinet.It is usually placed under the bed in front of the machine for easy use.
The 750W JMC 7502 servo motor driver enables faster and more efficient machining, providing precise position and speed control and smooth operation for precise cutting, milling and engraving operations.

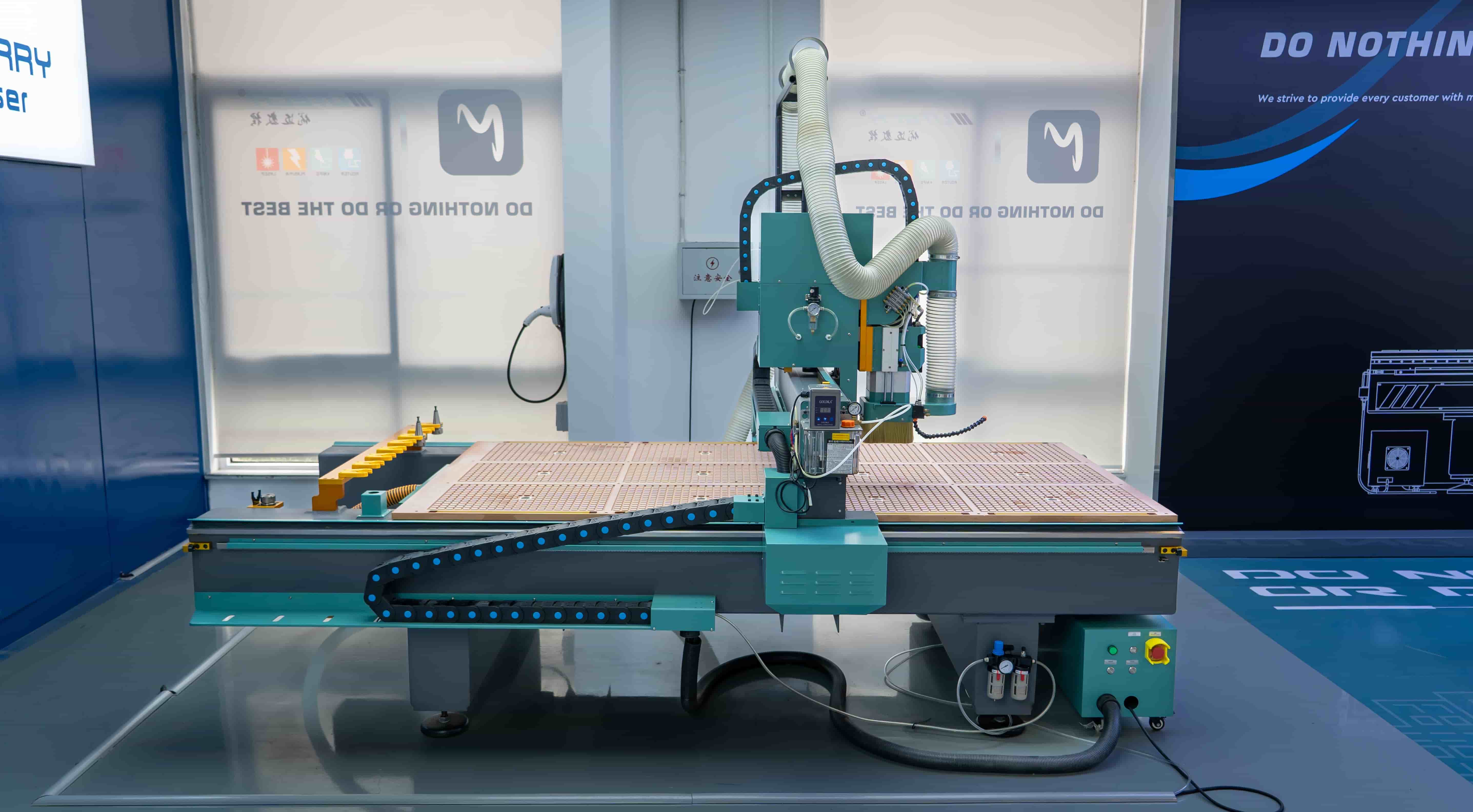

The UTECH 1325 4×8 Linear ATC CNC Router is designed as a professional production tool for manufacturers seeking stable, accurate, and automated machining performance. Its structural design, motion system, and intelligent functions work together to ensure consistent output quality, reduced operating errors, and higher production efficiency.
UTECH 1325 ATC CNC machine adopts high-quality linear guide rails and precision transmission components, ensuring smooth axis movement, high repeatability, and consistent machining accuracy. This is essential for fine engraving, complex contour cutting, and long-term dimensional stability.
The linear automatic tool changer allows the machine to perform multiple machining processes—such as drilling, slotting, cutting, and engraving—within a single job cycle, eliminating the need for manual tool changes and reducing process interruptions.
The built-in tool height sensor automatically measures tool length and compensates for tool differences after each tool change, ensuring uniform cutting depth and minimizing setup errors, especially during complex multi-tool operations.
Equipped with a stable industrial CNC control system, the auto tool change cnc machine supports continuous operation, precise interpolation, and reliable data processing, ensuring smooth machining even during long production cycles.
The atc cnc engraving machine supports the processing of wood, MDF, plywood, acrylic, PVC, plastics, and soft metals, making it suitable for diverse industries such as woodworking, furniture manufacturing, signage, decorative arts, and industrial part production.
The handle-type control interface and logical operation layout allow operators to manage machine functions efficiently, reducing operational complexity and improving production workflow.
The heavy-duty steel frame and reinforced machine bed minimize vibration and deformation, ensuring long-term dimensional accuracy and stable performance under continuous industrial workloads.
Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
Voice box, game cabinets, computer tables, sewing machines table, instruments.
Insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving, and milling process.
1. Rotary(length&diameter could be customized)
2. Dust collector
1. Leg Removable Frame
2. 9kw air cooled spindle+ER25 cutter, cutting thick materials, also is easy.(optional)
3. Machine Base Frame
4. Anodized Aluminum Spindle Fixing plate(Z axis)
5. Dust cover for the guide rail and the helical rack gear
6. TBI High-Precision Ball-screw Transmission (Taiwan)
7. Patent design Japan SHIMPO 1:10 gear reducer + Leadshine 750W servo motor(Delta/Yaskawa)
8. Hiwin square rail&High quality helical rack pinion
9. Automatic Tool Height calibration sensor
10. 8 tool changers
As a direct CNC manufacturer, SESAME provides factory pricing without middlemen while maintaining strict quality control standards on every machine.
We offer worldwide delivery, secure packaging, and comprehensive warranty coverage to protect your investment and ensure peace of mind.
Our professional technical team provides remote assistance, training, troubleshooting, and spare parts support to keep your production running smoothly.
Customers worldwide trust SESAME CNC routers for their reliability, accuracy, and value. Many users report improved production efficiency, reduced labor costs, and stable long-term operation.
From furniture factories to advertising workshops, SESAME 1325 has been successfully deployed in a wide range of real-world applications, delivering consistent and high-quality results.
The SESAME 1325 4×8 Linear ATC CNC Router for Sale is fully CE certified, ensuring compliance with European safety, health, and environmental protection standards. This certification confirms that the machine meets strict EU directives, including Machinery Directive, Low Voltage Directive (LVD), and EMC Directive, making it safe and reliable for use across European and international markets.
All key components, such as the electrical system, control cabinet, spindle, and emergency stop system, are designed and tested according to CE requirements. This guarantees stable operation, enhanced user safety, and long-term performance in industrial and commercial woodworking applications.
Choosing a CE-certified CNC router like the SESAME 1325 ATC CNC Machine helps importers, distributors, and manufacturers meet local regulatory requirements, reduce customs clearance risks, and build trust with end users. UTECH CE documentation and technical files are available upon request to support your compliance needs.
The UTECH 1325 4×8 Linear ATC CNC router is used for woodworking, cabinet making, furniture manufacturing, sign making, and decorative engraving. It supports multi-process machining such as cutting, drilling, slotting, and carving.
This machine can process wood, MDF, plywood, acrylic, PVC, plastics, and soft metals such as aluminum, making it suitable for a wide range of industrial and commercial applications.
The linear automatic tool changer supports 8 or 10 tools, allowing fast tool changes in about 8 seconds to complete complex multi-step jobs without manual intervention.
Yes. This CNC router is designed for continuous industrial operation, making it ideal for mass production, batch processing, and urgent manufacturing orders.
Yes. UTECH provides customization options such as spindle power, table structure, dust collection systems, rotary axis attachments, and voltage configurations to meet different production needs.
Yes. This machine is CE certified and manufactured under ISO quality management standards, ensuring compliance with international safety and quality requirements.
If you are not sure which UTECH CNC router model to choose, please tell us:
What materials will you process?
What are the maximum length, width, and thickness of the materials?
Do you want to engrave or cut? If cutting, what is the maximum cutting thickness?
Our UTECH experts will recommend the most suitable machine for your needs!
