In the field of modern woodworking, the advent of computer numerical control (CNC) technology has revolutionized the way craftsmen and manufacturers cut and shape wood. CNC routers have become indispensable tools, providing unparalleled precision and efficiency in the production of complex designs and parts. For professionals and amateurs, one of the most important questions many users are concerned about before purchasing a CNC router is: How thick can a CNC router cut? Understanding the limitations and capabilities of a CNC router in terms of wood thickness is essential to optimizing performance and achieving the desired results. However, there is no fixed answer to this question, as it depends on multiple factors, including spindle power, machine structure, tool length, wood type, and cutting method. In this article, UTECH will start from actual processing and explain in depth the wood cutting thickness capability of CNC routers to help you choose a CNC device that better suits your needs.


1.Factors that determine the thickness of wood that a CNC router can cut

2.Types of CNC Routers and Their Cutting Capacities

3.Tips for Cutting Thick Wood with a CNC Router


Factors that determine the thickness of wood that a CNC router can cut


The maximum wood thickness that a CNC router can cut is not a fixed parameter but is influenced by a combination of factors. To accurately assess a CNC router's cutting capacity, it is essential to consider the machine's specifications, the characteristics of the cutting tools, the properties of the wood being processed, and the operational techniques employed. Each of these factors plays a vital role in determining the effectiveness and efficiency of the cutting process.

(1)Machine specifications

The design and construction of a CNC router significantly affects its ability to cut thick wood. Key machine specifications include:

  • Spindle power and speed:The spindle is the heart of the CNC router, providing the rotational force required to drive the cutting tool to cut the material. Higher-powered spindles can handle more demanding cutting tasks and are better suited to processing thicker wood. Spindle power directly affects the ability of a CNC router to cut thick wood. A more powerful spindle can maintain the necessary torque and speed to effectively drive a larger cutting tool. In addition, the spindle speed must be matched to the tool diameter and wood type to prevent burning or tool breakage.

  • Z-axis travel: The Z-axis determines the vertical movement of the cutting tool. The larger the Z-axis travel, the longer the cutting head can be and the thicker the workpiece can be processed.

  • Machine rigidity and stability: A strong frame and high-quality components can reduce vibration and deformation during cutting, which is particularly important when processing thicker materials that generate greater cutting forces.

(2)Tool and drill bit selection

When trying to cut thicker wood, the choice of tool is critical. Important considerations include:

  • Cutting length: The cutting drill bit must have sufficient flute length to achieve the required depth without compromising structural integrity.

  • Shank diameter: A larger shank provides greater rigidity and reduces deflection, which is critical for deep cutting.

  • Material and coating: High-quality carbide drill bits with appropriate coatings can improve durability and cutting performance.

  • Drill bit geometry: Choosing the right drill bit type (e.g., straight shank, spiral shank, compression shank) can affect chip evacuation and cutting quality.

For deep cutting, it may be necessary to use an extended end mill or a special long flute drill bit. However, longer drill bits are more susceptible to deflection and require careful handling to avoid breakage.

(3)Wood properties

Different types of wood have different densities, hardnesses, and grain structures, which affect their cutting performance:

  • Hardwood vs. softwood: Hardwoods such as oak and maple are denser than softwoods such as pine or cedar and require greater cutting force.

  • Moisture content: Wet or immature wood can cause tools to clog and cut poorly, while very dry wood can be brittle.

  • Grain direction: Cutting against the grain may increase drag and affect surface finish.

Understanding the properties of wood can help you choose the appropriate cutting parameters and tools.

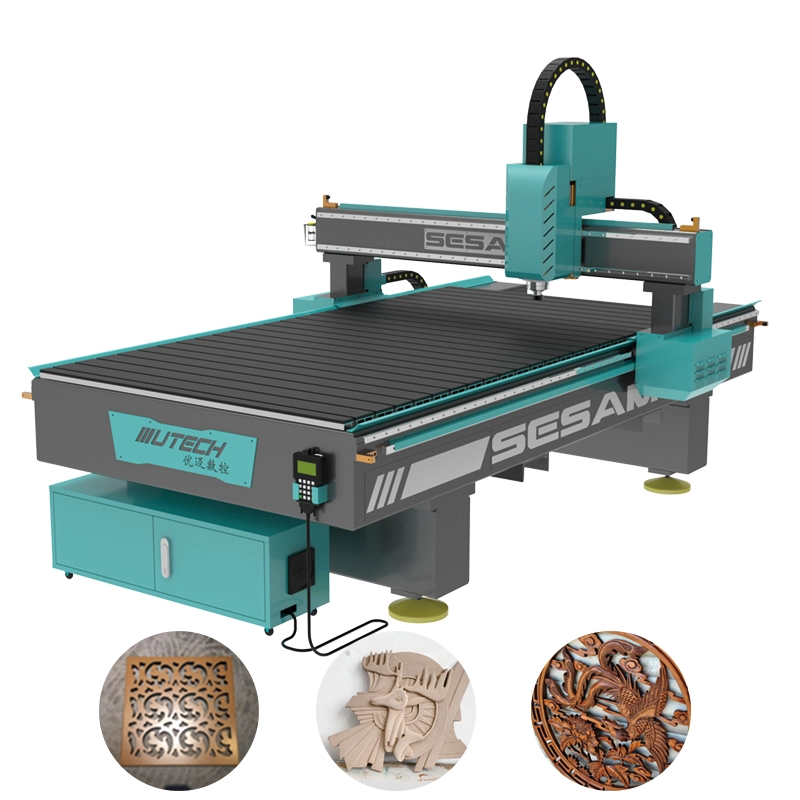

wood cnc router


Types of CNC Routers and Their Cutting Capacities


CNC routers come in various sizes and configurations, each suited to different applications and cutting requirements.

Hobbyist vs. Industrial CNC Routers

Hobbyist CNC routers are generally designed for lighter tasks and may have limitations in spindle power and rigidity, restricting their ability to cut thick wood. They are ideal for small projects, intricate carvings, and softer woods up to 1 to 2 inches thick.

Industrial CNC routers, on the other hand, feature heavy-duty construction, powerful spindles, and advanced control systems. Machines like our CNC Router series are capable of handling thick hardwoods and large-scale production runs, with cutting capabilities exceeding 4 inches in depth under appropriate conditions.


High-Power CNC Routers

For applications requiring cutting of extremely thick wood, specialized high-power CNC routers are employed. These machines may incorporate features such as:

  • High-Torque Spindles: Allowing the use of larger diameter bits necessary for deep cuts.

  • Enhanced Z-Axis Clearance: Providing the ability to accommodate thicker workpieces and longer tooling.

  • Advanced Cooling Systems: Managing heat generated during intensive cutting operations.

Such machines are often custom-configured to meet specific industrial needs, such as in timber processing or large-scale sculpture work.


Tips for Cutting Thick Wood with a CNC Router


  • Use multiple shallow passes for clean results and less wear

  • Ensure the router bit is sharp and rated for your desired depth

  • Use a clamp or vacuum table to secure large/thick material

  • Use correct RPM and feed rate according to wood type and tool specs

  • Keep the spindle and toolpath cool and debris-free


The thickness of wood that a CNC router can cut is influenced by a variety of factors: machine specifications, tool selection, material properties, and operating techniques. Understanding these factors can help users maximize the potential of their CNC routers, whether making complex engravings or processing large wood panels. UTECH industrial-grade woodworking engraving machines are able to provide the power and precision required for a wide range of applications, proving that cutting thick wood is not only possible, but can also achieve excellent quality with the right equipment and methods. Taking full advantage of the capabilities of CNC routers has opened up new possibilities for the woodworking industry, from custom furniture to architectural elements. By investing in the right technology and following best practices, craftsmen and manufacturers can achieve excellent results and push the limits of wood processing.


Want to find a CNC engraving machine for thick wood processing?


Shandong U-May Cnc Technology Co., Ltd. is a professional CNC equipment manufacturer from Jinan, China. Since its establishment in 2014, it has always focused on providing high-performance, customizable, one-stop CNC solutions to customers around the world. Welcome to contact us to get the engraving solution that suits your craft needs.
