In simplest terms, plasma cutting is a process that uses a high velocity jet of ionized gas that is delivered from a constricting orifice. The high velocity ionized gas, that is, the plasma, conducts electricity from the torch of the plasma cutter to the work piece. The plasma heats the workpiece, melting the material. The high velocity stream of ionized gas mechanically blows the molten metal away, severing the material.
Working Table Size: | |
---|---|
Motor and driver: | |
Table: | |
Power Source: | |
Certification: | |
Availability: | |
SESAME P1
UTECH

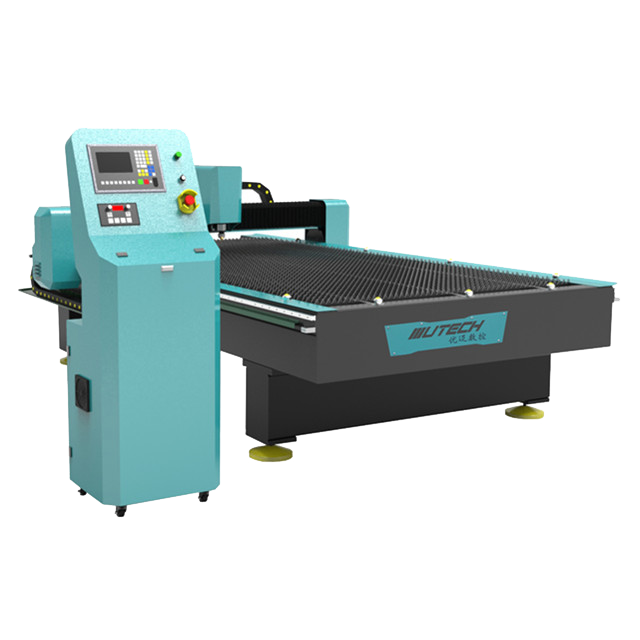

UTECH 1530 Cnc Plasma Cutter 3000mm Plasma Cutting Machine
This CNC plasma cutting machine adopts a thickened steel structure welded bed. After professional stress relief treatment, the overall structure is sturdy and durable, and it will not deform during long-term operation, ensuring the high precision of the cutting process and the long service life of the equipment. Equipped with Taiwan's high-precision linear guide system, it effectively improves the running stability and vertical cutting effect, and ensures that the cutting edge is smooth and neat.
The control system can be selected from Beijing Starfire system,START system,FLMC-2300A or DSP system, all of which support the automatic height adjustment (THC) system, which can adjust the cutting head height in real time according to the flatness of the material to achieve a more stable and high-quality cutting effect.
The machine is compatible with mainstream programming software such as ArtCAM, FastCAM, Starfire, etc., supports automatic programming and intelligent nesting based on AutoCAD, is easy to operate and efficient, and is particularly suitable for the rapid processing of complex graphics and multi-shaped metal parts. For thick plate cutting applications, a water tank structure can also be added free of charge to effectively absorb high-temperature smoke and dust, improve environmental protection and work environment safety.
It also supports multiple personalized customization options, including processing format, appearance structure, electrical configuration, etc. It can be flexibly customized according to the specific needs of users to meet the production needs of different industries. It is an ideal choice for sheet metal processing, machinery manufacturing, metal component cutting and other industries.
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
UTECH 1530 Cnc Plasma Cutter 3000mm Plasma Cutting Machine
This CNC plasma cutting machine adopts a thickened steel structure welded bed. After professional stress relief treatment, the overall structure is sturdy and durable, and it will not deform during long-term operation, ensuring the high precision of the cutting process and the long service life of the equipment. Equipped with Taiwan's high-precision linear guide system, it effectively improves the running stability and vertical cutting effect, and ensures that the cutting edge is smooth and neat.
The control system can be selected from Beijing Starfire system,START system,FLMC-2300A or DSP system, all of which support the automatic height adjustment (THC) system, which can adjust the cutting head height in real time according to the flatness of the material to achieve a more stable and high-quality cutting effect.
The machine is compatible with mainstream programming software such as ArtCAM, FastCAM, Starfire, etc., supports automatic programming and intelligent nesting based on AutoCAD, is easy to operate and efficient, and is particularly suitable for the rapid processing of complex graphics and multi-shaped metal parts. For thick plate cutting applications, a water tank structure can also be added free of charge to effectively absorb high-temperature smoke and dust, improve environmental protection and work environment safety.
It also supports multiple personalized customization options, including processing format, appearance structure, electrical configuration, etc. It can be flexibly customized according to the specific needs of users to meet the production needs of different industries. It is an ideal choice for sheet metal processing, machinery manufacturing, metal component cutting and other industries.
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
Brand |
Power | Recommended cutting thickness for carbon steel | Recommended cutting thickness for stainless steel |
| LGK 63A | 10mm | 5mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 15mm | |
| Powermax 45A | 8mm | 3mm |
Powermax 65A | 12mm | 5mm | |
Powermax 85A | 15mm | 6mm | |
Powermax 105A | 18mm | 10mm | |
Powermax 125A | 25mm | 16mm |
Brand |
Power | Recommended cutting thickness for carbon steel | Recommended cutting thickness for stainless steel |
| LGK 63A | 10mm | 5mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 15mm | |
| Powermax 45A | 8mm | 3mm |
Powermax 65A | 12mm | 5mm | |
Powermax 85A | 15mm | 6mm | |
Powermax 105A | 18mm | 10mm | |
Powermax 125A | 25mm | 16mm |
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
Application Industry: Sheet metal, kitchenware, components, decorations industry
Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
Application Industry: Sheet metal, kitchenware, components, decorations industry
