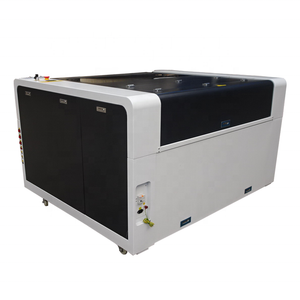

Portable Engraving CO2 Laser Machine For Cloth Leather Plexiglass

High engraving cutting speed, greatly improving the processing efficiency
Working Table:
Laser power:
Laser control system:
Driving System:
Minimum letter size:
  • CO2


  • CO2

High precision CO2 laser engraving cutting machine


Introducing our state-of-the-art Portable Engraving CO2 Laser Machine For Cloth Leather Plexiglass that will fulfill all your cutting and engraving needs with the highest level of precision and efficiency. Perfect for a wide range of industries, this professional-grade machine allows you to effortlessly cut and engrave vector graphics, alphanumeric characters, logos, and labels on non-metallic materials, and it's also suitable for laser cutting of metallic and non-metallic sheets.With their advanced features, our CO2 lasers allow you to create intricate designs and patterns on a variety of surfaces. Whether you're working with wood, acrylic, leather or fabric, the machine guarantees superior results every time.UTECHPortable Engraving CO2 Laser Machine For Cloth Leather Plexiglass is equipped with a choice of DSP offline control systems and USB interfaces, imported linear guides for durability, stability and precision, and state-of-the-art dual limit switches to protect the XYZ axes from collision with the laser components. Equipped with cutting-edge technology, our CO2 lasers offer unmatched precision and speed, allowing you to complete projects efficiently and meet tight deadlines. Take your business to the next level by investing in one of our CO2 lasers today. Experience the precision, versatility and reliability that comes with this exceptional equipment. Count on our commitment to delivering high-quality products that exceed your expectations.

co2 laser machine detailsMulti Functions CO2 laser cutting machine working for Metal and Non Metal sheet materiales laser cut.

Cutting 30mm thickness for acrylic,25mm for plywood and others non metalerials
Cutting 1.2mm Stainless steel and 1.7mm carbon steel by 180Watts

Cutting 2.7mm Stainless steel and 2mm carbon steel by 280Watts.

Main Parts:

1. Grey white
2. RUIDA RDC644G controller
3. Laser tube Beijing RECI Laser Tube
4. Imported II-VI Mirrors and Lens
5. Imported Taiwan PMI  linger guide and block
6. Leadshine driver and motor
7. Bedi belt/Germany ONK
8. power supply with meter
9. Knife working table
10. Power control for chiller, Fan, air pump
11. Air pump ACO-009D 135W
12. Exhaust fans 550W
13. Standard Teyu cooling system
14. Toolbox  (Includes USB flash drive, software, installation video, manual, focusing gauge, dimming board, power cord, cotton swab, wrench, steel ruler, screwdriver, paper tape, high-pressure tape, etc)
15. Standard wooden case package


Optional parts:


1) Honeycomb working table
2) Motorized up and down table
3) Autofocus
4) Red dot positioning
5) Rotary
6) Other brand laser tube


1390 Laser engraving machine
Working area
1300*900mm (Can tailor-made for you)
Laser power
Reci 80w/100w/130w/150w
Laser tube type
Sealed CO2 glass laser tube
laser tube cooling type
S&A Industrial Water Chiller
Cutting speed
Repositioning accuracy
Working voltage
AC110v/220v 50Hz/60Hz
Consuming power
Laser control system
RDC6442S control system
Driving system
YAKO stepper motor YKD3505M-DK-B1 and driver YK368-826G
Working table
Blade table ( Alternative Honeycomb table )
Linear guide
ABBA square rail (sub-brand of SKF)
Minimum letter size
English:1mm x1mm; Chinese: 2mm x 2mm


CO2 CNC laser cutting machines excel at cutting and engraving non-metallic materials.

Cutting materials and applications of CO2 laser cutting machines

Non-metallic materials: wood, acrylic, paper, fabric, epoxy resin, plastic, rubber, crystal and so on.

CO2 laser cutting machine application industries: clothing, leather, cloth toys, embroidery cutting, wooden models, handicrafts, advertising and decoration, paper products and other industries.
