High quality affordable CNC Router machine for woodworking 1325
Before confirming the production order, we will provide the rendering picture and 360-degree panoramic video, so that customers can fully understand the style and structure of the machine, so as to ensure that the actual machine meets the requirements of customers, so as to avoid the discrepancy between the real object and customers' imagination caused by various communication deviations.
UTECH technical support is designed to help you make the most of the machine. A variety of technical files and installation videos will be placed in the U disk and shipped with the machine. Our technical experts can provide online remote support and training, and contact UTECH technical support experts in real-time for remote diagnosis. Door-to-door service is also available.
| Size: | |
|---|---|
| Spindle Motor: | |
| XYZ Transmission: | |
| Drive&Motor: | |
| X,Y,Z Guide Rail: | |
UT-1325
UTECH
20211325

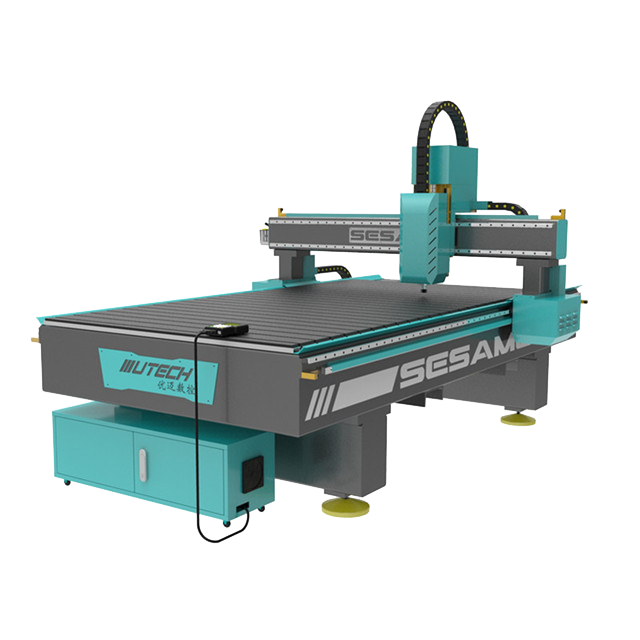

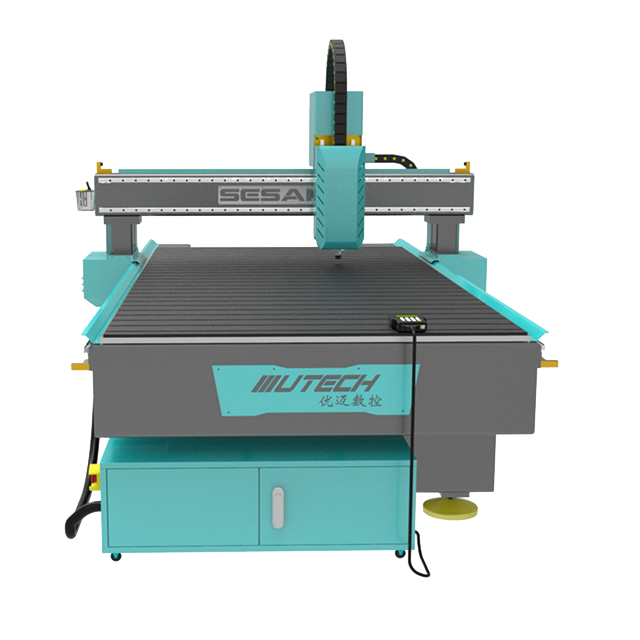

The UTECH SESAME series CNC engraving machine is designed specifically for the woodworking and advertising industries, combining high-precision structure with user-friendly design to meet the cutting, engraving, hollowing, and shaping needs of various materials.
The machine features a 200×300mm square tube welded bed, ensuring a robust structure and strong shock resistance, guaranteeing accurate and stable operation even after extended periods. A unique forklift bay design not only enhances bed strength but also facilitates loading, unloading, and relocation. High-precision machined transmission columns and aerospace-grade aluminum alloy head, through CNC precision machining and rigorous assembly, ensure clear details and smooth lines in every engraving.
The SESAME adopts a detachable design, significantly reducing transportation costs, and is equipped with a patented transmission structure for higher transmission accuracy and lower noise. A portable independent control cabinet makes operation simpler and more intuitive, facilitating on-site debugging and maintenance.
Whether it's acrylic lettering, PVC boards, two-color boards, advertising signs, lightbox panels, or decorative pattern engraving and cutting, the SESAME delivers high precision and efficiency, providing the advertising production industry with a superior processing experience and creative freedom.
Descriptions | Parameters | |||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Accuracy | ±0.05mm | |||
Table Surface | T-slot table (vacuum table is optional) | |||
Frame | Square pipe welding bed structure 200*300mm+150*200mmgantry | |||
X, Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 0-24000RPM | |||
Drive Motors | JMC stepper motor and driver | |||
Working Voltage | AC 220/380V | |||
Command Language | G Code | |||
Operating System | HD100 handle controller (DSP or Mach3 optional) | |||
Computer Interface | Ethernet (or USB) | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint | |||
SESAME Cnc Router's standard parts:
1. Leg Removable Frame
2. 4.5kw air cooled spindle+ER25 cutter, cutting thick materials, also is easy (optional)
3. Machine Base Frame
4. Anodized Aluminum Spindle Fixing plate (Z axis)
5. Dust cover for the guide rail and the helical rack gear
6. TBI High-Precision Ball-screw Transmission (Taiwan)
7. Patent design 1:4 gear reducer + Stepper 450B driving motor
8. Hiwin/PMI square rail& High quality helical rack pinion
9. CNC Tool Sensor
SESAME Cnc Router's optional parts:
1. Mach3/4/DSP controller
2. Rotary(length&diameter could be customized)
3. Automatic lubricator
4. Dust collector
5. Oil mist lubrication pump
6. T-slot table
The UTECH SESAME series CNC engraving machine is designed specifically for the woodworking and advertising industries, combining high-precision structure with user-friendly design to meet the cutting, engraving, hollowing, and shaping needs of various materials.
The machine features a 200×300mm square tube welded bed, ensuring a robust structure and strong shock resistance, guaranteeing accurate and stable operation even after extended periods. A unique forklift bay design not only enhances bed strength but also facilitates loading, unloading, and relocation. High-precision machined transmission columns and aerospace-grade aluminum alloy head, through CNC precision machining and rigorous assembly, ensure clear details and smooth lines in every engraving.
The SESAME adopts a detachable design, significantly reducing transportation costs, and is equipped with a patented transmission structure for higher transmission accuracy and lower noise. A portable independent control cabinet makes operation simpler and more intuitive, facilitating on-site debugging and maintenance.
Whether it's acrylic lettering, PVC boards, two-color boards, advertising signs, lightbox panels, or decorative pattern engraving and cutting, the SESAME delivers high precision and efficiency, providing the advertising production industry with a superior processing experience and creative freedom.
Descriptions | Parameters | |||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
Accuracy | ±0.05mm | |||
Table Surface | T-slot table (vacuum table is optional) | |||
Frame | Square pipe welding bed structure 200*300mm+150*200mmgantry | |||
X, Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 0-24000RPM | |||
Drive Motors | JMC stepper motor and driver | |||
Working Voltage | AC 220/380V | |||
Command Language | G Code | |||
Operating System | HD100 handle controller (DSP or Mach3 optional) | |||
Computer Interface | Ethernet (or USB) | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint | |||
SESAME Cnc Router's standard parts:
1. Leg Removable Frame
2. 4.5kw air cooled spindle+ER25 cutter, cutting thick materials, also is easy (optional)
3. Machine Base Frame
4. Anodized Aluminum Spindle Fixing plate (Z axis)
5. Dust cover for the guide rail and the helical rack gear
6. TBI High-Precision Ball-screw Transmission (Taiwan)
7. Patent design 1:4 gear reducer + Stepper 450B driving motor
8. Hiwin/PMI square rail& High quality helical rack pinion
9. CNC Tool Sensor
SESAME Cnc Router's optional parts:
1. Mach3/4/DSP controller
2. Rotary(length&diameter could be customized)
3. Automatic lubricator
4. Dust collector
5. Oil mist lubrication pump
6. T-slot table
