In simplest terms, plasma cutting is a process that uses a high velocity jet of ionized gas that is delivered from a constricting orifice. The high velocity ionized gas, that is, the plasma, conducts electricity from the torch of the plasma cutter to the work piece. The plasma heats the workpiece, melting the material. The high velocity stream of ionized gas mechanically blows the molten metal away, severing the material.
| Working Table Size: | |
|---|---|
| Motor and driver: | |
| Table: | |
| Power Source: | |
| Certification: | |
SESAME P1
UTECH

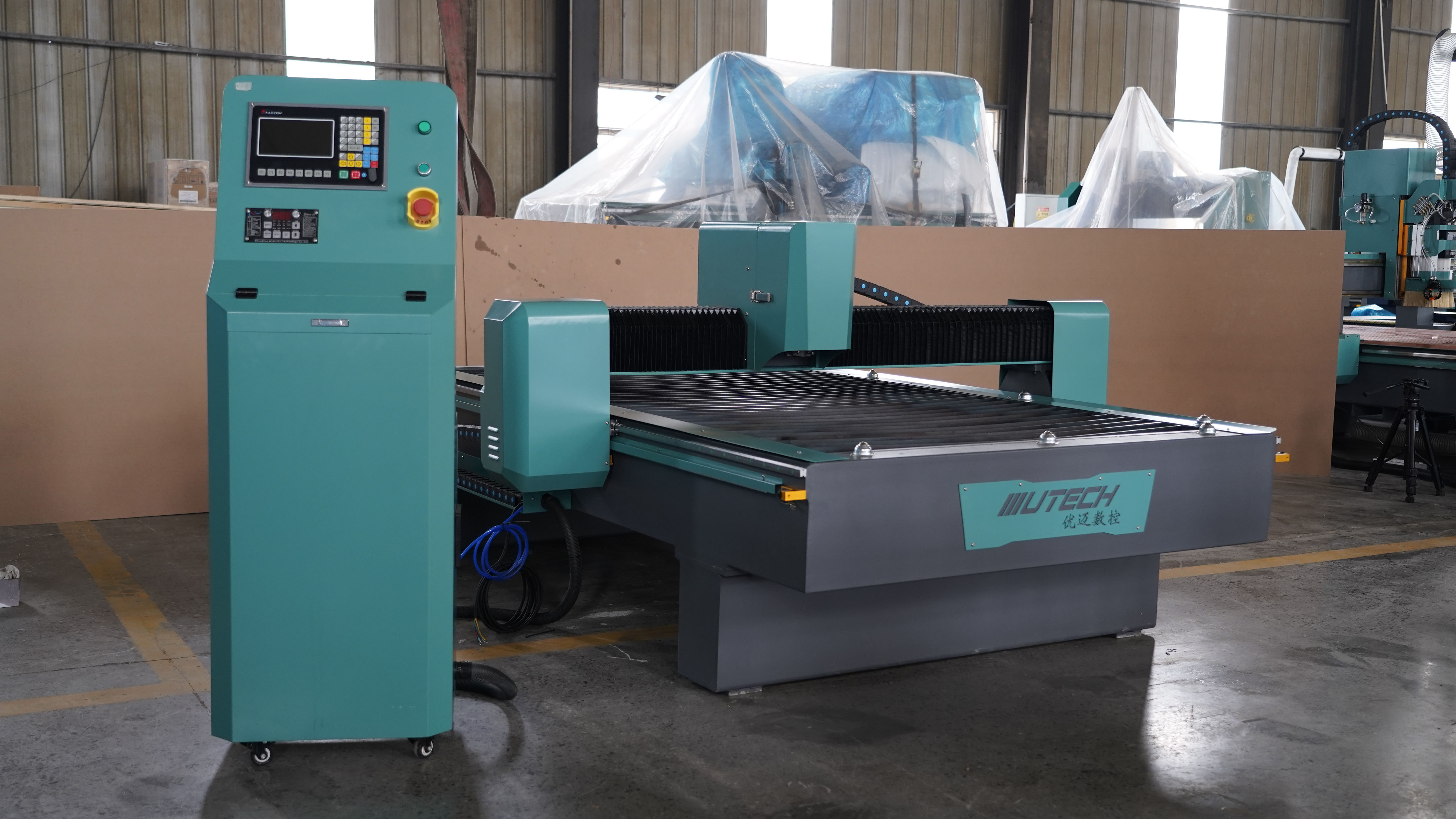

UTECH Table Type Cnc Plasma Cutting Machine 1325 for Metal
1. Test the machine and examine the cut quality
2. Determine the thickness of the metal that you will most frequently cut
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
2. Taiwan linear rail, ensure vertical section, more precision.
3. Suitable software: Artcam/ Fastcam/ Starfire etc.
4. Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
5. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
6. FASTCAM programming software based on AutoCAD automatic programming and material system.
UTECH Table Type Cnc Plasma Cutting Machine 1325 for Metal
1. Test the machine and examine the cut quality
2. Determine the thickness of the metal that you will most frequently cut
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
2. Taiwan linear rail, ensure vertical section, more precision.
3. Suitable software: Artcam/ Fastcam/ Starfire etc.
4. Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
5. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
6. FASTCAM programming software based on AutoCAD automatic programming and material system.
