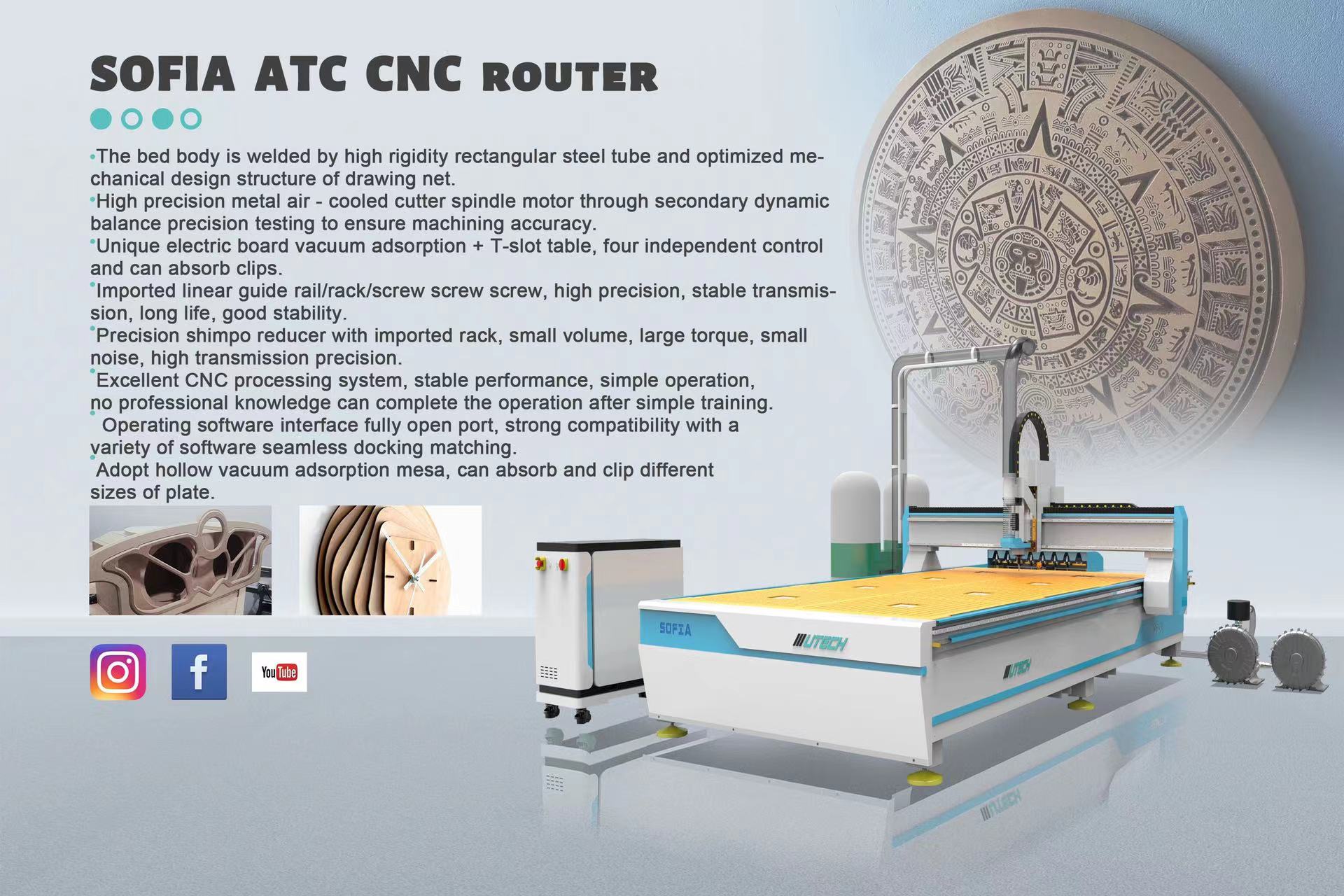

Sofia M2500 CNC Router
UTECH
High Precision 1325 1530 CNC Router Machine
for Advertising
The UTECH Sofia M2500 CNC Router, the foundational model in the Sofia series, is renowned for its ease of use and high cost-effectiveness, making it ideal for CNC beginners and small- to medium-sized processing companies. Its simple and attractive appearance and sturdy construction combine with a heavy-duty steel bed and gantry, a high-precision helical rack drive, and a versatile aluminum vacuum and T-slot worktable. These ensure high stability while ensuring cutting and engraving precision. The M2500 can be used independently or expanded with optional modules such as a CCD automatic edge-finding system, a linear automatic tool changer (ATC), and a multi-function oscillating tool changer (OKC), enabling a wider range of applications and meeting personalized processing needs. This model is particularly well-suited for the advertising and signage industry, easily cutting and engraving acrylic and high-end advertising logos, resulting in smooth, burr-free cuts and beautiful finished products.
The bed is welded by high rigidity rectangular steel tube and optimized mechanical design structure of drawing net.
High precision metal air-cooled cutter spindle motor through secondary dynamic balance precision testing to ensure machining accuracy.
Unique electric board vacuum adsorption+T-slot table, four independent control and can absorb clips.
Imported linear guide rail/rack/screw, high precision,stable transmission, long lifetime, good stability.
Precision shimpo reducer with imported rack, small volume, large torque, small noise, high transmission precision.
Excellent CNC processing system, satble performance, simple operation, no professional knowledge can complete the operation after simple training.
Operating software interface fully open port, strong compatibility with a variety of software seamless docking matching.
Adopt hollow vacuum adsorption mesa, can absorb and clip different sizes of plate.
Parameters
| Product Name | M2500 CNC Router |
| X Working Area | 1300mm |
| Y Working Area | 2500mm |
| Z Working Area | 20mm |
| X, Y, Z Traveling Position Accuracy | 0.02mm |
| X, Y, Z Repositioning Accuracy | 0.02mm |
| Table Surface | Vacuum Table+T-slot table |
| X,Y axis Transmission | 1.5M helical rack gear transmission |
| Z axis Transmission | Taiwan TBI Ball Screw |
| Spindle Power | UTECH 5.5kw water cooling spindle |
| Rotary Speed | 0-24,000rpm |
| Drive Motors | Hybrid servo motor&driver+Reducer structur |
| Working Voltage | AC220V/50/60Hz, 1PH (Option: 110V, 380V) |
| Operating System | XINGDUOWEI handle controller |
| Travel speed | 0-35000mm/min |
