In simplest terms, plasma cutting is a process that uses a high velocity jet of ionized gas that is delivered from a constricting orifice. The high velocity ionized gas, that is, the plasma, conducts electricity from the torch of the plasma cutter to the work piece. The plasma heats the workpiece, melting the material. The high velocity stream of ionized gas mechanically blows the molten metal away, severing the material.
Working Table Size: | |
---|---|
Motor and driver: | |
Table: | |
Power Source: | |
Certification: | |
Availability: | |
SESAME P1
UTECH

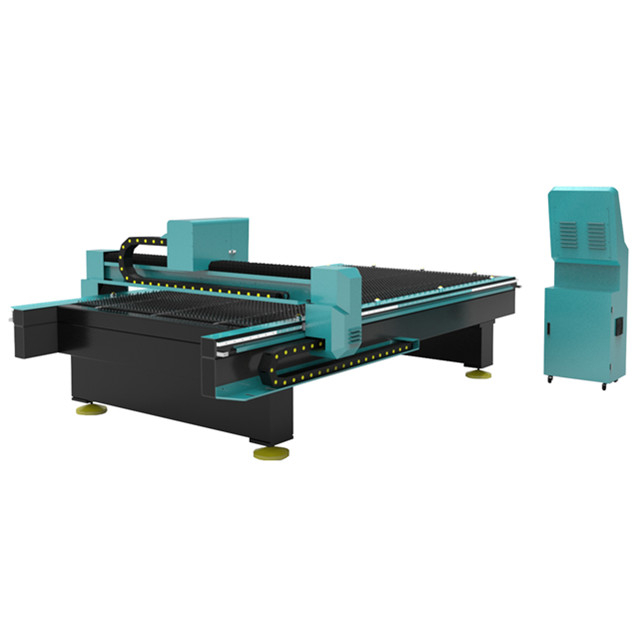

Table Cnc Plasma Cutting Machine Flame Cutting Air for Carbon Steel
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
Features
5. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
6. FASTCAM programming software based on AutoCAD automatic programming and material system.
Table Cnc Plasma Cutting Machine Flame Cutting Air for Carbon Steel
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
Features
5. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
6. FASTCAM programming software based on AutoCAD automatic programming and material system.
![]() | Plasma cutting head Including control box for adjusting height, photoelectric switch and limit switch. |
Starfire control system+Shanghai HYD Arc voltage regulator Adjust the distance automatically as the different materials | ![]() |
![]() | Plamsa power supply Chinese Huayuan power supply/America Hypertherm power supply is optional |
Gear+Taiwan HIWIN rail guide XY axis by gear rack transmission, HIWIN rail guide to make machine higher precision, faster cutting speed, more bettre cutting performance. | ![]() |
![]() | JMC Stepper driver |
sawtooth + square pipe The table can bear 2000-2500kg without deformation | ![]() |
![]() | Water tank absorb smoke and prevent burning |
![]() | Plasma cutting head Including control box for adjusting height, photoelectric switch and limit switch. |
Starfire control system+Shanghai HYD Arc voltage regulator Adjust the distance automatically as the different materials | ![]() |
![]() | Plamsa power supply Chinese Huayuan power supply/America Hypertherm power supply is optional |
Gear+Taiwan HIWIN rail guide XY axis by gear rack transmission, HIWIN rail guide to make machine higher precision, faster cutting speed, more bettre cutting performance. | ![]() |
![]() | JMC Stepper driver |
sawtooth + square pipe The table can bear 2000-2500kg without deformation | ![]() |
![]() | Water tank absorb smoke and prevent burning |
Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
Application Industry: Sheet metal, kitchenware, components, decorations industry
Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
Application Industry: Sheet metal, kitchenware, components, decorations industry

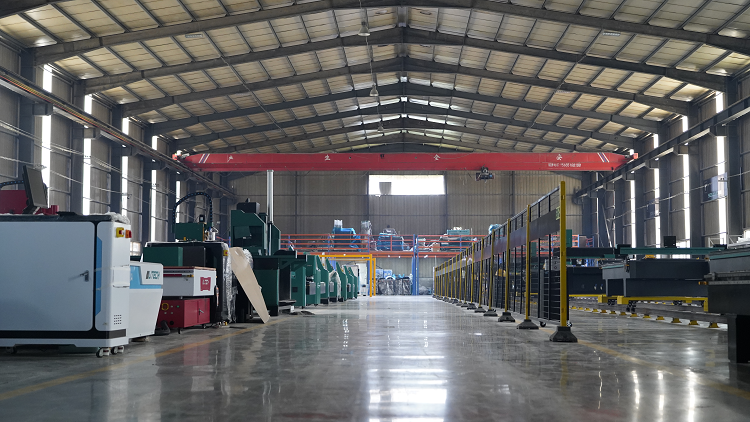

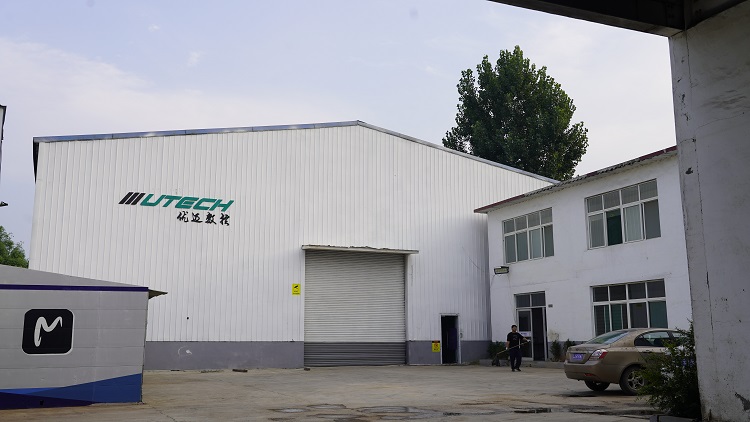

Company information
