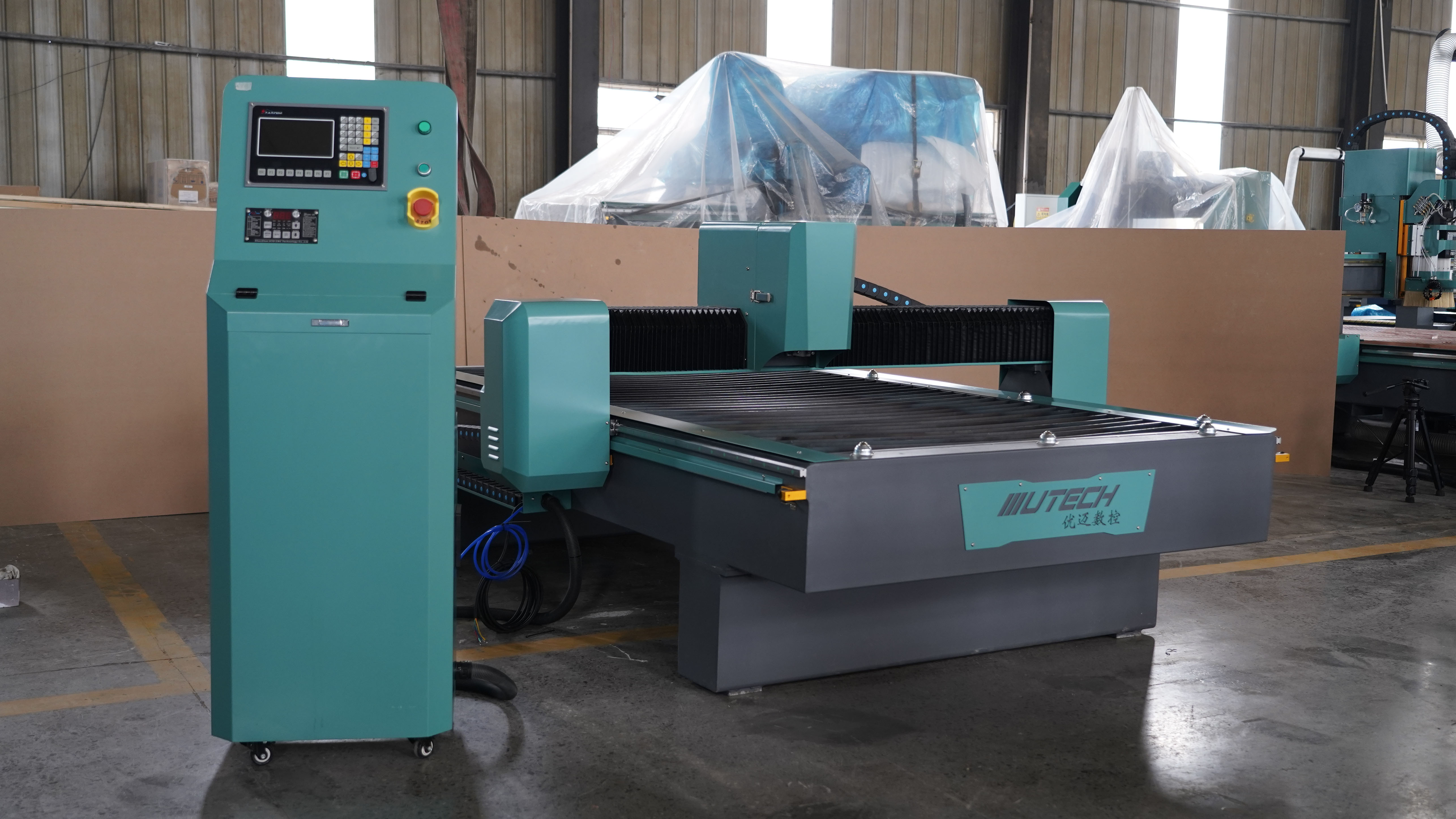

UTECH SESAME Series CNC plasma cutter is a high-efficiency, high-precision, and high-reliability cutting device integrating computer control, precision mechanical transmission, and thermal cutting. A good man-machine interface makes the operation more convenient and simple and can cut quickly and accurately. A variety of complex shapes of plates, especially suitable for medium and thin non-ferrous metal sheets, stainless steel, and carbon steel sheet automatic cutting, it adopts integrated modular design, quick installation, and is easy to move.
| Working Table Size: | |
|---|---|
| Motor and driver: | |
| Table: | |
| Power Source: | |
| Certification: | |
SESAME P1
For a quick quote and get full details, there's something Sofia wanna confirm with you.
1. How about the machine size you need? The hot sell type is 1325, 1530.
2. How about the plasma power you need? if you're not sure, also could tell me your material and cutting thickness.
3. Do you have 380V three-phase voltage?
UTECH CNC Plasma Cutting Machine's characteristics:
(1) Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long-service lifetime.
(2) Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
(3) Taiwan HIWIN linear rail, ensure vertical section, more precision.
(4) Suitable software: Artcam/ Fastcam/ Starfire etc.
(5) FASTCAM programming software based on AutoCAD automatic programming and material system.
(6) FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user complete various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
(7) If you cut thick material, according to actual use, we’ll add a water tank for you for free, to absorb a large amount of smoke generated during cutting.
(8) Machine could be customized, whatever specifications, appearance, etc. Any request you've could tell us directly.
Model | SESAME P1 CNC Cutting Machine |
Working size | 1500mm*3000mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase, 220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
