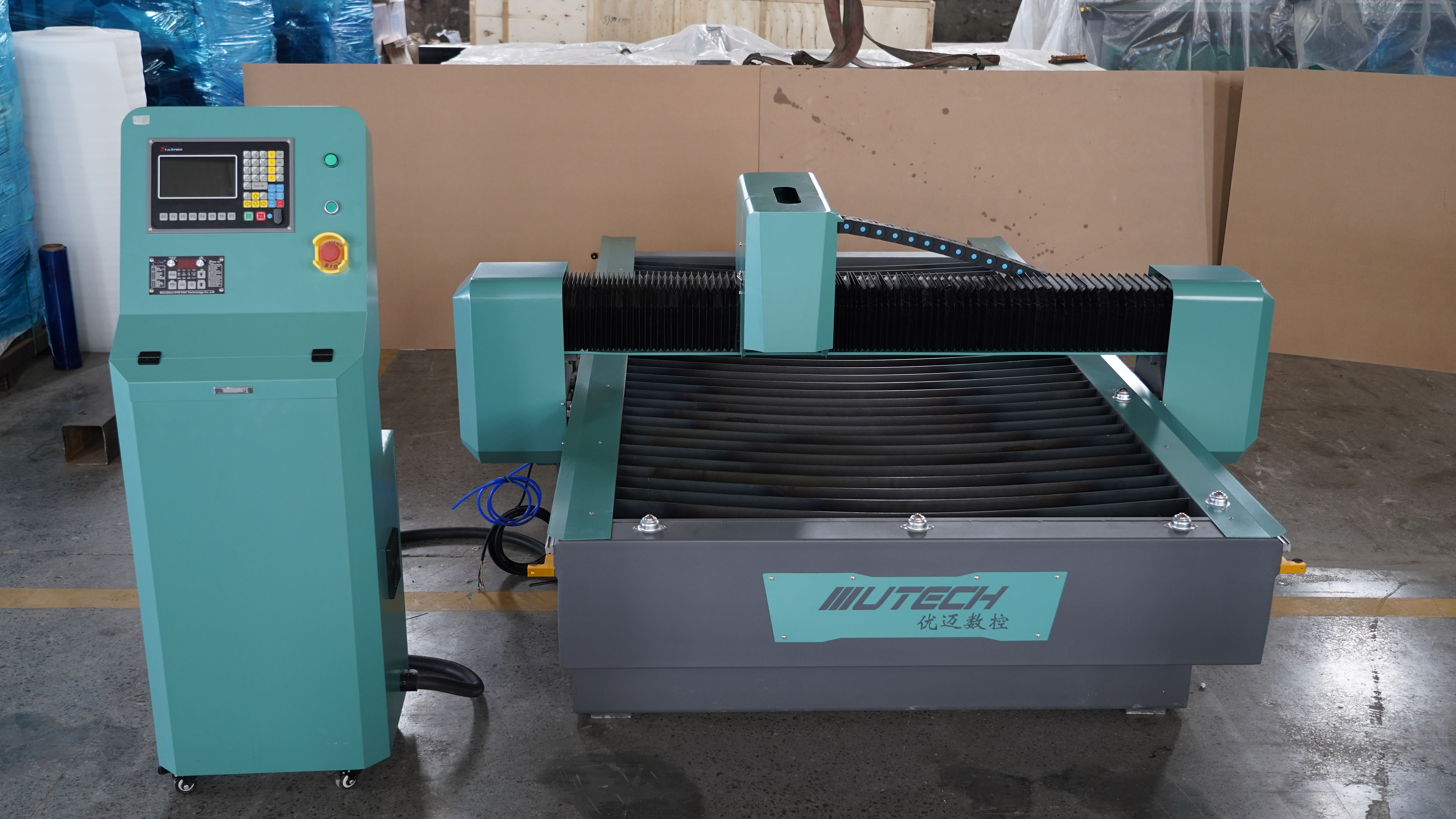

UT-1325P
UTECH
UT-1325P

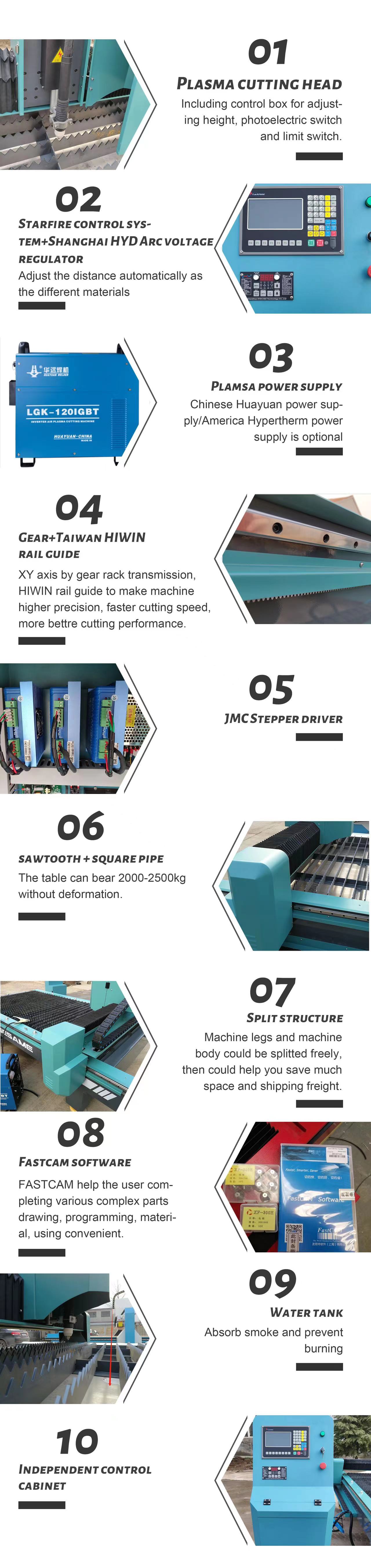

UTECH CNC Plasma Cutting Machine's characteristics
(1) Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long
service life time.
(2) Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
(3) Taiwan HIWIN linear rail, ensure vertical section, more precision.
(4) Suitable software: Artcam/ Fastcam/ Starfire etc.
UTECH CNC Plasma Cutting Machine's characteristics
(1) Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long
service life time.
(2) Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
(3) Taiwan HIWIN linear rail, ensure vertical section, more precision.
(4) Suitable software: Artcam/ Fastcam/ Starfire etc.
MACHINE PARAMTER | |
Processing area | 1300*2500mm |
Working thickness | 30mm |
Z axis feeding height | 180mm |
Working material | Iron, aluminum, titanium, stainless steel and others |
Running speed | 0-15000mm/min |
Cutting speed | 0-10000mm/min |
Power | 10.5KW |
Input voltage | 380V/220V/110V |
Power supply frequency | 50HZ/60HZ |
Plasma power supply | 100A |
File transfer mode | USB interface |
Working method | Non contact arc |
Driving mode | Gear driving |
Mode of motion | Gantry driving |
X axis motor and drive | JMC Stepper motor and drive |
Overall dimension | 2200*3300mm |
Ventilation system install mouth | Double ventilation mouths |
Weight | 1000kg |
Cooling System | DSP A12S or STARFIRE |
Guide rail | Taiwan PMI linear square rail |
Plasma generator(power) | Huayuan or Hypertherm plasma(USA) |
Plasma cutting gun | huayuan or Hypertherm plasma cutting gun |
Floating cutting gun mode of motion | Automatic and Pneumatic test |
System | Beijing Start controlling system |
Floating adjustable block | Beijing Start Floating adjustable block |
Body configuration | Steel |
Table configuration | Steel table frame iron lattice |
Material fixed mode | Electrode plate |
processing cutting instruction | EMG, G-code, U00, MMG, NC |
Machine positioning | ±0.15/300mm |
MACHINE PARAMTER | |
Processing area | 1300*2500mm |
Working thickness | 30mm |
Z axis feeding height | 180mm |
Working material | Iron, aluminum, titanium, stainless steel and others |
Running speed | 0-15000mm/min |
Cutting speed | 0-10000mm/min |
Power | 10.5KW |
Input voltage | 380V/220V/110V |
Power supply frequency | 50HZ/60HZ |
Plasma power supply | 100A |
File transfer mode | USB interface |
Working method | Non contact arc |
Driving mode | Gear driving |
Mode of motion | Gantry driving |
X axis motor and drive | JMC Stepper motor and drive |
Overall dimension | 2200*3300mm |
Ventilation system install mouth | Double ventilation mouths |
Weight | 1000kg |
Cooling System | DSP A12S or STARFIRE |
Guide rail | Taiwan PMI linear square rail |
Plasma generator(power) | Huayuan or Hypertherm plasma(USA) |
Plasma cutting gun | huayuan or Hypertherm plasma cutting gun |
Floating cutting gun mode of motion | Automatic and Pneumatic test |
System | Beijing Start controlling system |
Floating adjustable block | Beijing Start Floating adjustable block |
Body configuration | Steel |
Table configuration | Steel table frame iron lattice |
Material fixed mode | Electrode plate |
processing cutting instruction | EMG, G-code, U00, MMG, NC |
Machine positioning | ±0.15/300mm |
