Cnc Router With CCD Vision Router System is among the most versatile CNC machining systems you will find on the market. The T-slot bed makes it very easy to place the sheet stock down for cutting and routing, and even setup custom jigs, fixtures and clamps for parts marking applications.
| Structure: | |
|---|---|
| Cutting Area: | |
| Working Table: | |
| Spindle: | |
| Advantage: | |
S2-1530CCD
UTECH
Multifunction CNC Router with CCD Camera System
SESAME CNC Router with CCD Camera

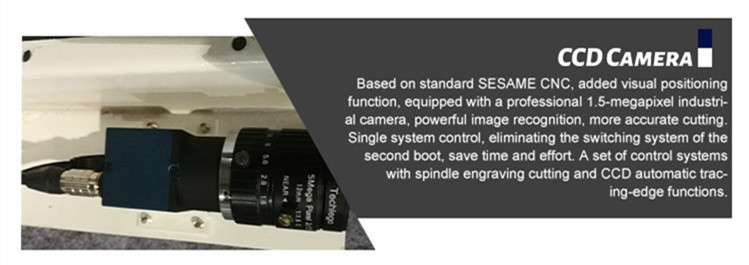

Based on standard SESAME CNC, added visual positioning function, equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting. Single system control, eliminating the switching system of the second boot, save time and effort. A set of control system with spindle engraving cutting and CCD automatic tracing-edge functions.
Automatic Edge Contour Searching Machine
------CCD CNC Router

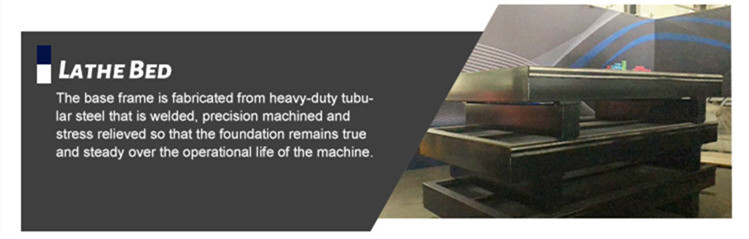

1. Adopt heavy-duty lathe bed, square pipe welded, side hanging structure, heavy column, 150*200mm gantry, ensure the overall operation stability of the equipment.
2. The transmission model adopts a precision reducer match with brand gear rack, large torque, low noise, and high transmission precision accuracy.
3. Single system control, eliminating the switching system of the second boot, save time and effort.
4. Tracing-edge cutting for different materials, KT board, PVC, photo paper to achieve no burr cutting.
5. Equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting.
6. The machine supports DXF, JPG, PNG, NC, and other formats, not only with automatic tracing-edge but also support the function of the CNC router.
SESAME CNC Router's Parameters:
| 1 | Machine Structure | Spindle+CCD Camera (oscillating knife is optional) |
| 2 | Model | UT-1325/UT-1530/UT-1632/UT-2131/UT-2141 |
| 3 | Accuracy | ±0.02mm |
| 4 | Table Surface | Vacuum/T-slot table OR Double table |
| 5 | Frame | Square pipe welding bed structure 200*300mm+150*200mm gantry |

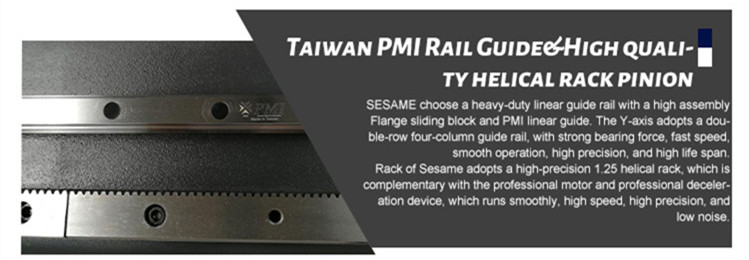

| 6 | X, Y Structure | 1.25M Helical gear rack transmission, Taiwan Linear Rail Guide |
| 7 | Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail Guide |
| 8 | Spindle Power | 5.5kw water cooled spindle+ER25 cutter |
| 9 | Spindle Speed | 18000-24000RPM |
| 10 | Drive Motors | JMC stepper motor and driver+UTECH patent typre reducer |

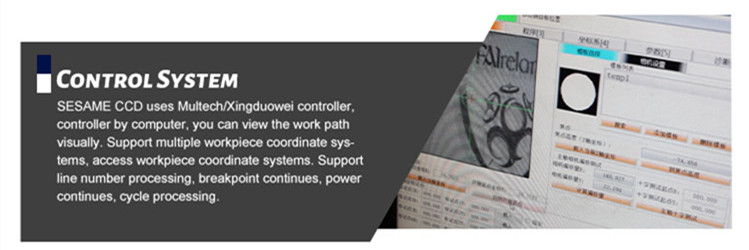

| 11 | Operating System | Xingduowei/Multech controller |
| 12 | Dust Collector | 2.2kw/3kw/5.5kw/7.5kw |
| 13 | Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint |
Why Choose US?
The SESAME CNC Router's greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future. The UTECH team has tested and implemented many loading and unloading solutions, such as 2/3 machines to pack a same wooden box; a 20GP container to package 6 sets SESAME 1325, a 40HQ container to package 20 sets SESAME 1325, etc.
Before the machine leaves the factory, each machine will undergo rigorous testing. You can leave the factory only after reaching the standard, and you will get a perfect device that can be used directly. And we provide local services, such as the United States, Mexico, Peru, France, Spain, Romania and other countries.
Applicable Industry
Advertising and logo industry
Printing and packaging industry
Leather and textile industry
Crafts and decoration industry
Template proofing and packaging industry
Shoe materials and luggage industry
Education and personalized customization industry
Packing&Delivery
SESAME series machine’s lathe bed and legs support split, after dismantle, one set SESAME CNC’s package size around 10cbm (package via standard wood box); if pack via 20GP container could contain 6 sets machine. According to your needs, we will have a perfect package, loading scheme.
If the machine is delivered via LCL, then would be packed with wrapping film, EPE foam, and a standard export wooden box.
If the machine is delivered via FCL, then doesn't need a wood box, would be packed with wrapping film, EPE foam, and metal underframe.
