Features
1. Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long service life time.
2. Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
3. Taiwan linear rail, ensure vertical section, more precision.
4. Suitable software: Artcam/ Fastcam/ Starfire etc.
5. FASTCAM programming software based on AutoCAD automatic programming and material system.
6. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
7. If you cut thick material, according to actual use, we’ll add water tank for you for free, to absorbs a large amount of smoke generated during cutting.
8. Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.
| Working Table Size: | |
|---|---|
| Motor and driver: | |
| Table: | |
| Power Source: | |
| Certification: | |

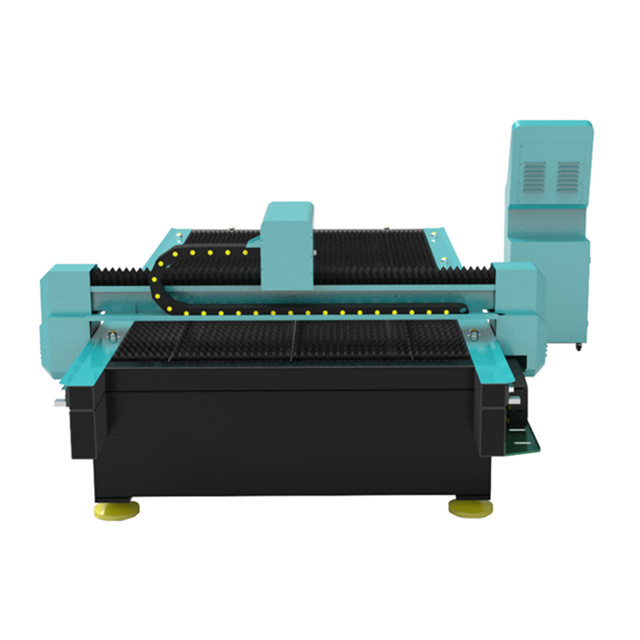

SESAME P1
UTECH
Stainless Steel Plasma Cutting Machine Cnc Plasma Cutter Machine
Brand |
Power | Recommended cutting thickness for carbon steel | Recommended cutting thickness for stainless steel |
| LGK 63A | 10mm | 5mm |
LGK 100A | 12mm | 6mm | |
LGK 120A | 15mm | 8mm | |
LGK 160A | 20mm | 10mm | |
LGK 200A | 25mm | 15mm | |
| Powermax 45A | 8mm | 3mm |
Powermax 65A | 12mm | 5mm | |
Powermax 85A | 15mm | 6mm | |
Powermax 105A | 18mm | 10mm | |
Powermax 125A | 25mm | 16mm |
Model | SESAME P1 |
Working size | 1300mm*2500mm, 100mm stroke z-axis sliding table |
Cutting speed | 10-15m/min |
Transmission system | 1.25m rack, square 20 linear guide and slider |
Operating System | Starfire SF2100/DSP A12 control system |
Driver | JMC stepper motor and driver |
Plasma power supply | Huayuan/Hypertherm |
Cutting thickness | 0-30mm |
Cutting type | Plasma/oxy-acetylene or propane |
Input voltage | 3 phase,220v/380v±10% |
Mode of file transfer | USB Interface |
Water tank | Underlay stainless steel sink(absorb smoke and prevent burning) |
Table-board | sawtooth + square pipe, spacing is 70 mm |
Straight line positioning precision | ±0.2mm/10m |
Straight line repeat precision | ±0.3mm/10m |
Environmental temperature | -5~45°C |
Humidity | <90% No concreting |
Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.
Features
 | Plasma cutting head Including control box for adjusting height, photoelectric switch and limit switch. |
Starfire control system+Shanghai HYD Arc voltage regulator Adjust the distance automatically as the different materials |  |
 | Plamsa power supply Chinese Huayuan power supply/America Hypertherm power supply is optional |
Gear+Taiwan HIWIN rail guide XY axis by gear rack transmission, HIWIN rail guide to make machine higher precision, faster cutting speed, more bettre cutting performance. |  |
 | JMC Stepper driver |
sawtooth + square pipe The table can bear 2000-2500kg without deformation |  |
 | Water tank absorb smoke and prevent burning |
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
1. What can I use a plasma cutter for?
Plasma cutting is ideal for cutting steel, and non-ferrous material less than 1 inch thick. Oxyfuel cutting requires that the operator carefully control the cutting speed so as to maintain the oxidizing process.
2. What is plasma cutting technology?
In simplest terms, plasma cutting is a process that uses a high velocity jet of ionized gas that is delivered from a constricting orifice. The high velocity ionized gas, that is, the plasma, conducts electricity from the torch of the plasma cutter to the work piece. The plasma heats the workpiece, melting the material. The high velocity stream of ionized gas mechanically blows the molten metal away, severing the material.
